SQU OF68 universal car emulator supports IMMO/Seat occupancy sensor/Tacho Programs.

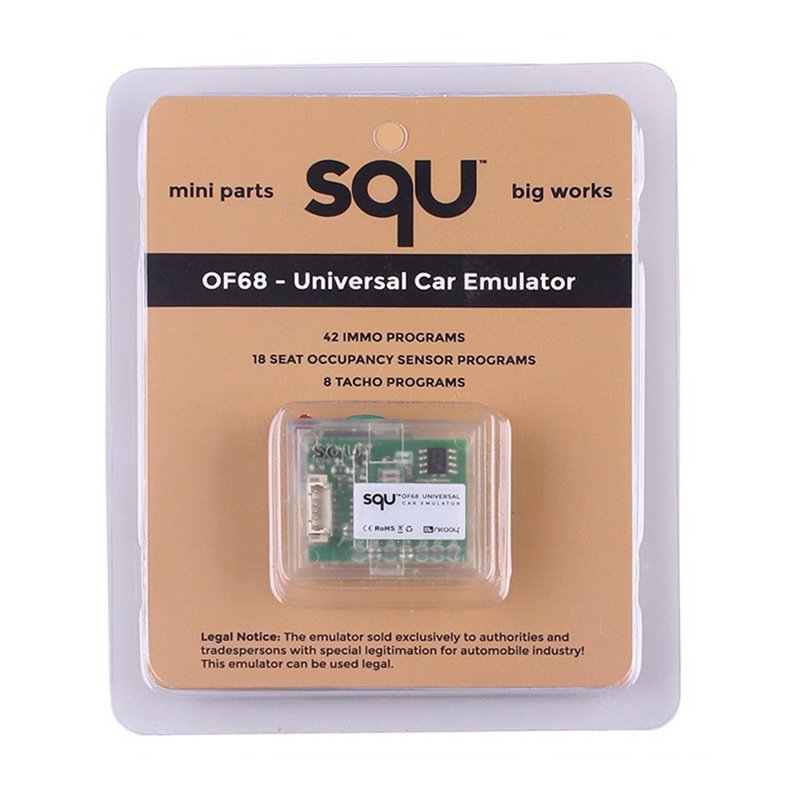

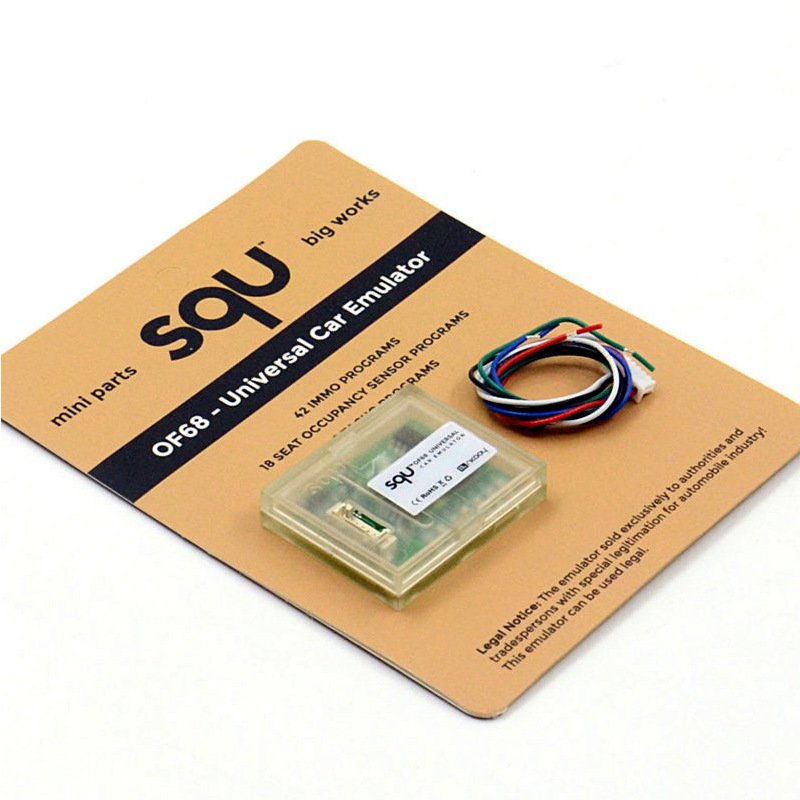

SQU OF68 Universal Car Emulator Mini Parts Big Works
The SQU OF68 universal car emulator allows you to do:
Move the original immobiliser signal
Place the original immobiliser signal
Place the ESL, enable the car to start
ECK the EZS on the table
ECK the correctness of the airbag system
Art the tacho on the table
The SQU OF68 emulator comes with 68 programs that are dedicated to hundreds of car models and types of ECU.
You are allowed to choose from any of folllowing program:
1. Immo programs
2. Seat occupancy sensor programs
3. Tacho programs
The vast majority of programs can be used multiple times.
Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.
42 Immo Programs:
1. For VW automatic immo OFF (single use)
2. For VW automatic immo ON (single use)
3. For VW without CAN
4. For VW – Hitachi
5. For VW – Valve Code
6. For VW EDC15 immo OFF (single use)
7. For VW EDC15 immo ON (single use)
8. For VW EDC16 K-LINE immo OFF (single use)
9. For VW EDC16 K-LINE immo ON (single use)
10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)
11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)
12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)
13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)
14. For VW ME7 immo OFF (single use)
15. For VW ME7 immo ON (single use)
16. For BMW EWS II and EWS III 3.2 systems
17. For Chrysler
18. For Citroen, Peugeot with CAN
19. For Daewoo 1
20. For Daewoo 2
21. For Fiat without CAN
22. For Fiat with CAN
23. For FSO Polonez
24. For Honda
25. For Kia Sportage 2.0TD
26. For Mercedes CR without CAN Infrared
27. For Mercedes CR1 with CAN WSP
28. For Mercedes CR1 with CAN EZS
29. For Mercedes CR1 with CAN infrared
30. For Mercedes CR2 with CAN WSP
31. For Mercedes ESL – steering wheel column lock emulator
32. For Mercedes ESL2 – steering wheel column lock emulator
33. For Nissan NATS 4 and 5 32.
34. For Opel immo with HC05
35. For Renault with CAN
36. For Renault without CAN
37. For Renault without CAN old ECUs
38. For Suzuki with X24C01 memory
39. For Suzuki with OKI memory
40. For Suzuki 93C56 memory
41. TMS 374 – Citroen, Peugeot, Renault
42. For Yamaha
Seat Occupancy Sensor Programs:
1: For BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat
2: For Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat
3: For Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat
4: For Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat
5: For Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat
6: For Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat
7: For Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat
8: For BMW from 1997 to 2007 , Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat
9: For BMW from 1997 to 2007. Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat
10: Mini Cooper from 2002 to 2005 without installed child seat
11: Mini Cooper from 2002 to 2005 with installed child seat
12: For Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat
13: For Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat
Tacho Programs:
1. For Audi Q7 and A6
2. For Citroen C4 Picasso
3. For EMF Display
4. For Renault Kangoo 3 Display
5. For Renault Scenc II, Espace IV Tacho
6. For Renault Scenic Full
7. For Renault Scenic III + Navi
8. For VW Passat B6

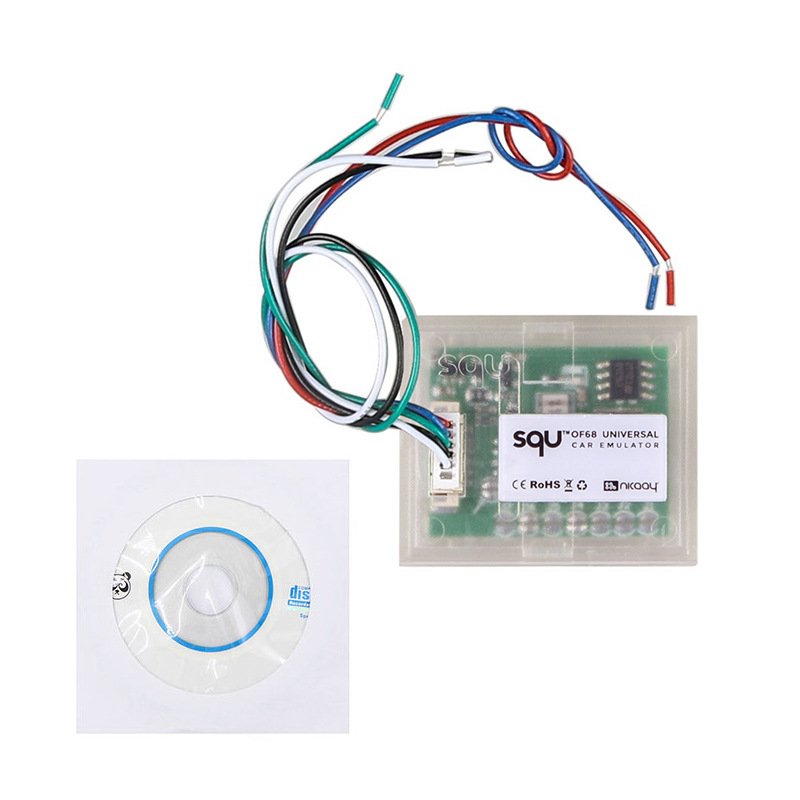

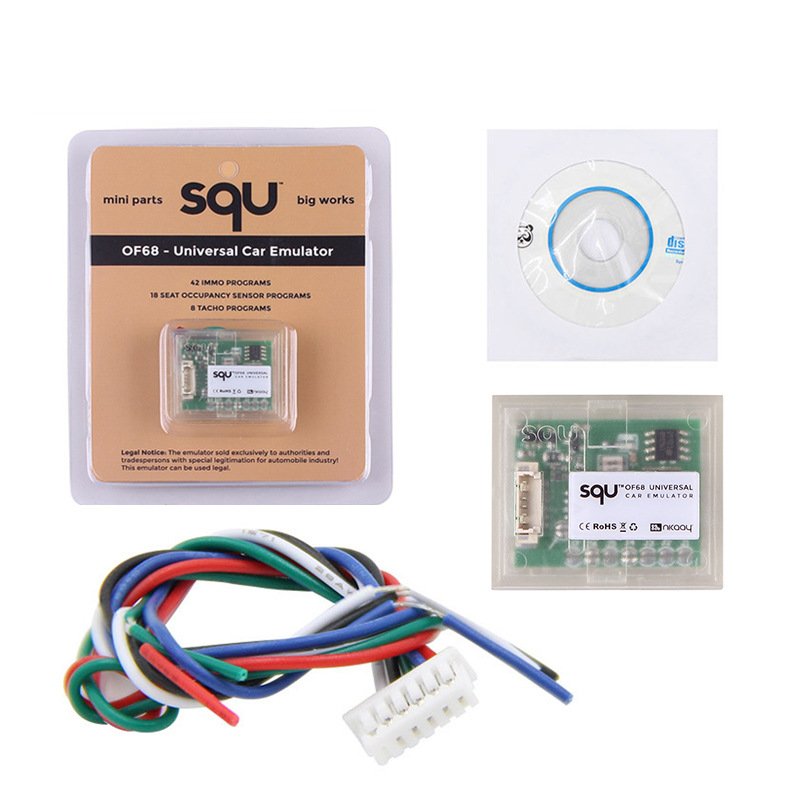

Package:
1pc x SQU OF68 Universal Car Emulator
1pc x CD for user manuel
