SUMMARY POWERJET GDI S4 Injector Cleaner & Tester Machine Kit Support for 110V Petrol Vehicles Motorcycle 4-Cylinder
SUMMARY POWERJET GDI S4 injector cleaner & tester uses ultrasonic technology and microprocessor fuel pressure control cleaning and testing technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.
SUMMARY POWERJET GDI S4 injector cleaner & tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing four injectors at the same time.
Product Features:
GDI full support
This equipment supports testing of various GDI injectors, including Bosch, Denso, Delphi, etc. Support long GDI injector detection, such as Mercedes-Benz and BMW.
Resistance test
Support the resistance measurement of the fuel injector to know the performance status of the fuel injector.
Quick disassembly
The special structure design makes the disassembly and assembly of the fuel separator more efficient and quicker.
Small and lightweight
The device is very small and light and easy to move. It is currently the smallest full-function test equipment for GDI injectors.
Strong cleaning
The machine has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.
Humanization design
Adopting humanization design can make the system pressure fast restored to the default values.
Product Functions:
Supports various GDI injectors
Injector resistance test
Full test for low resistance injectors
Side feed injectors support(With Optional Spare Parts)
Ultrasonic cleaning
Uniformity & Sprayability test
Leakage test
Injecting volume test
Working modes test
On-Vehicle cleaning
Product Comparison:
| Brands | Summary | Autool | Launch | Summary machine can support all kinds of injector cleaning and testing | |
| Model | PowerJET GDIS4 | CT160 | CT180 | CNC-402 | |
| 4 cylinder series |  |
 |
 |
 |
|
| size | 355*350*380 | 340*295*360 | 305*345*425 | 670*500*600 | |
| volume | 0.047 m3 | 0.036 m3 | 0.045 m3 | 0.201 m3 | |
| weight | 10KG | 8.5KG | 9KG | 30KG | Votec injector: |
| Support low resistance injector (1-2Ω) test and cleaning function | Yes | No | No | No | |
| Support Top-feed fuel injector test & cleaning | Yes | Yes | Yes | Yes | Top-feed fuel injector: |
| Support Side-feed fuel injector test & cleaning(With Optional Spare parts) | Yes( standard configuration does NOT support.) | No | No | Yes | |
| Support GDI fuel injector test & cleaning | Yes | No | No | No | Side-feed fuel injector: |
| Support GM TBI injector test & cleaning(With Optional Spare parts) | YesYes( standard configuration does NOT support.) | No | No | No | |
| Support Votec injector test & cleaning(With Optional Spare parts) | Yes( standard configuration does NOT support.) | No | No | No | GDI fuel injector: |
| Injector resistance testing function | Yes | No | No | No | |
| RPM adjustable range:100~9900rpm, | Yes | No | Yes | Yes | GM TBI injector: |
| Pulse width adjustable : 0.1~25ms, | Yes | No | Yes | Yes | |
Product Specifications:
| Main unit power supply | AC110V±10% 60Hz |
| Input power | 230W |
| Ultrasonic cleaner power | 100W |
| Simulated RPM range | 100~9900rpm, step:10rpm |
| Time range | 5~300s, step:5s |
| Pulse width | 0.1~25ms,step: 0.1ms |
| Fuel tank capacity | 2000ml |
| Work pressure | 0-7bar |

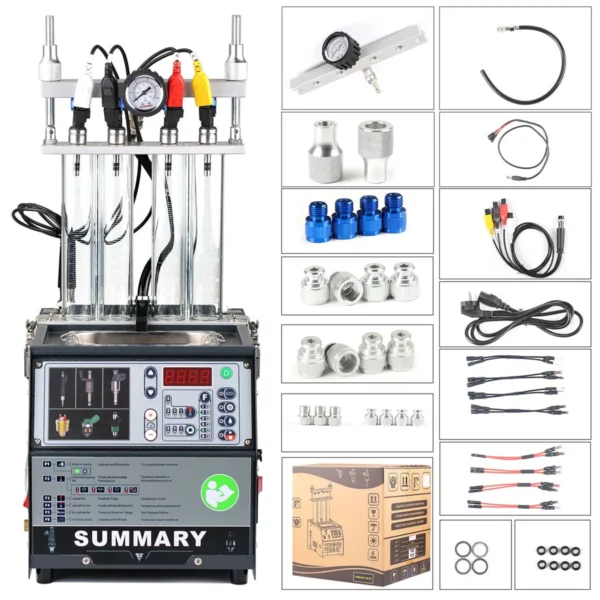

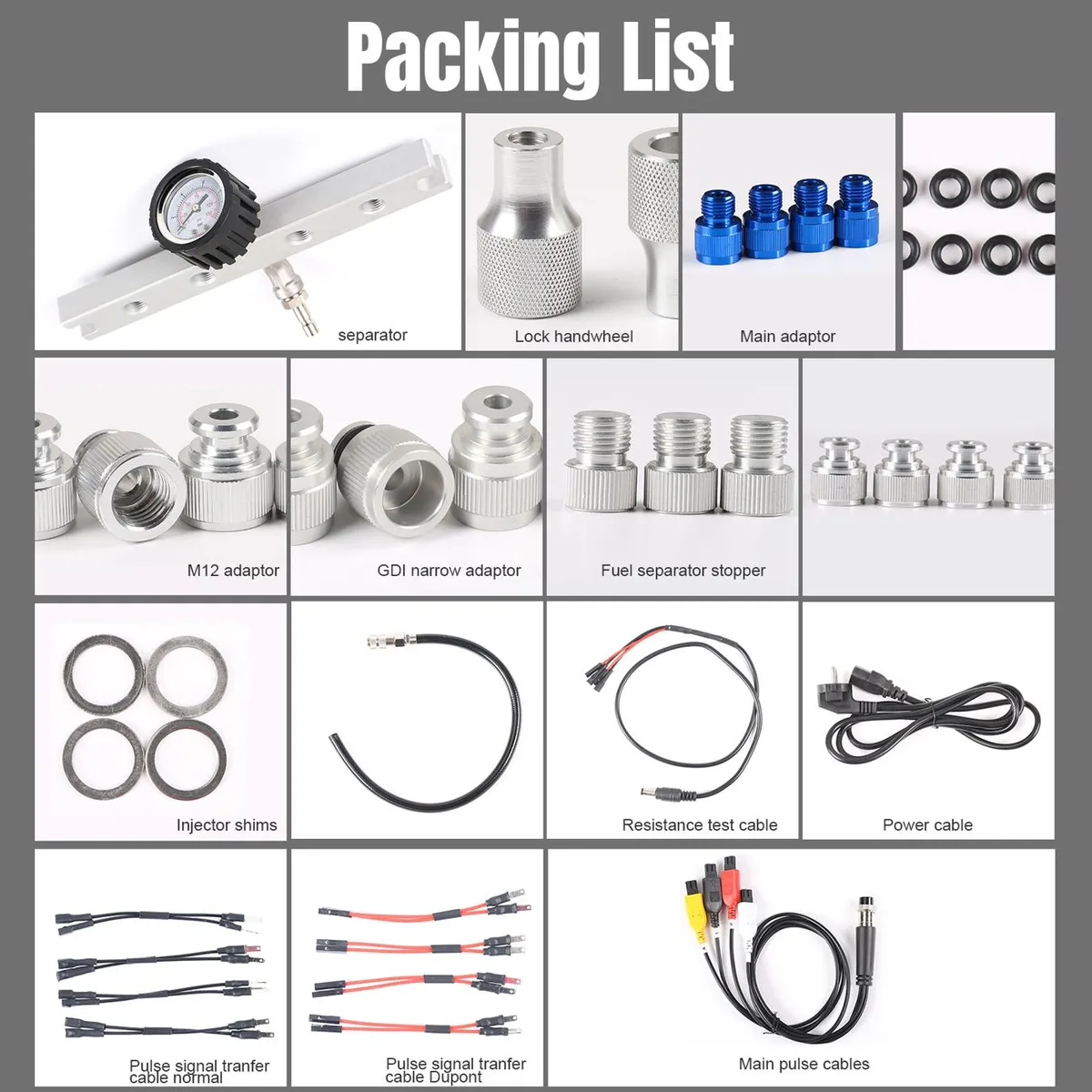

Package Includes:
1pc x Main pulse cable
1pc x Fuel separator
1pc x User manual
1pc x Fuel separator stopper
1pc x Lock handwheel
1pc x Power cable
1pc x Pulse signal cable
1pc x Main adaptor
1pc x Vice adaptor
1pc x Injector shims
1pc x Resistance test cable
1pc x O-ring
1pc x GM GDI adaptor
1pc x Universal GDI adaptor
1pc x Thread GDI adaptor
1pc x Extended pole
