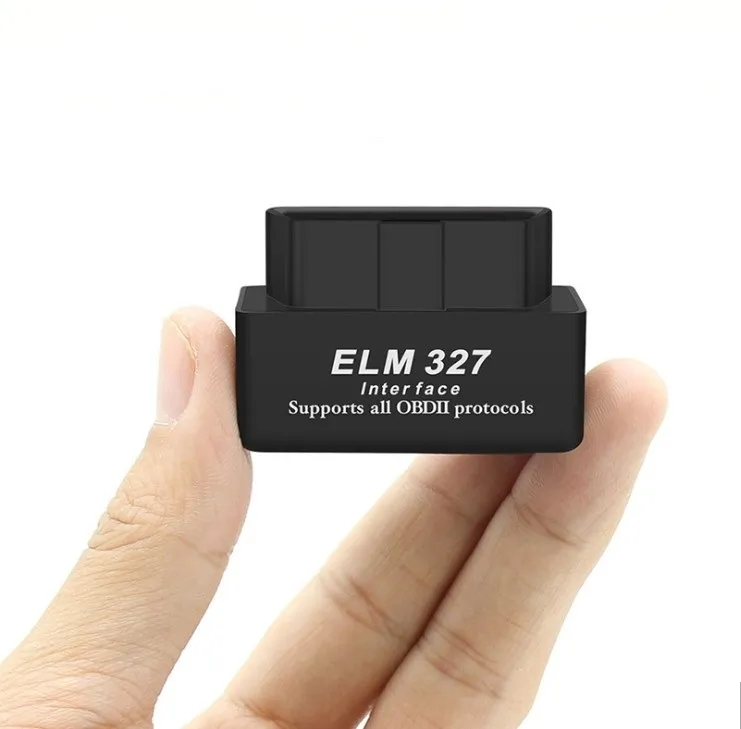

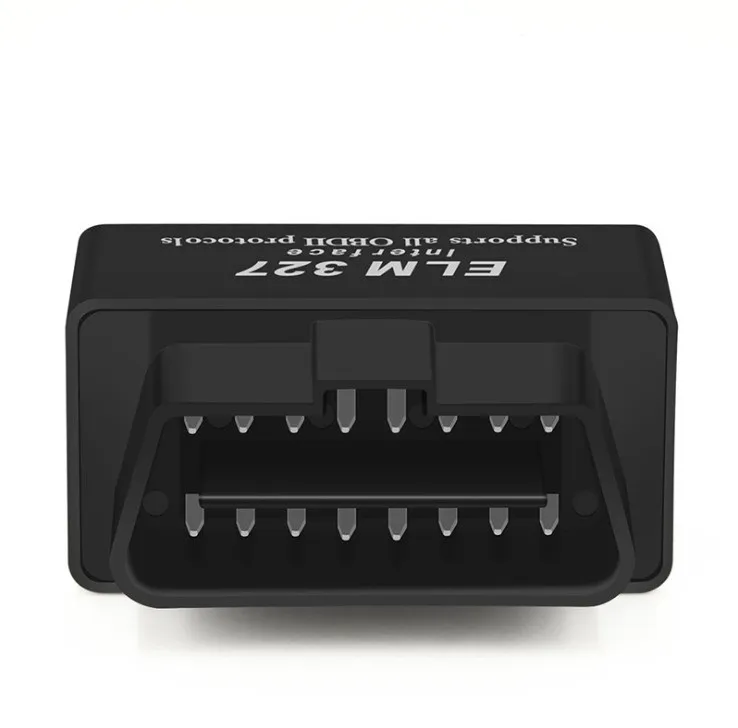

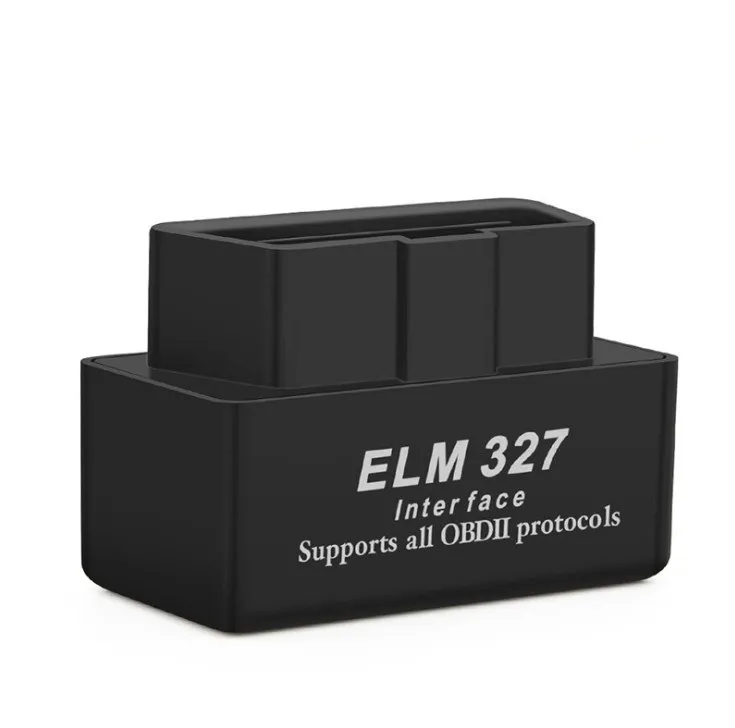

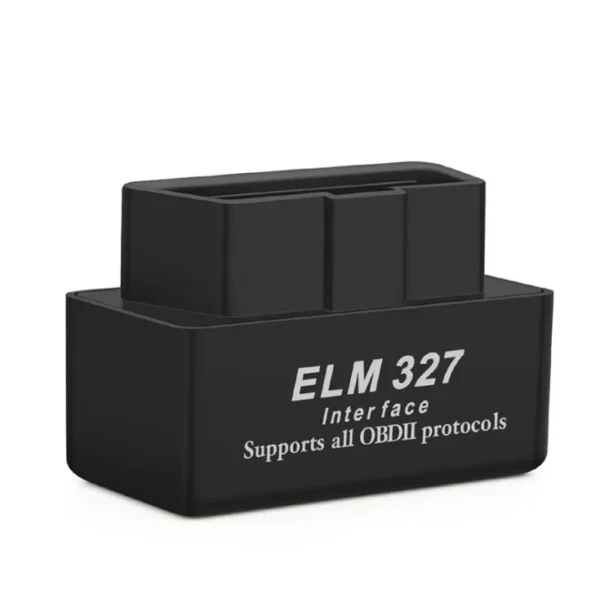

Super Mini ELM327 Bluetooth OBDII Car Diagnostic Adapter

Super Mini ELM327 Bluetooth OBDII Car Diagnostic Adapter

The super mini elm327 bluetooth OBDII car diagnostic adapter supports all OBD-II self-diagnostic systems and the detection of compatible communication protocols. Its function dunks 1. Read general and automobile manufacturer specific diagnostic fault codes and display their definitions (software contains more than 3000 fault codes) 2. Clear the fault codes and turn off the engine (engine) fault alarm indicator 3. Read the real-time dynamic data flow of the engine: engine speed, calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, intake manifold pressure, timing advance, intake temperature, air flow, throttle Valve opening, oxygen sensor voltage/short-term fuel fine adjustment, fuel pressure, etc.
The OBD-II protocol is supported as follows:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
It Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Top 6 Reasons To Get Super MINI ELM327 Bluetooth
1. Software Version: V2.1

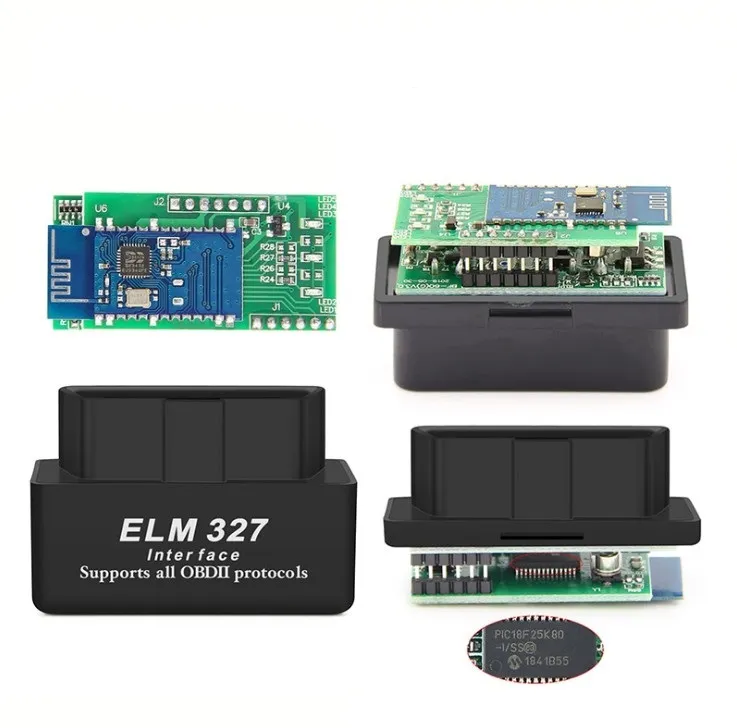

2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Software included for Palm, PDA, Windows PC, Windows Smartphone
6. Supports ISO 9141, KWP2000, CAN bus

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings (user adjustable)

MINI ELM327 Bluetooth Functions:
•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
•Clear trouble codes and turn off the MIL (“Check Engine” light)
•Display current sensor data, including:
•Engine RPM
•Calculated Load Value
•Coolant Temperature
•Fuel System Status
•Vehicle Speed
•Short Term Fuel Trim
•Long Term Fuel Trim
•Intake Manifold Pressure
•Timing Advance
•Intake Air Temperature
•Air Flow Rate
•Absolute Throttle Position
•Oxygen sensor voltages/associated short term fuel trims
•Fuel System status
•Fuel Pressure
•Many others

Comparison:

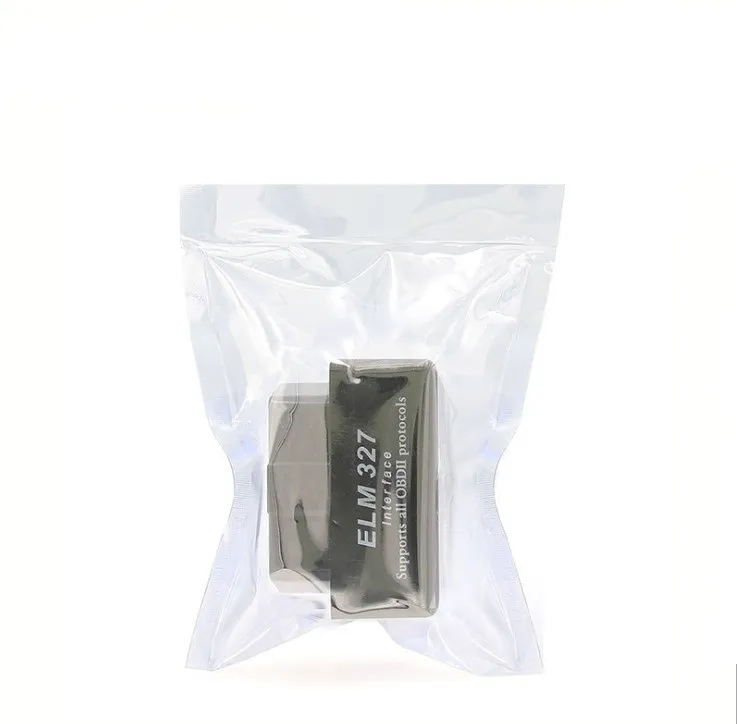

Package list:
1pc x MINI ELM327 Bluetooth
1pc x CD Drive
