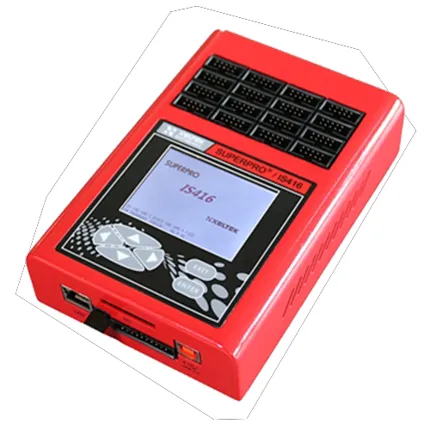

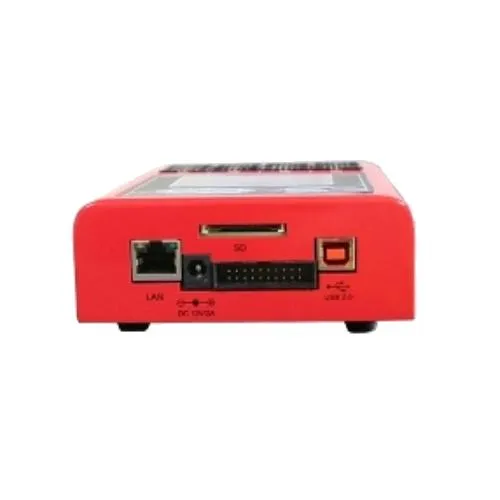

SuperPro IS416 In-System (ISP) Gang Programmer With 16 Channels

SuperPro IS416 In-System (ISP) Gang Programmer With 16 Channels

Superpro IS416is a universal ISP Gang programmer which supports devices with almost all serial protocols. Programs up to 16 serial devices simultaneously. Up to 4 parallel devices like eMMC, NAND, NOR FLASH can be programmed in system simultaneously. USB2.0 or network remote and stand-alone operation modes. DLL/API/Command-Line Commands available under license for integration with ICT, FCT, ATE and testing fixture.

Application

* Most suitable for PCB panel programming
*ATE, FCT, ICT, Test Fixture integration
*Core of ISP station
*General ISP gang programming for volume production
*Tool used for firmware in-system update
*Field service and repairing tool for electronic equipment such as automotive and air conditioners.

Multiple Ways to Control SuperPro IS416

*Ultra Fast Programming Speed SuperPro– IS416 is designed with high programming speed in mind. Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state machine architecture constructed with FPGA to achieve a ultra-high programming speed.

*Up to 16 PCB Gang Programming– SuperPro IS416 supports almost all serial devices including MCUs, serial FLASH/EEPROMs and most parallel memory devices such as eMMC and NAND/NOR FLASH. It is a 96-pin driver programmer with 16 channels (6 I/O x 16 channels). SuperPro IS416 supports most ISP devices to program 16 channels simultaneously. Four parallel high pin count chips, such as NAND/eMMC, can be programmed at the same time

*Expansion– Up to 12 programmers can be connected to a single PC for programming multiple PCBs or all the programmers can be used in stand-alone mode.

*Mass Production Mode– SuperPro IS416 has a working mode called “mass production”, that is, once the programmer detects that the target board is ready and receives an ISP signal, it immediately starts the functional operation defined by AUTO without keyboard operation. TPIN and TPOUT in the ISP port are provided for this purpose. TPOUT supplies high level, and TPIN is the level detection input line. If these points are short-circuited on the target board, once ISP signal is applied to the test point, TPIN immediately detects high level, and AUTO command sequence can be started.

*Longer Cable Length – Supported with Adjustable Speed –For industrial applications, numerous problems arise if in-system programming (ISP) is done with a parallel programmer via an ISP header. Parallel programmers restrict the target board to be programmed at a particular distance (usually less than a couple of inches). SuperPro IS416 is a serial programmer with an ISP cable that can program a target board up to 3 feet (1M) in distance. Beside the cable line drive ability for long distance applications, the advanced in-system driver allows operating speed to be adjusted for execution timing purposes. VDD (0-5.5V /0.5A) and Vpp (0-15V / 0.2A) lines provided to power the target board and the target devices.

*Technical Support– Xeltek is proud to offer same day support for technical and sales inquiries. We are available to help customers and representatives resolve issues or help with their requests in an effective way. This service is provided by our highly qualified new support team that will provide the best of their knowledge to bring prompt sales and technical support.

Advanced Software Features

SuperPro IS416 comes with a powerful and easy to use programming software. The biggest advantage is its simplicity so that any operator can operate the programmer with little or no training. SuperPro IS416 software is supported on Windows Vista, 7, 8, and 10 32/64Bits.

*Project Files-The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.

*Project Group: Operate Multiple Project Files in Batch Mode –Multiple chips could be programmed simultaneously using the Project Group feature on the SuperPro IS416 software. Project Group organizes batch running of multiple projects and is available on all SuperPro ISP models. Other ISP programmers require a demultiplexer for programming two chips using a single ISP programmer and this solution is not suitable for volume production because it takes longer to program chips, causes noise interference, and incurs additional hardware and labor cost.

*Super Scale Project Group-Complicated PCBA or multiple combined PCBAs may need multiple programmers to work properly. The Super Scale Project Group is responsible for the workflow across multiple programmers.

*Auto Function-The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.

*Production Statistics– A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.

*Factory Mode– This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode.The administrator can set a password to prevent unauthorized access to the system.

*XPlayer– SuperPro IS416 supports JAM, SVF and Staple files from ACTEL, Xilinx and ALTERA. SuperPro IS416 also supports Direct C files from ACTEL. STP or JAM files can be generated using design tools such as ISE and Quartus II.

*Auto Recognition of File Types– We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.

*Auto Increment of Serial Numbers– Auto-generation of electronic serial numbers is available on Superpro IS416. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode. Barcode Management is also available to fulfill all setup tasks by scanning barcode on the job sheet.

*Copyright Protection– with SD encryption, project file encryption and access control, volume control and remote control.

What’s in the box?

SuperPro IS416 comes with
4 ISP Cables
AC Adapter
USB Cable
SD Card for stand-alone operation
