SVCI J2534 Diagnostic Tool for Ford & Mazda Support Online Module Programming

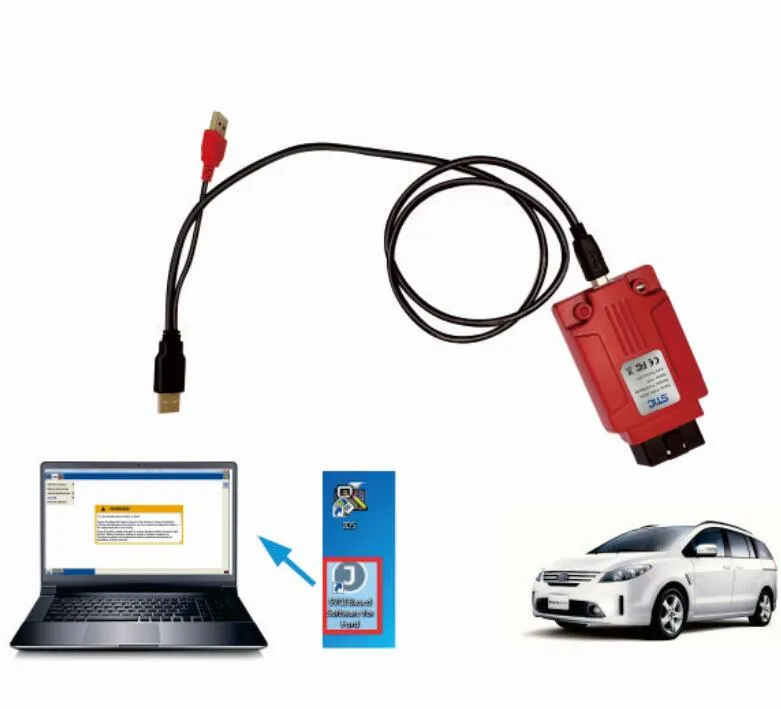

SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2 .It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also,support most of ELM327 software.
Top 7 Reasons to Get SVCI J2534:
1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online firmware update.
6. USB 802.11 selectable host communication.
7. Support ELM327 software by one device.
SVCI J2534 Support Softwares:
J2534 Ford IDSV125
Mazda IDS V125
Toyota TIS V15.00.026
Land Rover/Jaguar SDD2 V160
SVCI J2534 Support ELM327 Softwares:
ELMconfig
Forscan
FOCCCUS
FF2

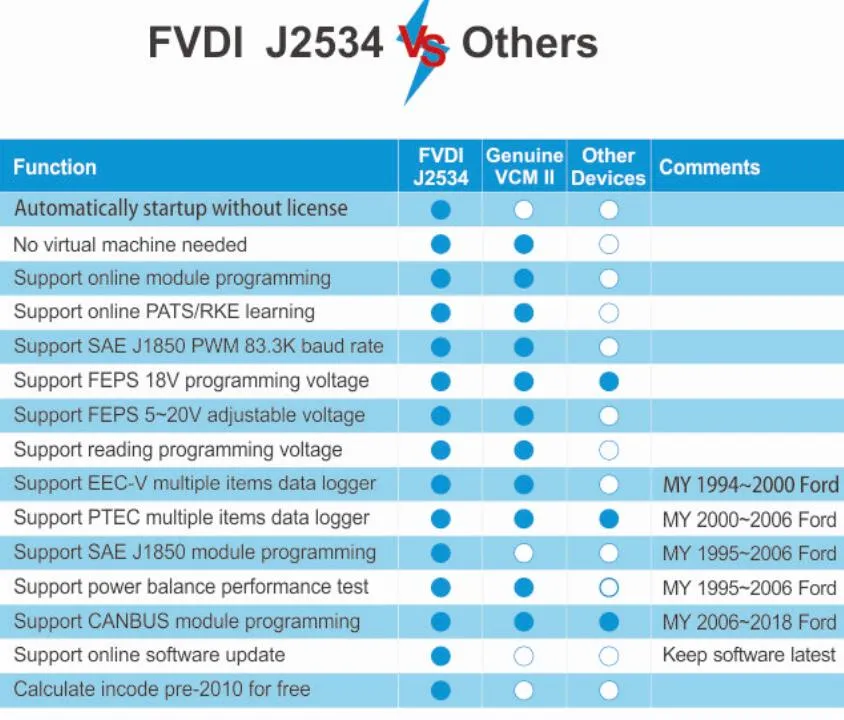

SVCI J2534Comparison Table with other Devices
SVCI J2534 VS.Ford/MazdaIDS:
| Functions | SVCI J2534 | Genuine VCM 2 | Other Devices | Comments |
| Automatically startup without license | √ | × | × | |
| No virtual machine needed | √ | √ | × | |
| Support online Modules Programming | √ | √ | × | |
| Support online PATS/RKE learning | √ | √ | × | |
| Support SAE J1850 PWM 83.3K baud rate | √ | √ | × | |
| Support FEPS 18V programming voltage | √ | √ | √ | |
| Support FEPS 5-20V adjustable voltage | √ | √ | × | |
| Support Reading Programming voltage | √ | √ | × | |
| Support EEC-V multiple items data logger | √ | √ | × | MY 1994-2000 Ford |
| Support PTEC multiple items data logger | √ | √ | √ | MY 2000-2006 Ford |
| Support SAE J1850 module programming | √ | × | × | MY 1995-2006 Ford |
| Support power balance performance test | √ | √ | × | MY 1995-2006 Ford |
| Support CANBUS module programming | √ | √ | √ | MY 2006-2018 Ford |
| Support online software update | √ | × | × | Keep software latest |
| Calculate incode pre-2010 for free | √ | × | × |
SVCI J2534 VS.ToyotaTIS:
| Function | SVCI J2534 |
Genuine OTC |
Other Devices |
Comments |
| Automatically startup without license | ● | |||
| No virtual machine needed | ● | ● | ● | |
| Support ISO15765 vehicle diagnostic | ● | ● | ● | |
| Support ISO14230 vehicle diagnostic | ● | ● | MY1995~2006 Toyota | |
| Support online software update | ● | Keep software latest | ||
| Calculate smart system reset PIN for free | ● |
SVCI J2534 Support Protocols:
ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
KWP1281
J2819(TP2.0)
SVCI J2534 Specifications:
L*W*H: 76mm*54mm*22mm
Environmental: -20°C-45°C(-4℉-113℉) at 15% to 85%
Voltage Requirements: 8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection: Molded DLC3(OBDII-16)

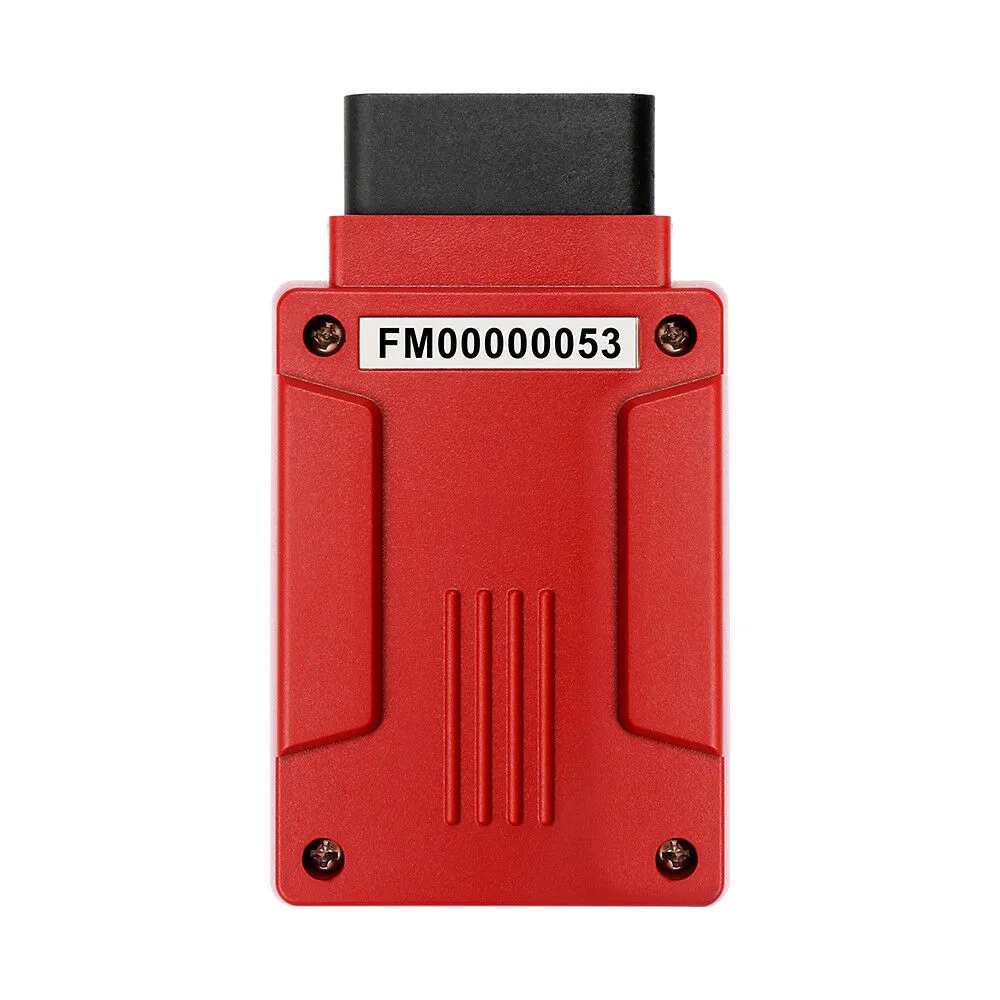

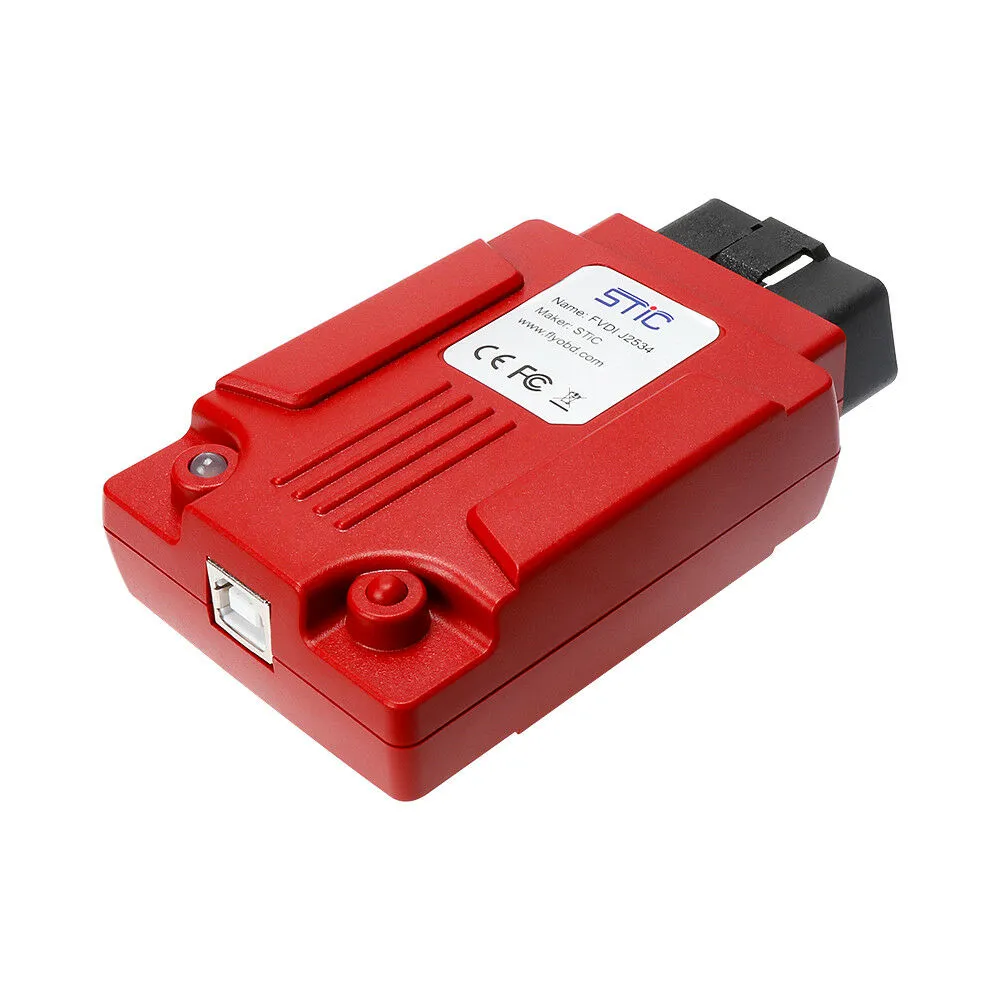

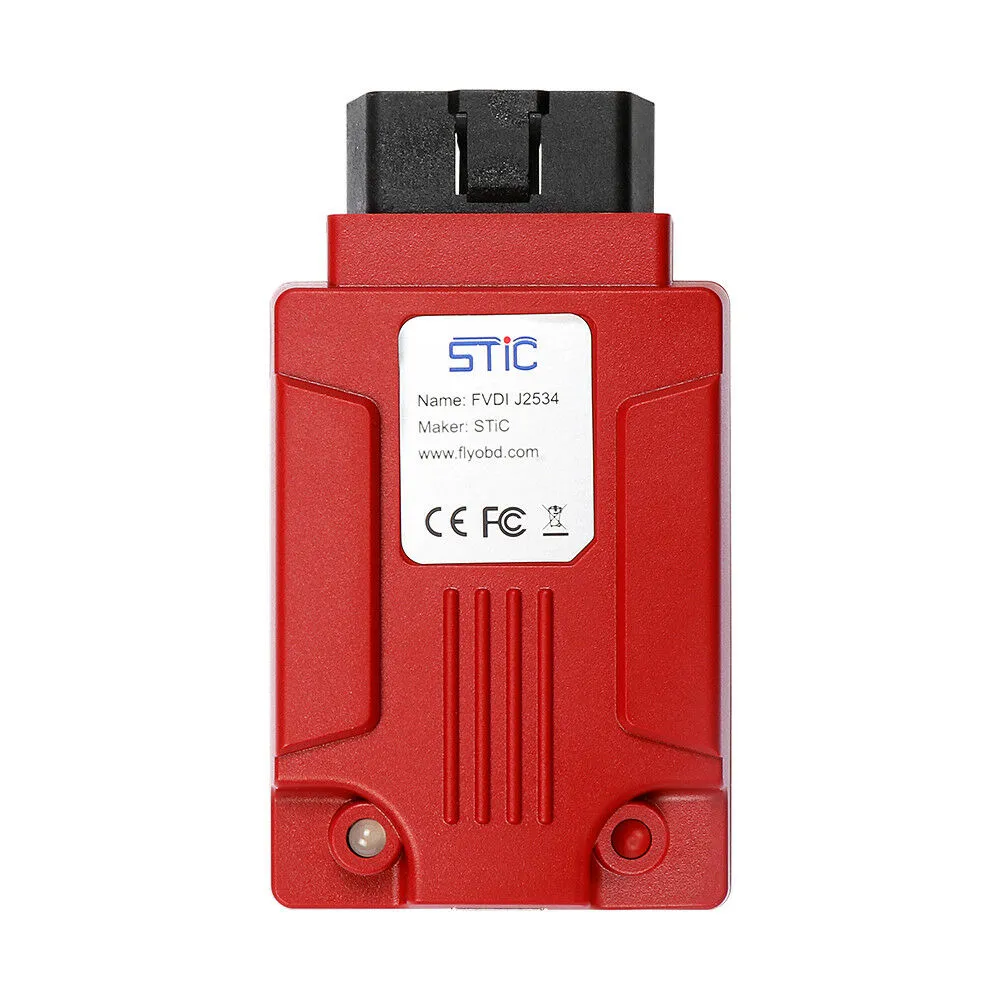

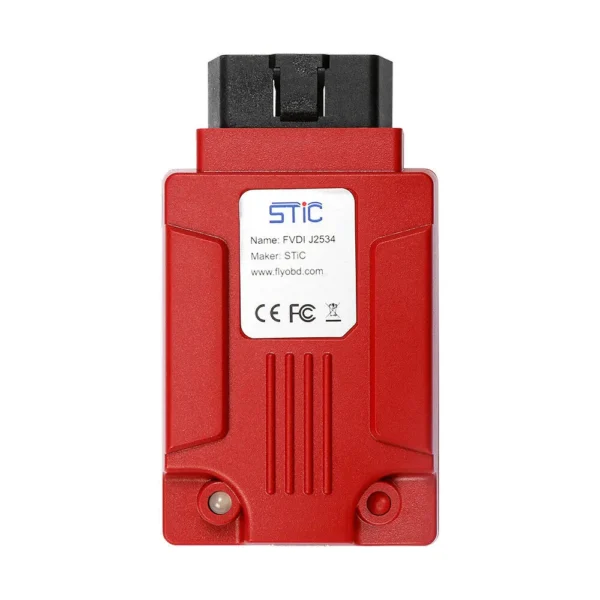

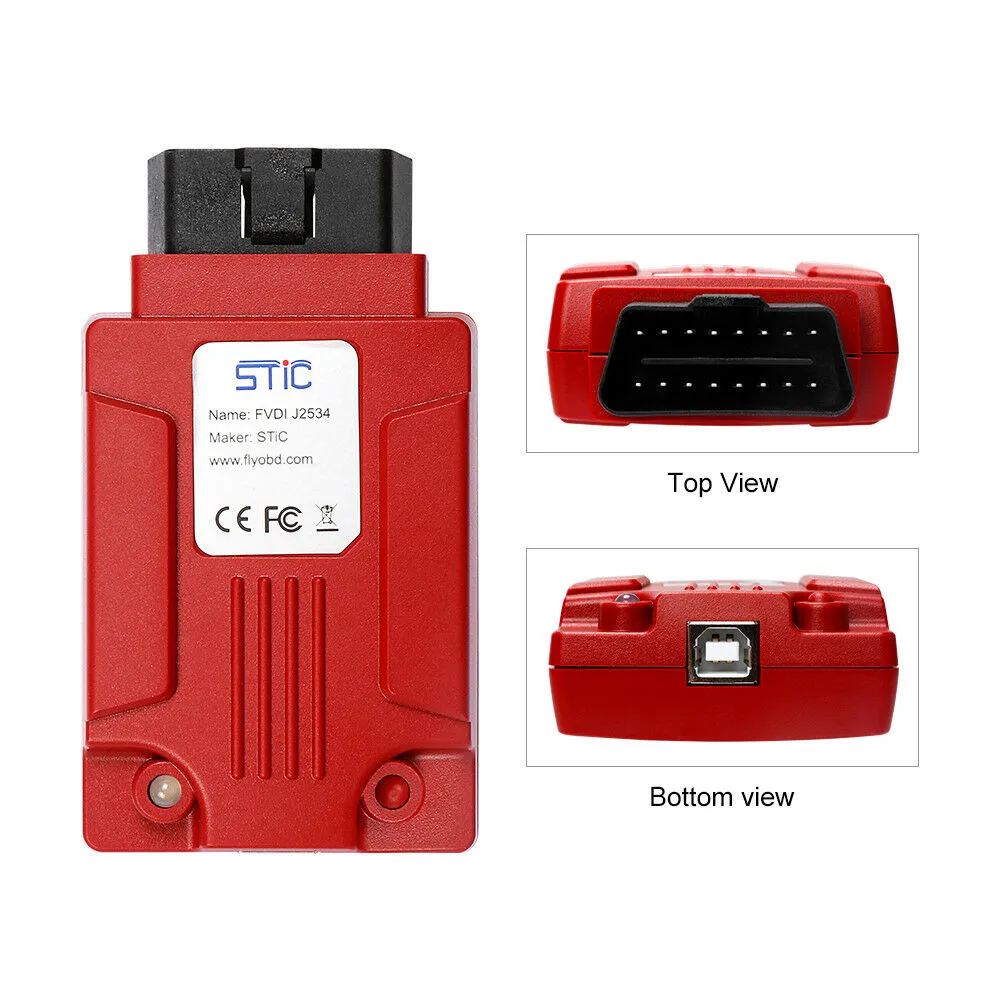

SVCI J2534Appearance Details:
LED:
Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly
PS Push Switch:
Pressed: works as ELM327 mode Released: works as J2534 mode

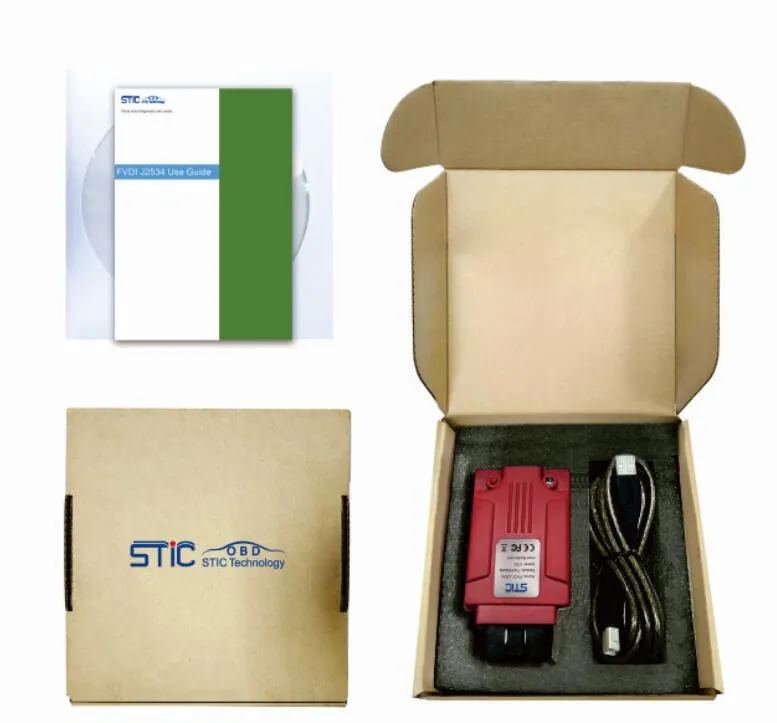

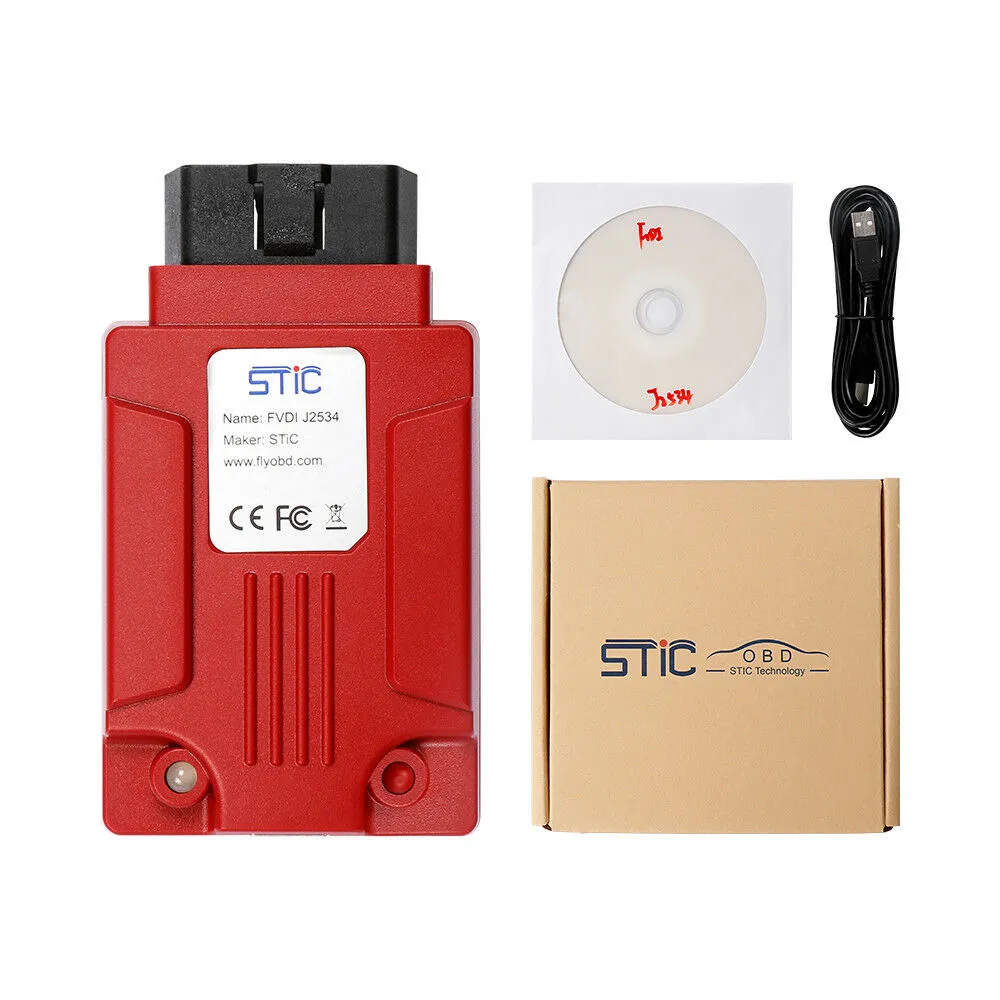

Package List:
1set xSVCI J2534
