T300 Transponder Key Programmer Latest Version V23.9 Blue Color

Attention:

1. It can not do Ford, GM and Holden. please pay attention.
2. In order to make the pacakge easy to pass customs, we did not include Aluminum case in the package to make the pacakge as small as possible.

T300 T300+ Key Programmer Vehicle Coverage:

Acura, Audi, Alfa, Chevrolet, Citroen, Daewoo, Fiat, Honda, Hyundai, Isuzu, Infiniti, Jaguar, Kia, Land Rover, Lancia, Lexus, Lincoln, Mazda Japan, Mazda USA, Mercury, Mitsubishi, Nissan, Peugeot, Renault, Rover, Seat, Skoda, Suzuki, Toyota Japan, Toyota USA ,Volkswagen and VW/Audi (Pin Code Reading) .

T300 Key Programmer Tips

First, installation steps:

VW Transponder keys match the 5-digit login code

Procedures for adding a transponder key to a vehicle with a separate anti-theft box:

(German cars A to 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)

1) Turn on the ignition with the new key.

2) Select: Immobilizer -> Login: Enter a 5-digit Login Code (add 0 if you have a 4-digit Login Code). For example, if your login name is 1234, type 1234 -> Save

3) Adapt

4) Enter 01 in the Channel Number text box

5) Input

6) Enter the number corresponding to the total number of matched keys. “Stored Value” is the number of currently matched keys. For example, type 2 -> Save

7) Turn off the ignition and remove the key

8) Insert the next key into the ignition switch and turn it on again. Wait 15 seconds. Repeat this step for each key until all keys match.

9) Select: Alarm -> Login. Enter the login code. To adapt to

10) Enter 00 in the “Channel Number” field

11) Enter 0 and save. This will learn the ECU with immobilizer.

2. Procedures for adding a transponder key to a vehicle with an immobilizer in the instrument group:

(1997 German Car A, 2004 Golf, Passat B5, B6)
1) Turn on the ignition with the new key.
2) Select: Instrument -> Login: Enter a 5-digit Login Code (4-digit Login Code plus 0). If your Login is 1234, type 01234 -> Save
3) Adapt
4) Enter 21 in the “Channel Number” field
5) Input
6) Enter the number corresponding to the total number of keys to be matched. Stored Value is the number of keys currently matched. For example, type 2 -> Save
7) Turn off the ignition and remove the key
8) Insert the next key into the ignition switch and turn it on again. Wait 15 seconds. Repeat this step for each key until all keys match.
9) Select: Alarm -> Login. Enter the login code. To adapt to
10) Enter 00 in the “Channel Number” field
11) Enter 0 and save. This will learn the ECU with immobilizer

Feature

Used for keystroke programming. More cars than any other transponder machine.
T300 chip key decoder function introduction
1. Read the vehicle fault code
2. Clear the vehicle fault code
3. Read the system data flow
4. Read the ids of the anti-theft device and ECU
5. Obtain the machine key code
6. Erase your car key memory
7. Program new keys
8. Read the car key login password
9. Distinguish ECU types
10. ECU anti-theft programmer
11. Read the EKA password
12. Write a new EKA password
13. Program remote control tools

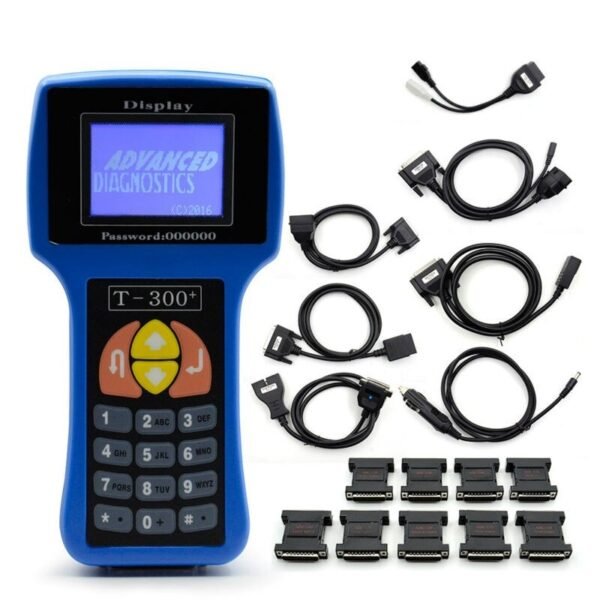

Package List:

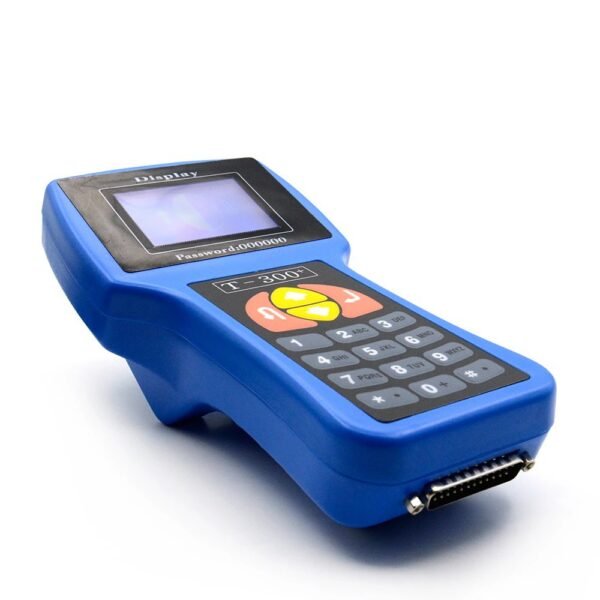

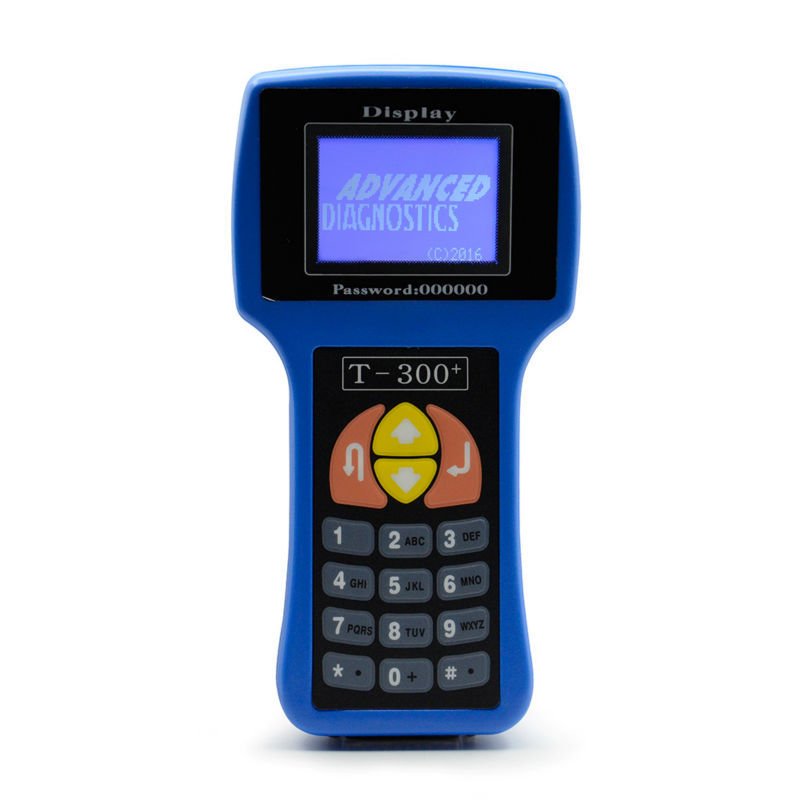

1.T300 Main Unit

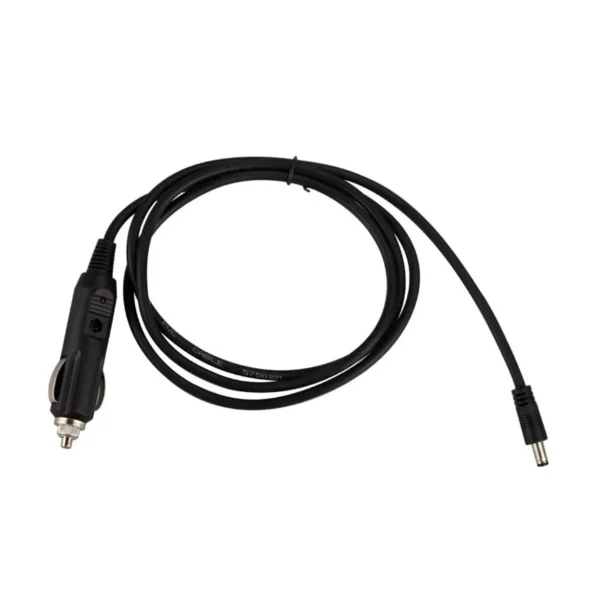

2.Cigarette Lighter Power Adapter Cable
3.GM/Daewoo 12P Connector Cable
4.Honda-3P Connector Cable
5.Nissan 2000 OBDII Connector Cable
6.Nissan 14P Connector Cable
7.OBDII-16P Connector Cable C/W Power Input Jack

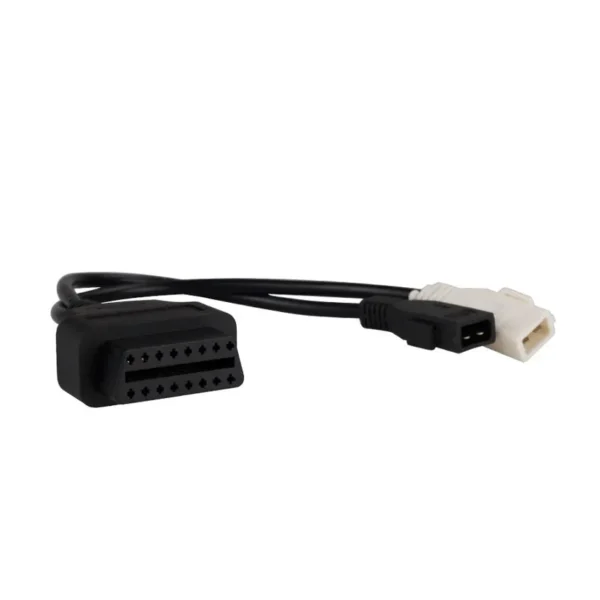

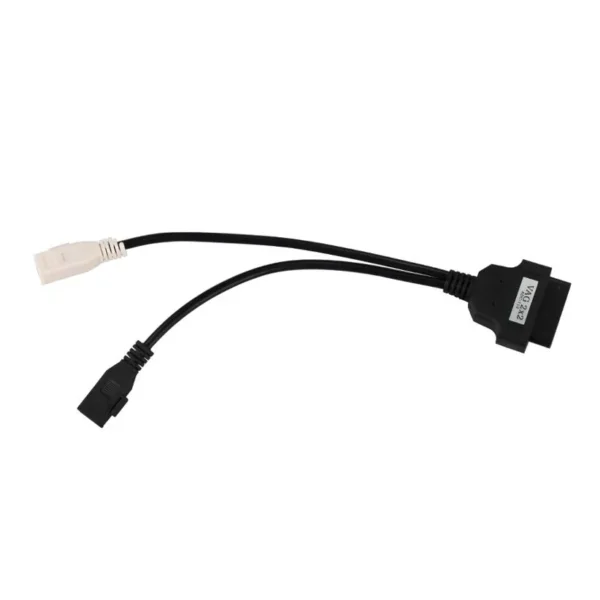

8.VAG OBDII Female to 2×2 Adapter Cable
9.Chrysler-1 Adapter (138)
10.Chrysler-2 Adapter (139)
11.Honda 3P Adapte
12.Mitsubishi Adapter
13.Nissan Adapter (133)
14.Suzuki Adapter
15.HONDA Adapter
16.ADC 145 Adapter
17.Peugeot Adapte
18.User Manual CD
