THINKCAR THINKSCAN MAX 2 Full Systems Automotive Diagnostic Tool Support CANFD For GM ECU CODING Active Test 28 Reset Function OBD2 Scanner Lifetime Free Update
Do you want to give your car a full body check at any time? Want to turn off those annoying fault indicators on the dashboard? Still bothered by the slow diagnostic speed of the diagnostic instruments in the market, resulting in inefficient repair? Want to erase the lost car key information? Want to do some reset function after replacing a certain car part? Don’t want to sit in the car to do a diagnosis in the hot summer, Thinkscan Max2 OBDII full system scanner can solve your worries.
1.[Free Lifetime Software Upgrade]:No more worrying about spending high annual fees on upgrading software
2.[More protocols]:Added CANFD Protocol ,Added CANFD Protocol,CAN-FD protocol supports the GM vehicles manufactured after 2021.
3.[More Storage ]: 32GB Storage ,Never worry about downloading software without storage space again.
4.[Added Portable bluetooth connector]: Easy to hang, more convenient to pull and pull, waterproof, oil-draining and shock-proof.
5.[More Languages]:Added to15 Kinds of Languages,No language difficulties, easy to use.
6.[More Reset Service Funstions]:28+Reset Service Funstions,stronger.
7.[longer Diagnostic Distance]:V4.0 Bluetooth VCI Dongle which supports up to 33 feet of diagnostics distances.
8.[Remote Tech Support]: If you are newbie, pls don’t worry, we have one-on-one remote assistance service, you just need to sit in front of the computer and watch us help you solve any problem.
9.[Supports AutoAuth for FCA SGW]: Allowing you to unlock protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019 and perform diagnostics, such as read/clear codes, data stream, etc. (* Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself ).
10.[OE-Level AlI System Diagnostic]+[ ECU Coding]+[ Action Test ]+[Intelligent AutoVIN ]+[ Report Share] +[ 4 in 1 Datastream Graph]: Strong Function
11.[Powerful configuration]: Android 10.0 +2G RAM+ 32G Storage + 5.99 inches Screen Size.
THINKSCAN MAX2 is with Lifetime Free Update !
Why is ThinkScan MAX 2 the First and Best Choise ? What advantage Function does it have ?
The First reason:
ThinkScan MAX 2 supports ECU Coding and Active Test ( Bi-directional Control ) , this two function is very powerful , with them , you can solve almost problem of the car .
ECU coding can Carry out the customer’s personalized customization of the car, can do some hidden function, such as setting alarms, door locks and outdoor lighting, etc .
Active Test (Bi-direction Tests) can test whether the actuator is normal or not , like turn on the radiator fan, adjust the throttle, open/close windows etc .
If you are car owner, with the two function , you can know the problem of the car more clearly , also can customize your car directly . Do not need go to the car repair shop , you can save a lot of Money .
If you are Car Repair shop, ThinkScan MAX 2 can supply All demand, you do not need with a tool with so expensive , only thinkscan max 2 ( about US$300 ) !!!
What is more ,ThinkScan MAX 2 is the only one can support ecu coding and Active Test (Bi-direction Tests) functions in the scanner with similar price , the others like MK808 , CRP909E , CRP909X, ArtiDiag800 BT etc, all does not support .
The Second Reason :
THINKSCAN MAX 2 is with Lifetime Free Update ! All system Diagnose function , OBD2 function and 28 reset Function , All are Lifetime Free Update !
If you are regular in Auto repair industry , you will know , no matter LAUNCH , Autel or other products , the update need pay , like launch x431 products , it need US$399/year for the update , it will cost lot for update year by year !
But if you own ThinkScan MAX 2 , the update is not a problem , you do not need pay any more , still can update year by year, this can help you save more money ! Doesn’t this impress you ?
All in All , no matter you are car owner or auto repair shop , I recommand ThinkScan MAX 2 to you !
THINKCAR THINKSCAN 2 supports CANFD protocol , supports more cars :
ThinkScan MAX 2 automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

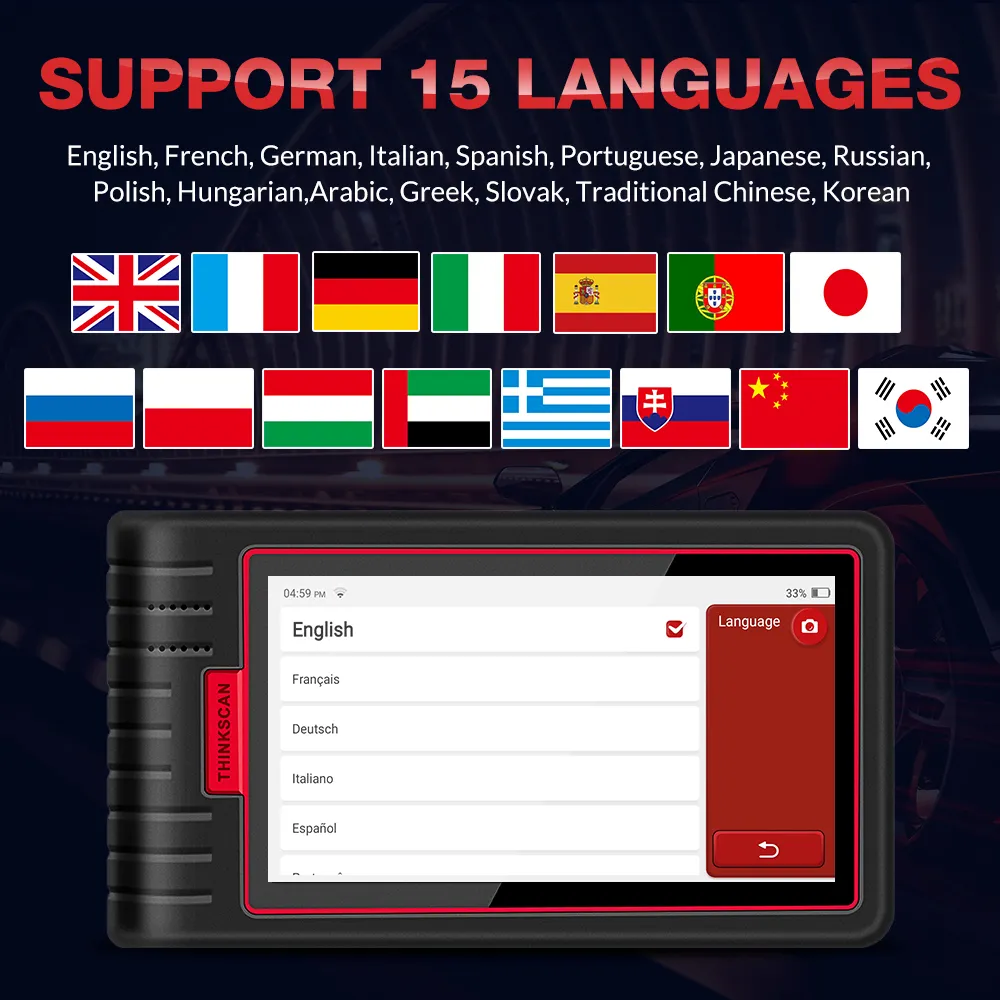

ThinkCar ThinkScan Max2 Support 15+Language :
English, Portuguese, French, Russian, Spanish, Japanese, Korean, German, Traditional Chinese, Hungarian, Polish, Italian,Greek, Arabic,Slovak
What function does it have?
ThinkCar ThinkScan Max 2 supports Full system of the cars :
Engines/Auto Transmission/Airbags/
Immobilizer/Key Coding/ABS/Cruise Control/
Instruments/ Self Leveling Suspension systems/
Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/
Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)
It supports the detailed Function :
–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition
With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.
THINKCAR ThinkScan Max 2 has 28 service functions:
It allows you to reset various systems in your vehicle. support more function than other scanners priced similarly
1. Oil Reset ( Supports 53 Brands )
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset themileage or driving time to zero after the maintenance, so the maintenance light will go out and the systemwill start a new maintenance cycle.
2. Elec.Throttle Adaption ( Supports 37 Brands )
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.
3. SAS – Steering Angle Reset ( Supports 44 Brands )
To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steeringgearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recoveringcar body, you must reset the steering angle.
4. Battery Matching ( Supports 33 Brands )
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.
5. ABS Bleeding ( Supports 34 Brands )
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer,ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.
6. Brake Reset ( Supports 41 Brands )
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.
7. DPF Regeneration ( Supports 39 Brands )
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuouscombustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reducePM ignition combustion) to stabilize the filter performance.
8 .Gear Learning ( Supports 22 Brands )
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336’gear not learned’. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC ‘gear not learned” is present, gear learning must be performed.
9. IMMO Service ( Supports 46 Brands )
To prevent the car being used by unauthorized keys, the anti-theft key matching function must beperformed so that the immobilizer control system on the car identifies and authorizes remote control keysto normally use the car. When the ignition switch key, ignition switch, combined instrument panel,ECu,BCM, or remote control battery is replaced, anti-theft key matching must be performed.
10. Injector Coding ( Supports 47 Brands )
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.
11. TPMS Reset ( Supports 39 Brands )
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.
12. Suspension Matching ( Supports 14 Brands )
This function can adjust the height of the body. When replacing the body height sensor in the airsuspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.
13. AFS Reset ( Supports 21 Brands )
This feature is used to initialize the adaptive headlamp system.According to the ambient light intensity, theadaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjustthe headlamp lighting angle while monitoring the vehicle speed and body posture.
14. A/T Learning ( Supports 14 Brands )
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.
15. Sunroof Initialization ( Supports 4 Brands )
This function can set the sunroof lock off, closed when it rains,sliding / tilting sunroof memory function,temperature threshold outside the car etc.
16. EGR Adaption ( Supports 10 Brands )
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
17. ODO Reset ( Supports 10 Brands )
a) ODo reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a cardiagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.
18. Airbag Reset ( Supports 12 Brands )
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicatorlights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable,it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and theairbag computer can continue to use.
19. Transport Mode ( Supports 13 Brands )
ln order to reduce power consumption, the following functions may be disabled,including limiting thevehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At thistime, the transport mode needs to be deactivated to restore the vehicle to normal.
20. A/F Reset ( Supports 5 Brands )
This function is applied to set or learn Air/Fuel ratio parameters.
21. Stop/Start Reset ( Supports 5 Brands )
This function is used to open or close the automatic start-stop function via setting the hidden function inECU(provided that the vehicle has a hidden function and supported by hardware).
22. NOx Sensor Reset ( Supports 12 Brands )
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalyticconverter learned value stored in the engine ECu.
23. AdBlue Reset (Diesel Engine Exhaust Gas Filter – Supports 8 Brands)
After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.
24. Seat Calibration ( Supports 26 Brands )
This function is applied to match the seats with memory function that are replaced and repaired.
25. Coolant Bleeding ( Supports 5 Brands )
Use this function to activate the electronic water pump before venting the cooling system.
26. Tyre Reset ( Support 13 Brands )
This function is used to set the size parameters of the modified or replaced tire.
27. Windows Calibration ( Supports 24 Brands )
This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.
28 .Language Change ( Supports 22 Brands )
This function is used to change the system language of the vehicle central control panel.
What else has been added? ( Advanced Functions):
For Advanced Functions, such as ECU coding, active testing, etc. A paid subscription is still required. (Valid for 1 year after subscription)
Tips:$49.95/ Year for one car make to get both actuation test and ECU Coding functions
ECU Coding
Carry out the customer’s personalized customization of the car, such as setting alarms, door locks and outdoor lighting, etc.
Active Test &Bi-directional control
Test whether the actuator is normal, turn on the radiator fan, adjust the throttle, open/close windows, operate the rearview mirror, turn on/off the lights, turn on/off the horn, etc.

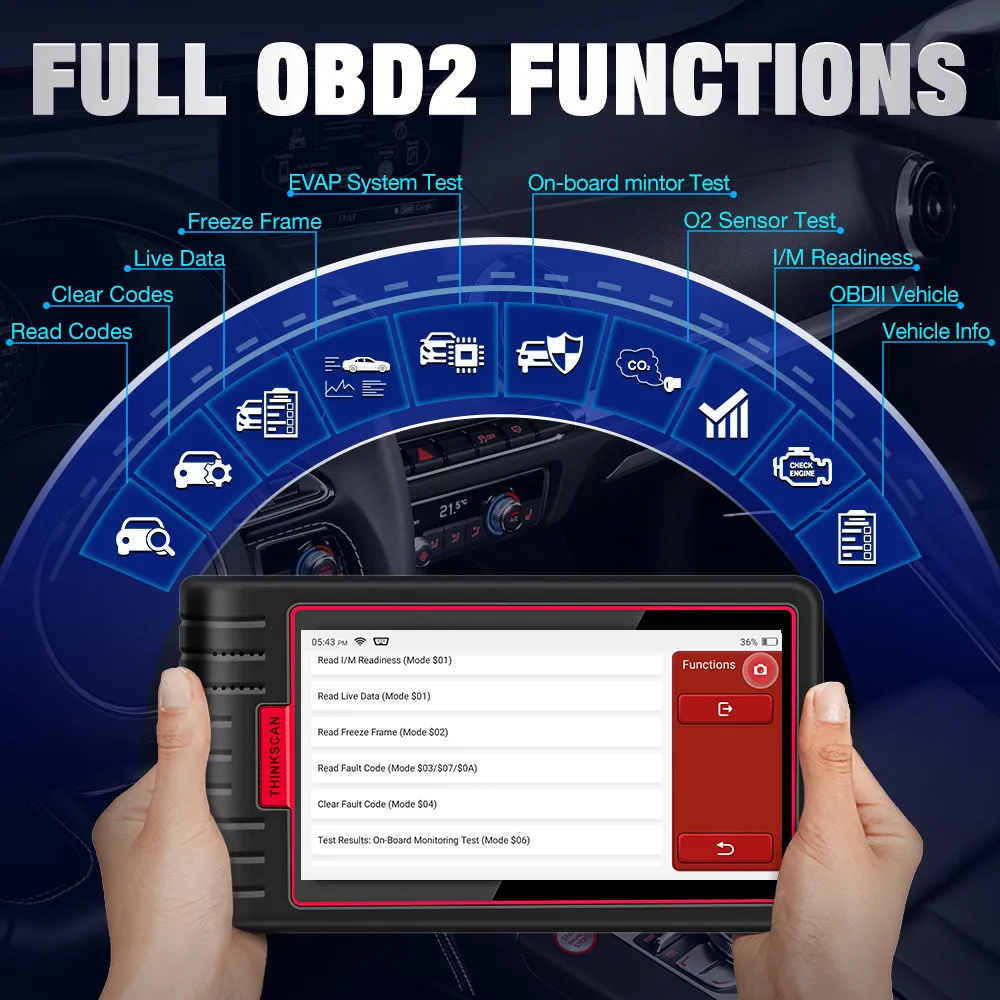

ThinkCar ThinkScan Max 2 Full OBD Function :
1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
The Other Function of ThinkCar ThinkScan Max 2:
Added CANFD Protocol
CAN-FD protocol supports the GM vehicles manufactured after 2021. The CAN-FD protocol uses a higher-performance CRC algorithm, which reduces the risk of undetected errors to a large extent. The CAN-FD protocol can accommodate more data from 8 to 64 bytes in a CAN frame, with relatively less system overhead, and can support better data throughput when sending larger data objects, making the software simpler and more efficient. Not only does it provide shorter CAN frames while increasing the bit rate, but this also has the advantage of shorter latency, more accuracy, better real-time performance, and higher bandwidth.
AUTOVIN SCAN :
Click “diagnose” and “autosearch” after connecting to the vehicle. Then the thinktool mini automotive diagnosti tool will begin to scan the VIN automatically.
One-Key Wifi Update:
no need to update on computer. Just click update after connecting wifi, then all softwares will start to update. (you will enjoy lifetime update through one-key wifi update, which is rare in diagnostic market as other diagnostic tools only offer one year free update.)
One-Key Screenshot:
Use the feature to capture and save the diagnostic process for you rather than take pictures by telephone.
One-Key Screen Recorder:
you will hardly find this feature on other scanners. This is one of the biggest advantage of thinktool Mini, which will be a big surprise to those who like recording video of the whole diagnostic process. With this feature, you don’t need to hand up a telphone during the diagnosis.
ThinkCar ThinkScan Max 2 Two Ways Connect car :
wireless diagnosis VS wire diagnosis
wireless diagnosis: thinktool mini + wireless connector
diagnostic distance: 5-10 m
wire diagnosis: scanner+ diagnostic cable
diagnostic distance: 1m
Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work. The diagnostic distance can be 5-10 m.
Share & Print the Diagnosis Report:
What differentiates this device from others is the repair report which takes error codes, interprets them, and actually shows you possible causes and potential fixes. You can share and print the diagnosis report.
Just need 3-step quick registration:
Step 1 : Choose Time Zone
Step 2 : Agree the agreement term
Step 3 : New Registration , Create APP Account
Support 90% of all car models:
For Amercian
for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM
For European
for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ
For Asian
Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan
For China Car :
For BAIC SENOVA , For BAIC WEIWANG, For BAIC , For BRILLIANCE , For BYD , For CHANGAN , For CHANGANFORD , For CHANGHE , For CHBUICK , For CHCADILLAC , For CHCHEVROLET , For CHERY , For CHSUZUKI , For DFCITROEN , For DFNISSAN , For DFPEUGEOT , For DFSK , For ECUAID , For FAW(TIANJIN) , For FOTON , For GONOW , For GWM , For HAFEI , For HAIMA , For HCBMW , For HONDA(GAC) , For JAC , For JINLONG , For JMC , For JOYLONG , For LIFAN , For LUXGEN , For LYNKCO , For MAXUS , For MG(SAIC) , For MITSUBISHI(GAC) , For NJFIAT , For POLARSUN , For QOROS , For SGMW , For TOYOTA(CHINA) , For XINKAI , For YQMAZDA , For ZOTYE , For ZX AUTO
ThinkCar ThinkScan Max 2 hardware configuration :
Battery Capacity:3150mAh/7.6V
Screen Size: 5.99 inches
Resolution: 720*1440 pixel
Working Voltage: 5V
Working Current: ≤2.5A
Working Environment: 14 °F ~122°F(-10°°C ~50°C)
Storage Environment: -4 °F ~140°F(-20°°C~60°C)
ThinkCar ThinkScan Max 2 Packing List :
1x THINKTOOL Host Computer
1xTHINKTOOL VCI
1x Charging Cable
1x Power Adapter
1x Manual
1x Carry Bag
