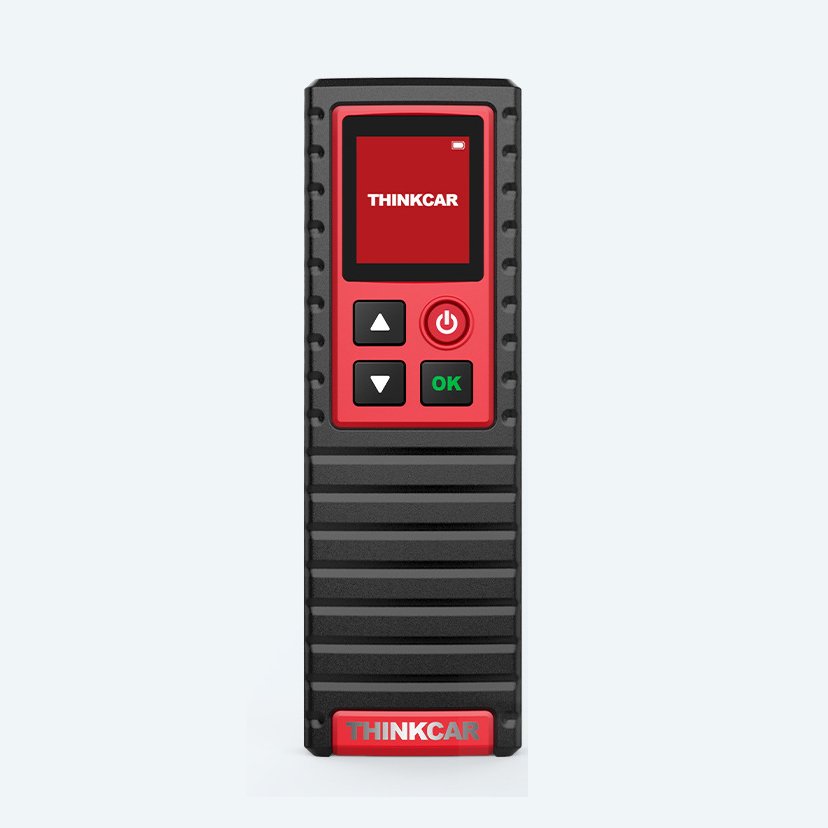

THINKCAR TPMS G2 Automotive Tire Pressure Diagnostic Tool Universal Activation Programming Learning Tool For ThinkTool Pro PROS+

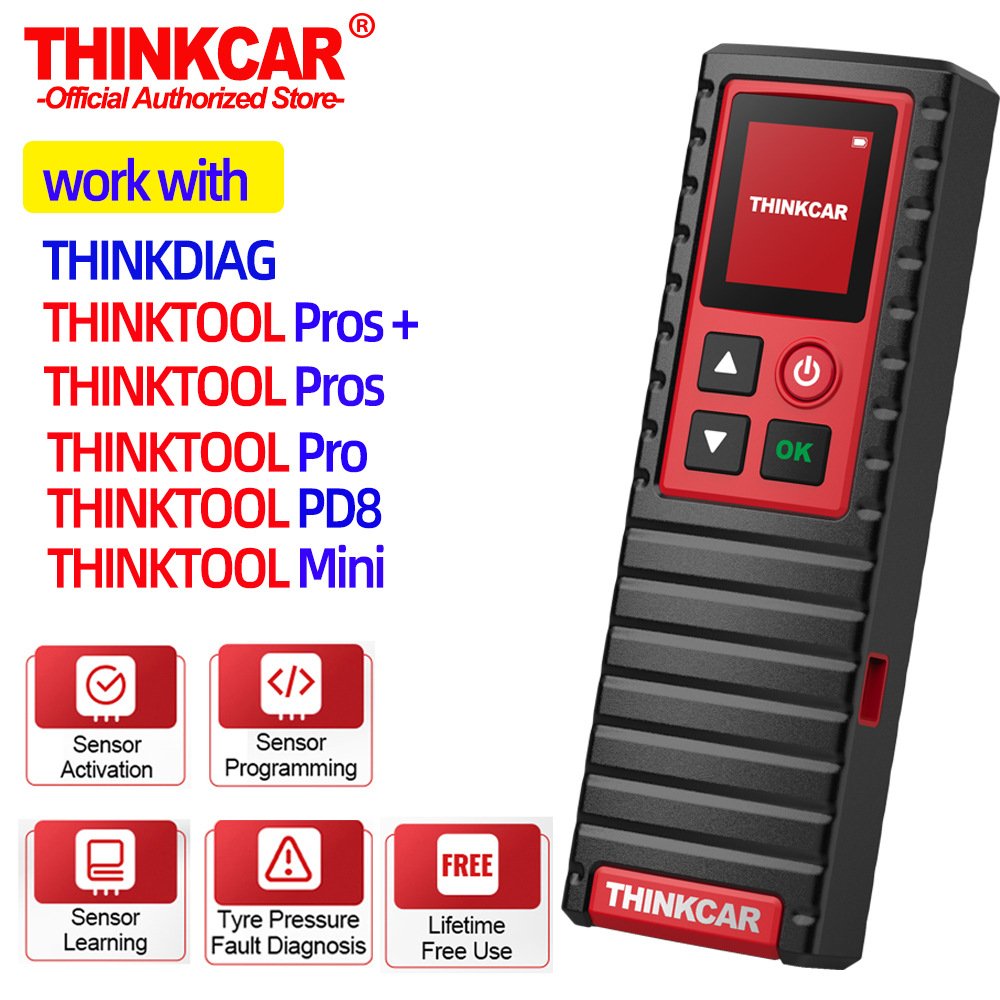

100% Original Latest Generation THINKCAR THINKTPMS G2 for THINKDIAG/ThinkTool Mini/ThinkTool Pro/ThinkTool Pros/ThinkTool Pros+

* THINKCAR THINKTPMS G2 can only program S1 sensors, not OEM sensors.

* If you use it with Thinkdiag + app, please use android smart phone. ( Does not support IOS system)

THINKTPMS G2 Application Scenarios

1. Sensor Replacement
2. Tire Rotation
3. On-line Assembly and Inspection by OEMs
4. Independently Detect Whether the Sensor Itself is Normal

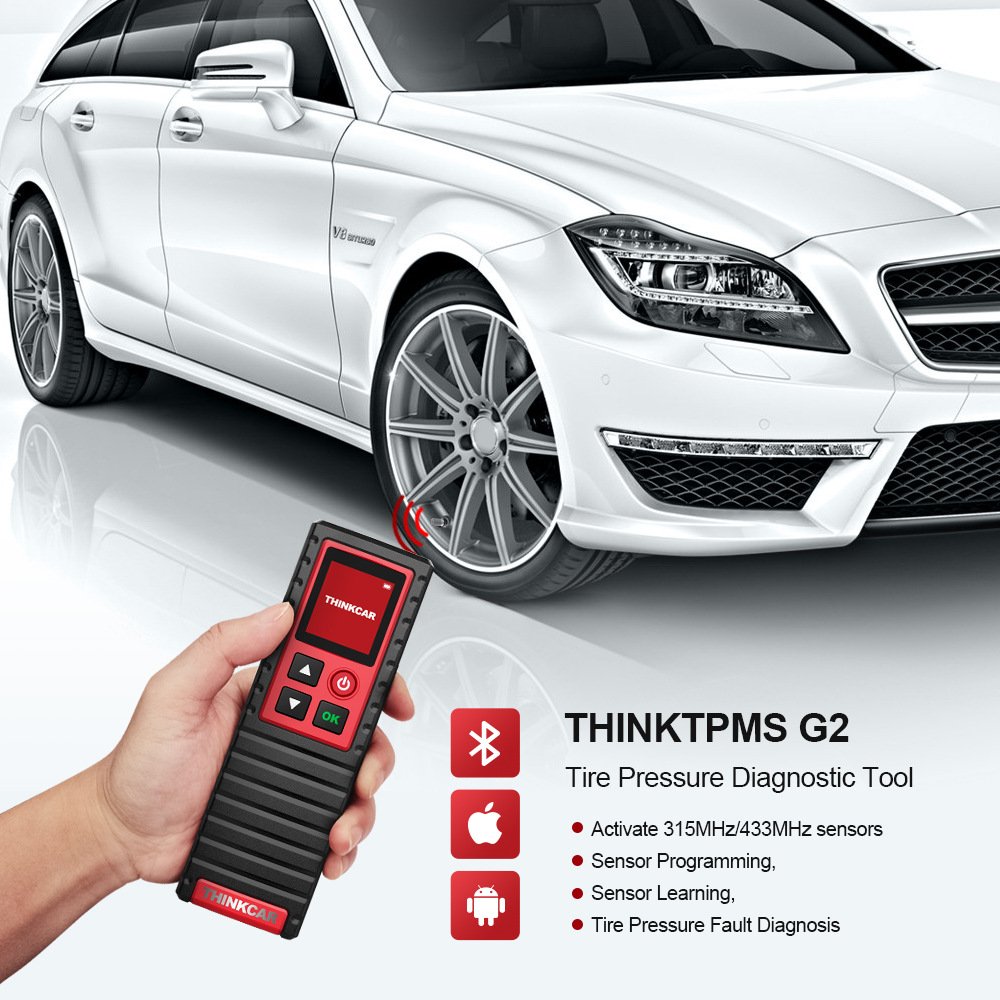

Support Sensor Activation

THINKCAR Thinktpms G2 can activate all 315MHz/433MHz tire pressure sensors, and can read, copy, write sensor IDs and read tire pressure data (pressure, temperature, battery status)

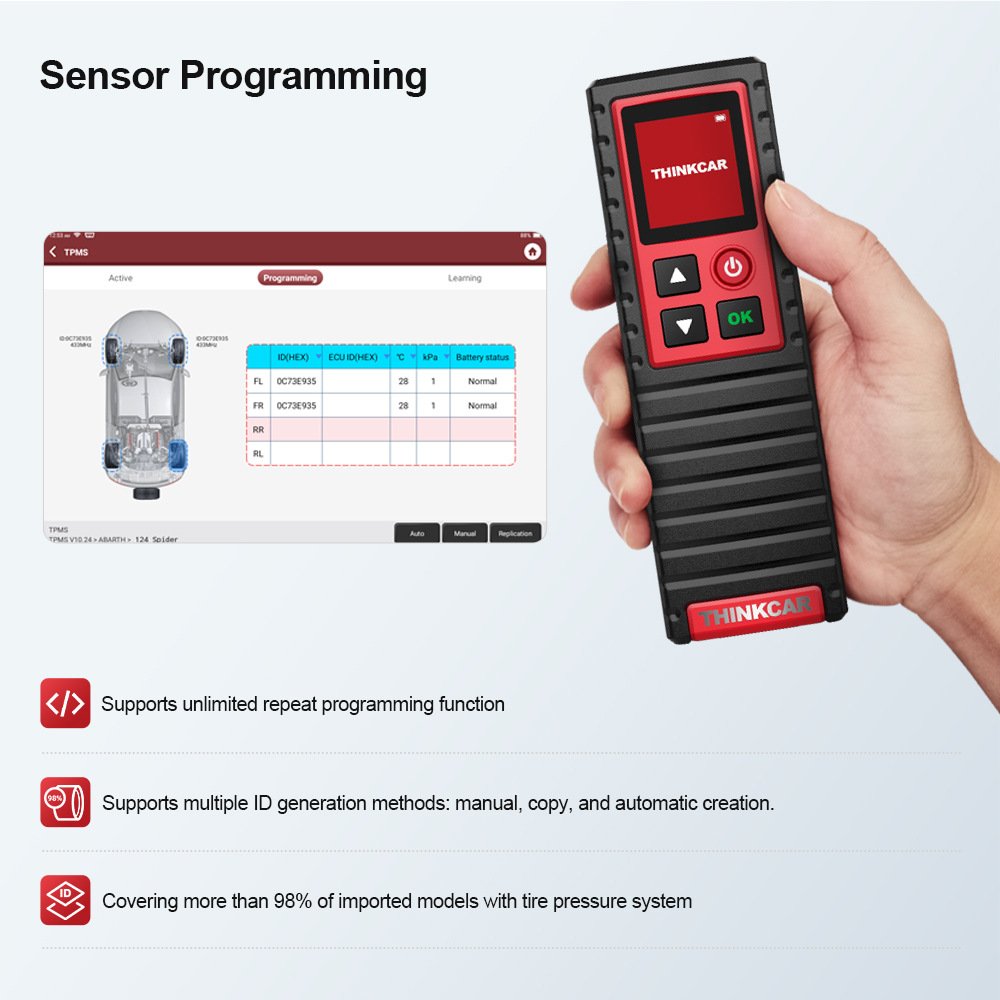

Support Sensor Programming

THINKCAR Thinktpms G2 supports unlimited repeat programming function, covering more than 98% of imported models with tire pressure system, and supports multiple ID generation methods: manual, copy, and automatic creation.

Support Sensor Learning

The tire pressure matching learning function can perform tire pressure fault diagnosis through prompt learning steps, including code reading and code clearing.

Diagnose tire pressure fault

Read and clear the fault code of the TPMS system

Support more than 115+ brands

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota, for Hyundai, for Ssangyong

-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot

-America:
for Chrysler, for USA-Ford, for GM

And keep updating……

Two ways to use

Method 1: You need a THINKDIAG to work together

Download the Thinkdiag APP (Android version), turn on the Bluetooth of the mobile phone, and click the Thinktpms function on the APP to diagnose tire pressure.

1. Install the Thinkdiag App on your smartphone and sign up for a new account.
2. Activate the device in Thinkdiag APP,the device will be automatically bind to your account.
3. Plug the device into the OBD port and then turn on your vehicle
4. Connect device to your phone via bluetooth.
5. Select and download the free diagnostic software for the manufacturer of your vehicle.
6. Start the diagnosis.

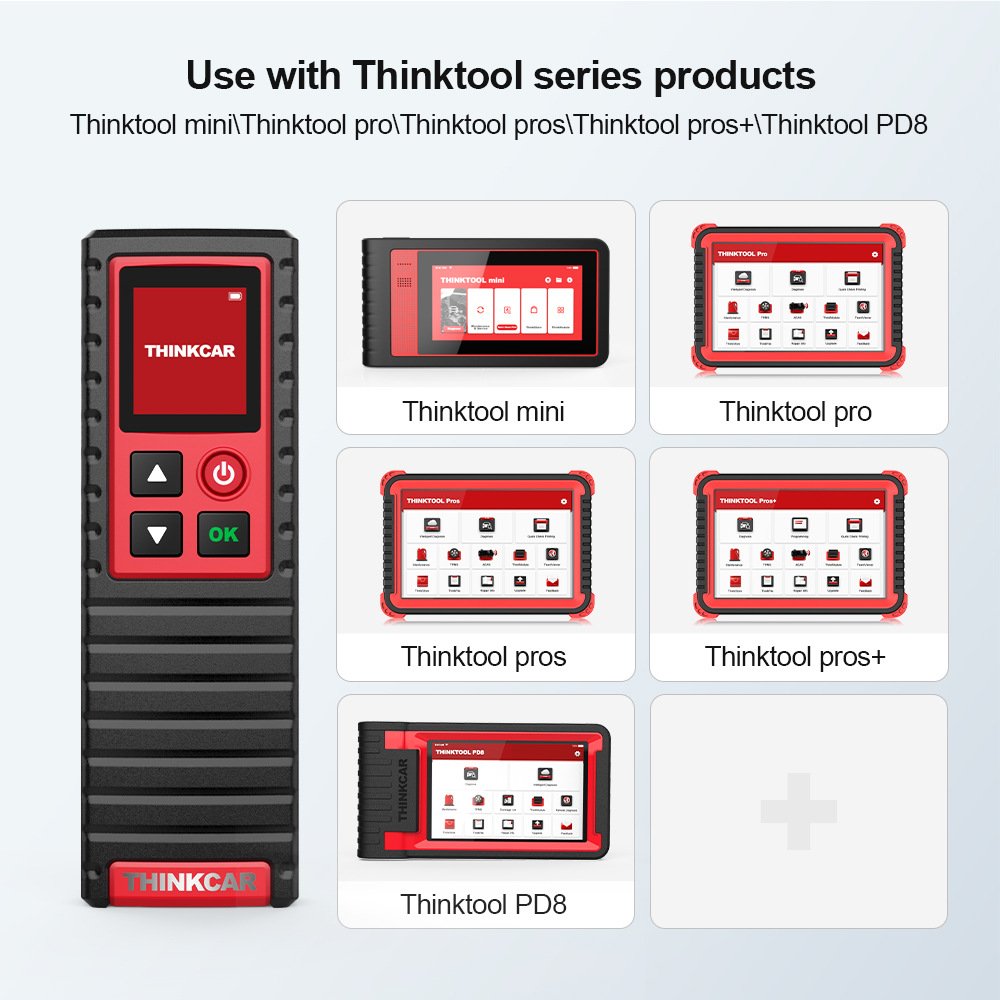

Method 2: Use with Thinktool series products

Use with Thinktool series products, including Thinktool mini/Thinktool pro/Thinktool pros/Thinktool pros+/Thinktool PD8

Parameters of THINKTPMS G2

Model：TKTG2
Display：1.77 inches
Resolution：168*128 pixels
Battery：3000mAh
DC input voltage：5V
Working current：≤1A
Working temperature：-10℃～50℃
Storage temperature：-20℃～60℃
Size：252*54*30mm

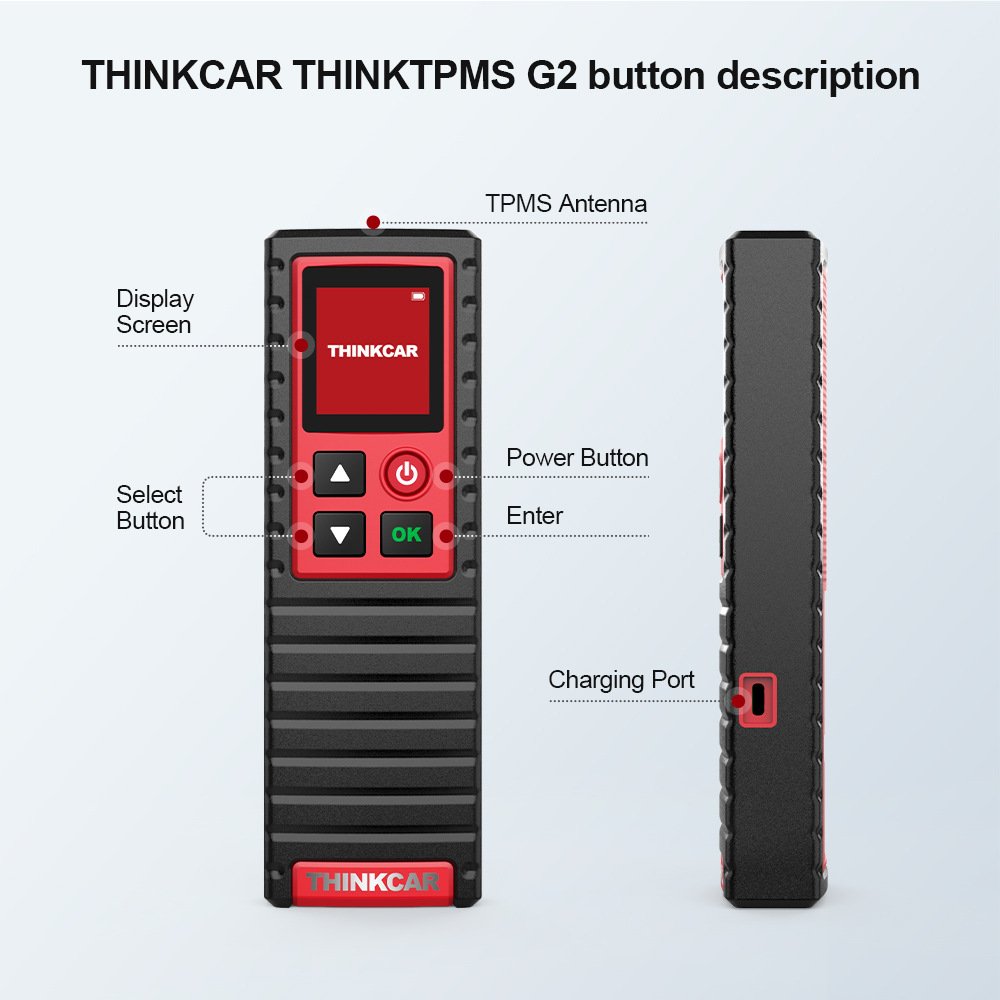

THINKCAR THINKTPMS G2 Button Instructions

Charging Port
Select Button
TPMS Antenna
Enter
Power Button
Display Screen

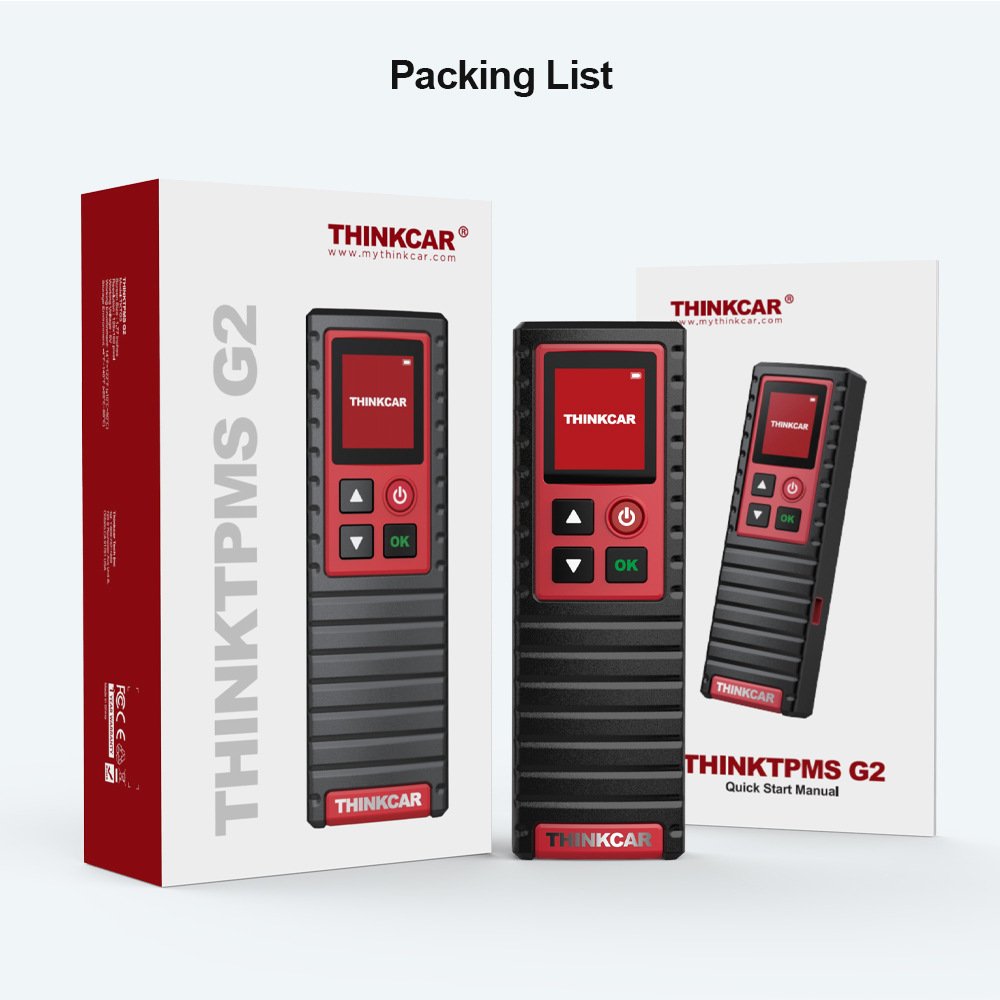

Packing List of THINKCAR THINKTPMS G2

1pc * THINKCAR THINKTPMS G2
1pc * User Manual
1pc * Carton box
1pc * Charger
1pc * Type-c Cable
