ThinkDiag OBD2 Automobile Fault Diagnosis Instrument Overseas Multilingual Edition Full Vehicle Range With One Year Free Upgrade

Support all ECUs of 12V EFI car models-Full Sysyem Diagnosis

Thinkdiag can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool. Include : ABS system, Engine system, SAS system , TPMS system , IMMO system , Battery system ,Oil service system , SRS system , ect… Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Actuation Test , ECU coding and 15 Special Function ect…

ECU Coding

Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH pro mini is equipped with advanced ECU coding function for addressing the following issues: 1. After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators. 2. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work. !!!!Note: ECU Coding and Key FOB Programming are not universally compatible with all vehicles! Send us VIN number to check compatibility.

Support 15 common special functions

1.Oil Reset Service 2.Steering Angle Calibration 3.Electronic Parking Brake Reset 4.Battery Register & Battery Maintenance 5.ABS Bleeding 6.Electronic Throttle Position Reset & Learn 7.Diesel Particulate Filter (DPF) Regeneration 8.Tire Pressure Monitor System Reset 9.Anti-theft Matching 10.Injector matching MaEET 11.Air Suspension Reset 12. Gearbox Reset 13.Sunroof RESET 14.EGR Reset 15.AFS reset

Full OBD2 Full Function

This diagnostic software can test vehicle Engine systems.All models with engine meeting SAE J1850,ISO9241-2,ISO14230-4,ISO15765 Standard in OBD2&EOBD. *View freeze frame date *support graph data stream *O2 Sensor test *Evap system test *On-Board monitor test *Read & Clear DTCs *Identify VIN information *DTC code look up *Turn off MIL(Malfunction Indicator Lights)

8-language support

The THINDIAG operating system can quickly be changed into English, French, German, Spanish, Italian, Portuguese, Japanese, Russian

115 Car Brande Support

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000) -ISO 15765-4 (CAN) -ISO 9141-2 (iso) -ISO 14229 (uds) -SAE J1850 (VPW & PWM)
-Original protocols of makers For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:
-Asia: for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong
-Europe: for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot
-America: for Chrysler, for USA-Ford, for GM And keep updating.

Item Parameter

Model:Thinkdiag
Working Voltage: 9~18V
Working Current: ≤130mA
Working Temperature: 14℉~122℉(-10℉-50℉)
Storage Temperature: -4℉~140℉(-20℉-60℉)
Size: 2.1in*3in*1.1in
Net Weight: 2.80oz

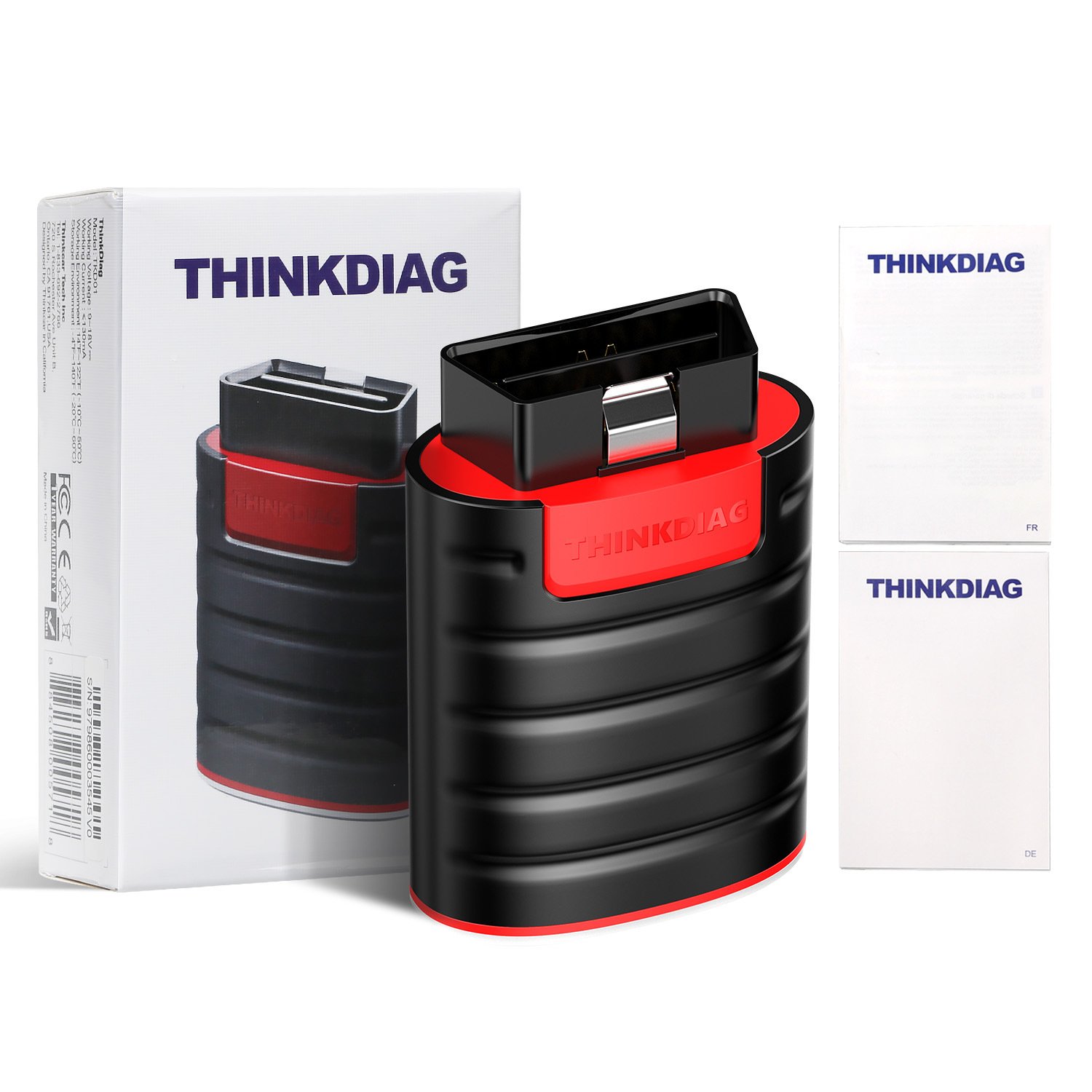

Thinkdiag Package Includes:

1pc x Thinkdiag OBD2 unit
1pc x User Manual
Tool has 3 Free Software
Free 1-Year Manufacturer Software Subscription
