Tire Pressure Sensor TPMS External Tire Pressure Monitoring High Precision Sensor Matching Instrument

Specifications:

Product material: ABS + electronic components
Core: ARM M0
Main control chip: DA14531
Communication name: TPMS1-4_XXXXXX
Communication method: Bluetooth 4.0/5.0
Working voltage: 3V
Quiescent current: ≤ 1.4-1.8μA
Bluetooth operating frequency: 2.4GHz
Bluetooth transmit power: 0dBm MAX
Response time: ≤ 5s
Display mode: APP mode
Waterproof rating: IP67
Working humidity: 95% MAX
Tire pressure detection range: 100-1300kPa
Tire pressure detection accuracy: ± 10kPa
Tire temperature detection accuracy: ± 3℃
Working temperature: -30℃~ +70℃ (external type)
Storage temperature: -30℃~ +70℃ (external type)
Battery capacity: 140mAh (external type)
Battery life: 3~5 years (external type)
Weight: 8g±1g (external type)
How to use: please see the manual

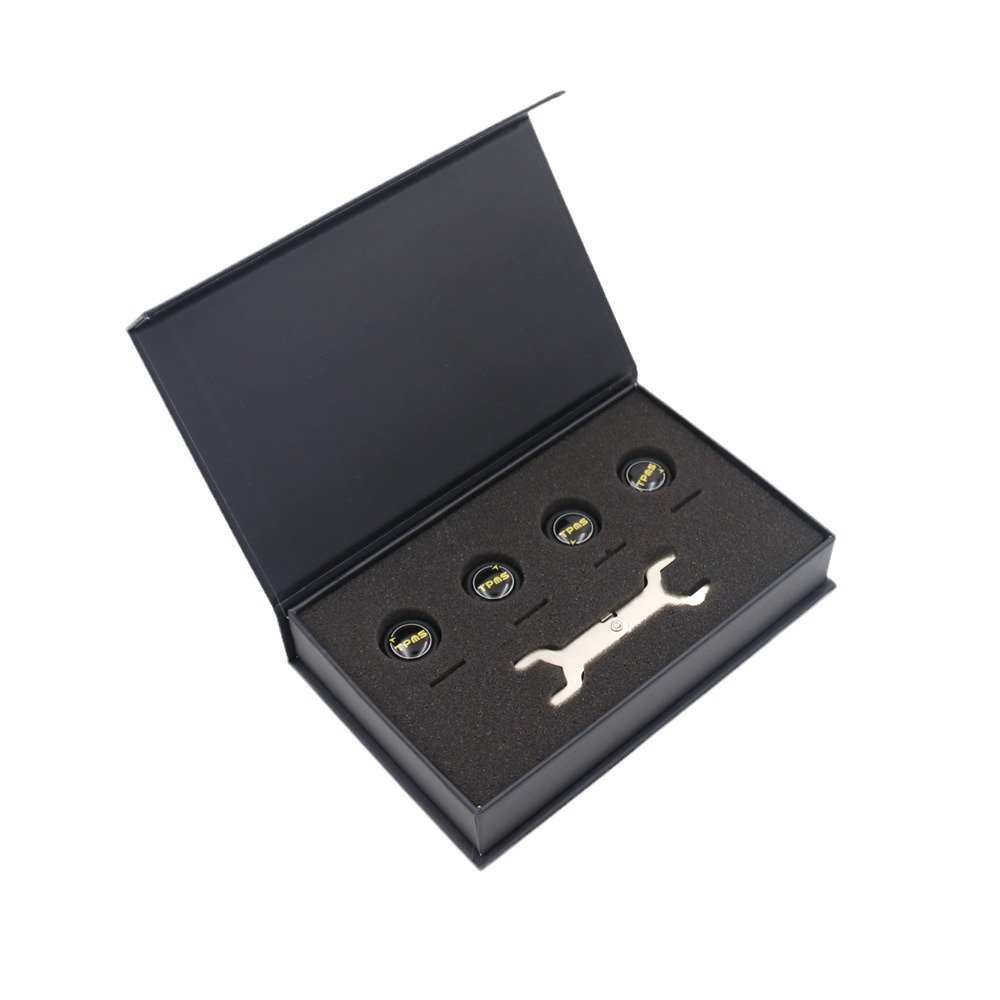

Package list:

1*sensor
1*Instruction
1*sensor code
1*wrench
4*Anti-theft screw
