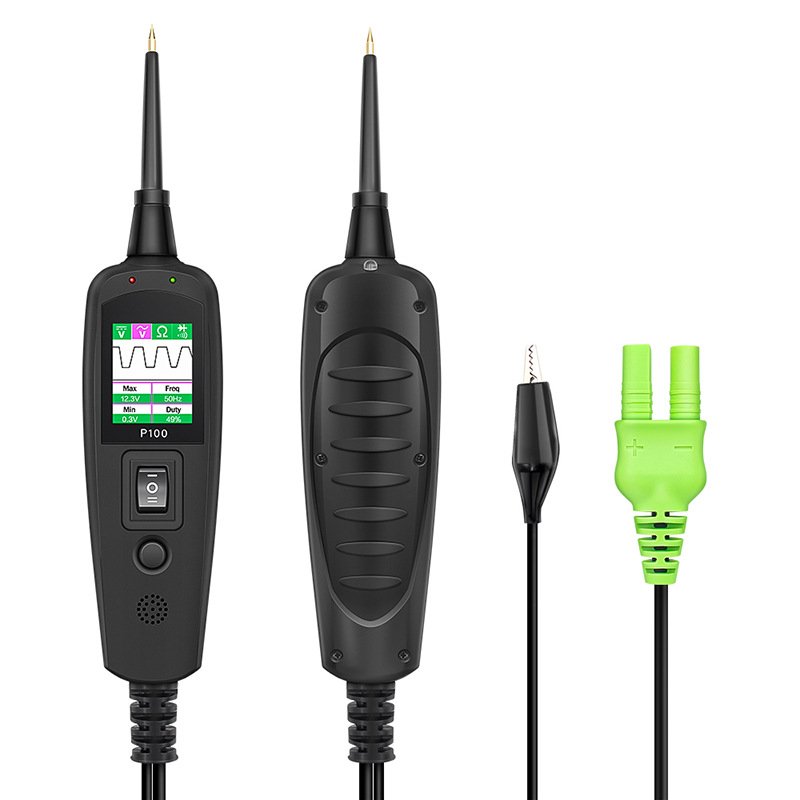

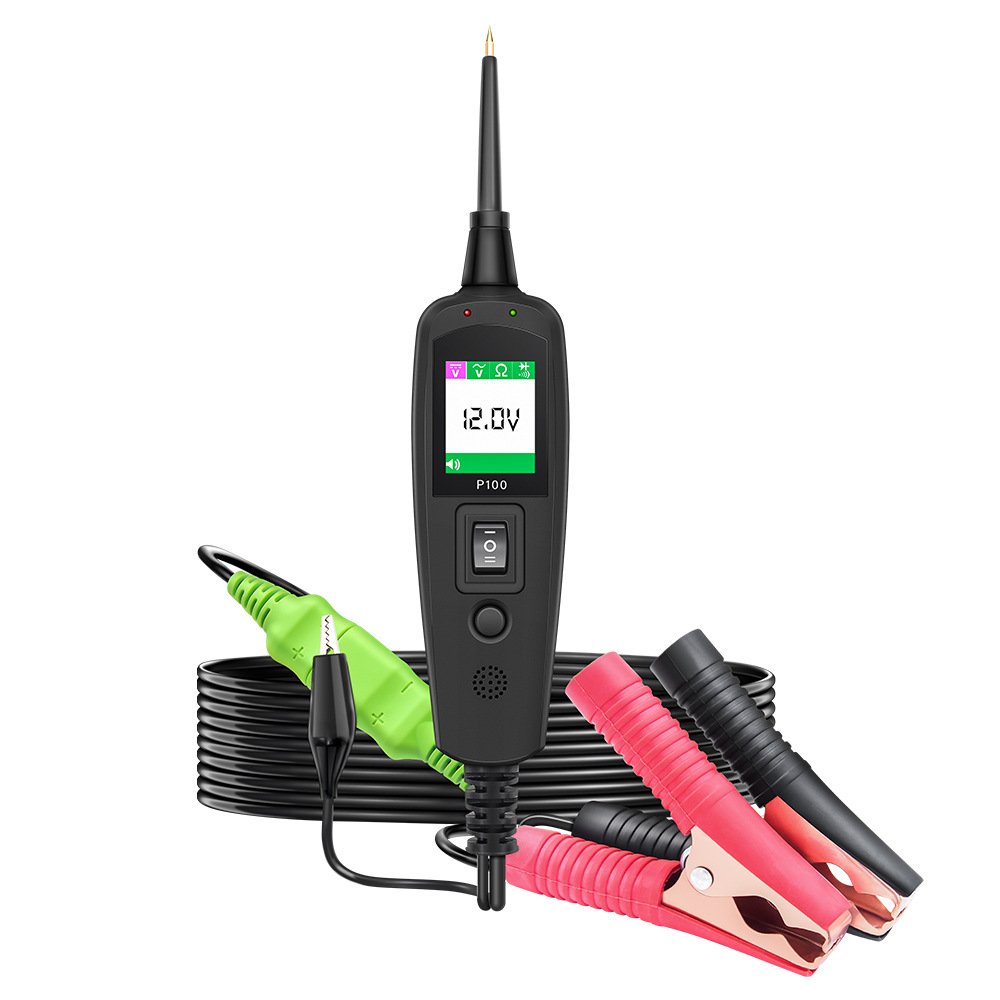

Topdiag P100 Automotive Electrical Circuit System Tester 6M Multifunctional Circuit Detector

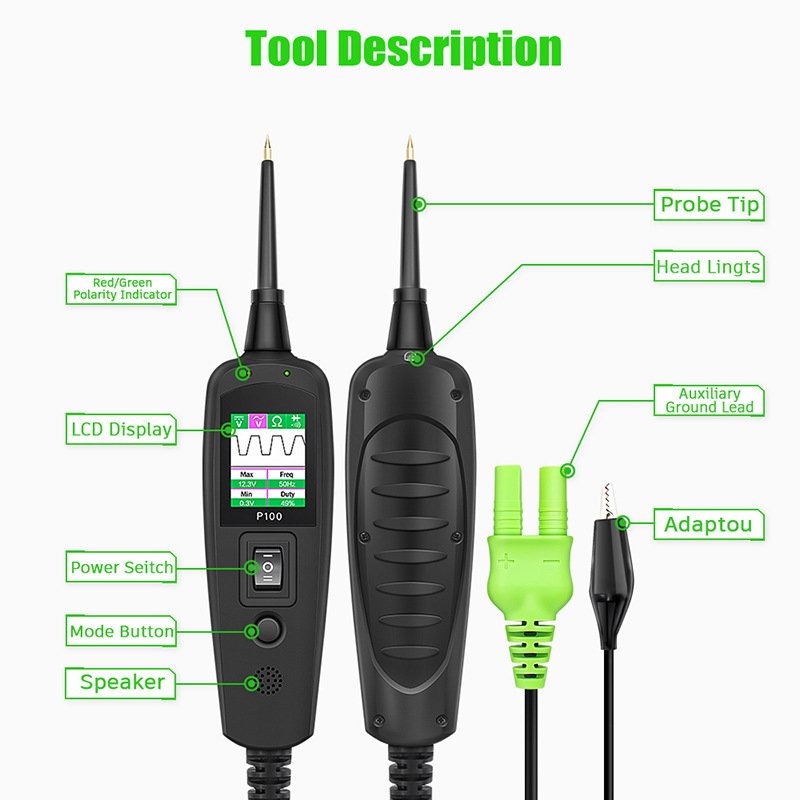

Topdiag P100 Original Automotive Electrical Circuit System Tester.

1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.

2.Resistance Continuity Testing- LCD Screen display the value of resistance.

3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.

4.Components Activation in your hand, in the vehicle or W/Ground.

5.For all 0V-65V electronic systems, Supports Car Truck Motorcycle Boat

6.Checking for Bad Ground Contacts and Locating Short Circuits

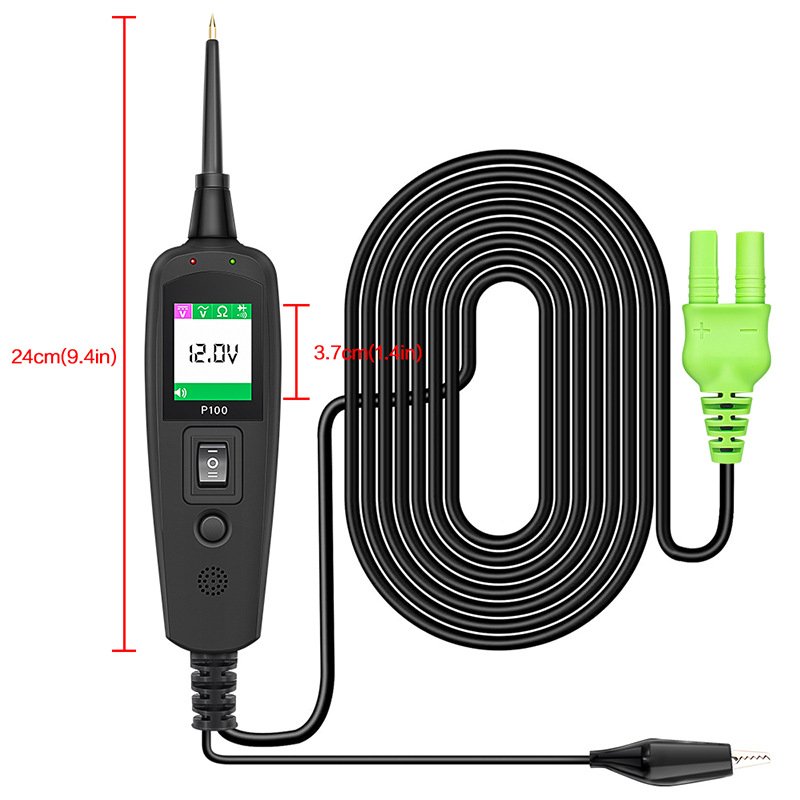

7.Cable length: 6.0 Meters which makes work more easier.

8. Multi-languages: English, Spanish, Dutch, French, Italian, Portuguese, Polish, Russian, and Chinese.

Specifications:

1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery

Test Tool Specifications:

DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp

Testing Standard:

100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.

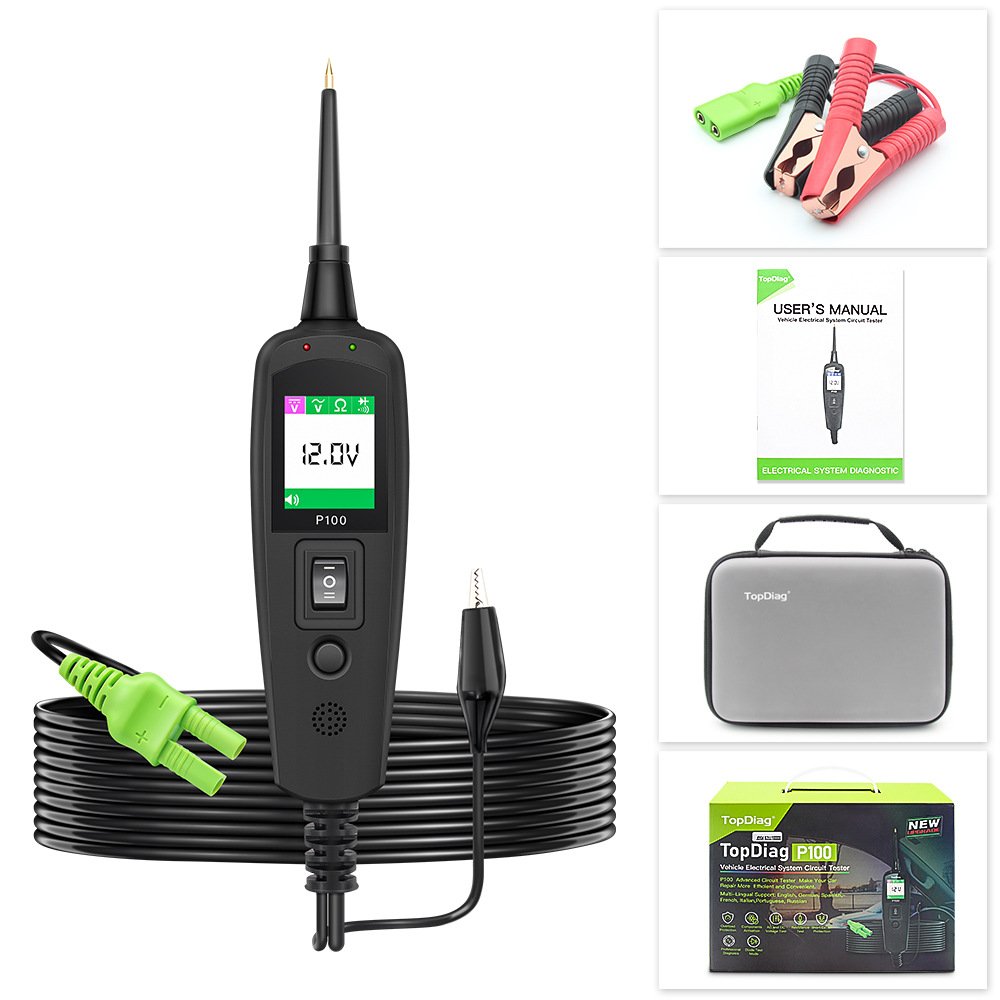

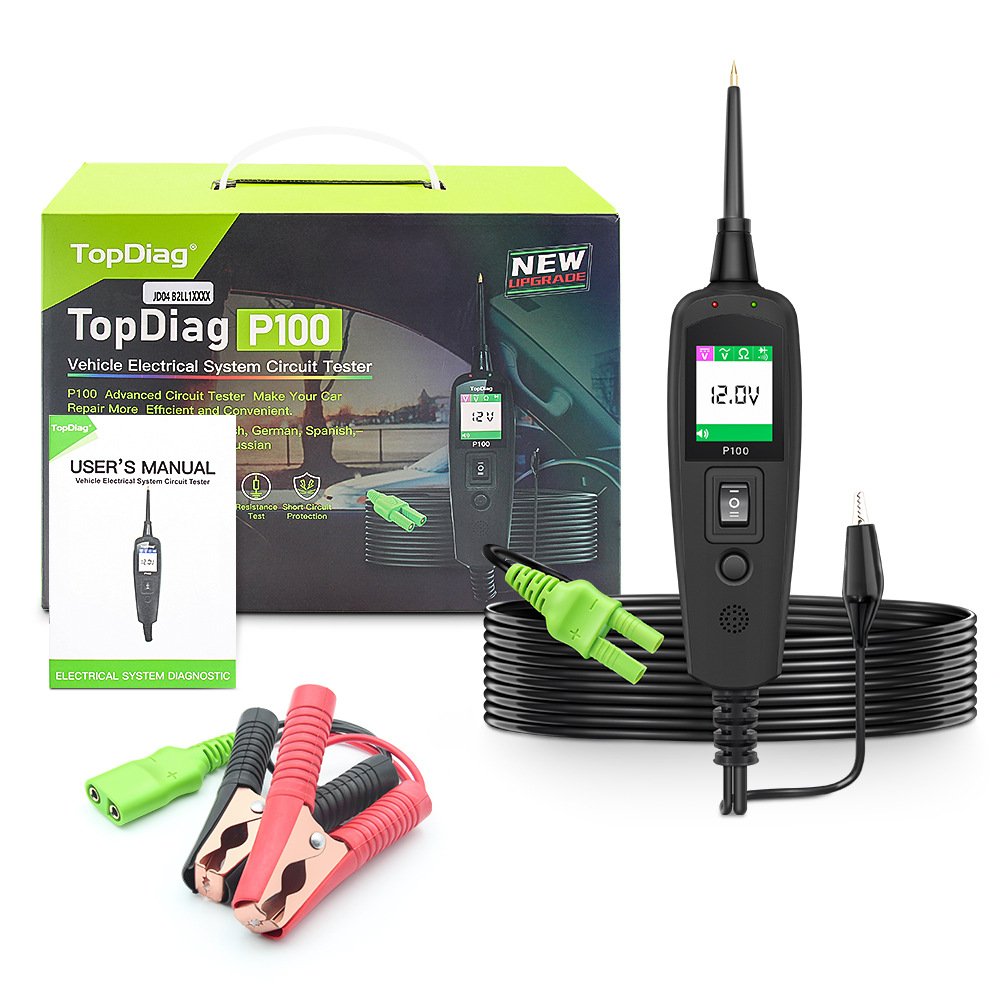

Package includes:

1pc x Probe adapter

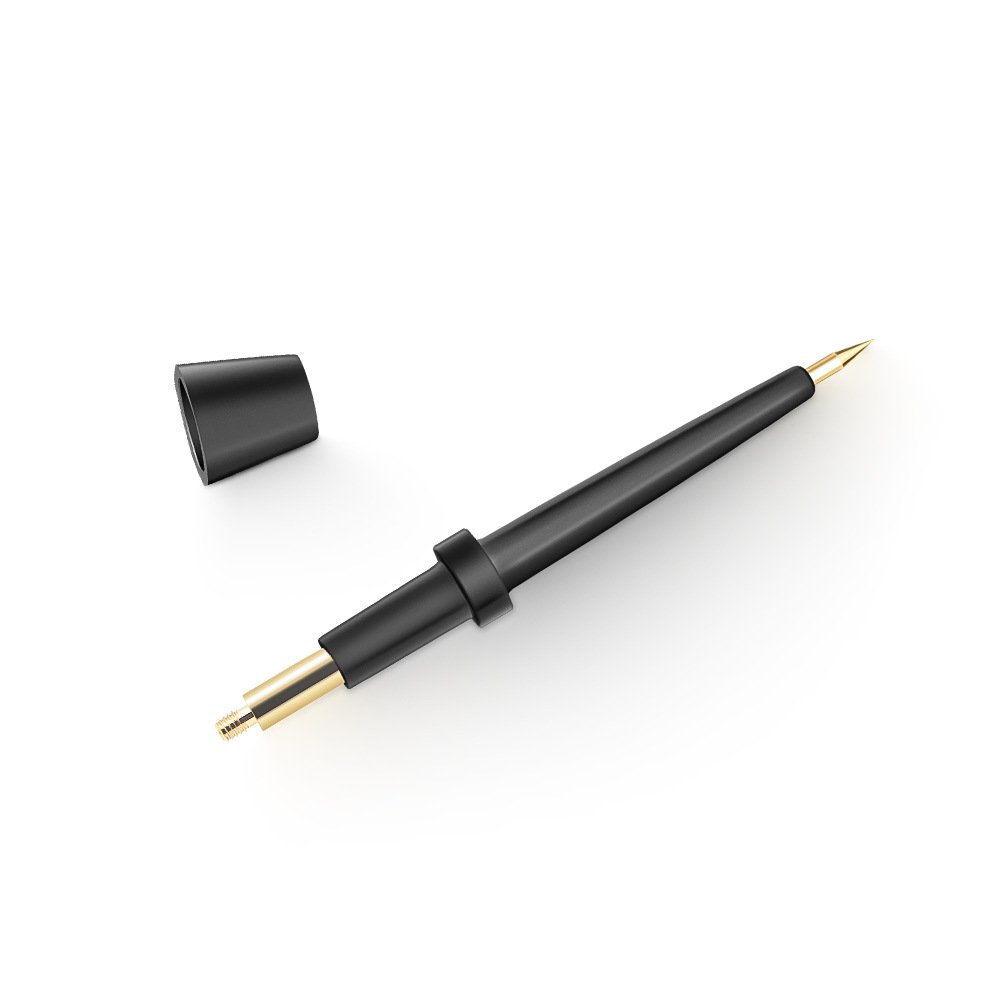

1pc x Solid copper test probe tip

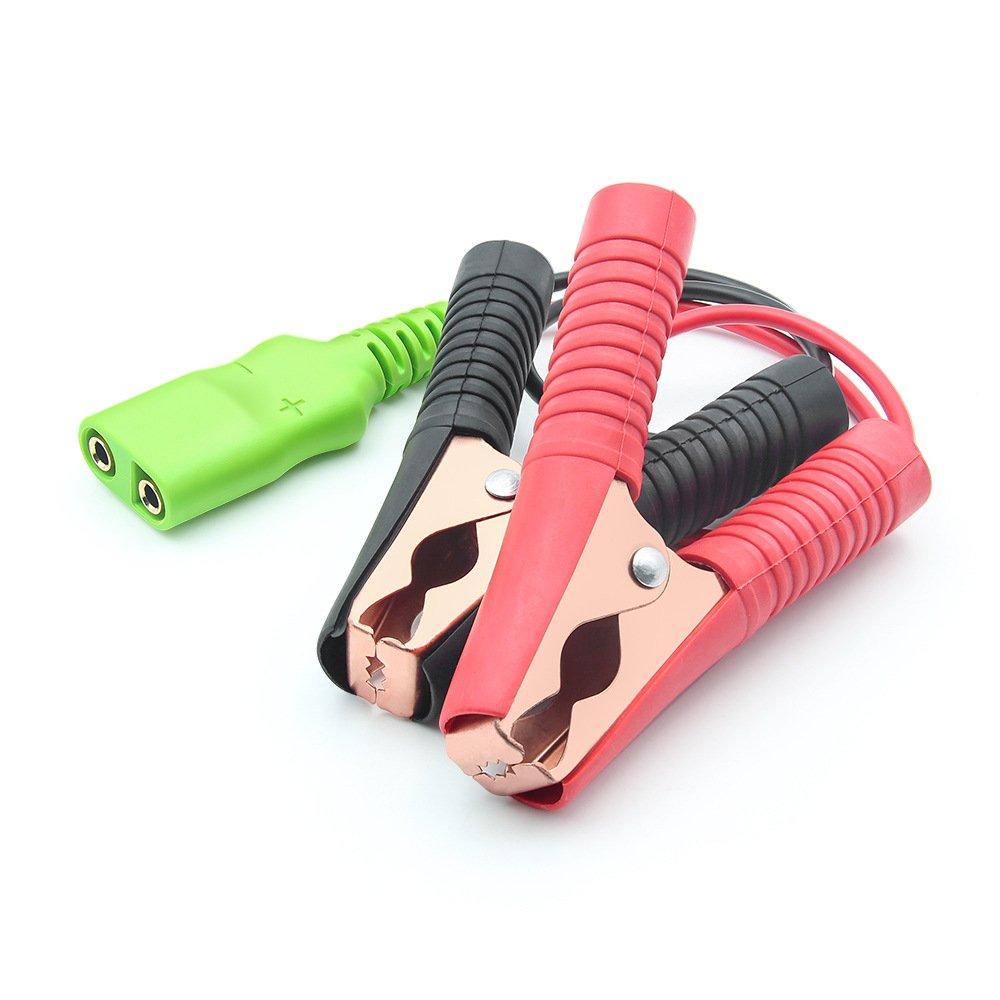

1pc x Extension connection line with alligator battery clip
1pc x User manual
