TOPDON Phoenix Pro Online Programming Tool Car Diagnostic Scanner Auto Scan Automotive Professional Diagnosis ECU Coding 2 Years Update

TOPDON Phoenix Pro Online Programming Tool Car Diagnostic Scanner Auto Scan Automotive Professional Diagnosis ECU Coding 2 Years Update

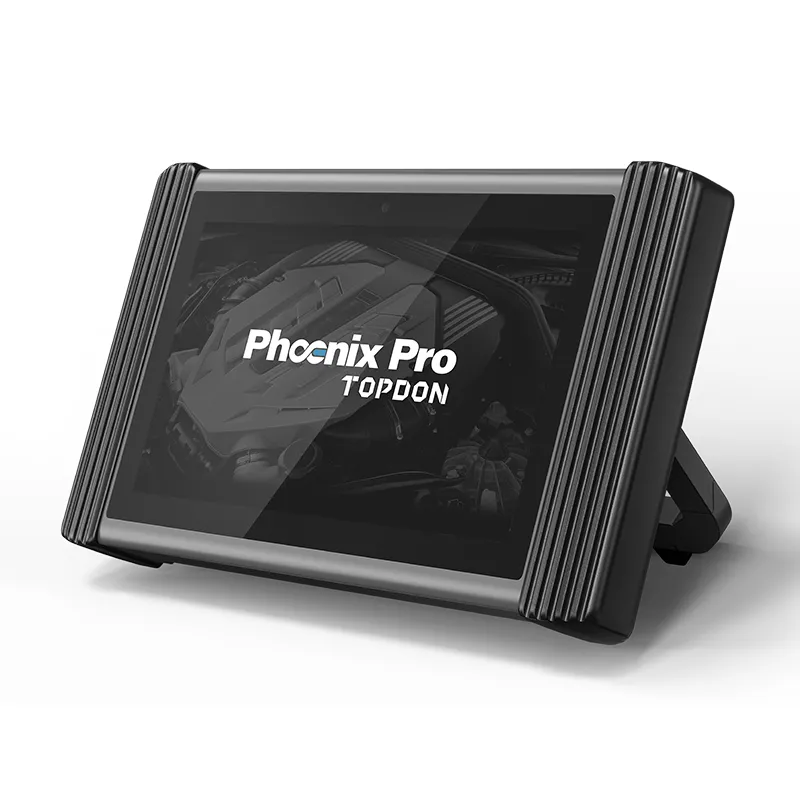

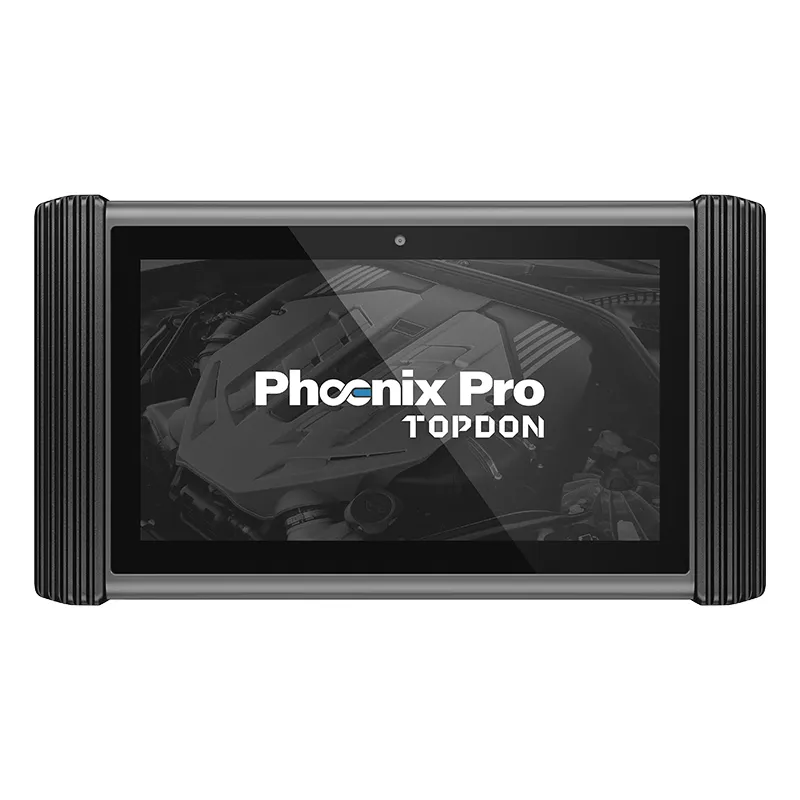

TOPDON Phoenix Pro – OE Level Professional Online Programming & Coding Car Diagnostic Tool
TOPDON Phoenix Pro is an evolutionary smart solution for professional automotive diagnostics. This Android OS-based, tablet-style scanner incorporates the best possible coverage of OE-level diagnostics with multitasking capable software. Using the powerful 8-core 2.0GHz processor and a 12 inch HD capacitive touch screen etc., it delivers quick and complete diagnostic functionalities which technicians need to diagnose, research and repair vehicles in one solution.

2021 Global Version, No IP limited.
It is global version, no IP limited. You can use it everywhere in the world.

2 Years Free Update Online
It is easy to do update by One-Click on the tablet via wifi connection.
All supported car brands softwares are included, you don’t need to buy softwares separately.
After two years, you can still use it without update. It will not be locked. If you want to buy update service after two years, we can give you a discount on it.

Supported Languages
English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey, Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish, Czech.

Online ECU Programming
Using the updated OEM software, it is capable of helping to replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.
Now it supports programming for BMW, Mercedes-benz, VW, Audi, Skoda, Seat, and Nissan.

ECU Coding
Phoenix Pro offers the ECU Coding feature, which is not available in conventional code readers, to allow you:
-To perform the customer individual customization of the car such as setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance, or stimulate high-end car functions.
-To alter the configuration when a component is replaced, so the new actuators can be recognized by related vehicle systems.
-To enable multiple car systems to recognize each other, and so the actuators can start to work.

Active Test
With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:

[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

All Systems Diagnoses
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
-Read & erase DTCs to locate problem areas and clear the codes.
-View Live Data of each parameter item.
The following is a list of modern vehicle systems that this scan tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

30+ Special Reset Functions

1. Oil Reset Service
Close the oil service light and reset service mileage & service interval after replacing the engine oil.
2. Steering Angle Calibration
-Clear memories of the previous steering angle sensor and store the replaced one.
3. Electronic Parking Brake Reset
-Reset the new electronic parking brake for braking wheels safely again.
4. Battery Register & Battery Maintenance
Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
5. ABS Bleeding
-Get a firm brake pad after air exhaustion.
6. Electronic Throttle Position Reset & Learn
-Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
7. Diesel Particulate Filter (DPF) Regeneration
-Clear particulate matter from the DPF filter to stabilize the filter performances
8. Tire Pressure Monitor System Reset
-Relearn TPMS sensors so that new sensors can be recognized by ECU.
9. Tooth Learning
-Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.
10. Anti-Theft Matching (IMMOBILIZER)
– Add a new programmed key. PIN code is required.
11. Injector matching
Write the new injector numbers into the ECU for accurate communication and injection control.
12. AFS Reset
It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.
13. EGR Adaption
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
14. Gearbox Matching
Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.
15. Sunroof Service
Set the sunroof lock switch to be on / off according to weather, temperature, and memory.
16. SUS Reset
When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.

More Functions
Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset.
You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.
And more…

Wide Vehicle Coverage across the Global
-American Cars
Buick; Cadillac; Chevrolet; Chrysler; Dodge; Ford; GM; Hummer; Jeep; Lincoln; (BRAZIL) BX-Fiat; BX-GM
-European Cars:
Abarth; Alfa Romeo; Audi; Bentley; Benz; BMW; Bugatti; Citroen; Dacia; EU-Ford; Ferrari; Fiat; Jaguar; Lamborghini; Lancia; LandRover; Maserati; Maybach; Mini; Opel; Peugeot; Porsche; Renault; Rolls-Royce; Rover; Saab; Seat; Skoda; Smart; Sprinter; Vauxhall; Volvo; VW; (UKRAINE) ZAZ; (RUSSIA) GAZ; IZH; PAZ; SEAZ; UAZ; VAZ
-Asian Cars
(JAPAN) Acura; Daihatsu; Honda; Infiniti; Isuzu; Jpisuzu; Lexus; Mazda; Mitsubishi; Nissan; Nissan GTR; Scion; Subaru; Subaru; Suzuki; Tlisuzu; Toyota; (KOREA) Daewoo; Hyundai; KIA; Samsung; Ssangyong; (CHINA) Baic; Beijing; Changan; Changan-Ford; Changcheng; Changhe; Chsuzuki; DF Peugeot; DF Honda; DF Nissan; DF XK; Flyer,BYD; Fukang; Futian,Foton; Geely; Gonow; GZ Honda; Hafei; Haoqing; HC BMW; Hmada; Huachen; Isuzu,JMC; Jacty; Jianghuai; Jiao; Jinlong; Joylong; Lifan; Liuwel-TY; Luxgen; NJ Fiat; Qirul-TY,chery; Qoros; Saicmg; Spark-TY; TJ Toyota; Trumpchi GAC; Weili; Xiaokang Dongfeng; Xili,Faw Tianjin; Xinkai; YQ Mazda; Zhongshun; Zhongtai,Zotye; Zhongxing; (INDIA) Mahindra; Maruti; Tata; (MALAYSIA) Perodua; Proton; (IRAN) MVM
-Australian Cars
Au-Ford; Holden

Discover More User-Friendly Features
Remote Diagnosis
Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.
Record & Playback
Another great feature about this automotive diagnostic scanner is that, it would allow you to view the Live Data Stream, and to record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as the future use.
Share Report via Wi-Fi
Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear and accurate diagnostic report, and then understand about what would need to be done. No more Googling unreliable fixes that would waste your energy.
Online Repair Resources
Over 1600 vehicle models’ service & repair information, handbook, repair case and operation skills are included.

Health Report Generate and Share
With LAUNCH X431 V+, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

Specifications
Operating System : Android 5.1
CPU : 8-core Processor, 2.0GHz
Display: 12*’ Touch Screen (1920*1200 Resolution)
Memory : 2GB
Hard disk : 64GB (Expandable to 128GB via Memory Card)
Connectivity : Ethernet/Wi-Fi (802.11 b/g/n) /USB/Bluetooth
Camera : 2.0MP Front-Facing Camera
8.0MP Rear-Facing Camera with AF
Sensor :Gravity Accelerometer
Audio Input/Output: Microphone Speakers 3.5mm Stereo Headset Jack
Input Voltage: DC 5V/3A
Power Consumption: Max. 20W
Working Temperature: 0°C ~50°C (32-122 °F)
Storage Temperature: -20°C ~70°C (-4-158 °F)

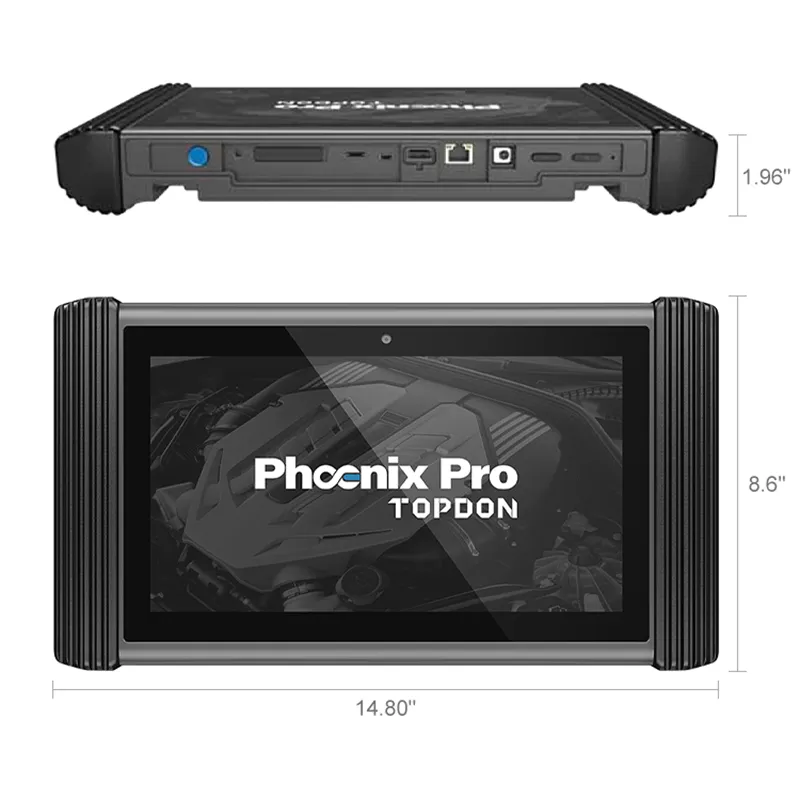

Dimensions: 376*220*50 mm (14.80*8.66*1.96 inch)
Weight: 2120g (74.78oz)

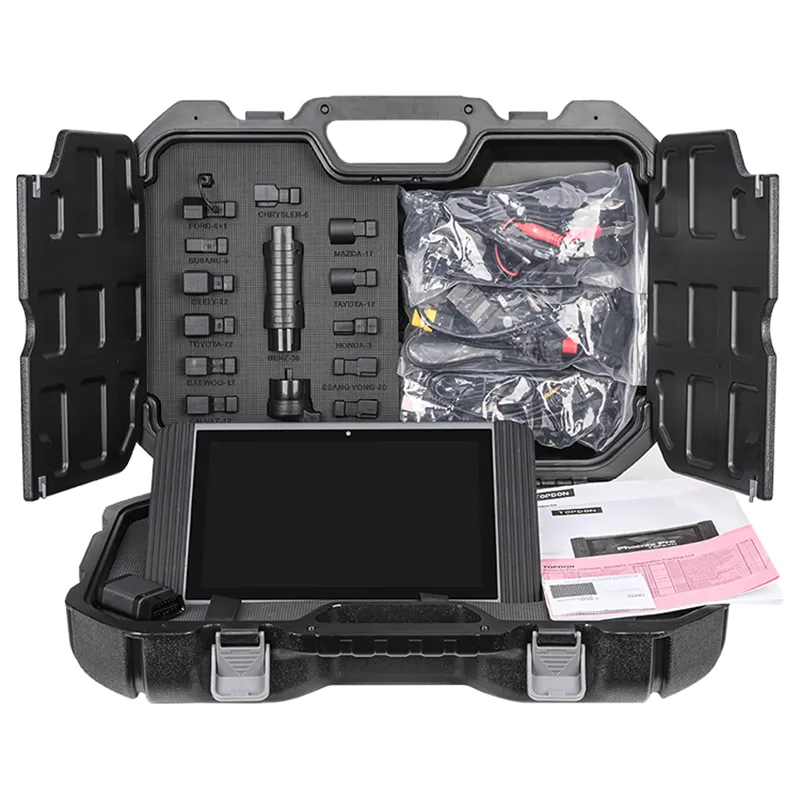

Package List
1*TOPDON Phoenix Pro tablet(wifi version)
1*TOPDON VCI connector(open USB)
1*AUDI-4 Diagnostic connector line
1*BENZ-14 Diagnostic connector line
1*BENZ-38 Diagnostic joints (small handle)
1*BMW-20 Diagnostic connector integrated
1*CHRYSLER-6 Diagnostic connector integrated
1*DAEWOO-12 Diagnostic connector integrated
1*DAIHATSU-4 Diagnostic connector type
1*FIAT-3 Diagnostic connector type
1*FORD-6+1 Diagnostic connector integrated
1*GAZ Diagnostic connector line
1*GEELY-22 Diagnostic connector integrated
1*GM/VAZ-12 Diagnostic connector integrated
1*HONDA-3 Diagnostic connector integrated
1*KIA-20 Diagnostic connector integrated
1*MAZDA-17 Diagnostic connector integrated
1*MITSUBISHI/HYUNDAI-12+16 Diagnostic connector
1*NISSAN-14+16 Diagnostic connector integrated
1*SSANGYONG-14 Diagnostic connector line
1*SSANGYONG-20 Diagnostic connector integrated
1*SUBARU-9 Diagnostic connector integrated
1*SUZUKI-3 Diagnostic connector line
1*TOYOTA-17 Diagnostic connector integrated
1*TOYOTA-22 Diagnostic connector integrated
1*UNIVERSAL-3 Diagnostic connector type
1*OBD I Adaptor BOX transfer line
1*Double clamp power line, RoHS
1*The cigarette lighter line, RoHS
1*OBD II extension cable
1*Adapter, 5.2V / 3A, charging cable length of 1.2 meters, 2.5MM DC Interface, the US regulations
1*Adapter, 5.2V / 3A, charging cable length of 1.2 meters, 2.5MM DC interfaces, EU
1*Universal PIN envelope
1*USB communication cable
4*Clipper fuse 5*20mm
2*Lighter fuse 6*30mm
1*TOPDON Phoenix Pro English quick start
1*TOPDON Phoenix Pro English user manaul
