V018 ELM 327 V2.2 OBD2 Scanner WIFI Bluetooth 5.0 ELM327 V1.5 For Android/IOS OBD OBD2 Car Diagnostic Tool ODB2 Auto Code Reader

V018 ELM 327 V2.2 OBD2 Scanner WIFI Bluetooth 5.0 ELM327 V1.5 For AndroidIOS OBD OBD2 Car Diagnostic Tool ODB2 Auto Code Reader

ELM327 V2.2/V1.5 BT5.0/4.0/WIFI Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ( “Check Engine” light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

ELM327 5.0/4.0 Connection Steps:

Top 5 Reasons To Get Super MINI ELM327 V2.2/V1.5

1. Software Version: latest Version

2. Hardware Version: V2.2/V1.5

3. Works with all OBD-II compliant vehicle

4. Wireless (WIFI)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

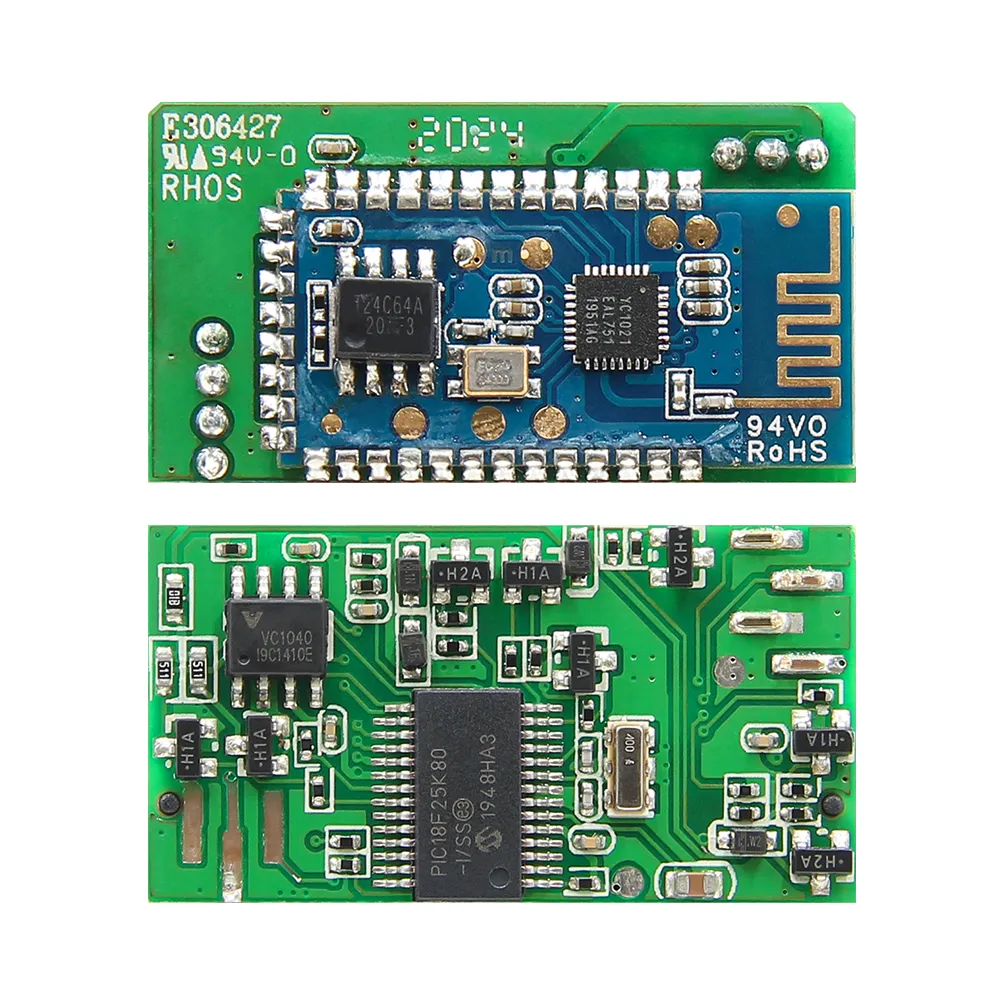

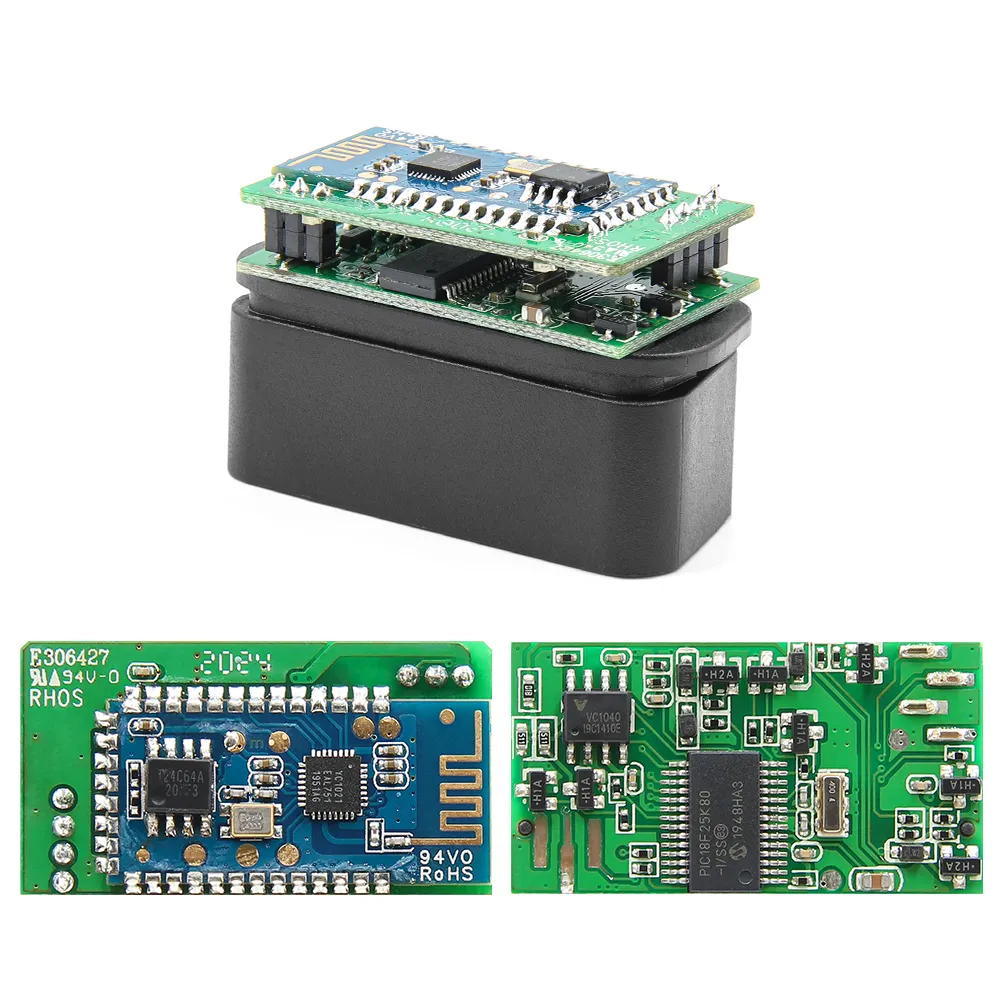

6.PIC18F25K80 Chip

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS: Auto Doctor, Mini OBDII

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope

Software Address:

Android: ELM327 dentifier/Torgue/Dashcommand/Auto Doctor

PC: Scanmaster(www.elm327.com )

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

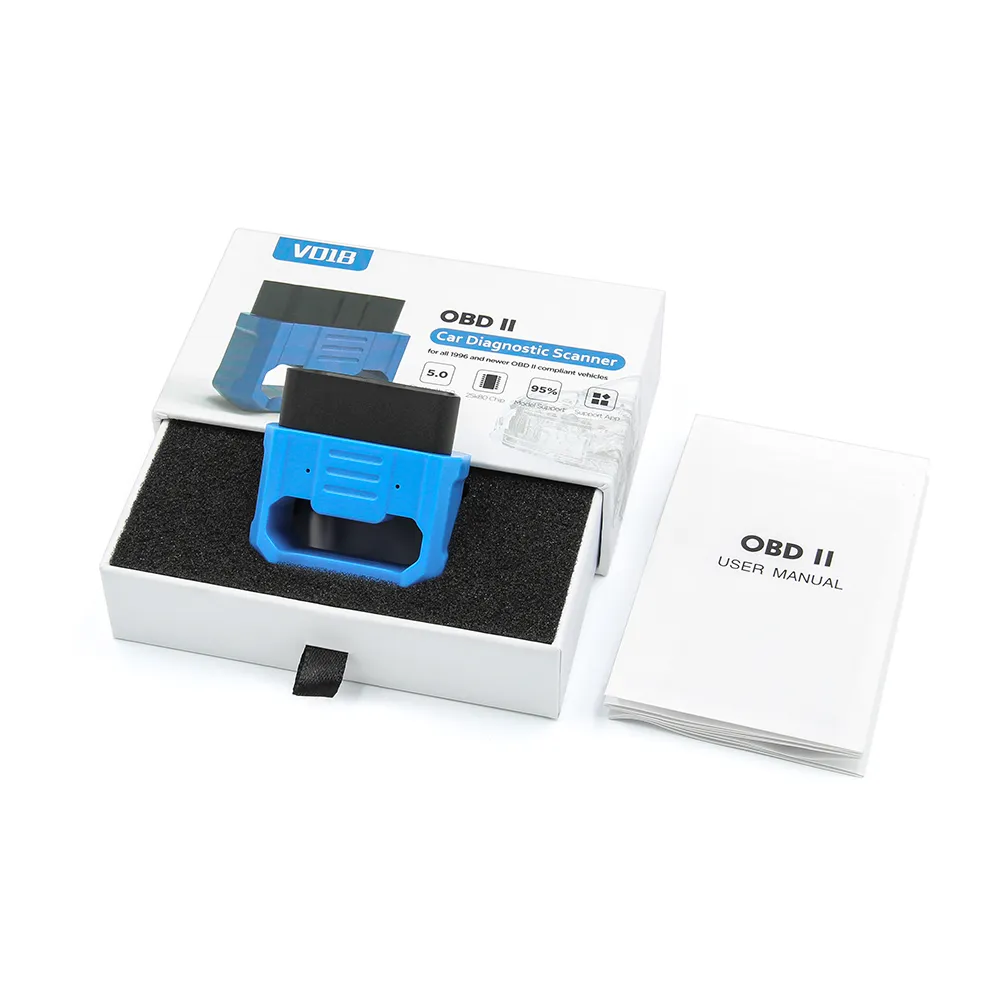

PACKING-LIST:

1pc x Mini ELM327

1pc x Box
