V1.42 Dongle + Upgraded Chip Board for Orange5 ECU Programmer V1.42

Product Features:

Software Version:orange 5 v1.42 full function.

Language:English,Russian

Systems: WIN XP/ WIN7 (32bit and 64 bit)

Note: Dongle use to 08-airbag and 09-dashboard modules.

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

“Echo” mode

Delay settings between incoming data

Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI

Program doesn’t need to be installed

Supports Orange5 programmer in emulation mode.

Software Licenses:

MTRK (Included in Orange-5 base)

TMS (Included in Orange-5 base)

M08V NEW

Immo HPX 9V0

NEC V850ES/SJ3 V850ES/SG3 UART

NEC V850E2 NEW

New Licenses:

MCU ( Infineon，ST and MicroChip)

Renesas: H8SX，HD64F，V850 UART，V850 SPI，RH850 V3，RL78

Special_05

Dash

for Fujitsu

F-DASH Tractor

EEPROM

A/B/C/D/E moudels

We have more chip models than others in Infineon, ST and MicroChip of MCU:

Renesas: We have more licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others

Orange5 :Although there are 14 models,But only the 10 modules in the red frame can work

Orange5 :Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.

Special_05: We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers

Orange 5 has these buttons,but there is no licenses, so it can’t work!

Greatest Advantages:

AIRBAG: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.) ✔

Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams✔

The following screenshot shows part of Dash’s model list:

for Fujitsu: We have this module, but other products do not have this moduleWe have 61-for Fujitsu series, MB90 series, 91/95/96 series DASHBOARD ECT. Others has no these moudels

F-DASH Tractor:

Orange 5 Technical Info:

USB power supply (USB2.0/3.0)

Universal easy to plug panel ZIF16 for EEPROM

Control of contacts in the sockets

Two expansions compatible with Orange4 and Omega MTRK

Protection against overcurrent

Overload voltage protection

Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional static 10V for microcontrollers

High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)

Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment

Capability of functional emulation of class CDC USB devices

Built-in 32-bit virtual machine

Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

– Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm – Terminal program for work with COM ports.

Package Includes:

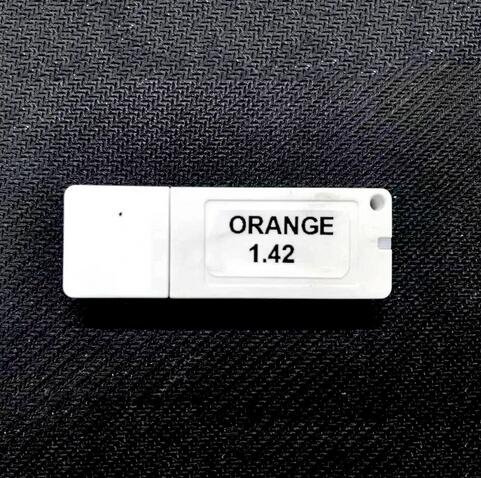

1pc x V1.42 Dongle

1pc x Upgraded Chip Board
