Product Features:
Software Version:orange 5 v1.42 full function.
Language:English,Russian
Systems: WIN XP/ WIN7 (32bit and 64 bit)

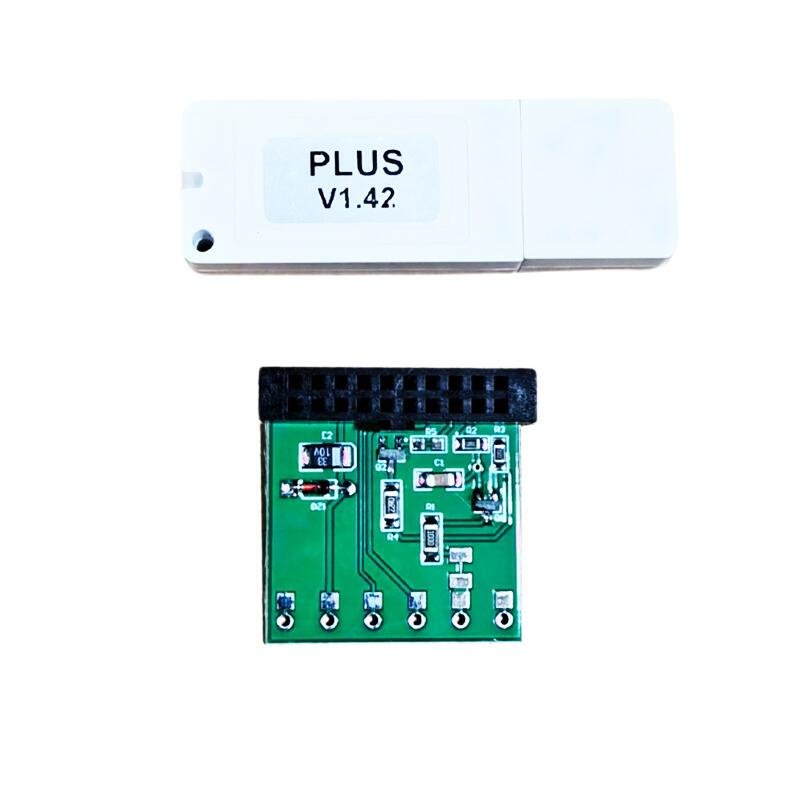

Note: Dongle use to 08-airbag and 09-dashboard modules.
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
“Echo” mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
Program doesn’t need to be installed
Supports Orange5 programmer in emulation mode.
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
New Licenses:
MCU ( Infineon，ST and MicroChip)
Renesas: H8SX，HD64F，V850 UART，V850 SPI，RH850 V3，RL78
Special_05
Dash
for Fujitsu
F-DASH Tractor
EEPROM
A/B/C/D/E moudels
We have more chip models than others in Infineon, ST and MicroChip of MCU:
Renesas: We have more licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others
Orange5 :Although there are 14 models,But only the 10 modules in the red frame can work
Orange5 :Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.
Special_05: We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers
Orange 5 has these buttons,but there is no licenses, so it can’t work!
Greatest Advantages:
AIRBAG: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.) ✔
Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams✔
The following screenshot shows part of Dash’s model list:
for Fujitsu: We have this module, but other products do not have this moduleWe have 61-for Fujitsu series, MB90 series, 91/95/96 series DASHBOARD ECT. Others has no these moudels
F-DASH Tractor:
Orange 5 Technical Info:
USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
– Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm – Terminal program for work with COM ports.

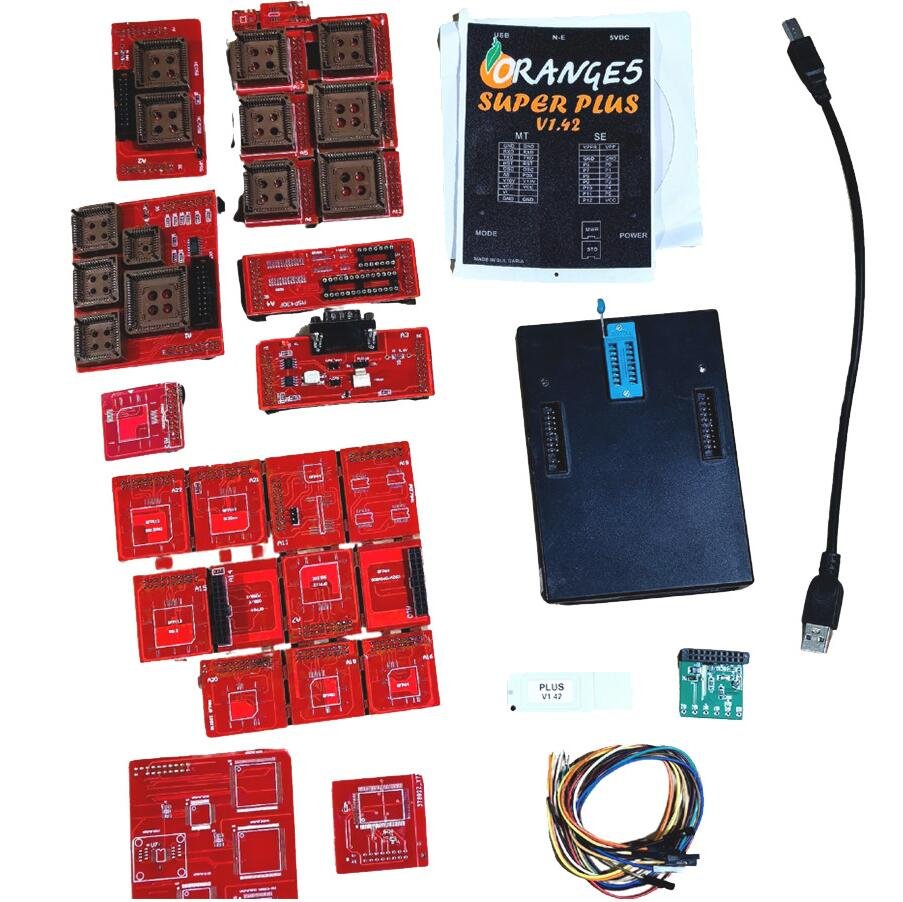

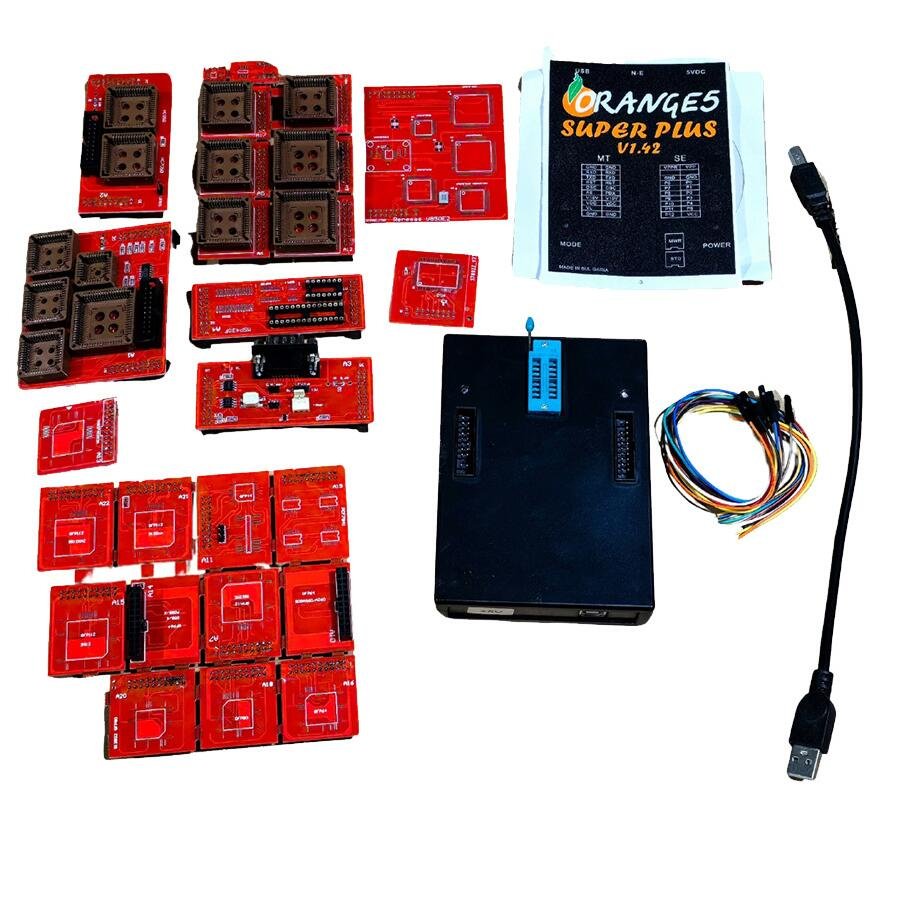

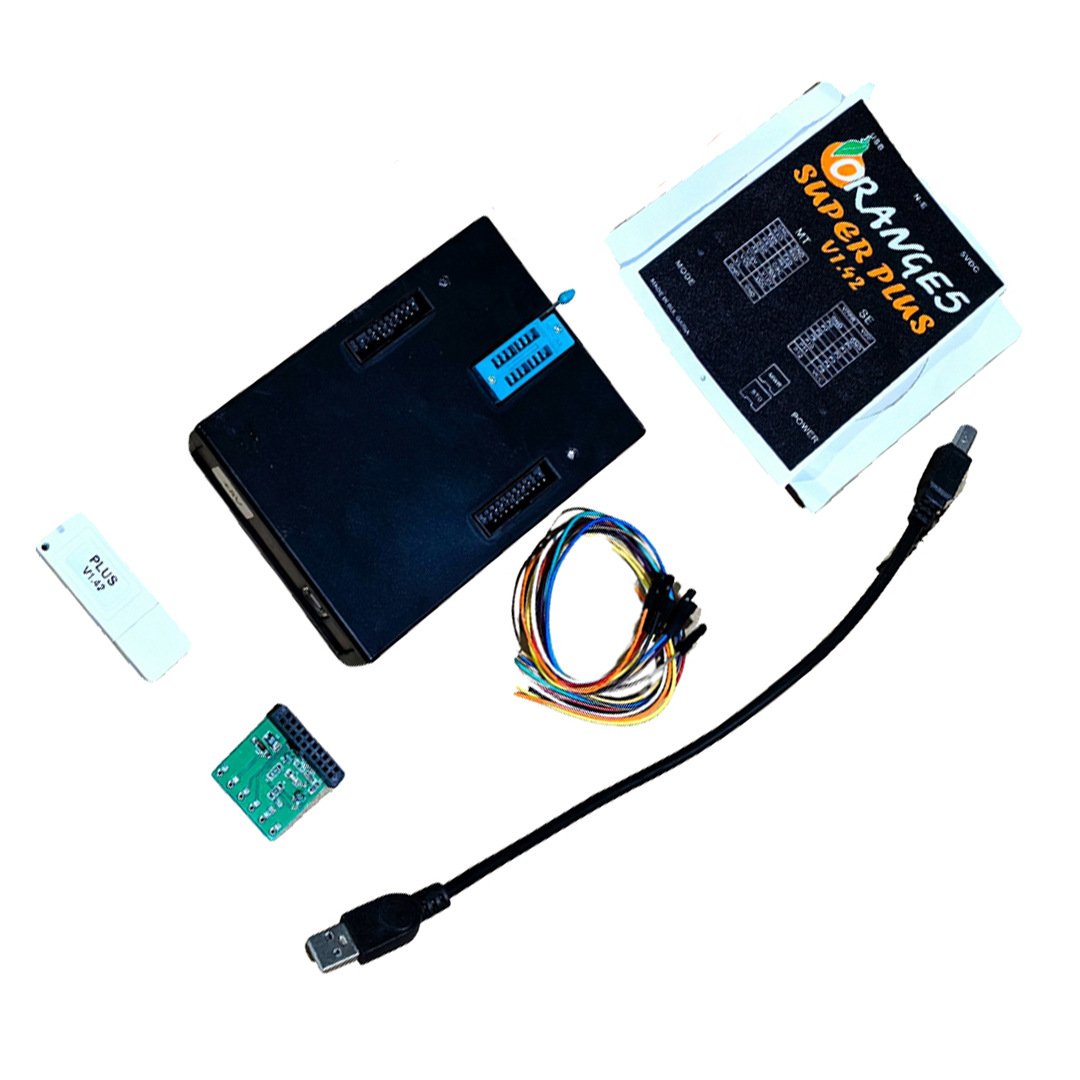

Package Includes:

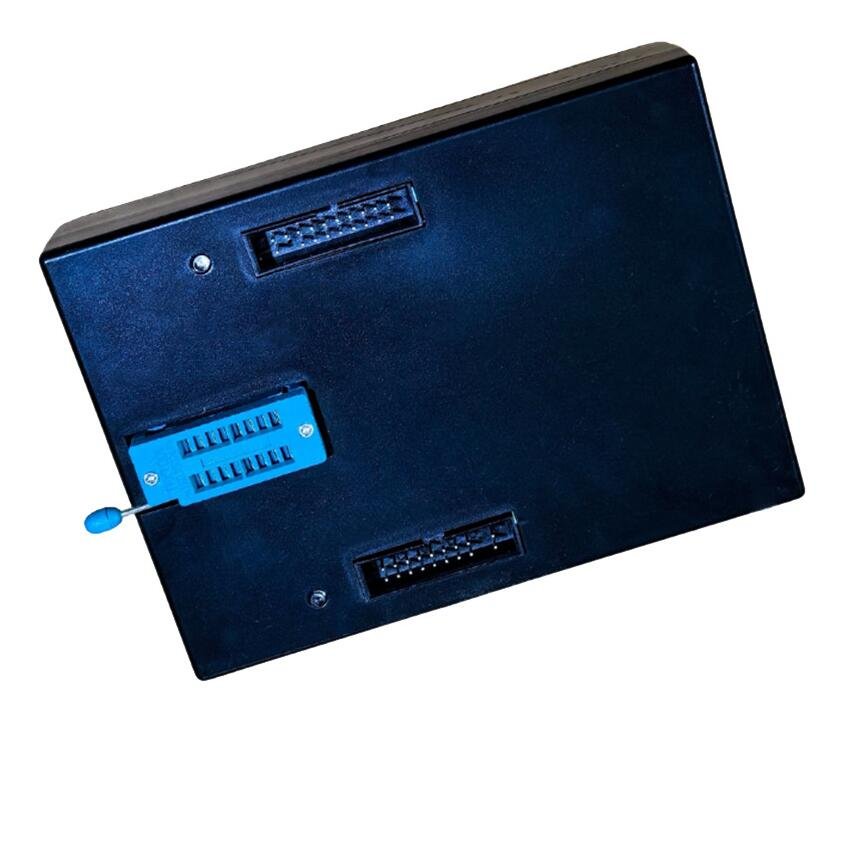

1pc x Orange 5 Programmer
1pc x TMS375C006/TMS370CX36/TMS370CX32/X42 A1
1pc x HC05B/HC705B A2
1pc x Adapter 11EA9/PLCC52 A5
1pc x Adapter 908AS60 PLCC52 A6
1pc x Adapter QFP112/9S12XE QFP80/9S12XE/9S12XS A7
1pc x HC11A/EXX PLCC52 A8
1pc x Adapter HC11F1 A9
1pc x Adapter 908AS60/AZ60 QFP64 A10
1pc x 705E6/705P3/05P3 A11
1pc x Adapter 68HC11L6 A12
1pc x Adapter TMS374C003A A13
1pc x Adapter 05B/X_705B/X QFP64 V2 A14
1pc x Adapter QFP112/9S12 QFP80/9S12DXX A15
1pc x Adapter QFP64 A16
1pc x Adapter 68HC05H12 A17
1pc x Adapter QFP64/QFP80 A18
1pc x Adapter PCF7941 A19
1pc x Adapter 912B32 QFP80 A20
1pc x Adapter 912Dxx A21
1pc x Adapter 9S12HZ/QFP80 1 9S12XHZ /QFP112 A22
1pc x Adapter 93CXX-14
1pc x USB Cable
