Product Description

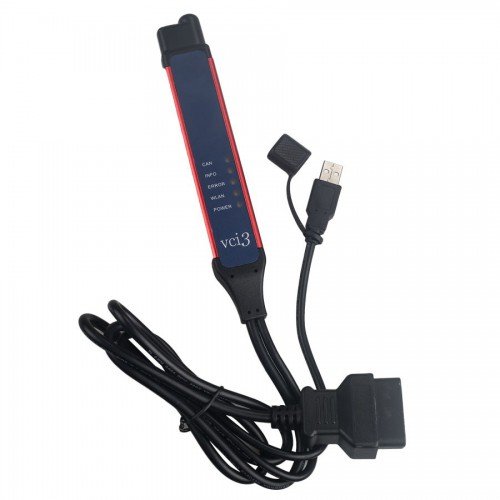

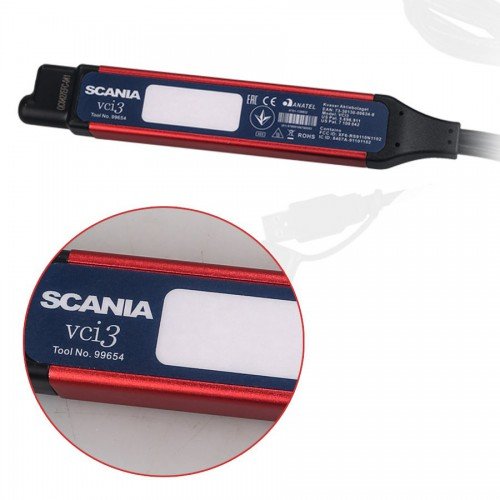

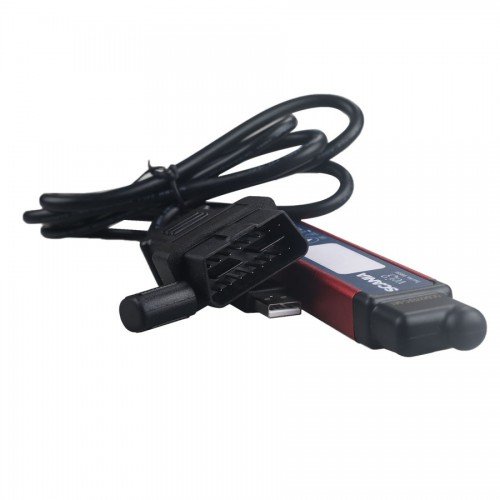

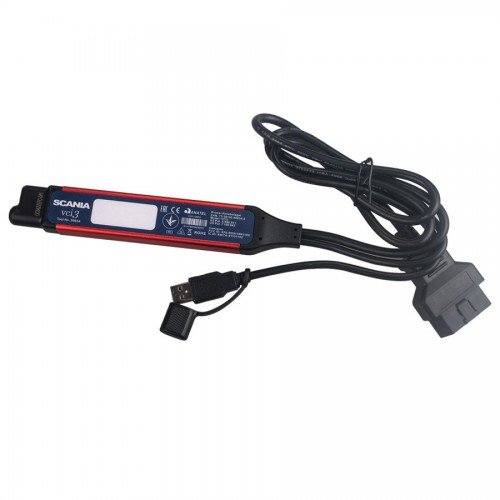

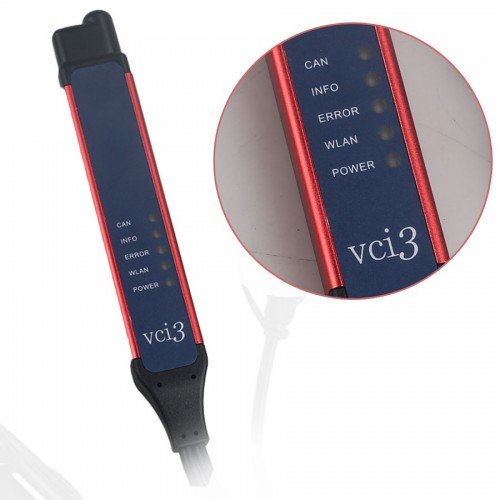

(VCI3 ) Vehicle Communication Interface 3: is the interface which is used between the vehicle or an industrial and marine engine and a computer with SDP3. Professional diagnostic and programming device communicates with all Scania trucks, buses, industrial vehicles and marine engines made from 2004 till today! The program has been developed to support the electrical system with CAN communication. The program is used for troubleshooting, adjusting customer parameters, calibrations, conversions affecting the electrical system and updating software in control units.
(VCI3 ) Vehicle Communication Interface 3 can be connected to the computer via a USB cable or via wireless connection. Wireless connection between the computer and VCI3 can be made in different ways depending on the required area of application and the available options offered by the wireless network. The computer and VCI3 can either be connected via a wireless direct connection (ad-hoc) or communicate via an existing wireless network (infrastructure).
Top 4 Reasons to Get Scania VCI3:
1. Latest Version: V2.48.2
We have installation video on our website too. After you finish, pass us Sdp3 HWID for activation. (Including one time free activation only)
2. Supportone model oftrucks, Buses and other Heavy Vehicles or Heavy Duty Engines
3. Wifi Available
4.Updatable (Buy New Software without Dongle)
SCANIA VCI3 Features:
1. WLAN version 802.11b/g
2. Encryption protocols: WPA2/WPA/WEP128/WEP64
3. USB 2.0 (compatible with USB 1.1)
4. Lightweight aluminum housing with IP67 protection
5. Polyurethane cables for extreme conditions.
6. Operating voltage CAN BUS (7 – 40V DC)
Support Software:
SDP3, BICT, BST, Multi 2019.5
1.(SDP3) Scania Diagnos & Programmer 3 communicates with Scania vehicles and Scania industrial and marine engines. The program has been developed to support the electrical system with CAN communication. The program is used for troubleshooting, adjusting customer parameters, calibrations, conversions affecting the electrical system and updating software in control units.
2.(BICT) Bodywork Interface Configuration Tool is a software tool for the Bodywork Interface Configuration (BIC) function. This tool facilitates the connection of bodywork and body using the functions included in the vehicle’s electrical system. The logic programming is done in a BIC project, which in turn can contain several logic diagrams, to make the logic programming clearer. The BIC project can be saved and reused for more vehicles. BICT can be used both with and without connection to the vehicle. Without connection to a vehicle it is possible to create new projects containing logic diagrams and simulate logic diagrams. The BIC project can be saved and later used to write the BIC program to the control unit. With BICT connected to the vehicle it is possible to write a new BIC program to the control unit or update the existing BIC program in the control unit. You can also troubleshoot the BIC program in the control unit via guides in SDP3.
3.(BST) BNS II Service Tool is a PC software for diagnosis, troubleshooting and reprogramming of the multiplexed body electric system BNS II, used on buses in the Scania Omni City/Link or Citywide range.
4.(Multi 2019.5) contains the information on spare parts, accessories for Scania cars and buses.
VCI3 Scanner Functions:
1. Check and adjustements
2. Conversion
3. Maintenance
4. Campaign
5. Bodywork
6. Fault Codes
7. Fault Reporting
8. Programming of Control units
Need Netframework 4.5 installed on system.
Support modification of ECU data of the following types:
EMS – Engine management system.
GMS – Gearbox management system.
RET – Retarder system.
AWD – All wheel drive system.
CLS – Clutch Control.
EEC – Exhaust Emission Control.
COO (COO7) – Coordinator.
BWS (BCI1) – Bodywork system
Support resolving trouble codes to text descriptions for the following types:
EMS (S6, S7, S8).
GMS (OPC4, OPC5).
RET (RET1, RET2).
AWD (AWD1).
EEC (SCR1, EEC3).
COO (COO6, COO7).
HMS (HMS1).
Some interesting options:
AdBlue ON/OFF.
EGR ON/OFF.
Chassis ID/VIN Change.
Immobilizer ON/OFF.
Truck Power INCREASE.
ECU Recovery.
ECU Reset.
ECU Unlock.
Scania diagnostic software works with VCI 3 interface:
Highest level access
Internal Scania
Industry & Marine
Authorized Scania Workshops
Bodybuilder
SCANIA VCI3
Support Languages:
Czech Czech, Deutsch German, English, Español Spanish, فارسی Persian, Suomi Finnish, Français French, Magyar Hungarian, italiano Italian, Japanese, 한국어 Korean, Nederlands, Polski, PortuguêsPortuguese, Pусский Язык Russian, Svenska Svenska, ภาษาไทยThai, Türkçe Turkish
Notice:
1. V2.31 online work onWIN7 64bitsystem, Time is2017.03, free to use.Have install video in DVD, buyer can install and activate himself.
2. V2.48.2 work in WIN7 64 or 32 bit, have install instruction in DVD,After install software, give us HWID to activate, get one time free activation.
3. V2.50.3 is best to work in WIN7 SP1 system, other system pls buyer update or set model, WIN10 easy to lose file. Use teamviewer or Todesk to get one time free install and activation. Software is update fast, so cann’t send latest version in DVD, give it via link.
V2.53.5 Scania SDP3 Software Download:
https://mega.nz/file/whoC3CbC#JTi44wn4xIHGRZrCTn1sLx3k3Dxf6CzGRL0Znf1o9S4
V2.43 Scania SDP3 Software Download:
https://mega.nz/file/8ZRkHIbQ#-0QGuz65mcdQq8D3uAqjMQhRFM9JePvY_RyKReCn6ls
V2.44.1 Scania SDP3 Software Download:
https://mega.nz/folder/j7hG2A4R#Pm3LULSH8v9zrbgbYYgekQ
V2.46.1 Scania SDP3 Software Download:
https://mega.nz/folder/dCgChbYQ#hCUQQz2fJa2C3_achhGGzw
V2.48.2 Scania SDP3 Software Download:
https://mega.nz/folder/KiwFhAAB#9HMFfwfeamYCVmVzUWghWQ

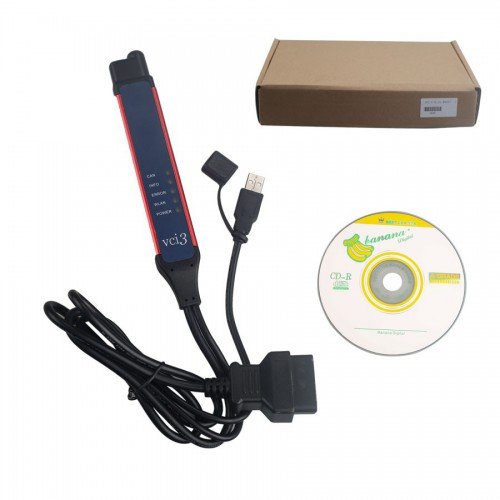

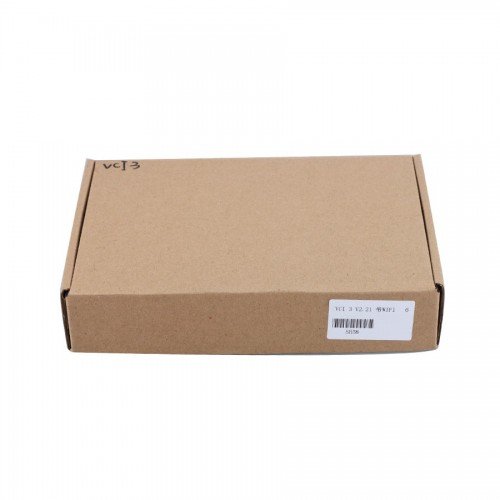

Package Included:
1pc x VCI 3 adapter
1pc x Software latest vesrion CD
