V309 OBD2 OBDII Auto Car Diagnostic Scanner Handheld Car Diagnostic Repair Tool Automotive Erase/Reset Fault Codes Reader

V309 OBD2 OBDII Auto Car Diagnostic Scanner Handheld Car Diagnostic Repair Tool Automotive Erase/Reset Fault Codes Reader

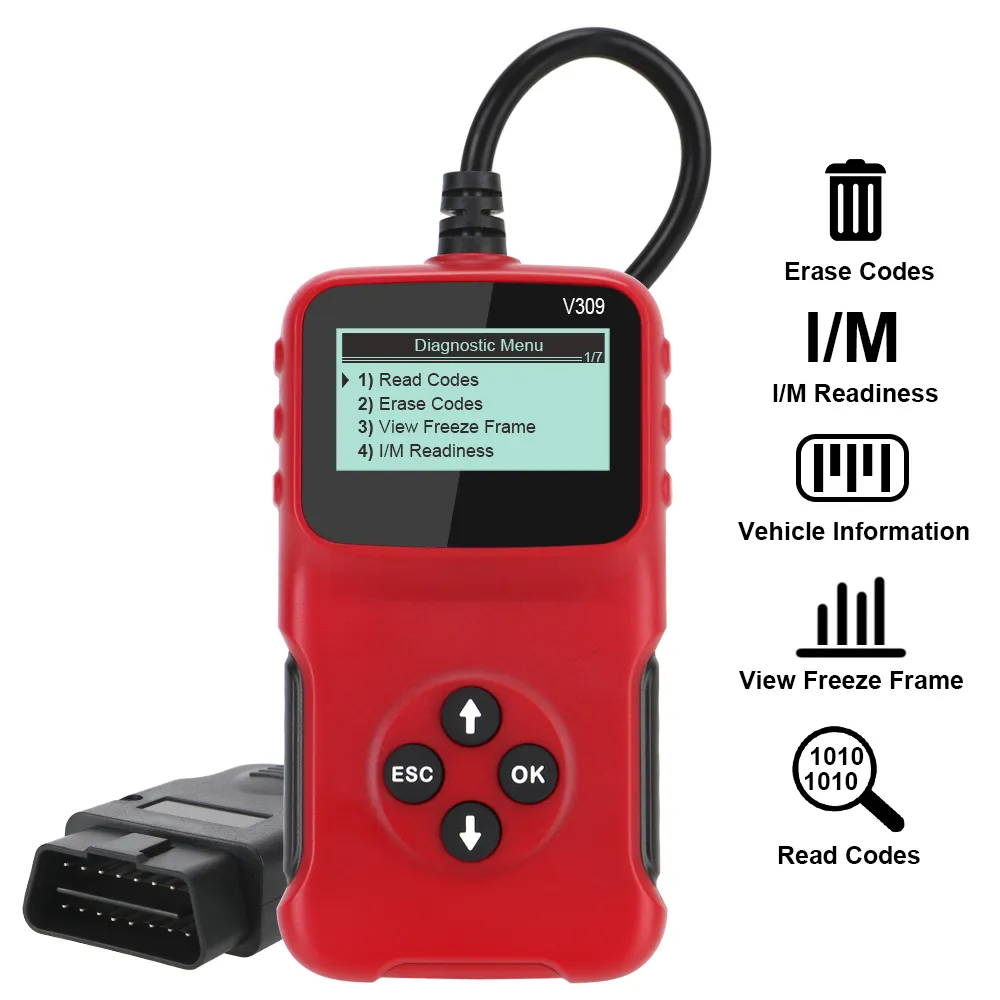

Function:

*Brand new and high quality.

*Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

*Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

*I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

*View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

*Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), *CID (Calibration ID) and CVN (Calibration verification number), etc.

Support OBD2 protocols:

SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)

Support car models:

American (USA) car:
Compatible with Standard OBD2 Cars from 1996 to Now: for Chrysler, for Ford, for GM, for Jeep

European car:
Compatible with Standard OBD2 Cars from 2003 to Now: for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar

France car after 2006:
for Citroen,for Fiat,for Renault,for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan.

Asian car:
Compatible with Standard OBD2 Cars from 2007 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota

Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don’t have Special Functions,like ABS Reset,Airbag Reset… Please leave us message in below format, we will reply you ASAP. For example : xx, 2005, 2.0cc, Diesel.

Not available veichles:

Not Support Electric car and Hybrid car and 24V trucks did not support,like Nissan leaf and so on.
Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years. For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
Not For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
Not For Ssangyong Rexton , 2011 to 2017 years,
Not Support Opel Corsa c 2004 1.3 CDTI
Not support Citroen C4/C5 .
Not support Chevrolet cars,
Not support Renault Logon , Megane, clio2.

Specifications:

Screen:Badit,128*64 pixel display
Voltage Range: 9-16V
Operating Temperature: 0°C -60 °C
Environment Temperature: -20 °C -70 °C

Package included:

1x Car OBD2 Diagnostic Tool

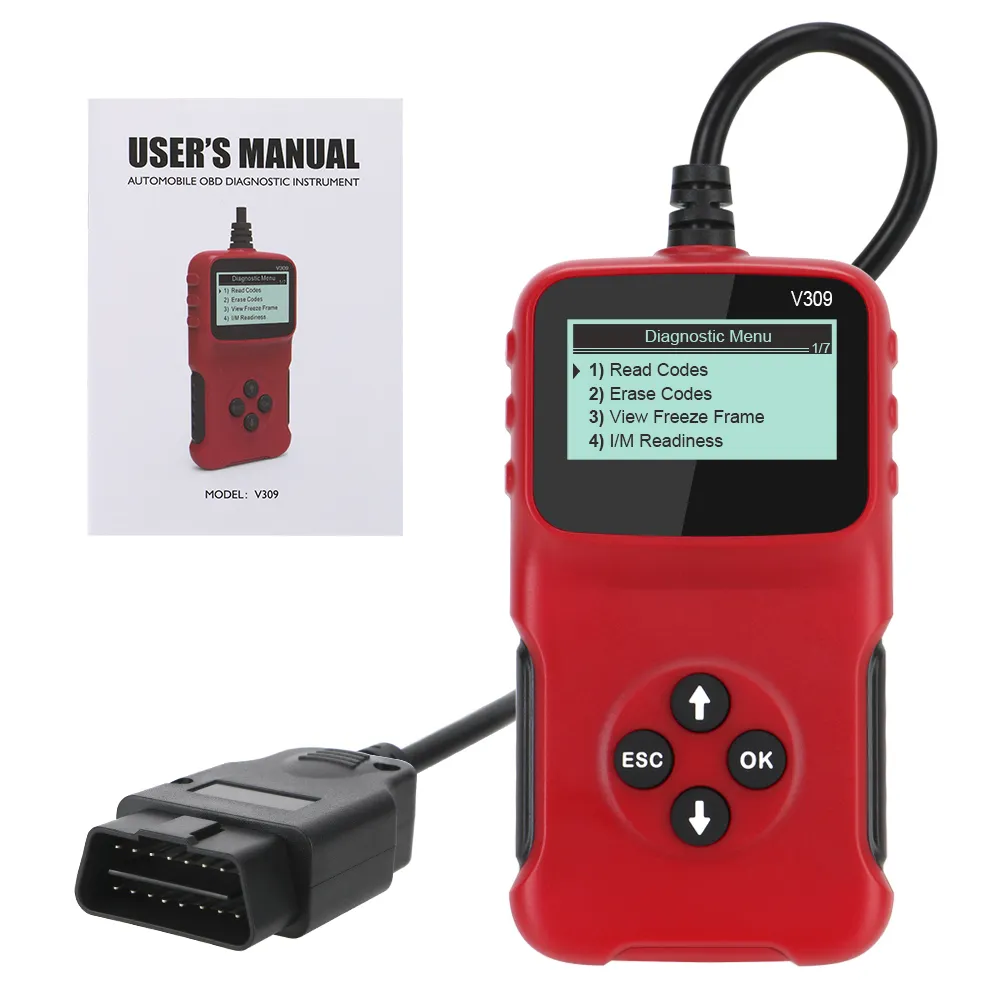

1x English Manual
