V313 Code Reader Scan for 12V Car Battery Tester 2in1 OBD OBD2 Car Diagnostic Auto Tool ODB2 Car OBD Code Reader Tool

V313 Code Reader Scan for 12V Car Battery Tester 2in1 OBD OBD2 Car Diagnostic Auto Tool V313 ODB2 Car Code Reader

Supported vehicle data:

1. Read the error diagnostic code

2. Clear the fault code (clear the error code and turn off the MIL)

3. Engine revolutions per minute (RPM)

4. Calculated load value

5. Coolant temperature

6. Fuel system status

7. Vehicle speed

8. Short-term fuel situation

9. Long-term fuel situation

10. Intake manifold pressure

11. Advance fuel injection time

12. Inlet temperature

13. Air flow speed

14. Absolute position of throttle valve

15. Oxygen detection voltage associated with short-term fuel state

16. Fuel system status

17. Fuel pressure

18. Fuel consumption monitoring, etc.

Note:The number of data items supported by different model years are also different, and the actual support situation shall prevail.

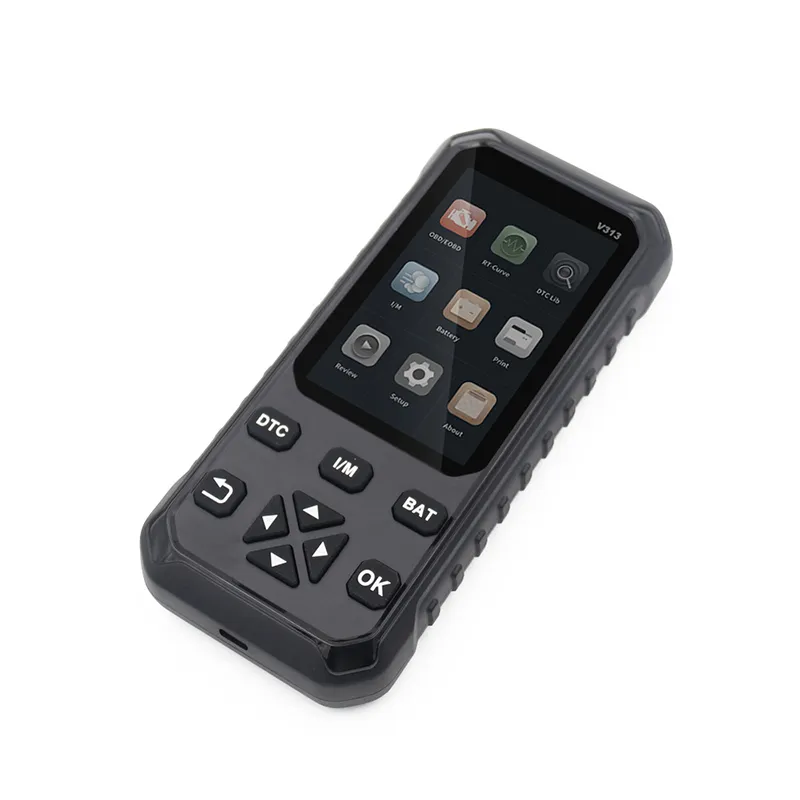

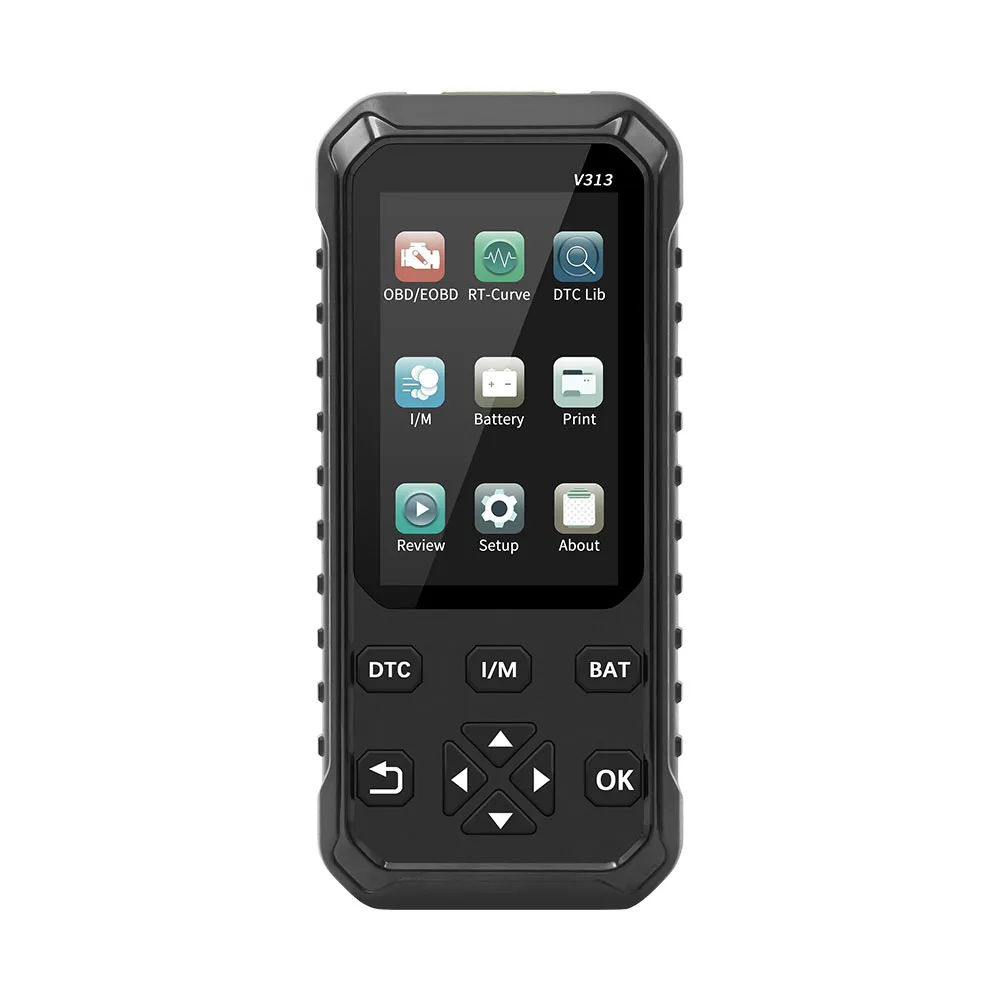

V313 is a trolley barcode reader product, with the following functions:

1. Support OBD II/EOBD nine standard protocols

2. Support OBD functions such as vehicle fault diagnosis and real-time data streaming

3. It has data playback functions such as viewing saved fault code information, data flow and battery detection

4. With emission testing data

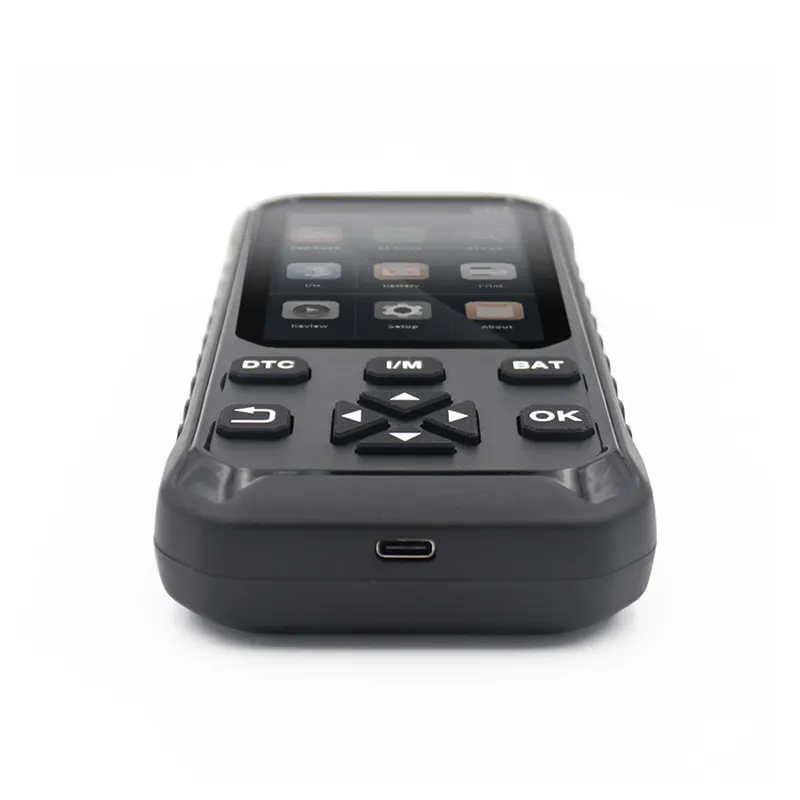

5. The data saved in the code reading card can be printed through the USB serial port

6. Support USB upgrade function

7. Support German, Dutch, English, Spanish, French, Italian

8. Quickly test the cold start current, internal resistance, battery life and remaining power of the 12V start-up lead-acid battery to determine whether the battery needs to be replaced: real-time voltage detection, battery impedance detection, and how much power is left after a period of full charge (SOC ) Battery charging current value (SOH), cold start current detection (CCA)

Supported Language:

Supported protocol:

1. SAE J1850 PWM (41.6 Kbaud)

2.SAE J1850 VPW (10.4 Kbaud)

3.ISO 9141-2 (5 baud init, 10.4 Kbaud)

4.ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO 14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO 15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO 15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

9.ISO 15765-4 CAN (29bit ID, 250 Kbaud)

technical parameter:

Model: V313

Main control chip: STM32F103VET6

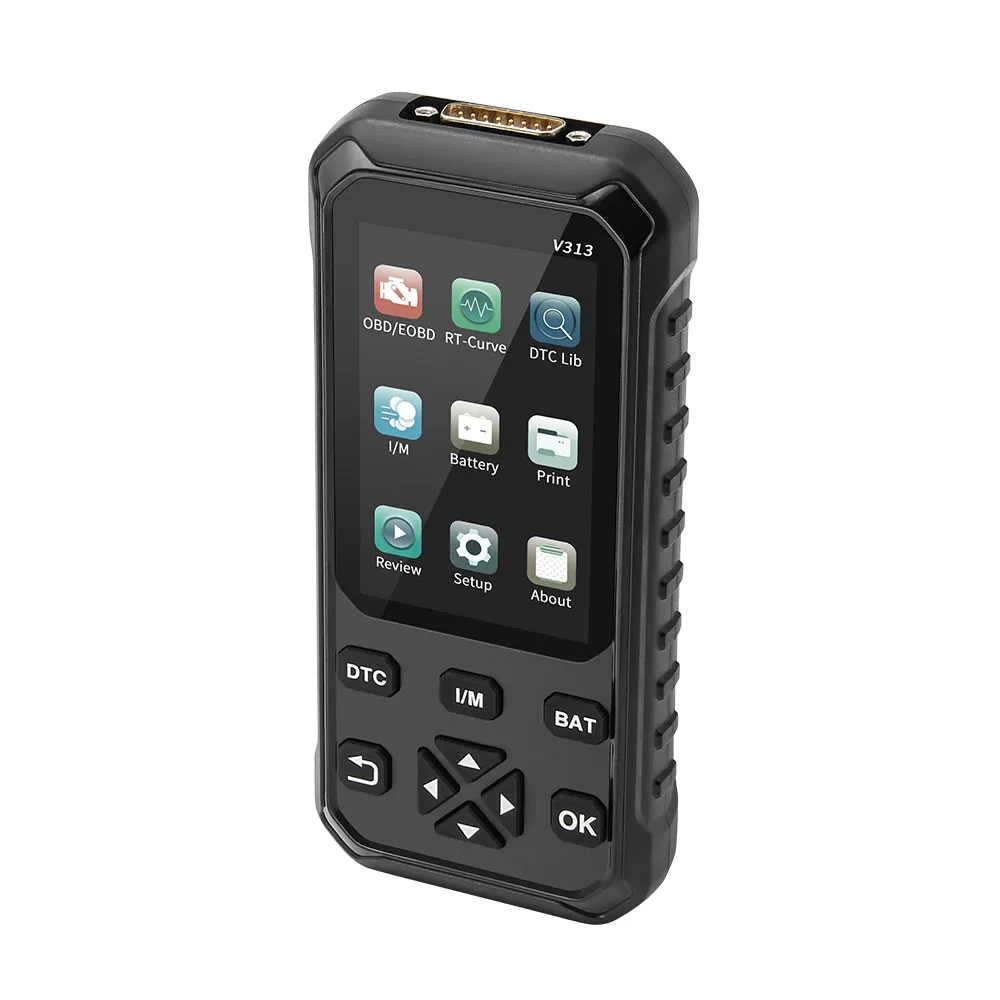

Connection method: OBD interface
Colour:black
Material:ABS

Working voltage: DC 12V

Working current: 98mA

Operating environment: -20~70°C

Storage temperature: -20~80°C

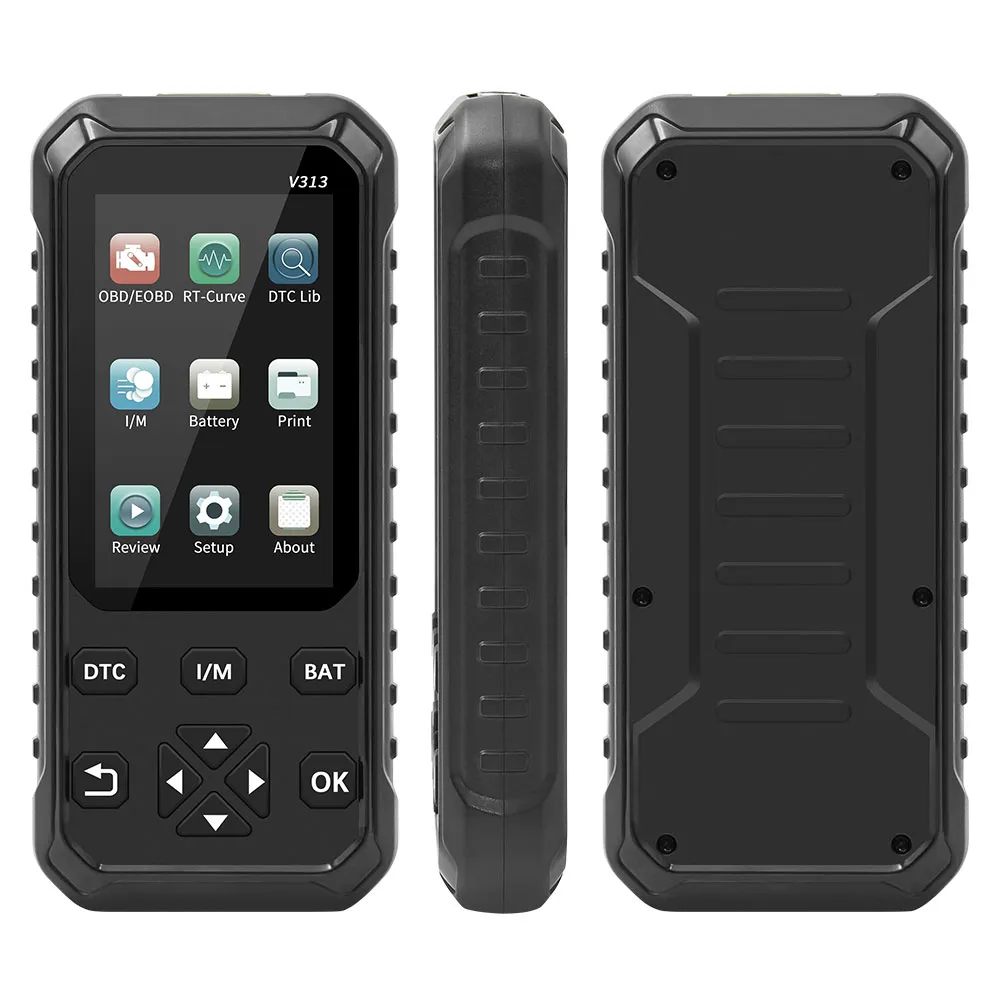

Dimensions: 181.5*81*29mm

Product weight: 168g

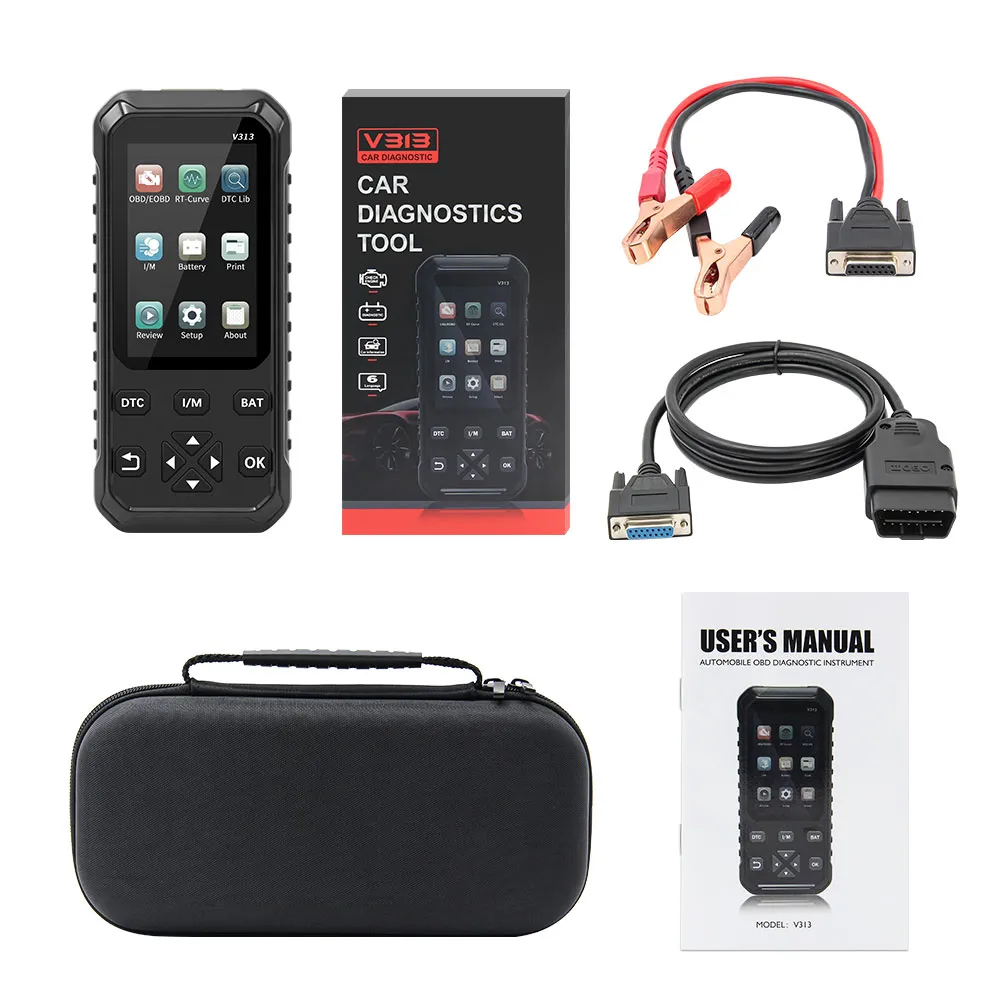

Packing List:

1x host
1x tool kit

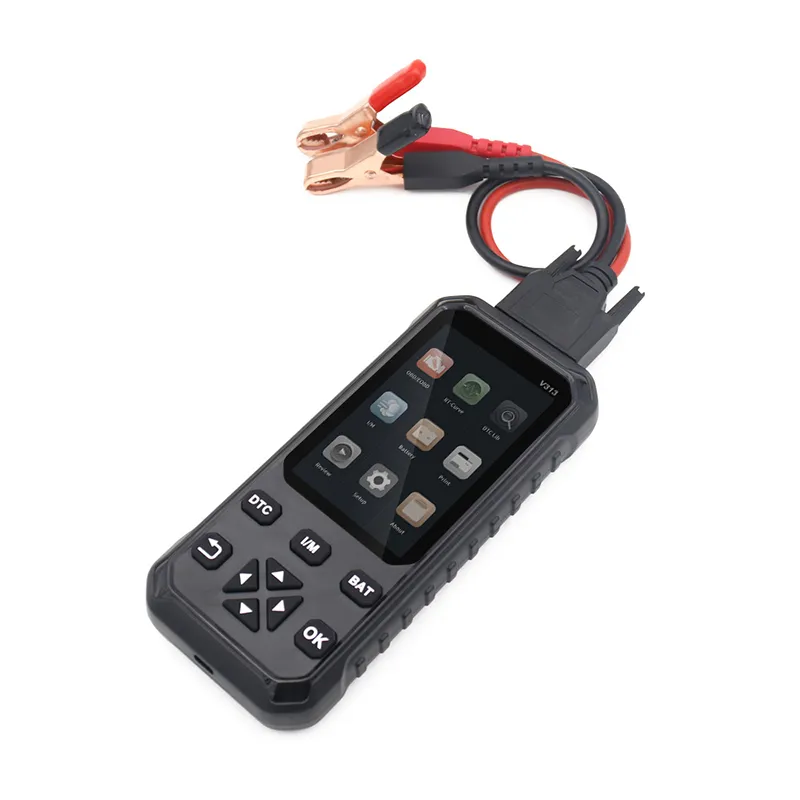

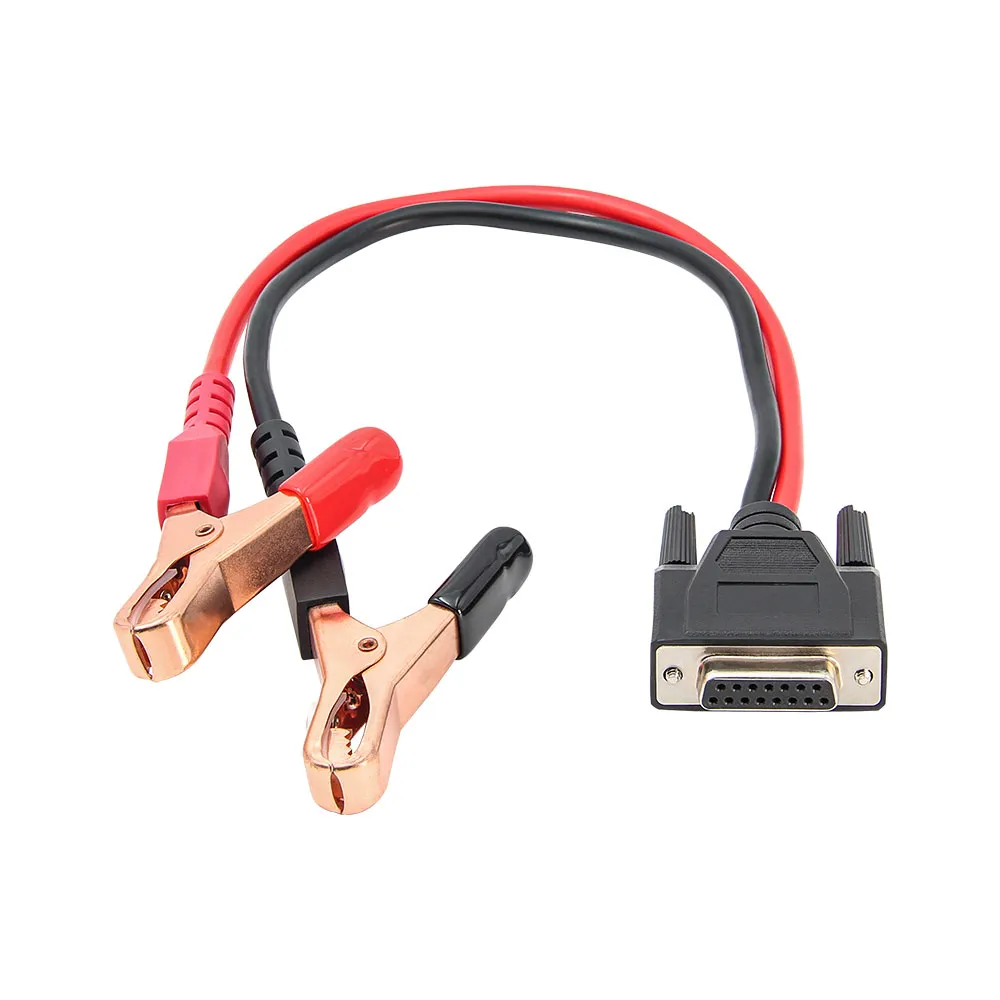

1x battery detection line

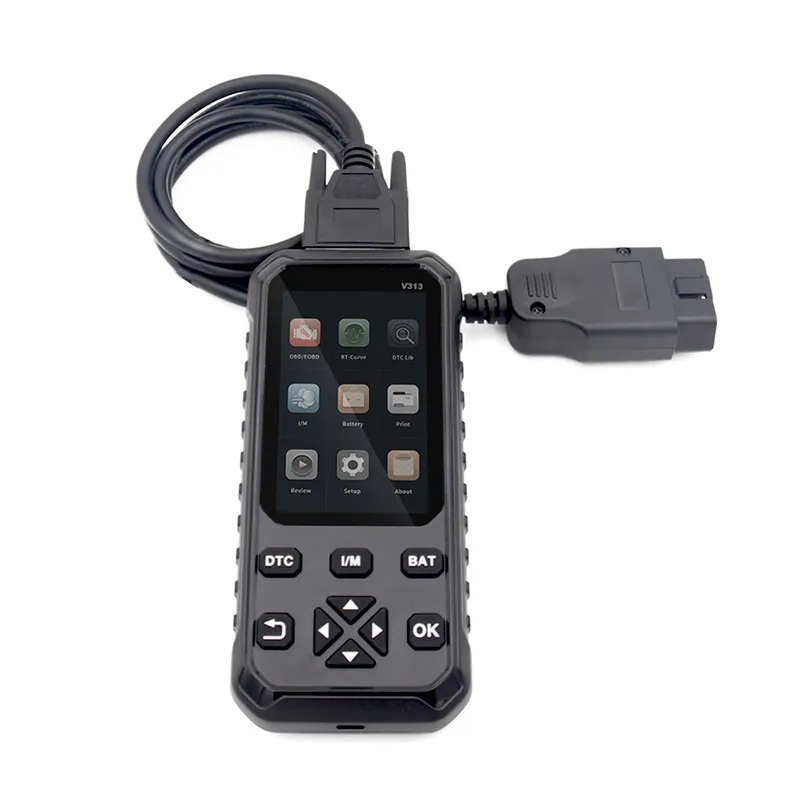

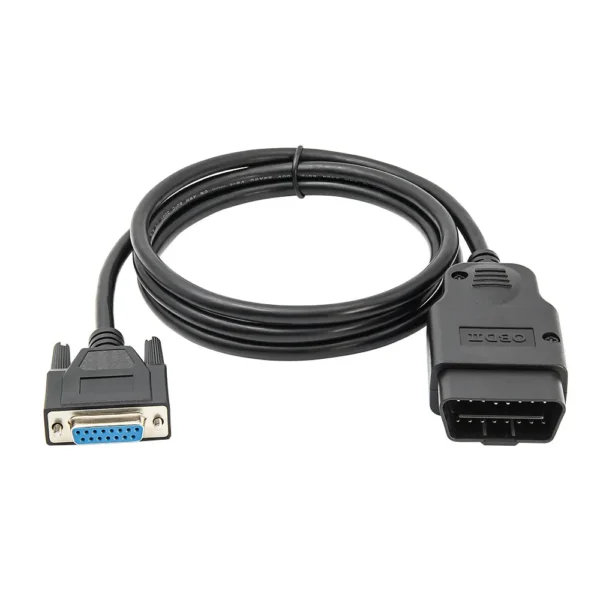

1x OBD detection
1x line Manual

Only the above package content, other products are not included.
