V320 OBD2 Scanner Car Engine Clear Fault Code Reader Battery Voltage Tester Car Diagnostic Tool

V320 OBD2 Scanner Car Engine Clear Fault Code Reader Battery Voltage Tester Car Diagnostic Tool

This is a gasoline car code reader that supports nine standard OBD II/EOBD protocols. Plug and play, it can quickly read vehicle fault information and vehicle parameters. It is a relatively comprehensive troubleshooting tool.

Precautions:

1. Do not use abrasive cleaners to clean this product.

2. Do not expose this product to heat or near fire sources.

3. Do not expose the product to direct sunlight for a long time.

4. Please do not attempt to disassemble this product for any modification as it does not contain any serviceable parts.

5. Please do not use this product indoors.

6. If you do not plan to use this product for a long time, please store it in a dry place away from extreme temperatures and dust.

3.1. Product parameters.

Working voltage: DC 9~16V

Working current: about 46~69mA

Conditions of use: -20~60°C.

Storage temperature: -20~60°C.

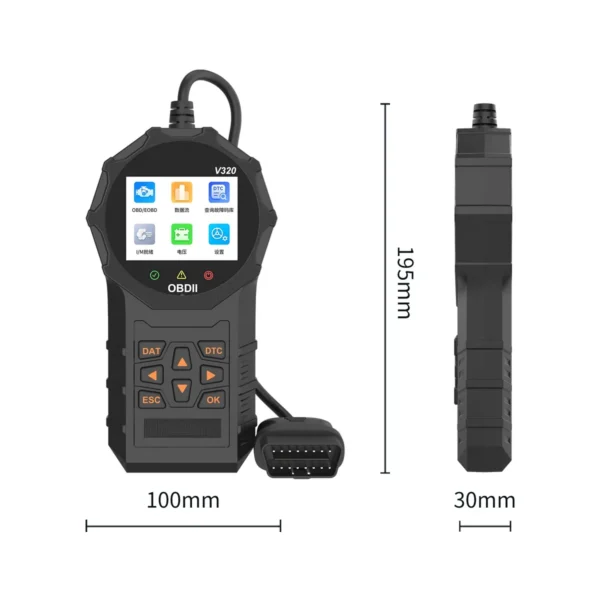

Size: 195*100*30mm

Eight languages: English, German, Italian, Dutch, French, Spanish, Chinese, Russian.

3.2. Product accessories.

Accessories*1

Instruction Manual*1

3.3.Protocol support

1. Pulse width modulation SAE J1850 (41.6 Kbaud)

2.SAE J1850 VPW (10.4 Kbaud)

3. ISO9141-2 (initialized 5 baud, 10.4 Kbaud)

4. ISO14230-4 KWP (initialized 5 baud, 10.4 Kbaud)

5. ISO14230-4 KWP (fast initialization, 10.4 Kbaud)

6. ISO15765-4 CAN (11-bit identifier, 500 Kbaud)

7. ISO15765-4 CAN (29-bit identifier, 500 Kbaud)

8. ISO15765-4 CAN (11-bit identifier, 250 Kbaud)

9. ISO15765-4 CAN (29-bit identifier, 250 Kbaud)

3.4.Basic functions

Supports nine standard OBD II/EOBD protocols.

Support car battery voltage test.

Supports reading gasoline model, clearing vehicle fault codes, reading data stream, freezing frame information, checking MIL status, reading vehicle information, oxygen sensor test and fuel evaporation system test (mode 8).

Supports querying fault code information.

Supports data flow playback function, which can view/delete fault codes, data flow, and freeze-frame information.

4.1. Product description.

When you need to check your car, please connect this product directly to the car’s OBD connector to start checking.

4.2. Precautions.

This product is not compatible with new energy vehicles, hybrid vehicles, and models that do not comply with the OBD2 protocol.
