Smart CN900 Mini Transponder Key Programmer
CN900 Mini is the replacement of CN900 Key Programmer that can easily hand-held, which can easily update online as CN900.
Language: English
CN900 Mini Highlights:
RFID identifly 125KHZ 134.2KHZ 13MHZ
RF data reception 27-900MHZ
RF radio frequency identification,support all kinds of remote controls
RF Data transmission, supports all kinds of remote control simulation test
Various types of vehicle anti-the fault detection, matching detection
Portable Super long standby
Support four kinds of frequency 850/900/1800/1900MHZ
GSM/GPRS SIM
USB2.0
Bluetooth4.0
As for the products improvements, specifications are subject to change
CN900 Mini can use CCN5 to copy Toyota G Chip and 4D Chip. (It requires token to copy Toyota G Chip, CN900 Mini has 12 tokens as default for G Chip, when you use it up, you can contact us to charge another 12 tokens for free. And for the next times will need to pay usd30 to get more tokens.)
CN900 Mini V5.18 Update:
TJECU MINI900 TOYOKEY OBD is newly confirmed to be able to write Toyota Smart card via OBD, it supports 3370-5290-A433-F433 types.
(Update notice: TJECU next update plan is to initialize Toyota 0020 type of 8A smart card with all key lost)
Smart CN900 Mini transponder Programmer:
1. Can directly copy 4C and other chips like Toyota 4d67.
2. Support copy 4D chips.
3. Can recognize locked ID48 and can unlock ID48.
4. Support copy 46 chips.
5. Support 72G chip.
CN900 MINI Firmware Update:
1. Download CN900 Update Tool here
2. Delete previous update file
3. Open the newest updater software
4. Click on update button
5. The main module of firmware is updating. Wait upgrade procedure conplete
CN900 MINI Main Features
Function 1:
1) Read out the chip code for 11 12 13 33 T5 40 41 42 44 45 46 48 4C 4D 8C and 8E chips. With the detail format for ID 48 and 4D Chips.
2) New identify functions for Toyota “G ” chip key (year: 2010) (Chip: 4D-72).
And it will show if the key is the main key or the vice key for Toyota, and later will add new identify function for the Chinese Car.
Function 2:
It can identify Toyota smart key, and read out the data.
Function 3:
It supports on copying the chips (11 12 13 33 T5 41 and 42) and parts of 44 and 45.
Using “FREE ” dedicated chips can copy none battery 4C and 4D chips directly.(Remark :cn1(4C),cn2(4D) is the name of special chip)
Function 4:
Connecting with Chinese PC software, it can save the read key code data unlimited.
Function 5:
Support on the chip programming: with the inner function of HITAGETI, it can write ID 46 Renault Crypto chips.
Function 6:
Without removing the ECU (Benz W140), it can start the chip.
Function 7:
It can unlock the 48 chips except the crypto lock 48 chips.
Function 8:
Support on the pin code calculating for Hyundai and Kia (before 07 year), by using the Last 6 Codes of VIN Number.
Function 9:
Support on starting the key and calculating the pin code for more than 60 kinds of cars.
Support on programming all kind of Fiat key, such as (11, 13 and 33), These 3 kinds of 48 chips anti-theft way.
Function 10:
It Upgrade to identify HONDA_46 CRV_46/CIVIC_46/ Mitsubishi 46
Ordinary 60 can be programmed to be 66/67/68/71/74
Function 11:
It Upgrade to copy CN1 (4C), CN2 (4D) chip .And size is 6mmX12mmX4mm
Support on the software update, such as adding new function for copying the induction card for Electronic Gate.
Function 12:
Can copy all ID46 chip:
BMW 46 chip,ACURA 46 chips,Honda CRV FIT(NEW) Accord(2008) Civic 46 chips;Mazda haima 46 chips;Mitsubishi 46 chips;Buick GMC CRUZE 46 chip. New Chery tiggo A3 46 chips; Nissan TIIDA TENNA LIVINA Sylphy Nissan QASHQAI Q35 46 chip. Brilliance 46 chip.Peugeot/Citroen 307 206 -46 chips;Triumph Senna 406 (2001year);Picasso 46 chip.Suzuki swifts SX4 46 chip.Land Rover FREELANDER 46 chip. Geely dedicated 46 chip.
Function 13:
can copy 4D chip
Function 14:
Support 72G Chip copy.
Different Between Smart CN900 MINI and CN900:
1. CN900 mini inherited most of CN900’s feature but mini one make car key copy easier without connecting with 4D, 46, G Decoder Cloner Box.
2. Mini CN900 comes with built-in battery, do not need to attach to the power adapter.
3. CN900 Mini support WiFi, Bluetooth and internet connection. The big size one do not support.
4. CN900/ND900 Mini replaces big CN900.
Smart CN900 Mini Customer Feedbacks:
– Its confirmed cn900mini and toyokey can add 71 smart key
I tried it today adding a smart key to a 2007 Toyota fitz with 71 chip and it worked like a charm
– CN900 Mini 1.34.2.19 is confirmed to read diamond keys with EML 10030A chip.
– Tested it on a Chevrolet Aveo 2012 – worked in seconds, no decoding. But that was to be expected. They use the easiest transponders.
–I bought the cn900 mini and appropriate ID46 chips. (5.5 € /piece)
Cloning worked for Astra H and Peugeot 307
-I still using version 1.13 and cloned few Opel 46 without hassle.
-Can clone ALL ID46 chips, i.e clone ID46 for OPEL(Vauxhall)/Peugeot/Citroen. Never failed on id46 to someone.
– I have copied about fifty ID46 keys with the CN900 mini successfully. Two times it failed (1x Renault Clio, 1x Opel Movano), because I can’t sniff data from ignition.
T5, 4C was never a problem. Sometimes it was not able to decode 4D. It starts decoding till 99 and then it stops.
I use 4C/4D carbon and different CN chips from Ali. I don’t know if original or not. They works all for me fine.
Firmware is 1.13 I don’t see a reason to upgrade.
Add Toyota 71,74,8A Smart key ADD and DELETE via OBDII
Add Toyota 71,74,8A Smart key all keys lost programming
Add Toyota 8A smart key RENEW
Add 8E Bank Data read, CS crypto Programming, CS Unlock
Add Partial 48 Decoding and Copy. Shoddy 48 identification
Add HITAG VAG identification
I tried renewing 8A fob with no luck
CN900 MINI Reviews:
1). it reads and copies all 4C easy, 100% works.
2). Mine comes with 4D -decoder, it failed decoding most of the first time, but if you keep trying a couple of times, it will work eventually. the decoding time is about 2~3 minutes.
3). it does NOT copy 46, and will never do without adding external box- 46 Cloner Box, e.g extra money.
4). CN1 and CN2 can be re-used over and over again, big plus when doing 4C eeprom production.
5). its size is same as carbon chip,
you can put them into remote key. For some jobs I’d rather copying than programming. Minor extra cost but safer and quicker, move on to next job quicker.
6). It allows you to edit 4C / ID13 EEPROM data on screen, it helps me doing a lot of hard jobs like Toyota 4C , Honda red key systems..
7). it reads Toyota Smart key data.
8). Touch screen and fast boot-up time in 10 seconds.
9)Meant to beat out the Handy Baby from the market, but as far I see without success. This one is the handheld version of the CN900, as the developers said with all of its abilities. Ok, this info comes from my dealer: the mini knows only 80% of the HB’s work tested on real cars. If you have handy baby you don’t need the cn.

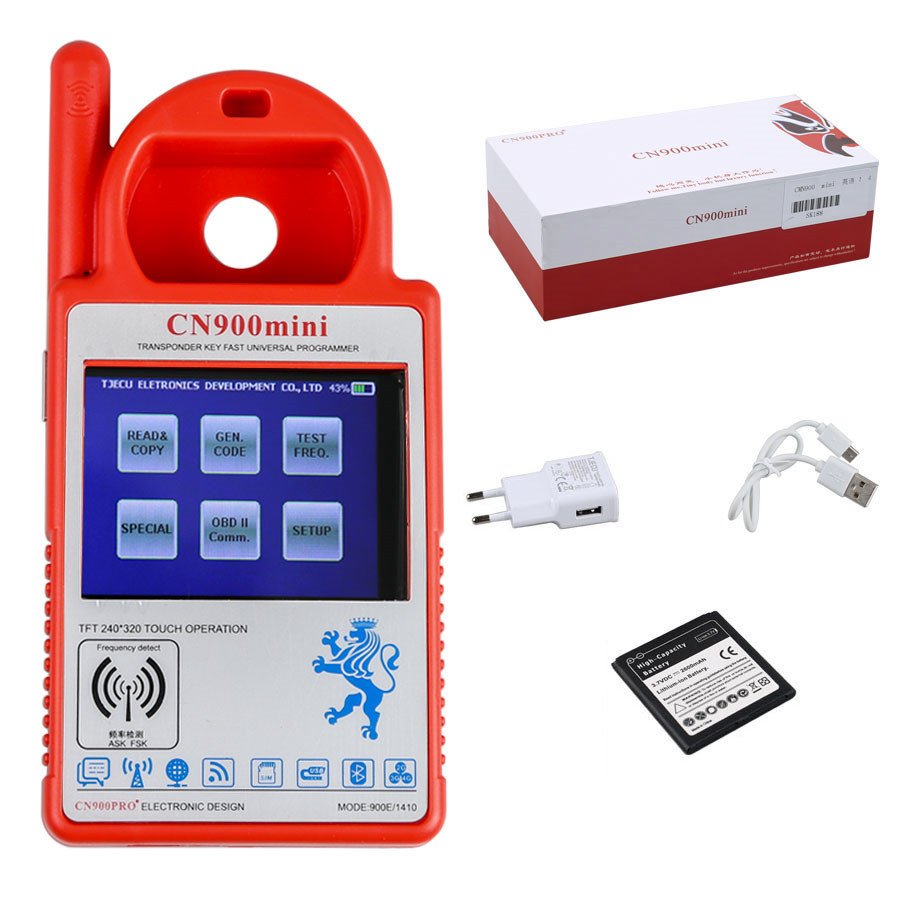

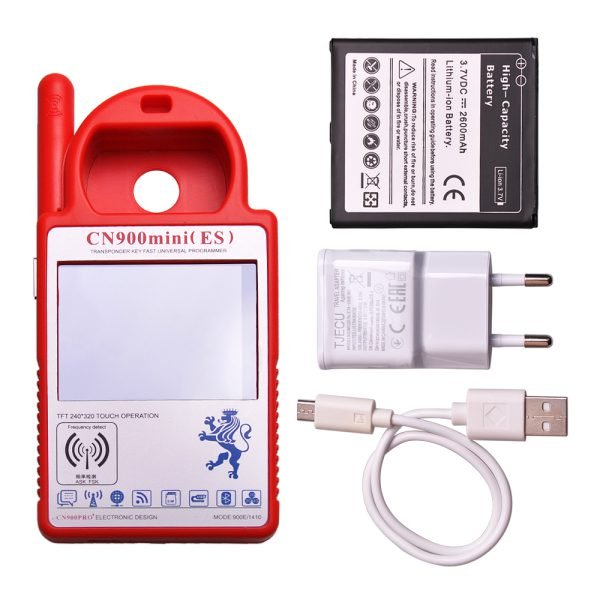

CN900 MINI Package Including:
1set x CN900 Mini
