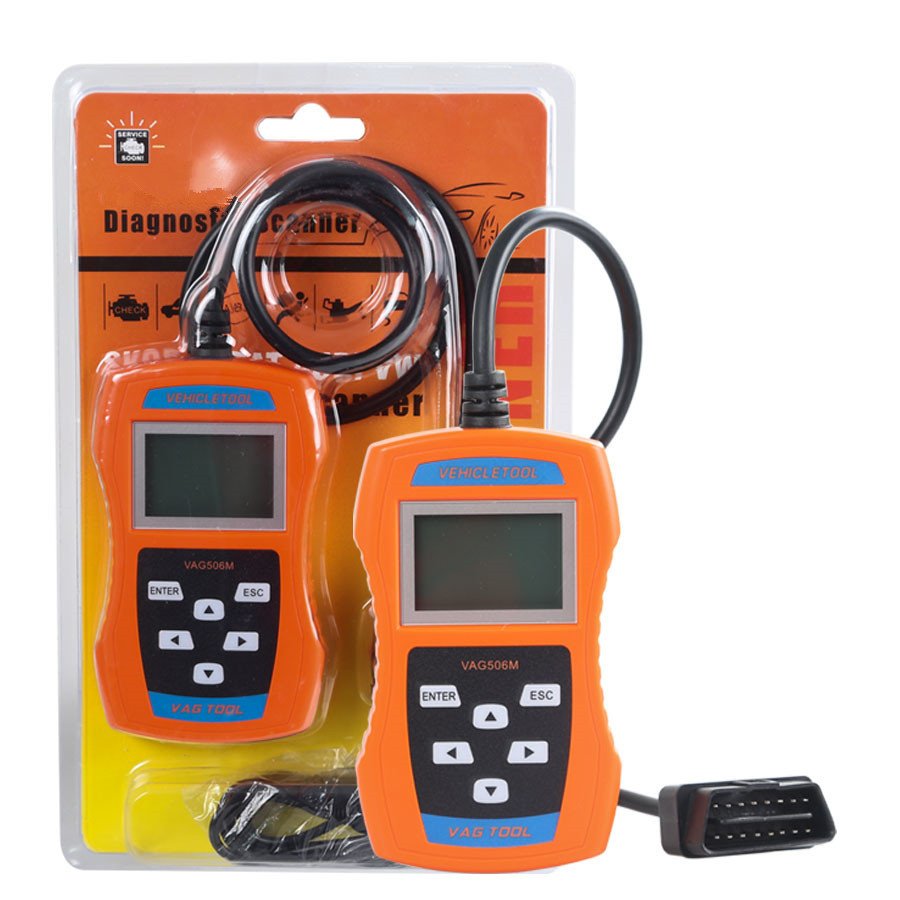

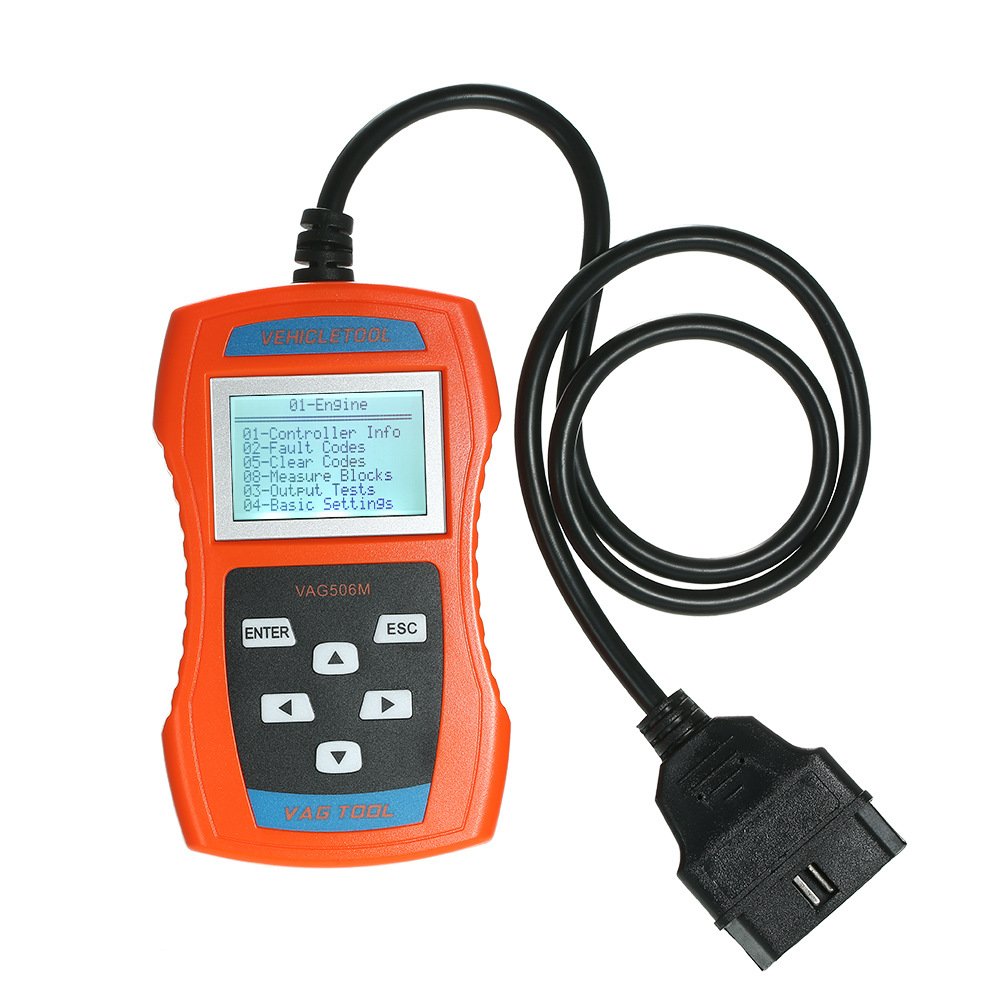

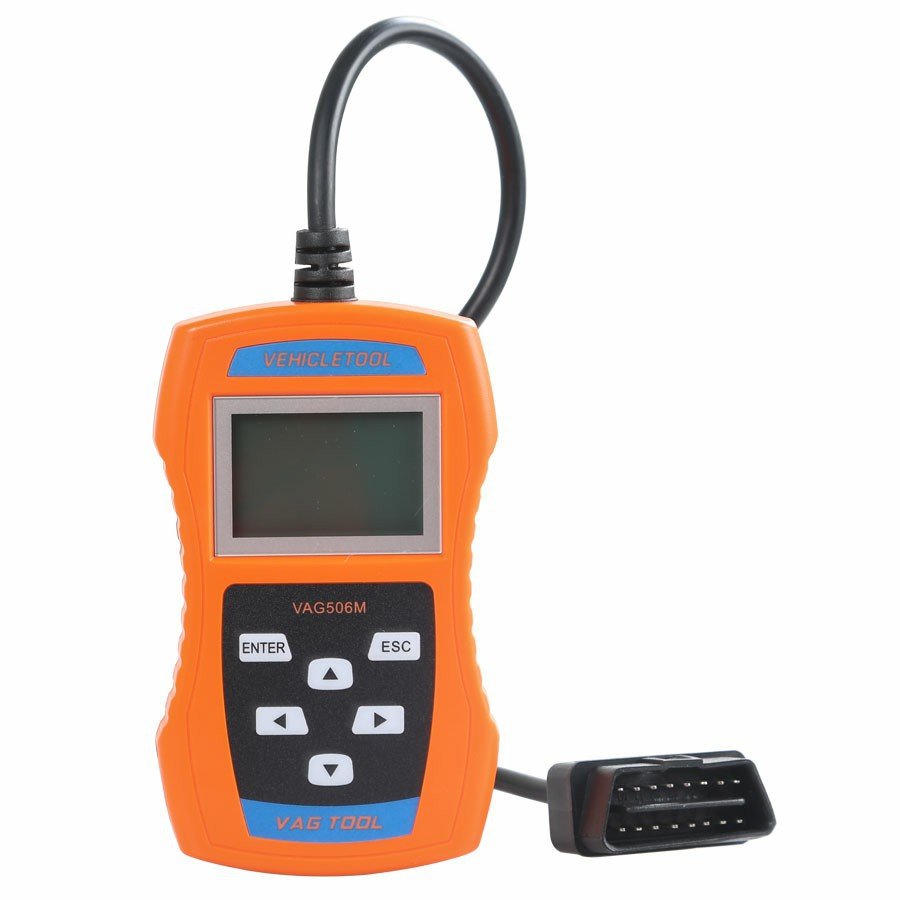

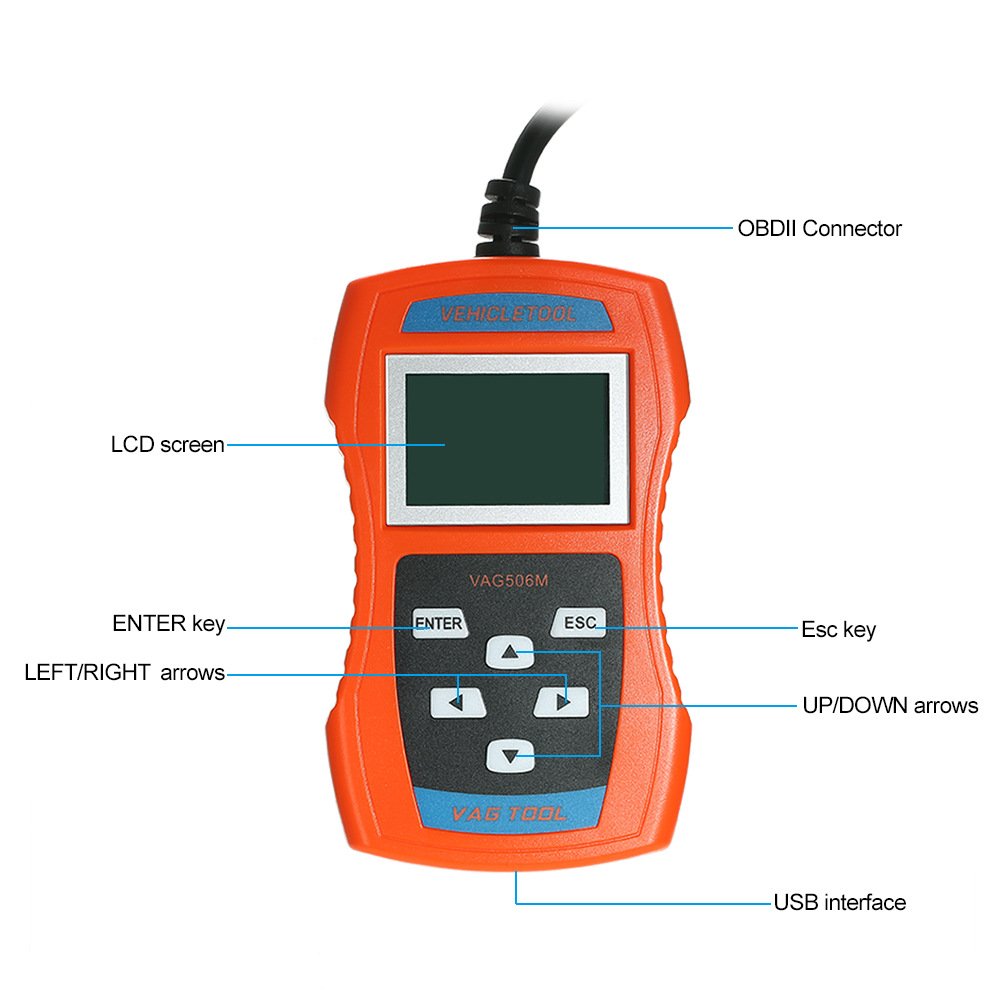

VAG506M Super Auto Diagnostic Scanner Automotive VAG Scanner Scantool Double K-Line for VW/AUDI

Super Auto Diagnostic Scanner Automotive Vag Scanner Scantool Double K-Line for VW/AUDI

Upgrade Multi-Language can be optional by user!

VAG506M is a small handle tool delicately designed for user to pinpoint engine, transmission, ABS and airbag faults. It is an ideal scanner for ALL VW, Audi, Seat and Skoda, and can detect over 130 systems. It supports the Controlled Area Network (TP-CAN) and New UDS protocol.

Features and Benefits:

1. Works with Volkswagen and Audi (Audi/ Seat/ Skoda/ Jetta/ Golf / Beetle/ Touareg/ GTI/ Passat and more) since 1990.
2. Supports All Diagnostic protocol for VW, includes KWP1281 KWP 2000 TP-CANBUS NEW UDS.
3. Reads and erases Diagnostic Trouble Codes (DTCs) of almost all the systems
4. Turns off MILs of engine, airbag, ABS, A/T and most other systems
5. Replaces and recalibrates brake pads safely.
6 Easily detects nearly 130 systems includes engine, ABS, Airbags, transmission, radio, climate control,
7. Resets Oil Service Light :
After the oil vehicle maintenance, reset oil service light, service mileage and service intervals
8. Airbag Reset:
Don’t suggest you condition of the vehicle airbag safety in the use of this feature, in order to avoid triggering a fault
9. Mileage Reset :
This feature can be modified on the mileage meter, not all Volkswagen cars are supported by this feature, according to the characteristics of the vehicle instrumentation varies.

Specifications:

Display: Back-lit, 128 × 64 pixel display with contrast adjustment
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery

Accessories:

– 1pc x VAG506M Scan Tool main unit
– 1pcx OBDII Cable
– 1pc x User’s Manual
– 1pc x USB cable
