VAS6154 supports CAN FD and DoIP protocols
VAS6154 supports ODIS original drivers and supports all ODIS models and functions
No need to replace the original driver, no third-party software, plug and play
Covering all models of Volkswagen Group from 1995 to 2023 and later.
Supports three connection methods: USB connection, WIFI direct connection (Access Point), and WIFI base station mode, simple and fast
WIFI direct connection (Access Point)
1. The built-in WIFI of VAS6154 is directly connected to the computer, similar to Bluetooth connection. The default name and password of VAS6154 built-in WIFI are as follows.
Default wireless WIFI name (SSID): VAS6154-7000000
Default wireless WIFI password: 12345678
Note:
1.1 If you need to change the VAS6154 wireless WIFI configuration, first power the device, then connect the device to the computer via USB, and then visit http://192.168.13.69
1.2 When you enter the wireless connection configuration page for the first time, you will be prompted to select the language you need. The second time you enter, the default language you selected for the first time will be used
VAS6154 Computer WinS System Requirements:
1.Windows System Language:American English
2. Please install on WIN10
3.System C:// have to be NTFS format
4.Software is too large, the available capacity of the computer C drive should be at least more than 40GB.
5. We provide after-sale service forVAG series models. For other brands models, you need to get it work by yourself !
6. It supports online function, but you need to get online account by yourself !
–Why is it showing that it is invalid License?
–Because you do not replace the files when install the software, you need to reinstall it.
Item Description:
This new 6154a is the latest full system diagnostic and programming interface, which can read and clear code, dynamic data flow, programming,coding, and personalized settings,including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc.
Advantage:
No need to install driver
No third-party device manager software is required
lPlug and play like original6154A
With base station/hotspot mode switching button
Support service v9.10/v10.0/v11.0/V23.01+
Support Engineer v14.1/v15.0/v16.0/v17.0.1+
Covered model:
Forvw: 1995Y-2023MY+
ForAudi: 1995MY-2023MY+
ForSeat: 1995MY-2023MY+
ForSkoda: 1995Y-2023MY+
ForBentley: 1995MY-2023MY+
ForLamborghini: 1995MY-2023MY+
ForMAN: 1995MY-2023MY+
Functions:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– Service Software update has been stabilized.
VAS6154 Technical data:
Dimensions: approx. 136x48x25mm
Weight: approx. 150g
Power supply: 8-18V via vehicle connector
Output: approx. 5W
Temperature range: Storage -20°C to +85°C, operation -20°C to +40°C
PC interface (wired): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)

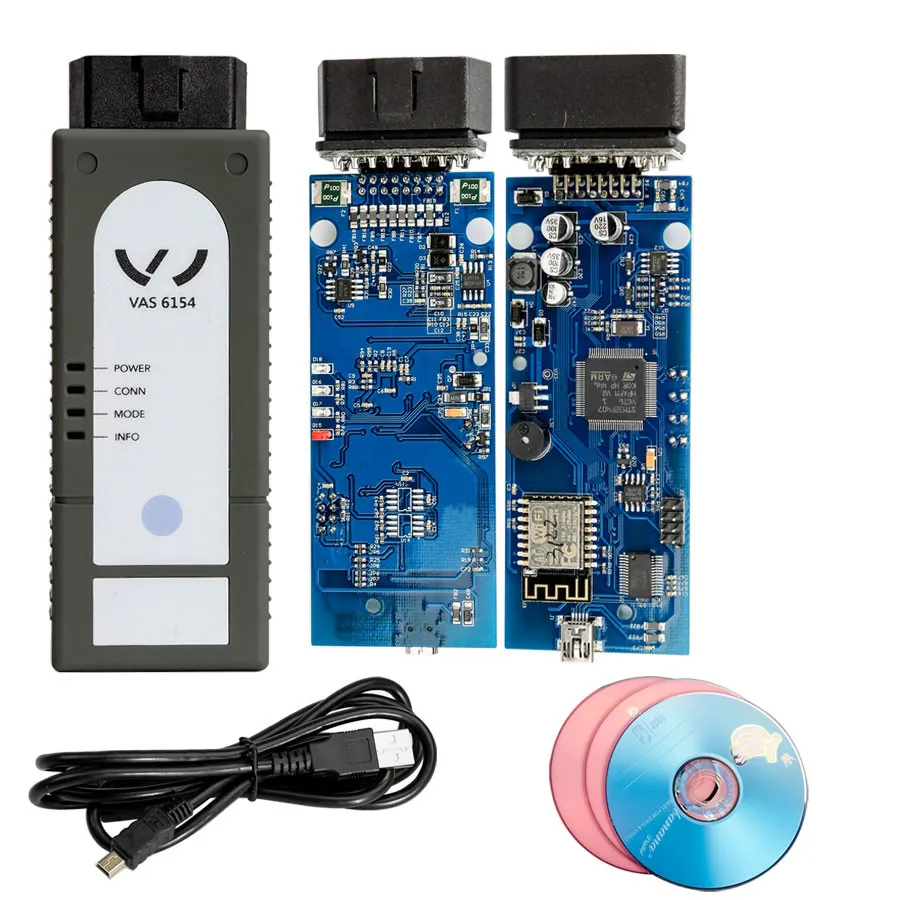

Package Includes:

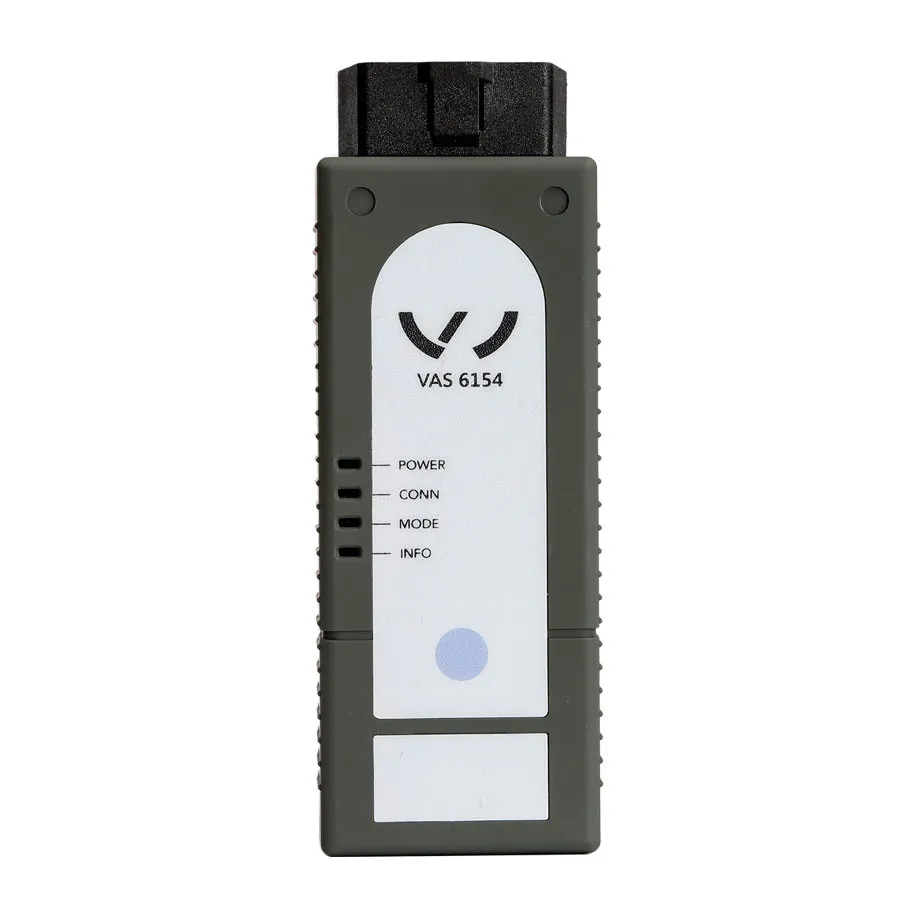

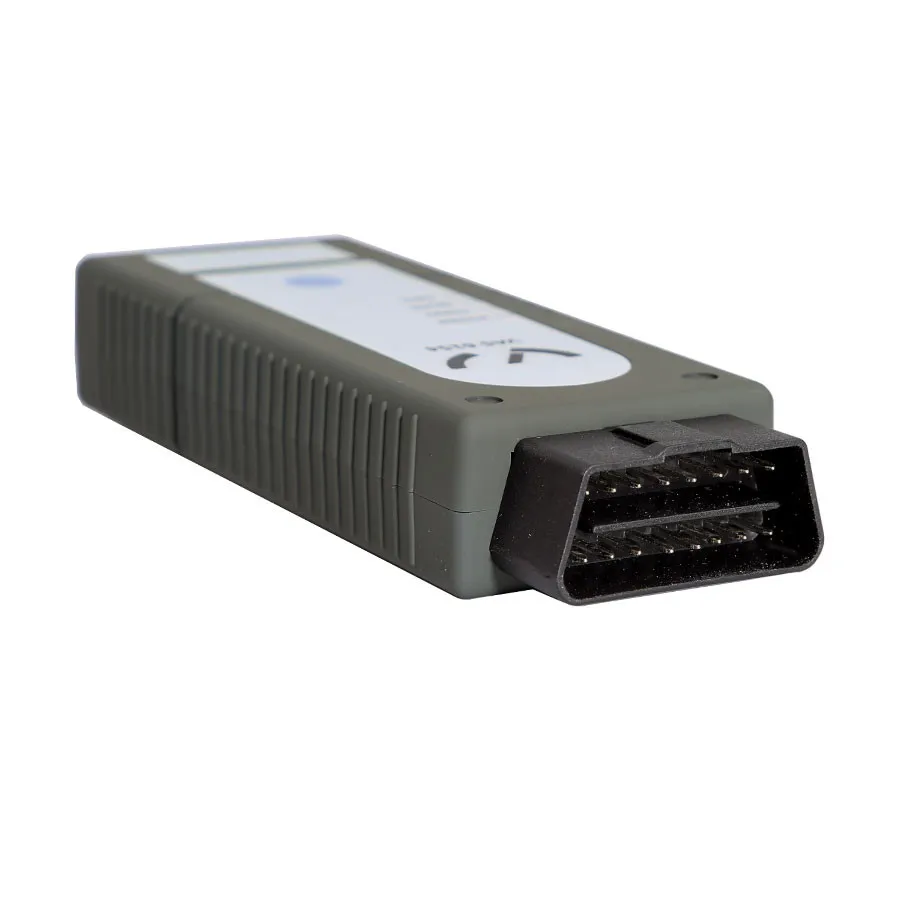

1pc x Diagnosis interface VAS 6154

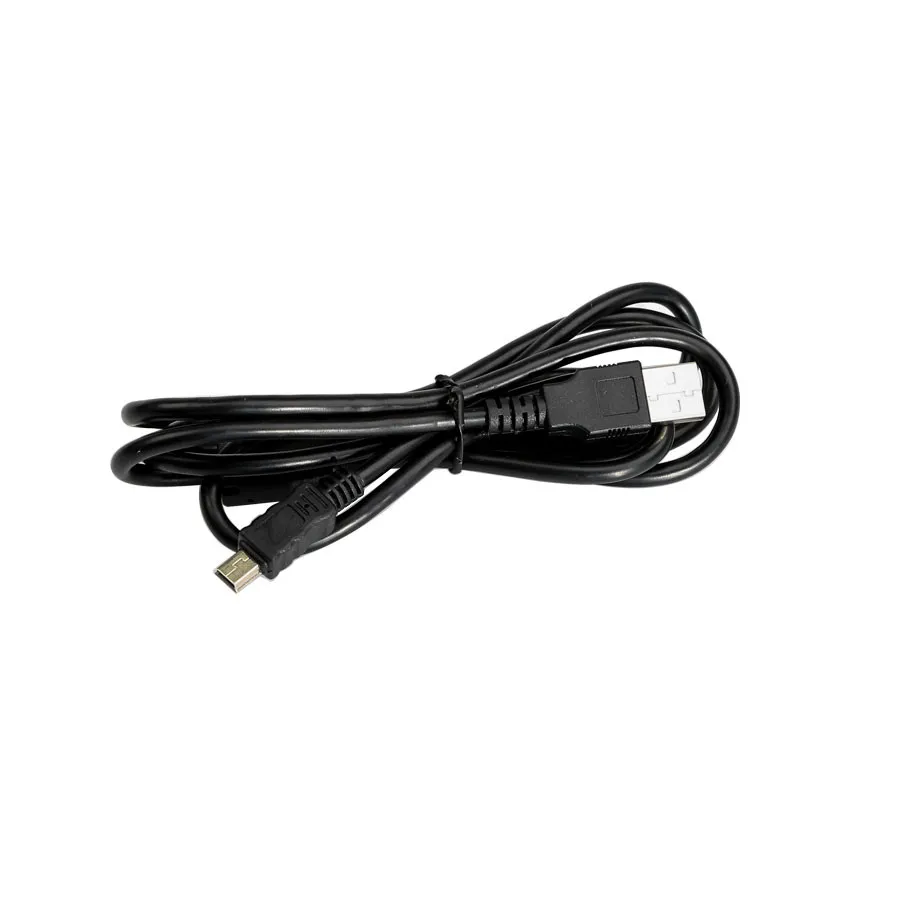

1pc x USB cable
1pc x CD (with Newest ODIS software)
