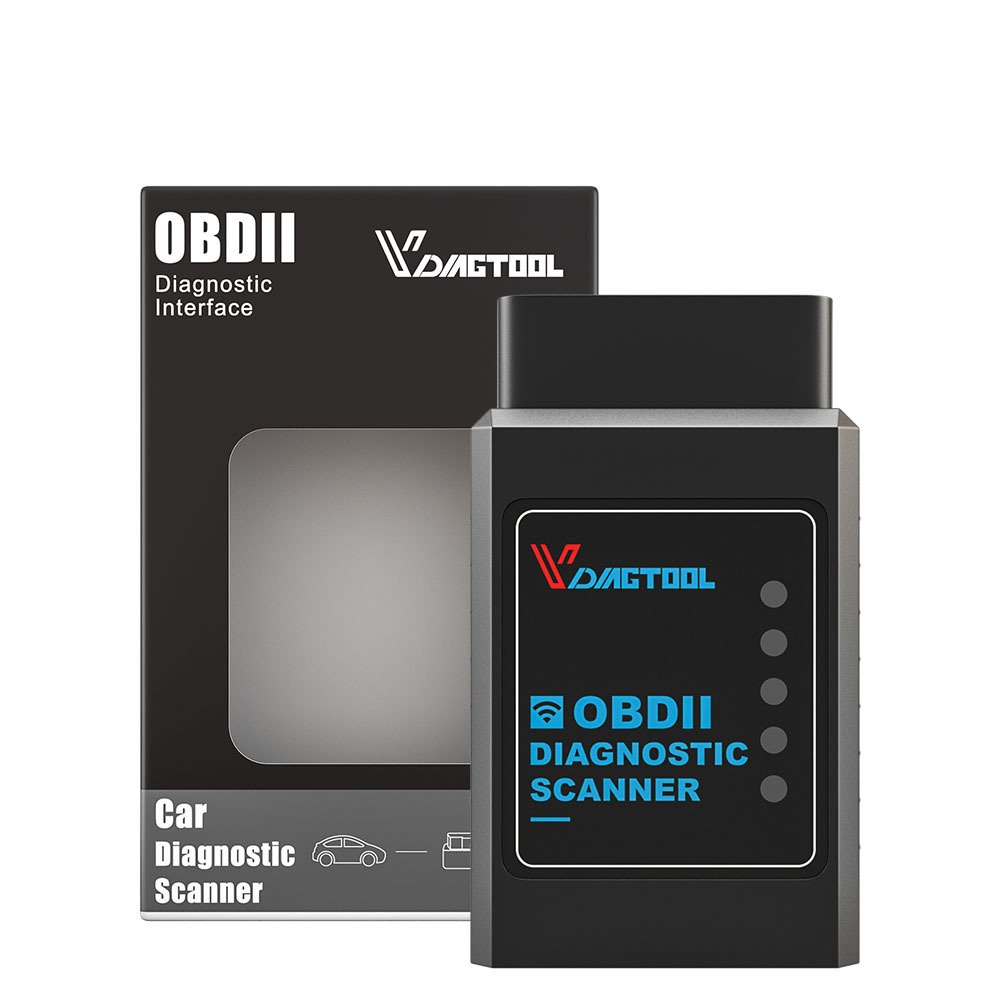

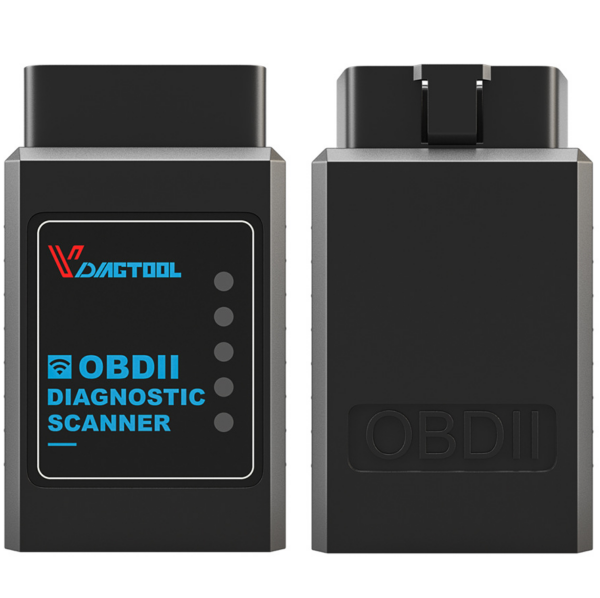

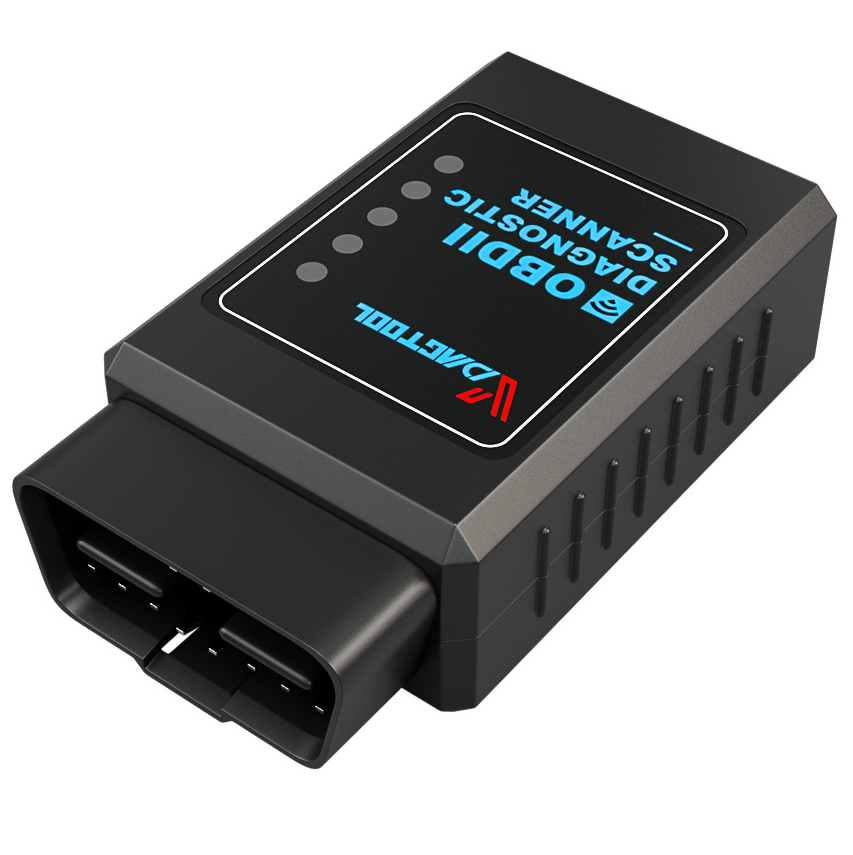

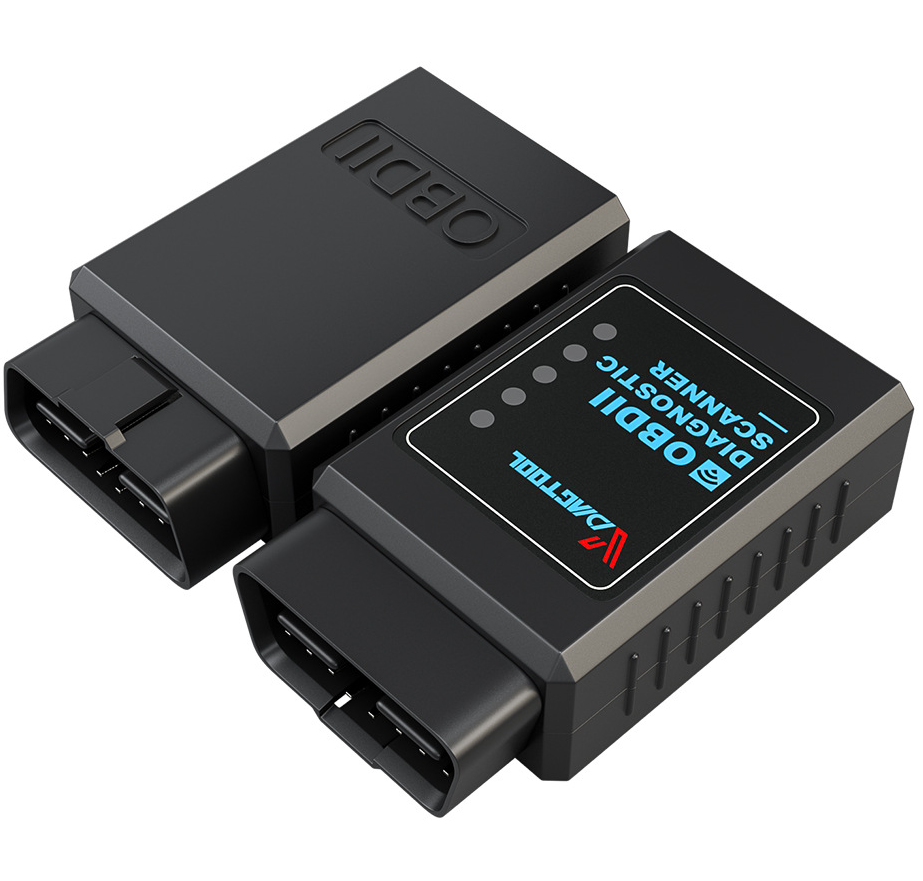

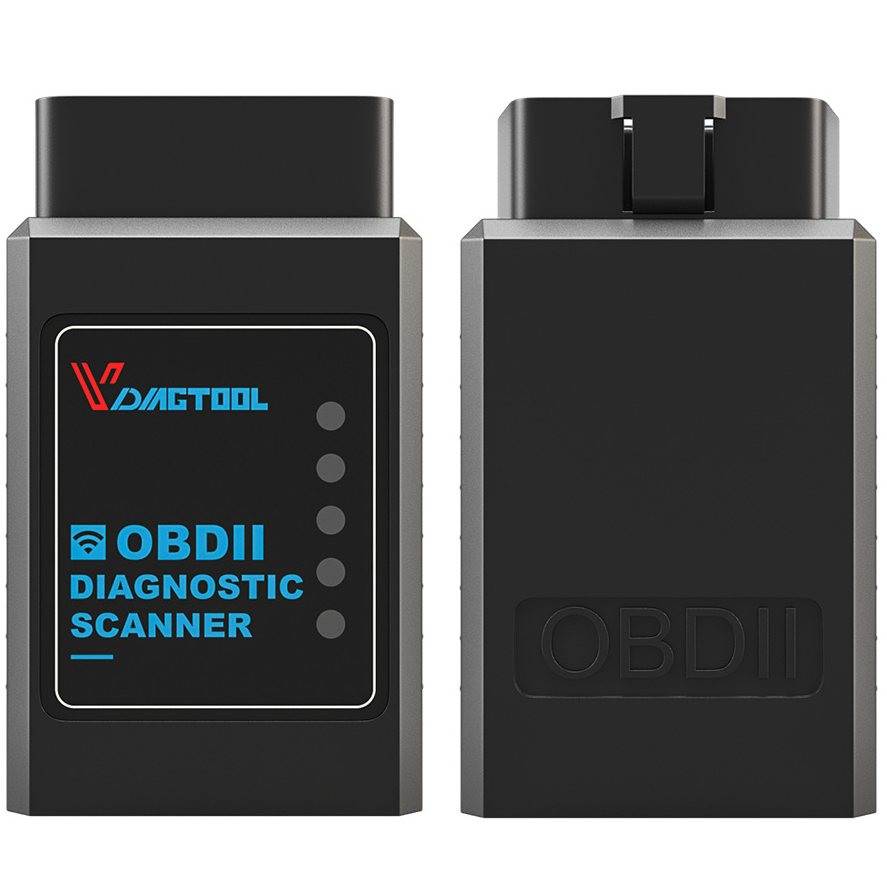

VDIAGTOOL WIFI IOS ELM327 V1.5 OBD2 Bluetooth Scanner for iPhone

What can VDIAGTOOL OBD2 Bluetooth Scanner do?

1.Read codes&Erase codes:Quickly read the error code and clear pending error code, help you save time and money to fix it yourself if possible.
2.Look up important Vehicle Information : Vehicle specifications.
3.Freeze Frame : Get a snapshot of the vehicle when a Freeze Frame Code was stored.
4.I/M Readiness/Smog check : Determine if your vehicle is ready for an smog test.
5.Real Time Battery Voltage :Show the real-time voltage changes to monitor your battery health.
6.Live Data: Show each data source as a Graph, Gauge, or Digital Display ; Customize the colors ; Resize and place in any arrangement.
7.O2 sensor test ： Detect the oxygen content in the mixture.
8.Many others:Air Flow Rate,Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance,Intake Air Temperature,Absolute Throttle Position,Fuel Pressure and so on

Description

We offer here new mini OBD2 (vehicle diagnosis) with particularly small compact tool and cool Design. There he can then simply remain and be controlled and read out via Bluetooth or Wifi. You get all the data on your smartphone, tablet or computer. It is easily to plug in your car’s OBDII port, reads data sent by car’s on-board diagnostic system, detects troubles of ECU and gives you the solution to fix it without having to take your car to the shop every time.

ELM327 Powerful Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL (“Check Engine” light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others.

OBD2 Code Reader Multi-Protocol Support

V1.5 version ELM327 supports 9 protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud) *default settings(user adjustable)

Support OBD 2 protocols car :

1.USA cars after 1998 r, for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep……..

2.European car:
Compatible with Standard OBD2 Cars from 2003 to Now:
For Alfa Romeo, for SAAB, for Acura,
for Opel, for Audi, for Seat,
for Bentley, for Skoda, for Daewoo,
for Benz, for Daihatsu, for Land Rover,
for BMW, for Vauxhall, for Volvo,
for VW, for Ford, for Jaguar

3.France Car after 2008:
for Citroen，for Fiat，for Renault,for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan,

4.Japanese car
Compatible with Standard OBD2 Cars from 2006 to Now:
for KIA, for Isuzu, for Honda ,
for Mitsubishi, for Hyundai, for Dacia,
for Lexus, for Mazda, for Nissan,
for Subaru, for Suzuki, for Toyota

5.Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now:
for BYD, for Chery, for Geely,
for Great Wall, for Karry

6. RUSSIAN CAR after 2011 year.

On IOS Phone

1. Go to “Settings” then “WiFi”.
2. Find “BTBHH-JGT” and click to connect.
3. Open the app, click “Connection”, then connect to the car.
4. You can then view and change settings and vehicle options.
