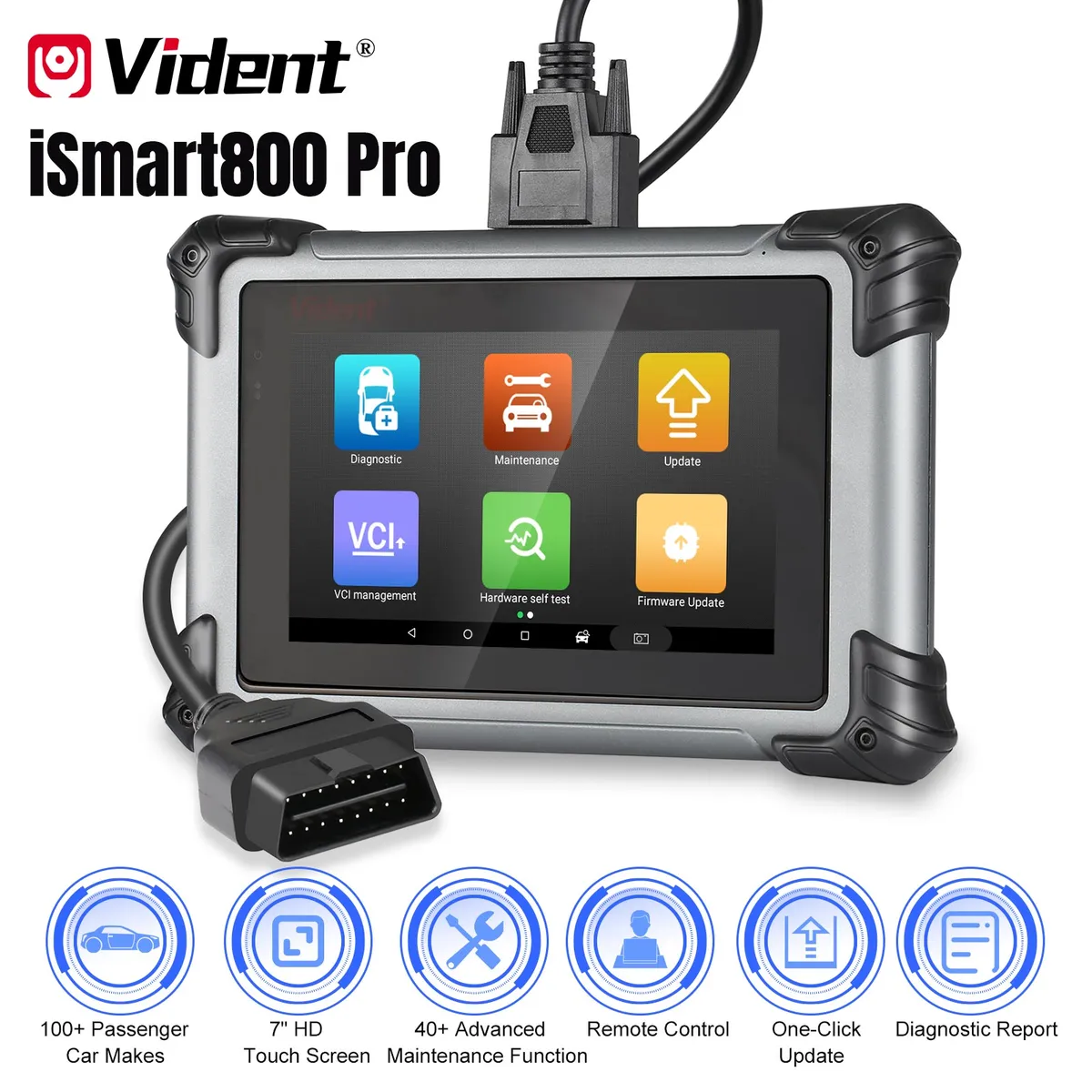

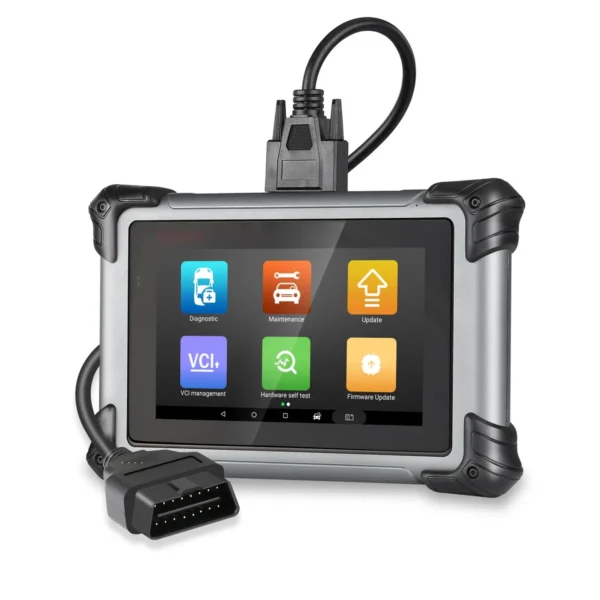

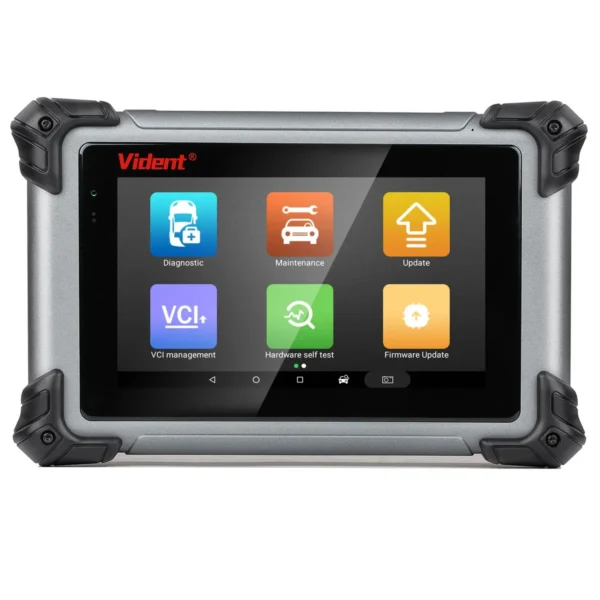

VIDENT iSmart800 Pro Automotive Diagnostic & Analysis Scanner with 40+ Maintenance Functions Multi-Language Free Update for 18 Month
The iSmart800 Pro auto diagnostic scanner is Vident newly launched automotive diagnoistic scanner for 12V passenger vehicles, which capable for most of vehicle brands in global market.
With user-friendly Android interface, solid-state 72GB hard drive, Cortex-A17 1.3GHz processor
7″1024x600HD IPS LCD touch screen
Supports all systems ECU diagnosis for 110+ car makes
With 40+ common used service functions
Vident iSmart 800PRO Car Scanner:

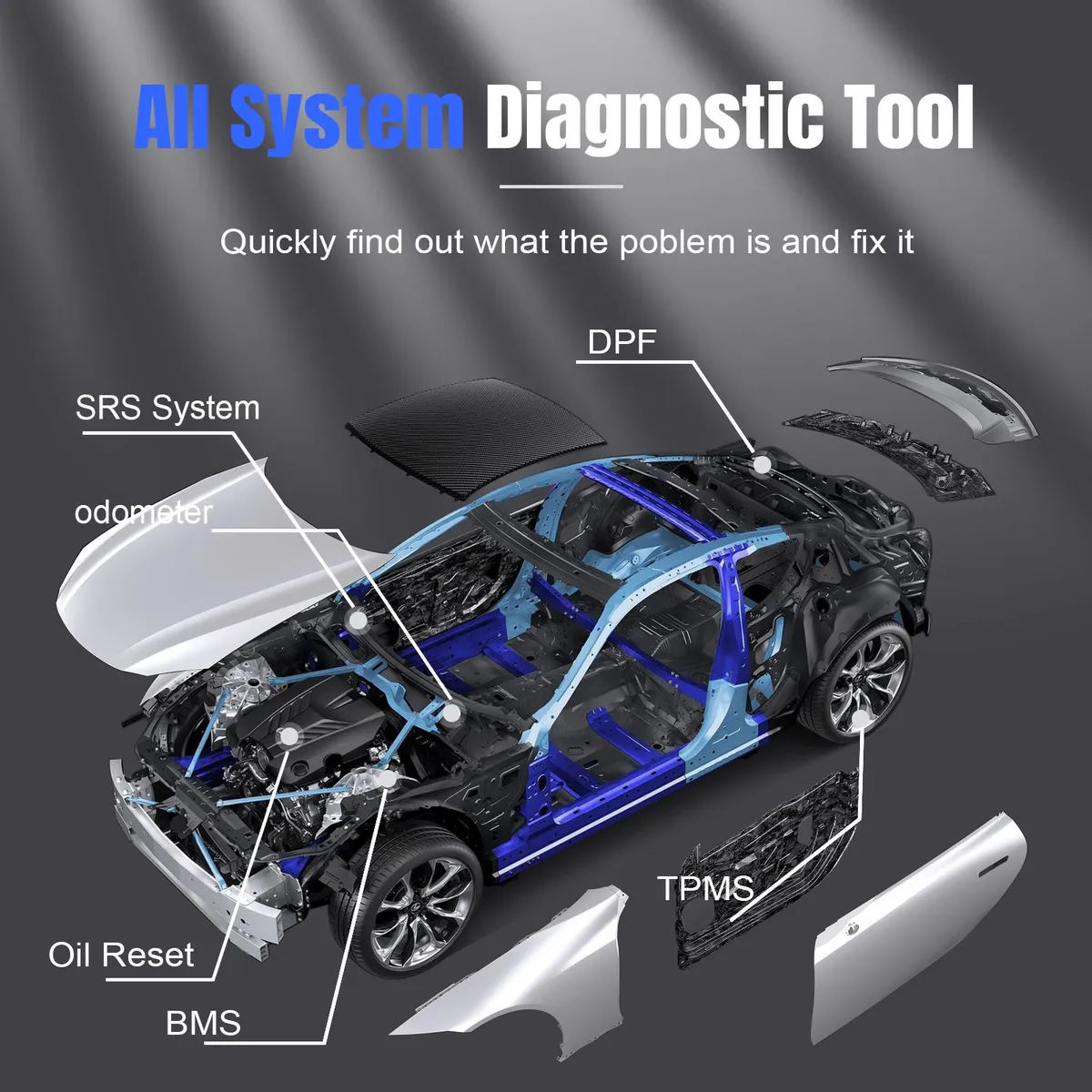

👉All System Diagnostics:Covering the entire system diagnosis of automobiles, including ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System and etc.
👉40+ Advanced Maintenance Functions:Oil Reset Service,EPB (Electronic Parking Brake),SAS (Steering Angle Sensor),BRT,ABS(Anti-lock Braking System Bleeding),TPS,TPMS , DPF, IMMO, Injector Coding,Gear, Odometer, SUS, SUNROOF, Gearbox, AFS, CLUTCH, LANG CHANGE, Seat match, Windows door, TURBO, PFP, Evaporative test, Replace Aibbag ECU, AT Adaption,Transmission module, Oil Life Reset,Change Tire Size,EGR(Exhaust-gas recirculation) Adaption,Adblue Reset,Coolant,Transport,Motor Angle,Stopstart,NOx Reset,HVOLBAT,Power Balance,Adjust fuel
👉10 Full OBD2 Functions: Read Trouble Codes,Clear Trouble Codes,Read Live Data,Read Freeze Frame,Read ECU Information,Component Test,On-Board Monitor Test,O2 Sensor Monitoring Test,I/M Readiness,DTC Lookup.
👉Bi-Directional Test: Perform the active tests to test the various system parts to detect their working status for fast troubleshooting.
👉15 Kinds of Language:English, Spanish, French, Geraman, Portuguese, Swedish, Chinese, Traditional Chinese, Russian, Japanese, Korean, Thailand, Slovakia, Hungarian, Italian.
Attention:If want to change language, please tell us serial number,we can help add language.Otherwise, the factory language setting is English.After adding language,you can change language in the “Settinng”,and download softwares with language you want in the “Update”.
👉Wide Coverage of Vehicle Models:Can support 100+ car brands,you can ask us the supported list before placing order.
👉Support CANFD Protocol &DOIP Diagnosis:No need extra CANFD adapter
Attention :Can send OBDII interface of car to us to check it before buying
👉Auto VinScan:Can scan and read the vin code of the car,car model,car year,enginee type and etc car information.
👉3 Years Free Updates: Updates are free for 3 years, you can continue to use the full functionality, features and vehicle coverage of the latest updated software. After 3 years the renewal fee is $120 a year.
Features:
1. Full diagnostic functionality – Complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
2. Automatic VIN identification – automatically identify the VIN for fast diagnose.
3. System Detection – detects only the systems that are specific to your vehicle and reads for errors, meaning you haven’t got to spend time looking through data that might not be relevant
4. One-Touch Full Vehicle Code Scan & Clear —quickly checks and clears codes for all available modules on the vehicle
5. Record / Playback/Print live data
6. Study and compare mode of Live data — real-time data can be compared against known good measurements
7. Service functionalities —Direct Access to the most common required special functionalities such as oil service, EPB, ABS&SRS, BCM/SIR setting, DPF regeneration, throttle body alignment, steering
angle sensor calibration, battery configuration, etc.
8. Interactive Data Logging sessions and remote control —enable direct contact with Vident Technical Support for first-hand bugs troubleshooting
Product Functions:
Automatic VIN recognition: Automatic VIN identification, fast reading of vehicle information, saving diagnosis time.
One-click Upgrade: After successful login, click “Update All” to download the latest diagnostic software.
One-click Feedback: Real-time recording of diagnostic data, one-click feedback to VIDENT technicians, and timely resolution of diagnostic faults.
Diagnostic Report: Click”EMAIL” button to send diagnostic report to drivers or Vident technicians, help to understand diagnosis easily.
Datastream Record & Playback: Click the “recor” button during the diagnosis process to collect diagnosis data in real time, which can be viewed in Data Management.
Remote Control: First-class remote diagnosis function, VIDENT technicians can provide remote service at any time to solve customer problems quickly.
Commonly used special function
Vehicle Coverage:
For Abarth, Acura, Alfa, AstonMartin, Audi, BRILLIANCE, BYD, Bentley, Benz, Bmw, Bugatti, CHANGAN, CHANGHEAUTO, CHERY, CHERY_NE, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, EMGRAND, ENGLON, FOTON, Ferrari, Fiat, Ford, FordAU, FordEU, GEELY, GLEAGLE, GM, GMBrazil, GREAT WALL, Holden, Honda, Hyundai, HyundaiCV, Infiniti, Isuzu, Jaguar, KARRY, KIA, LIFAN, Lamborghini, Lancia, LandRover, Lexus, MAPLE, Mahindra, Maserati, Maybach, Mazda, Mini, Mitsubishi, Nissan, Opel, Perodua, Peugeot, Porsche, Proton, RELY, RIICH, Renault, Rollsroyce, Saab, Scion, Seat, Skoda, Smart, Sprinter, SsangYong, Subaru, Suzuki, TATA, Toyota, VW, VW_CV, Vauxhall, Volvo…
Notice:
Does not support Australian models (Sole Distributor)like FORD and HOLDEN, and can’t support Indiantata and Malaysianproton car models.
Specifications:
Operation System Android 7.1
Processor Cortex-A7, 1.3GHz
Memory: 1GB, with 8GB RAM & 64GB ROM
Display 7″ Touch Screen, 1024*600

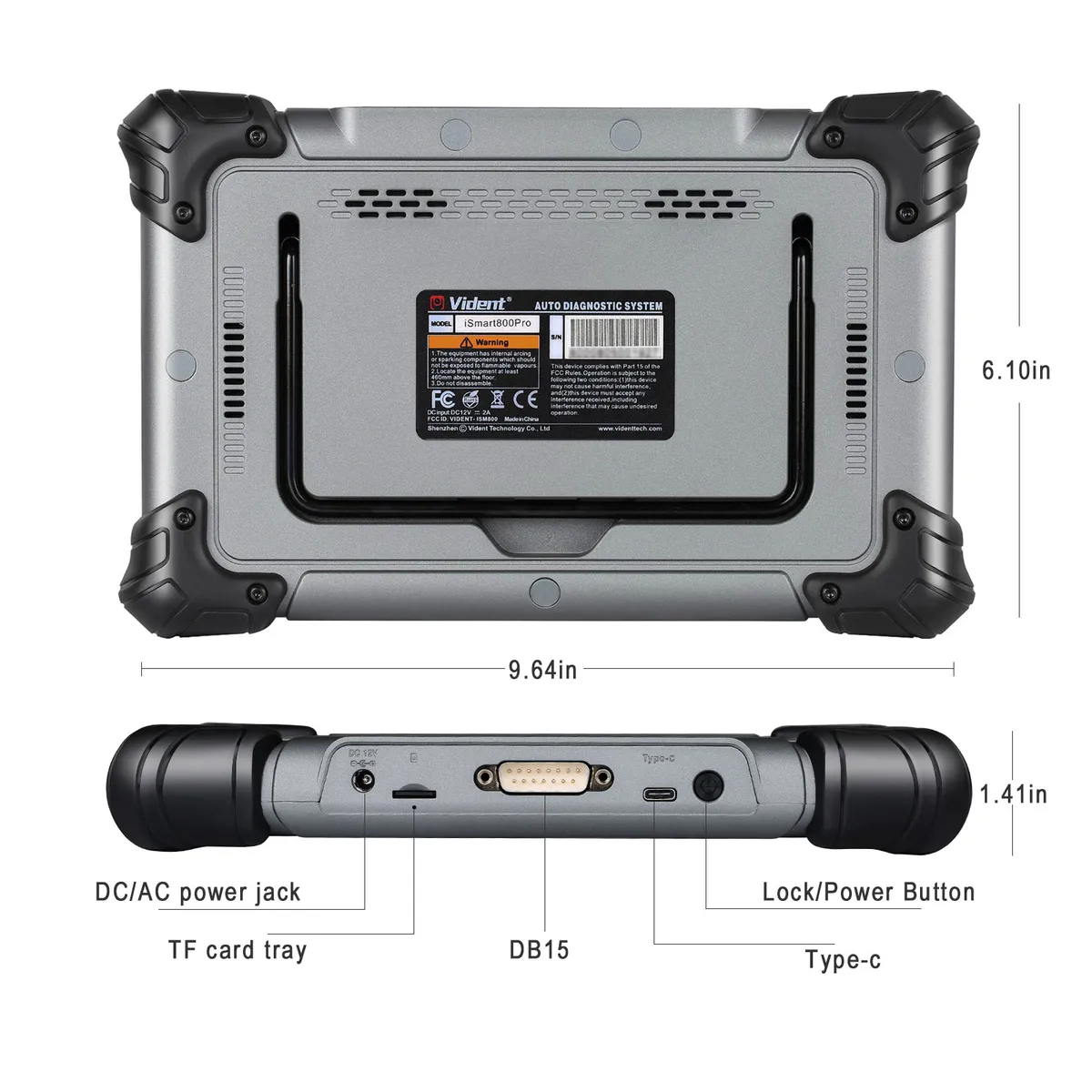

Connectivity WiFi, DB-15, Type C, Micro SD Card
Input Voltage 12V, 2A
Battery Capacity 7200mAh
Operating Temp 0 to 55°C (14 to 131°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions 246mm x 156mm x 32mm
Comparison between Vident iSmart800 pro and Autel MK808
Vident iSmart800 pro | Autel MK808 | ||
Diagnostic function | Read ecu information | √ | √ |
Read trouble code | √ | √ | |
Clear trouble code | √ | √ | |
Live data | √ | √ | |
Read freeze frame | √ | √ | |
Actuation test | √ | √ | |
OBDII Scan | √ | √ | |
Special Function | ABS Bleed | √ | √ |
AJUSTE Fuel | √ | √ | |
AT Adaption | √ | √ | |
Adblue | √ | √ | |
Airbag | √ | √ | |
BRT | √ | √ | |
Change Language | √ | √ | |
Change Tire Size | √ | √ | |
Clutch Adaptation | √ | √ | |
Coolant | √ | √ | |
DPF | √ | √ | |
EGR Reset | √ | √ | |
EPB | √ | √ | |
EVAP Test | √ | √ | |
Gear Box | √ | √ | |
Gear Learn | √ | √ | |
Head Li ght | √ | √ | |
High Voltage Battery | √ | √ | |
Immobili zer | √ | √ | |
Injector Coding | √ | √ | |
Motor Angle (MOTANG) | √ | √ | |
NOx Reset | √ | √ | |
Odomet er | √ | √ | |
0il Reset | √ | √ | |
Power Bal ance (ENGPBM) | √ | √ | |
Prime Fuel Pump | √ | √ | |
Seat Match | √ | √ | |
Steering Angle (SAS) | √ | √ | |
Stop&start | √ | √ | |
Sun Roof | √ | √ | |
Suspension | √ | √ | |
TCM 0il Reset | √ | √ | |
TPMS | √ | √ | |
Throttle Reset (TPS) | √ | √ | |
Transport | √ | √ | |
Turbo | √ | √ | |
Windows Door | √ | √ | |
A/C Learn (ACINI) | √ | X | |
Cruise (ICCS) | √ | X | |
GPF | √ | X | |
CAN FD protocol | √(Don’t need extra CAN FD adapter) | need to buy extra CAN FD adapter | |
Specifications | Screen size | 7 inch | 7 inch |
Resolution | 1024*600 | 1024*600 | |
CPU | Cortex-A7, 1.4Ghz | Cortex-A9 , 1.5 GHz | |
Storage | 72GB | 64BG | |
Memory | 2GB | 1GB | |
Battery capacity | 7200mAh | 5000mAh | |
OBD main line length | 1.5m | 1.71m | |
Operating system | Android 7.1.2 | Android 4.4.4 |

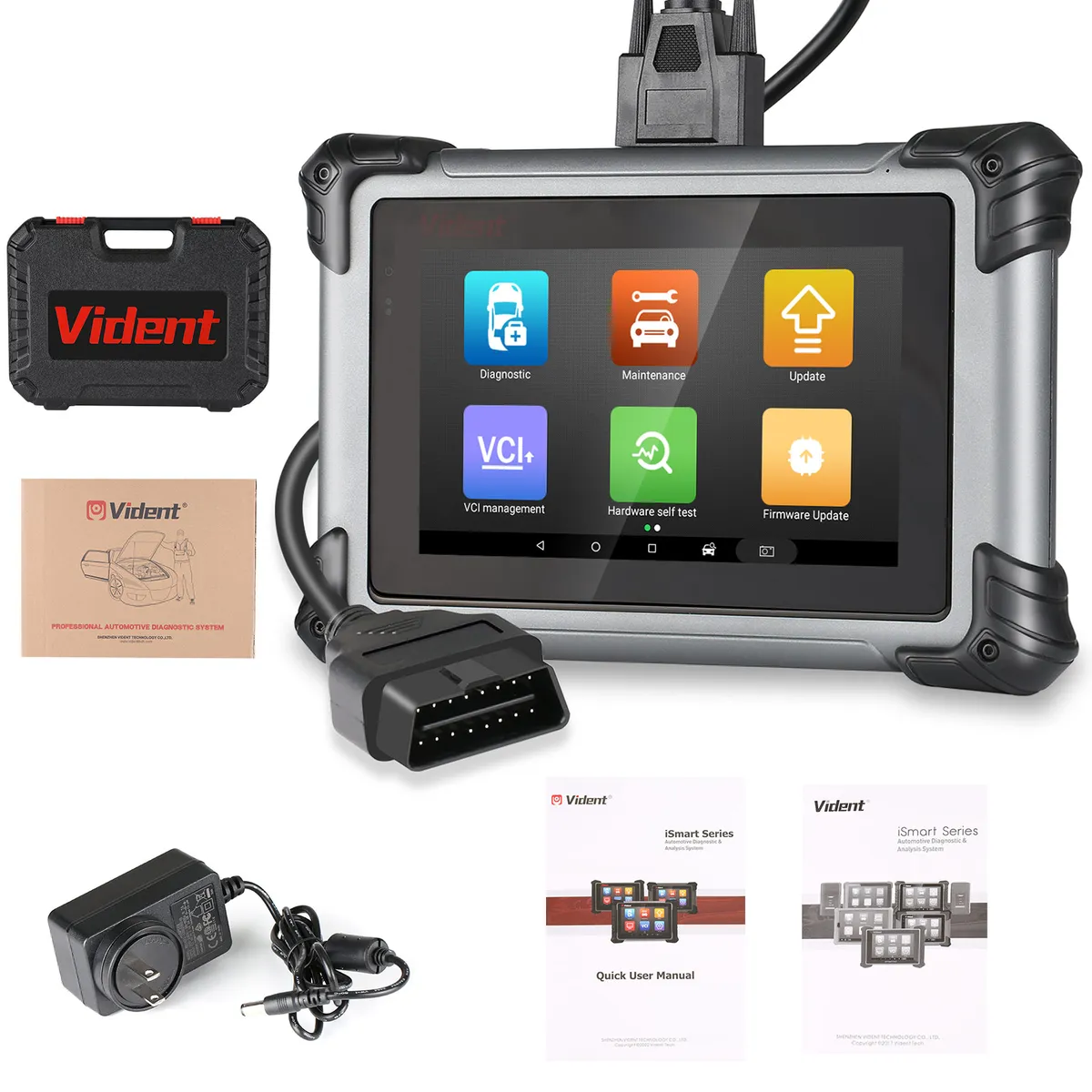

Package List:
1pc x iSmart800 Pro Main Unit
1pc x DC Power Charger
1pc x OBDII Diagnostic Cable
1pc x User Manual
1pc x Quick User Guide
1pc x Packing Box
