Viecar Bluetooth OBD2 Bluetooth 4.0 Dual-mode Auto Fault Detector Supports Android IOS

Viecar Bluetooth 4.0 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

Product Parameters

1. Communication method: Bluetooth dual-mode (2.0/4.0)
2. Software platform: Support Android / IOS / Windows
3. Operating voltage: 9V~16V
4. Operating current: 45mA
5. Operating temperature: -40℃~85℃
6. Operating humidity: <60%
7. Dimensions: 45mm*40mm*18mm
8. Supported vehicle: OBDII protocol vehicle

Supports OBDII protocols:

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software description:

Viecar Bluetooth 4.0 using self-developed Viecar software, more user-friendly interface designed to provide continuous software upgrades, and much powerful. Buying product, can obtain the right to use the software, no additional cost to purchase software. And one-year hardware warranty.

Software features:

Software can perform the following operations:
Read error diagn
ostic codes – General and manufacturers special use, and display their meaning
(Database has over 3000 generic code definitions)
Clear the error code and shut off the MIL ( “Check Engine” light)

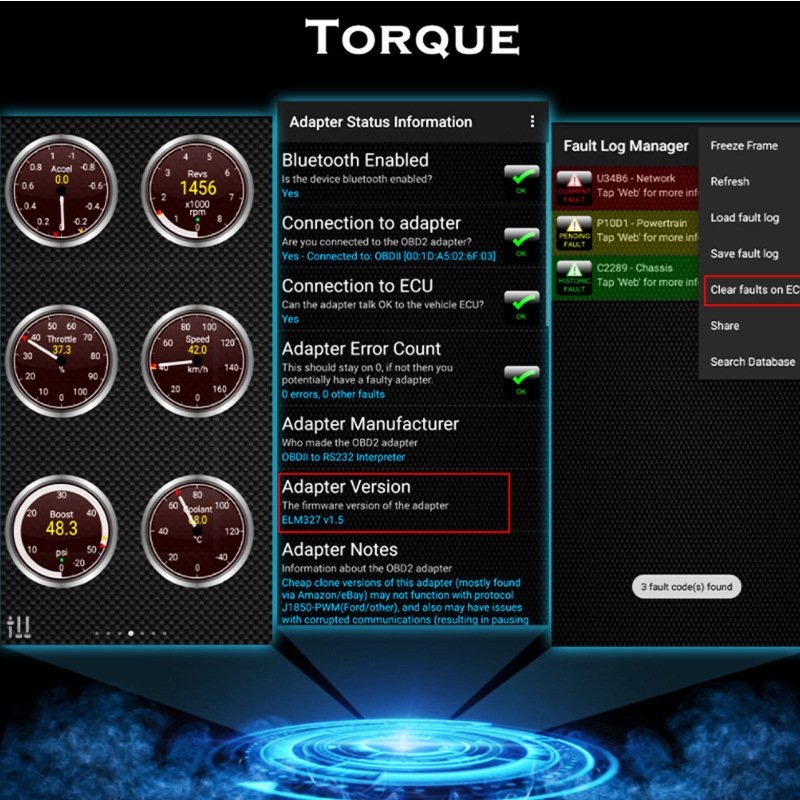

Display current sensor data, comprising:
Engine revolutions p
er minute (RPM)
The calculated load value
Coolant temperature
Fuel System Status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Injection advance time
Intake air temperature
Air flow rate
Absolute throttle position
Oxygen-sensing voltage associated with the short-term fuel state
Fuel System Status
The fuel pressure
Fuel consumption monitoring and many other data ……

Future software features:

Data chart display and logging
Freeze frame data
Continuous and discontinu
ous oxygen probe results

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN
Android: Torque_Pro, DashCommand, EOBD
IOS: DashCommand, EOBD，Viecar
Symbian: OBDScope

Package list:

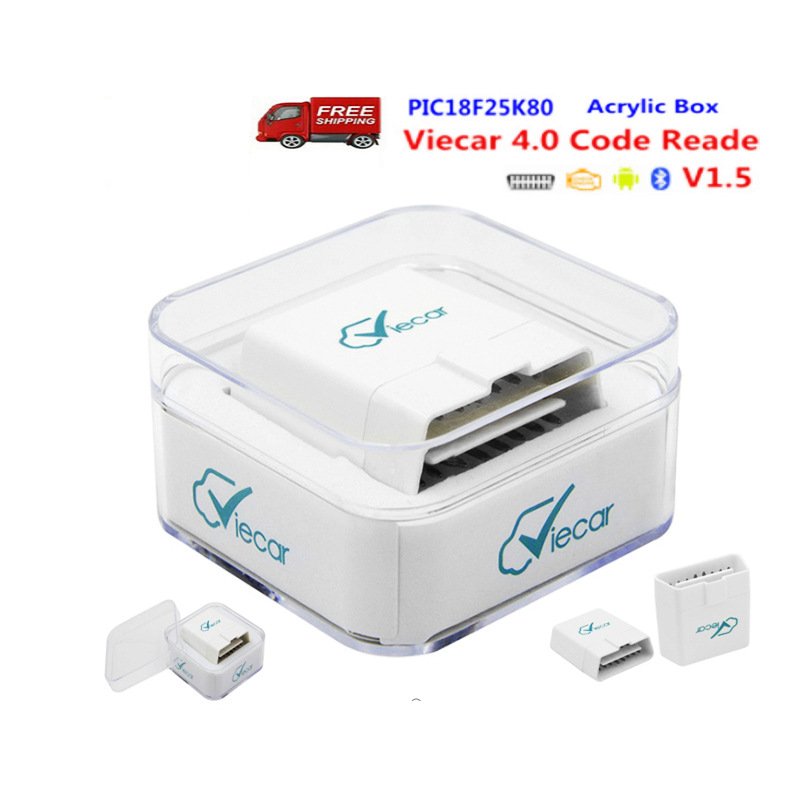

1 * Viecar 4.0 Bluetooth
1 * User Manual
