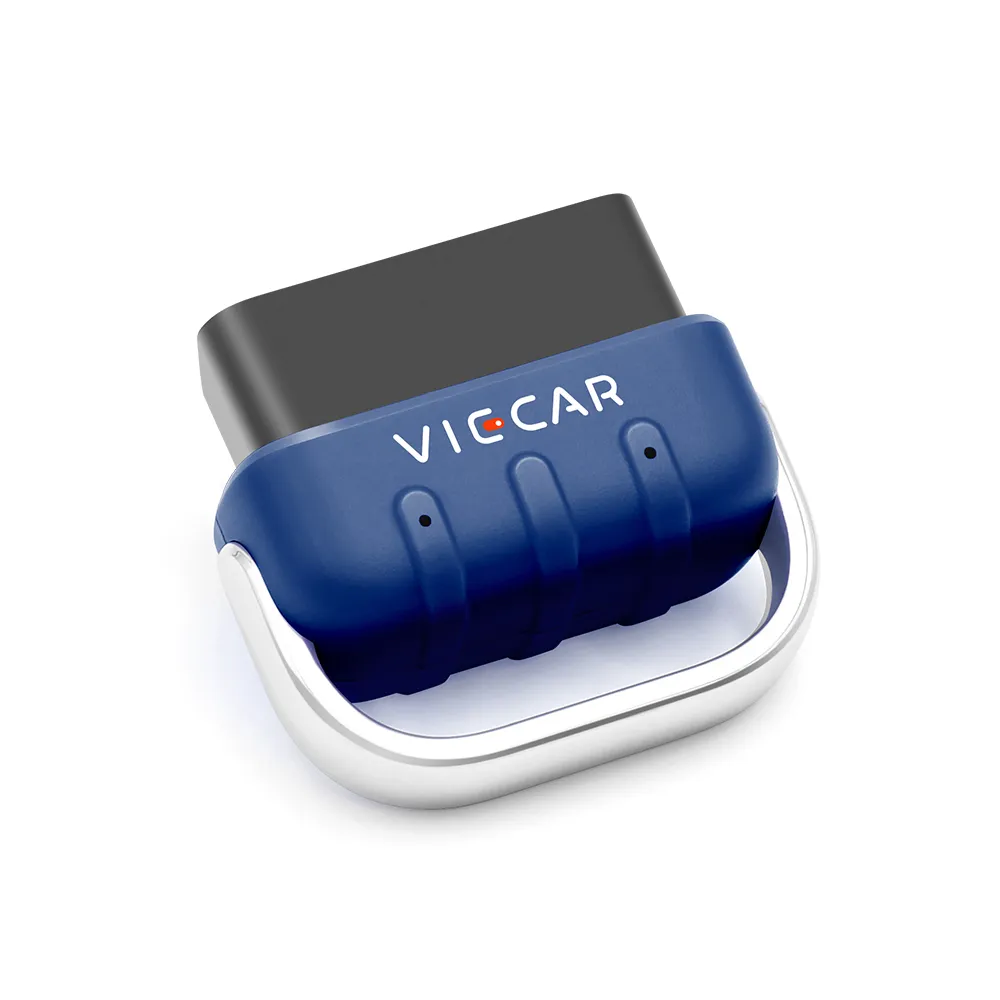

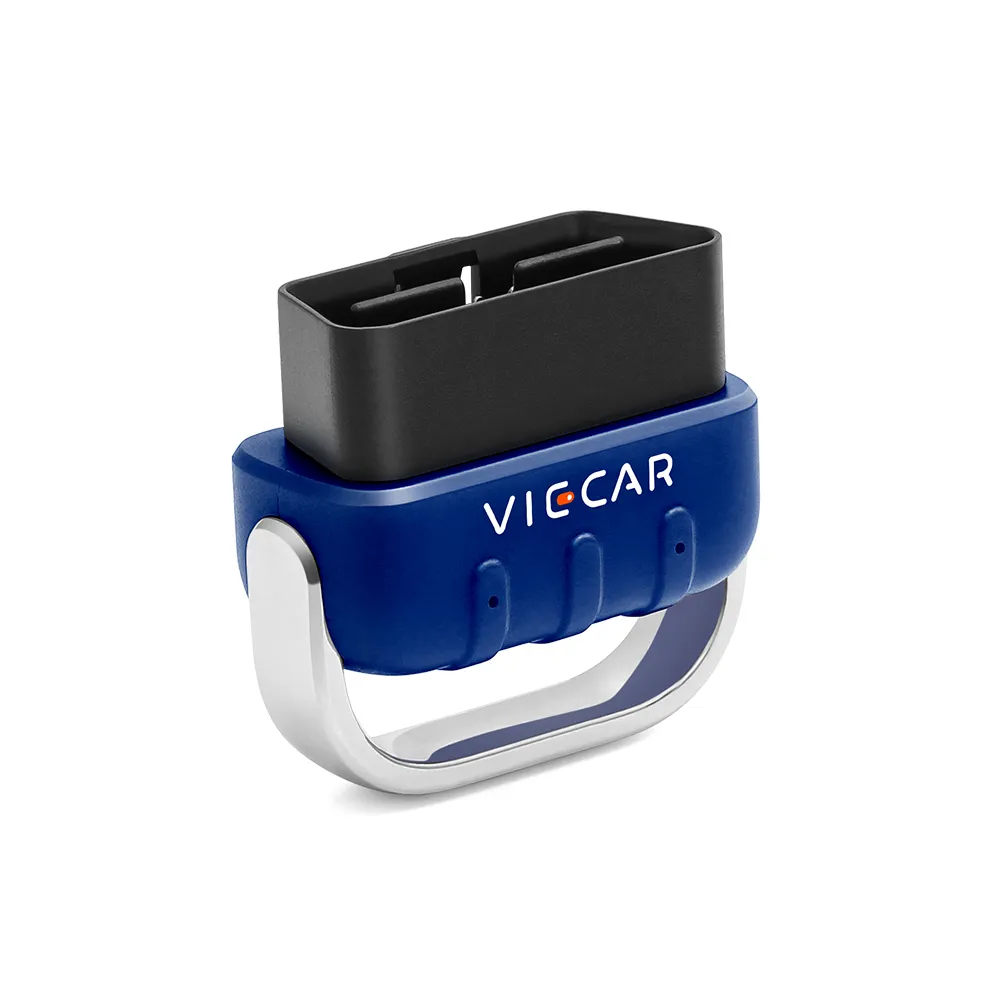

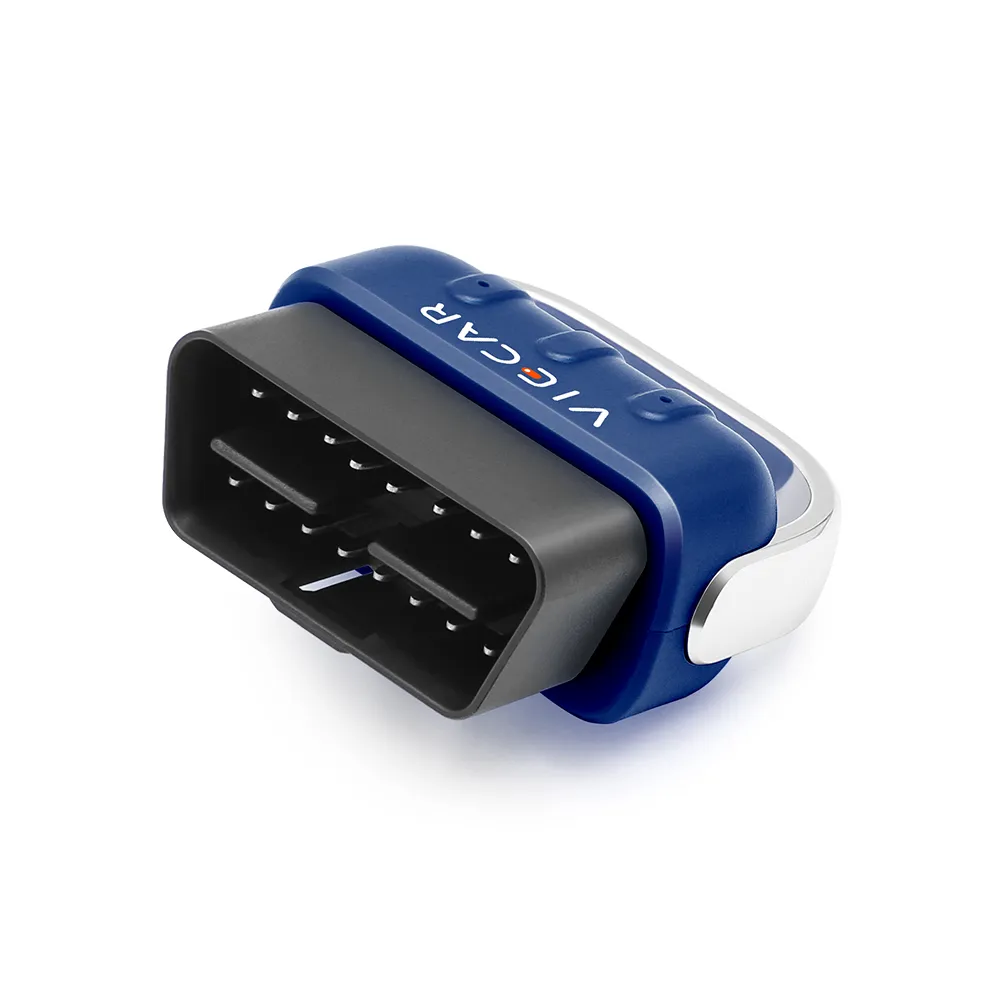

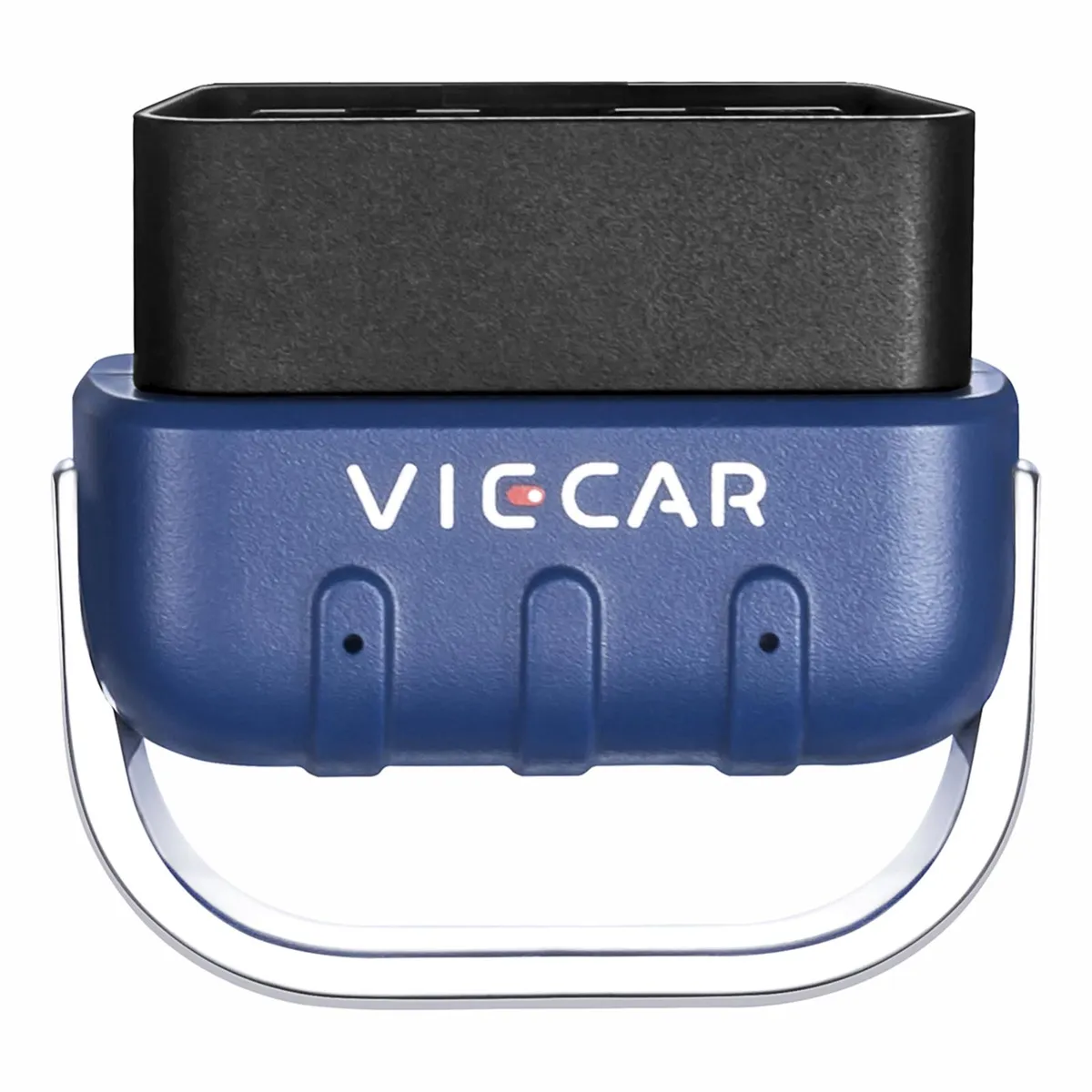

Viecar VP005 ELM327 Bluetooth V5.0 OBD2 Car Diagnostic Tool OBD II Scanner Auto Diagnostic Tool

Viecar VP005 ELM327 Bluetooth V5.0 OBD2 Car Diagnostic Tool OBD II Scanner Auto Diagnostic Tool

Viecar ELM327 Comparison:

1.Product Name: Vircar ELM327 V2.2 VP001/VP002/VP003/VP004/VP005/VP006
2.Connection method:
VP001 (Bluetooth 4.0)
VP002 (WIFI)
VP003 (Bluetooth 4.0+Type-C)
VP004 (WIFI+Type-C)
VP005 (Bluetooth 5.0)
VP006 (New WIFI)
3.Supported systems:Android/IOS,PC need with Type-C
4.Firmware Version:V2.2(better than V1.5/V2.1)
5.Support systems:
Android:Vicar/Torque/Dash Command/Auto Doctor
IOS:Vicar/Auto Doctor/Dashcommand/EOBD
Windows:ScanMaster

Why choose Bluetooth 5.0 and new WIFI?

Download QR code for original Viecar software:
1.Android password:a123456
2.IOS don’t need password
3.PC:WWW.ELM327.COM

Supported Vehicle Data:
1.Read error diagnostic code
2.Clear the fault code (clear the error code and turn off MIL)
3.Engine revolutions per minute (RPM)
4.Calculated load value
5.Coolant temperature
6.Fuel system status
7.Speed
8.Short-term fuel situation
9.Long-term fuel situation
10.Intake manifold pressure
11.Fuel injection advance time
12.Intake air temperature
13.Air flow rate
14.Throttle absolute position
15.Oxygen detection voltage associated with short-term fuel state
16.Fuel system status
17.Fuel pressure
18.Fuel consumption monitoring, etc.
Remarks: The number of data items supported by the model year is also different, subject to actual support.

Product Description:
The VP001-VP004 is WIFI/Bluetooth 4.0/Ty-pe C(USB),VP005 VP006 is Bluetooth 5.0 and New WIFIOBD product with the following features:
1. Compatible with dual mode WIFI/Bluetooth 4.0/5.0 data transmission With USB2.0 transmission(With your choose)
2. Nine protocols supporting the OBD II/EOBD standard
3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;
4. With standby low power mode to ensure the safe use of car batteries;
5. With digital tube display voltage, current, enhance customer experience

Supported Protocols:
SAE J1850 PWM (41.6 Kbaud )
SAE J1850 VPW (10.4 Kbaud )
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )
ISO 14230-4 KWP (fast init, 10.4 Kbaud)
ISO 15765-4 CAN (11bit ID, 500 Kbaud)
ISO 15765-4 CAN (29bit ID, 500 Kbaud)
ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
ISO 15765-4 CAN (29bit ID, 250 Kbaud)

Technical Parameters:
SSID: Viecar
Firmware Version:V2.2
Main control chip: PIC18F25K80
Software platform: support Android /IOS/ Windows
Working voltage: DC 9~3 6V
Working current: 40mA
Standby current: 5mA
Operating environment: -20 ~ 65 ° C
Storage temperature: -40 to 80 ° C
Dimensions: 56*45.8 *24mm

Original Viecar software connection method:

Packing List:
1pc x original Viecar ELM327
1pc x instruction manual
1pc x warranty card
