Xhorse VVDI Mini Key Tool Remote Key Programmer

Xhorse VVDI XDKTMGEN MINI Key Tool Global Version Without Copy 48 Transponder (96 bit)  Function and Token

This is the 2023 new vvdi mini key tool without Copy 48 Transponder (96 bit) Authorization and No Token for Xhorse 96 Bit ID48 Copy
Please use VVDI Mini Key Tool to generate Xhorse new remote key 10pcs, after collect points, 2 hours later, server will open ID48 96bit function free.

VVDI Mini Key Tool Features:

Transponder Generating
Support TP transponder & parts of special transponder more than 700 vehicle models, reduce the stock of transponders efficiently.

Remote Cloning
Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

Garage Remote Generating
Supporting more than 100 types.

Remote Generate
Support 128 brands, over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.

Frequency Test
Support the power test within the range of 300-450MHz.

Toyota H transponder
Activate Toyota H transponder generation function

Special Functions:
1. Unlock Toyota smart keys
2. ID63 to ID83
3. Special 4D to 4C
4. Detect remote

How to Use Xhorse VVDI Mini Key Tool?

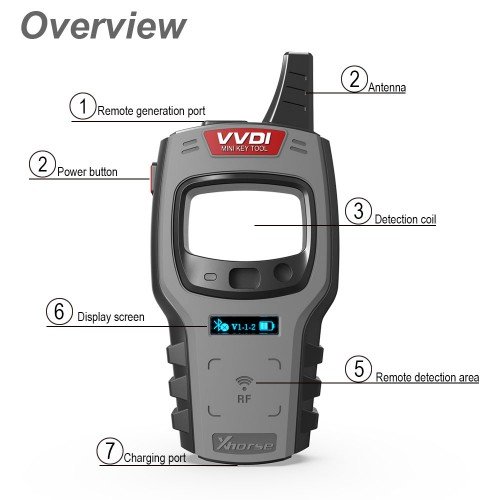

VVDI Mini Key Tool Overview

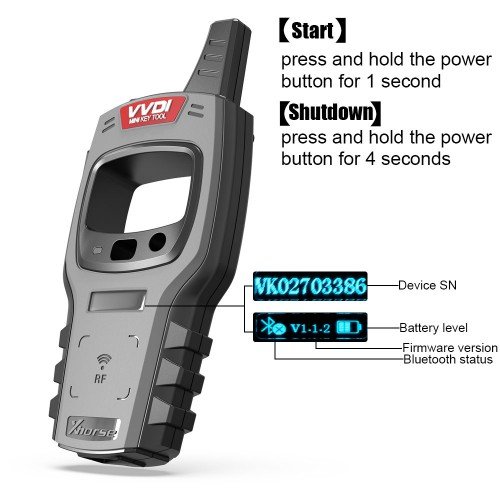

[Start]:press and hold the power button for 1 second
[Shut down]:press and hold the power button for 4 seconds

[Transponder detection]:press the power button for 1 second
[Frequency test]:press and hold the power button for 2 second

1.Enter the main interface of APP and click “add device” to connect

2.The bluetooth of the cellphone is required to be turned on

3.Click “search for new device” and pair the device according to SN

VVDI Mini Key Tool FAQs:

Q:How to Combine Xhorse MINI KEY TOOL/DOLPHIN/KEY TOOL to Your Account ?
A:
1.Login Xhorse APP
2.Connect your Xhorse device via Bluetooth
3.Enter “Device & History” to combine your Xhorse device

VVDI Mini Key Tool Parameters:
OLED Size: 0.91″
Extra Power: 5V/1A
Usage Time: ≧10 hours
Product Size: 140*64.5*23.5
Weight: 86g
Change Current: 650mA
Battery Capacity 800mAh

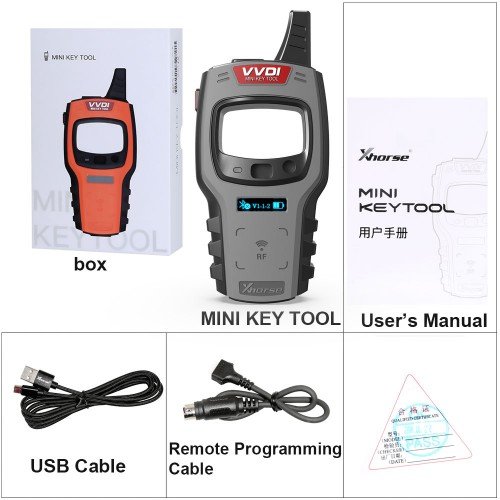

Package includes:

1pc x VVDI Mini Key Tool Device
1pc x Remote Programming Cable
1pc x USB Cable
1pc x User Guide
