Xhorse XM38 Smart Remote Key XSTO03EN Support for Toyota Type 4D 8A 4A All In One

How to choose VVDI super remote and Xhorse wire/wireless remote Key?

VVDI Super remote covers all functions of xhorse wire and wireless key.

1. Xhorse wireless key is with NXP Chip,which is like the hitag series chips,like the chip ID46 and ID47

2. Xhorse wire key is without NXP Chip.

3. VVDI Super remote is with super chip inside, can support more key types.

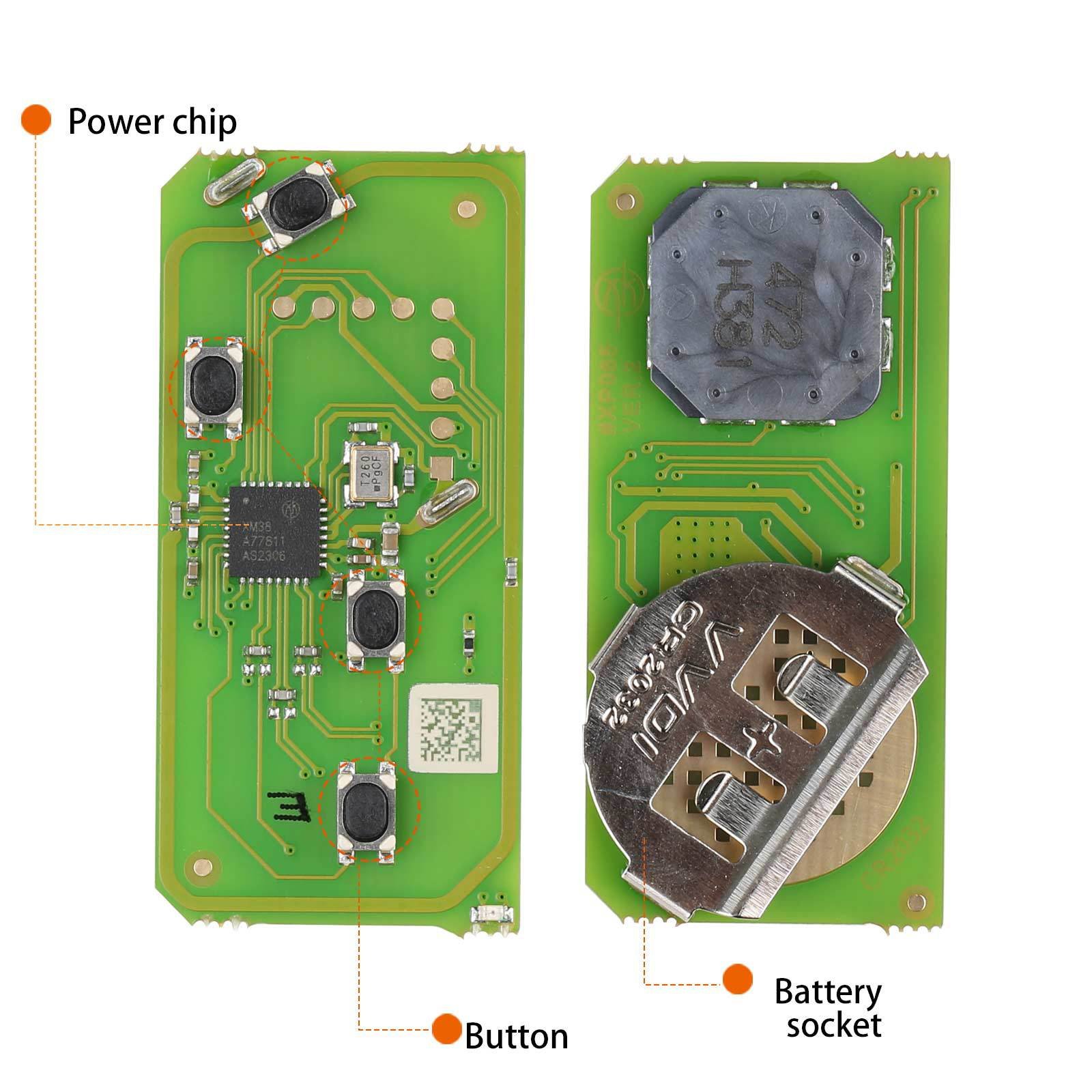

Similarity: They have same PCB and remote contact part.

Comparison Among Wired Remote ,Wireless Remote,Super Remote,Smart Remote

Wired remote: XK series,, With socket, No chip, 25 bonus points gained

Wireless remote: XN series,  NXP chip, 40 bonus points gained

Super remote: XE series,  Super chip XT 27, 40 bonus points gained

Smart remote: XS series,  Smart chip keyless go, 60 bonus points gained

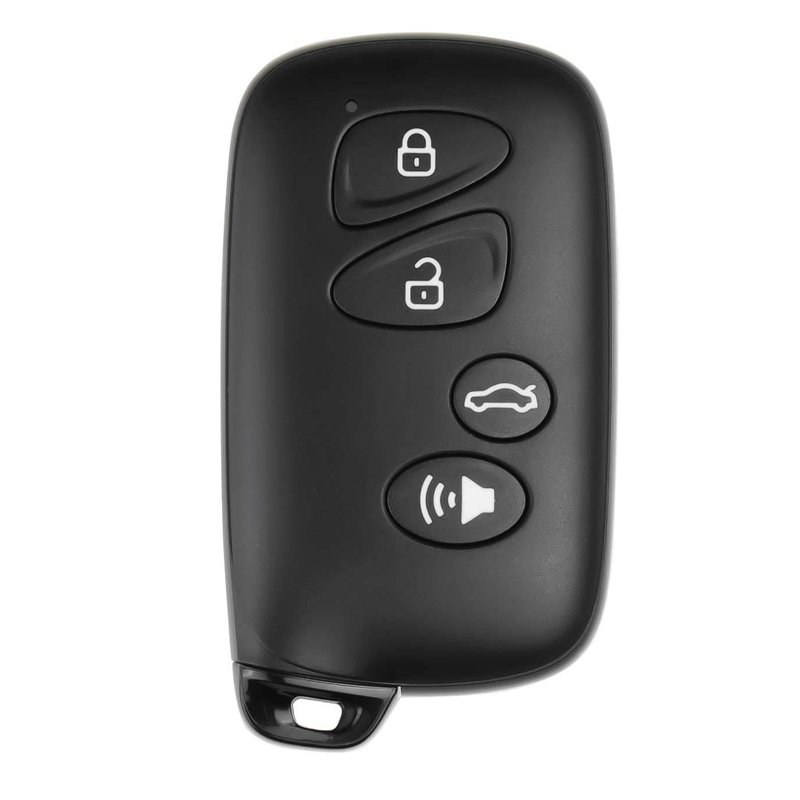

Xhorse XM38 Smart Key XSTO03EN Support for Toyota type 4D 8A 4A all in one

No points/token required to generate

Support frequency 312MHz~434MHz

Support customize key buttons and change frequency

Support cloning

Supports Re-Generate And Re-Use

Support Add key and all keys lost

Support emergency start

Generate via VVDI mini key tool, Key tool max pro, VVDI2 and VVDI key tool plus

4 Buttons: Lock, Unlock, Trunk, Panic

Xhorse XM38 Smart Key XSTO03EN Support IMMO Type:

4D (P1=94)

4D (P1=98)

4D (P1=D4)

4D (P1=9F)

4D (P1=34)

8A (P4=00 00 A8 A8)

8A (P4=00 00 88 88)

8A (P4=91 00 AA AA)

8A (P4=91 00 A9 A9)

8A (P4=C1 00 AA AA)

8A (P4=C1 00 A9 A9)

Support version (Board Numbers):

0020 F43 7980 0140 0031 0120 0011 3410 6221 3450 2110 3370

6601 0111 0091 0410 0010 2000 6230 0351 0182 5290 A433

0310 5380 0440 0330 0500 4610 0780 3330 7930 F433 0030 5300

Xhorse XM38 Smart Key XSTO03EN Supported models:

for Toyota:

for Camry

for Levin

for Highlander

for Senna

for Avalon

for YARIS L

for Prius

for RAV4

for Prado

for Crown

for Vios

for CHR/IZOA

for PREVIA

for Wish

for Vellfire

for Alpha

for Corolla

for Reiz

for Wildlander

for Land cruiser

for Lexus:

GS

IS

ES

RZ

CX

CT

NX

RC

LC

LS

LX

LM

Support Frequencies:

Dual Frequency

312.10/314.35 – 314.35/315.10 – 312.50/314.00 – 314.00/315.10 – 433.57/434.41

Single Frequency

315.00 – 315.10 – 315.12 – 314.35 – 312.50 – 314.00 – 433.92

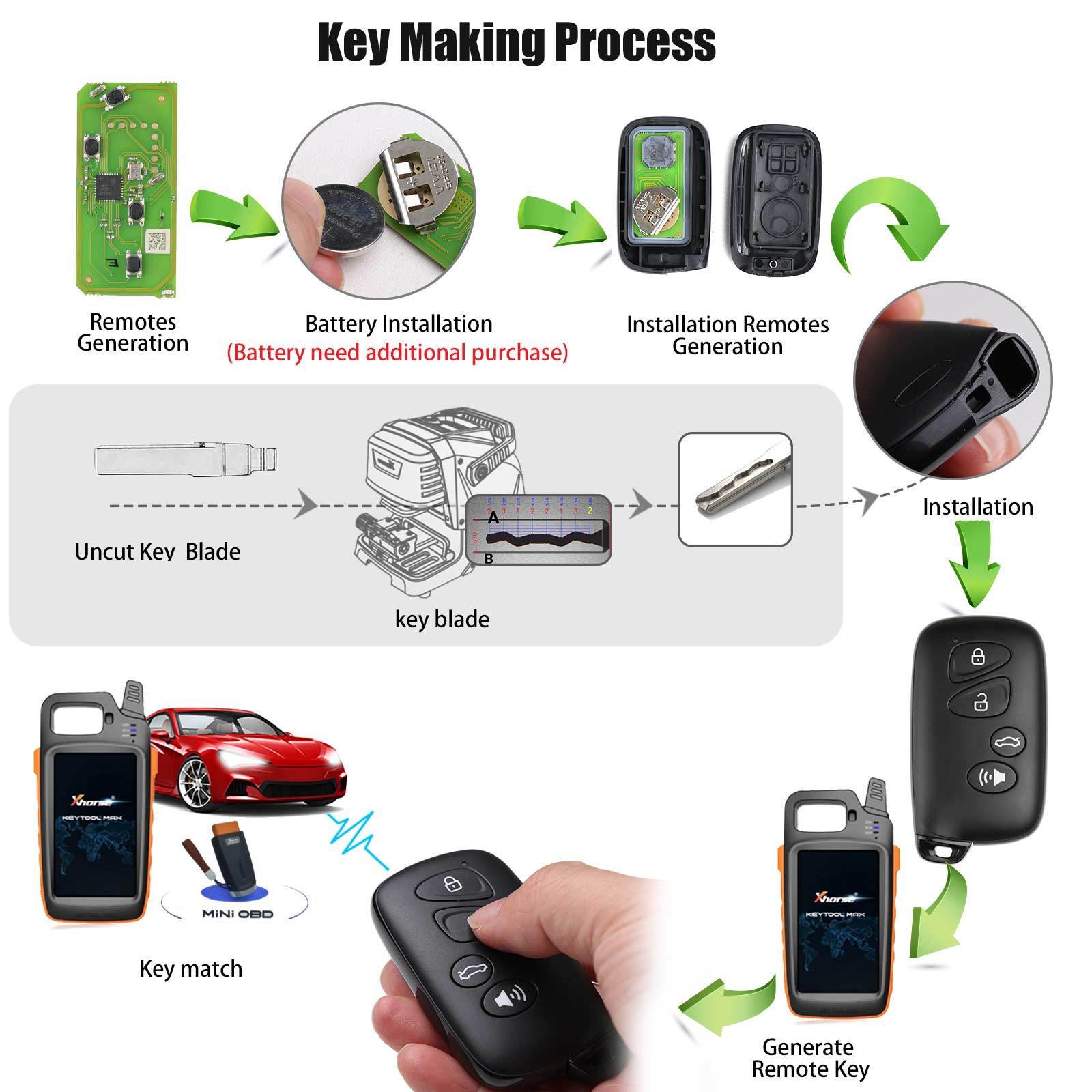

How to make wireless key Xhorse XSTO03EN?

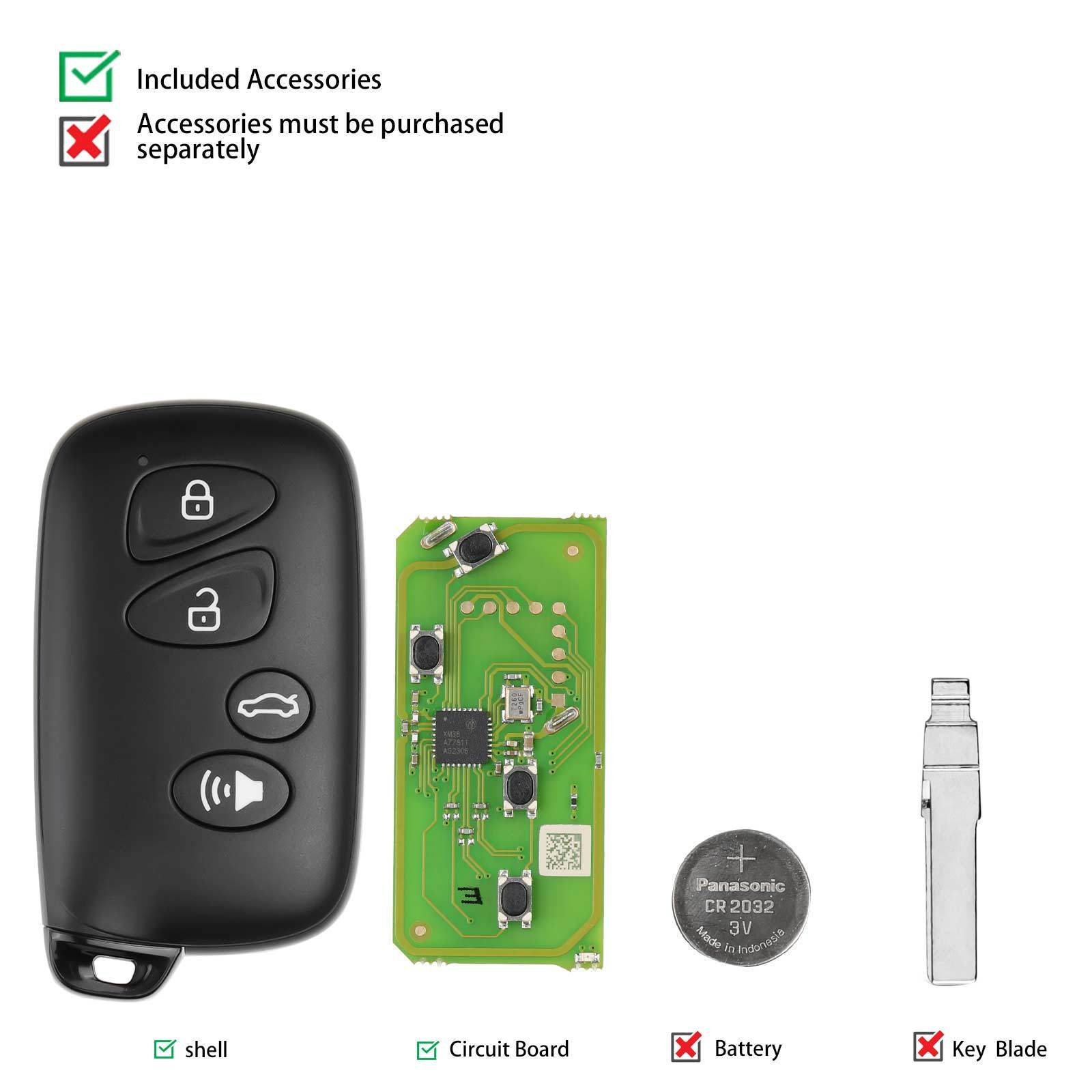

Package List:

1*Xhorse XM38 Smart Key XSTO03EN Support for Toyota type 4D 8A 4A all in one
