Name: XTOOL A80 Pro H6 Pro with KC501 KS01 Full System Diagnosis Tool Support Benz and BMW Online Programming
SKU: GFX24950
Price: 2176.79 USD
Availability: InStock

XTOOL A80 Pro H6 Pro with KC501 KS01 Full System Diagnosis Tool Support Benz and BMW Online Programming

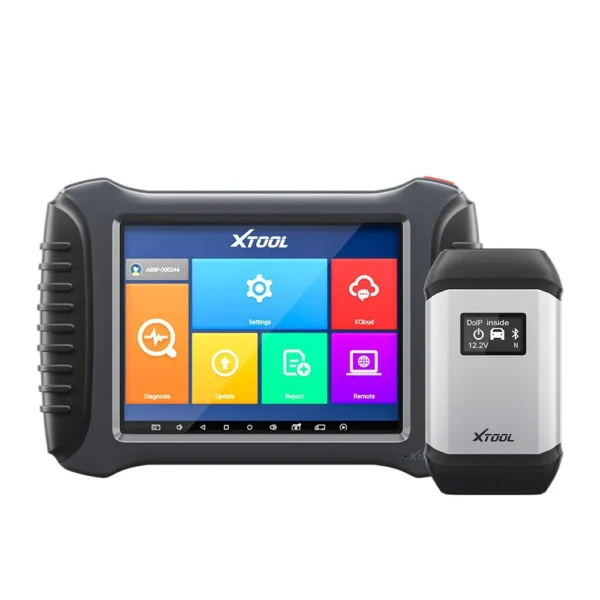

XTOOL A80 Pro is the latest car diagnosis platform made for technicians. It is an 10.1-inch industrial capacitive touch screen tablet with 4G RAM and 64G on-board memory. Adding DC /Type-C / VGA data transfer ports, it makes data transfer and image mapping more convenient and faster.

Highlights:
1. All System Diagnostic Machine
2.ECU Programmer for VW/AUDI/BMW/Mercedes/Ford/Mazda
3. Support 20 Special Functions
4. Work withKC501,KS-1 Smart Key Emulatorfor More IMMO Functions.
5. Supported Languages:English, German, Spanish, French, Italian,Japanese, Korean, Polish, Portuguese, Russian (Default is English, please sumbit serial number to change the language you need. Then you can update device online to have it in your device)
6. Free Update Online for 2 Years

1. DC Port: It provides 12V DC power supply.

2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)

3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.

4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)

5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)

6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.

7. Status LED: It indicates the current operating status.

8. IC Card Induction Area (It is used to read and write IC card data.)

9. Display Screen (It is used to show remote frequency or transponder ID.)

10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)

11. Transponder ID Button (Press this button to show transponder ID in the display screen.)

12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)

13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)

14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)

15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)

XTOOL KC501 Functions:
Read and write keys

KC501 supports read and write keys, support read key remote frequency as well as generate dealers key.

Read and write MCU/EEPROM Chips

KC501 can read and write MCU/EEPROM Chips

Read and write Mercedes Infrared Keys

KC501 can read and write Mercedes Infrared Keys, is a perfect key programmer for Mercedes Car Owner.

KS-1 Emulator Features:

1. For Toyota/Lexus All Key lost No disassembly

2. Support For Toyota/Lexus all lost and dismantled, read the original car data from OBD to generate emergency simulation key, directly drive the car without disassembly, intelligent and efficient

3. Intelligently generate new keys

4. Through the reading of the original car data, a smart key is generated, which can then be operated according to the process of adding a key, supporting the generation, copying, and simulation functions of the key chip.

5. More Cars

6. Support For To-yot-a 94 / D4, 98, 39, 88 / A8, A9 type smart keys all lost matching, matching speed is fast.

7. Reusable After matching the key, turn off the power or remove the battery to restore the initial state

XTOOL A80 Pro Functions:
* ECU Programmer for VW/AUDI/BMW/Mercedes/Ford/Mazda
* Key programming
* All System Diagnostic
* EEPROM Adapter
* Odometer Adjustment
* Electric Parking Brake
* Steering angle sensor adjustment
* DPF
* Service/Maintenance Light
* Cylinder
* Air Suspension
* PIN Code Reading
* Headlight
* Tyre Pressure Reset
* Throttle Relearn
* Support the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)

All System Diagnose Function:
A80 PRO can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.
Include :ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, ect…

Active Test:The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control.
The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostic time
Just one touch, which allows technician to quickly detect vehicle and run diagnostics on the selected system.

Xtool A80 Pro with 20 Kinds of Special Functions:
1.Service/Maintenance Light
2.Electric Parking Brake
3.Throttle Telearn
4.Window Initiallization
5.Tyre Pressure Restet
6.ABS Bleeding
7.Gearbox Match
8.Instrument Cluster
9.Immobilization/Key Programmer
10.EMS Reset
11.Headlight
12.Air Suspension
13.Steering Angle Sensor Adjustment,
14.Crankshaft Resync
15.DPF
16.EEPROM Adapter
17.Injuector Coding
18.Airbag Repair
19.Cylinder
20.Seat Configurations

Xtool A80 Pro comes with ECU programming device that Works For VW,BMW,BENZ,FORD,MAZDA,AUDI ECU Programmer

XTOOL A80 Pro Vehicle Coverage
The software of A80 PRO has a wide range of compatibility and can be used to diagnose vehicles from over 100 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.

XTOOL A80 Pro Interface & Product Details:

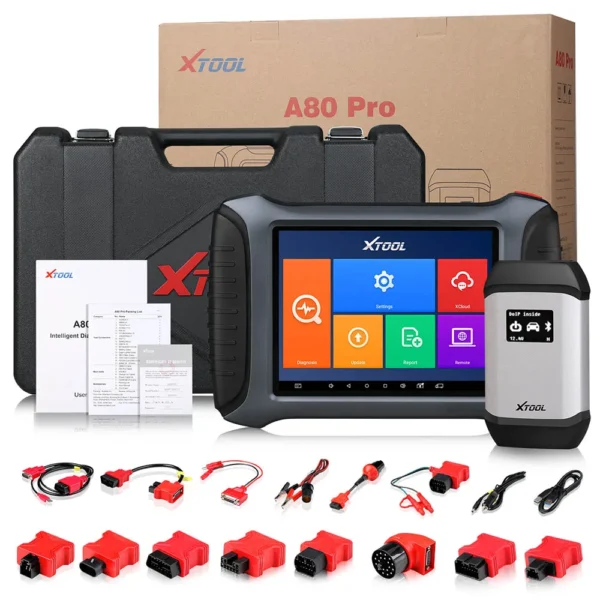

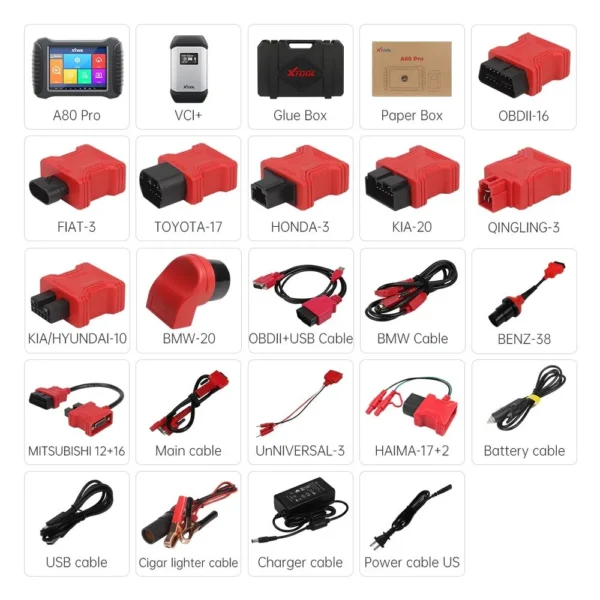

XTOOL A80 Pro Package List
1pc x A80 Pro Interface
1pc x A80 Pro VCI+
1pc x OBDII-16
1pc x Fiat-3 Adapter
1pc x Toyota-17 Adapter
1pc x Honda-3 Adapter
1pc x Kia-20 Adapter
1pc x QingLing-3 Adapter
1pc x Kia/Hyundai-10 Adapter
1pc x BMW-10 Adapter
1pc x OBDII-USB Cable
1pc x BMW Cable
1pc x Benz-38 Cable
1pc x Mitsubishi 12+16 Adapter
1pc x Main Cable
1pc x Universal-3 Cable
1pc x HaiMa-17+2 Cable
1pc x Battery Cable
1pc x USB Cable
1pc x Cigar Lighter Cable
1pc x Charger Cable
1pc x Power Cable US

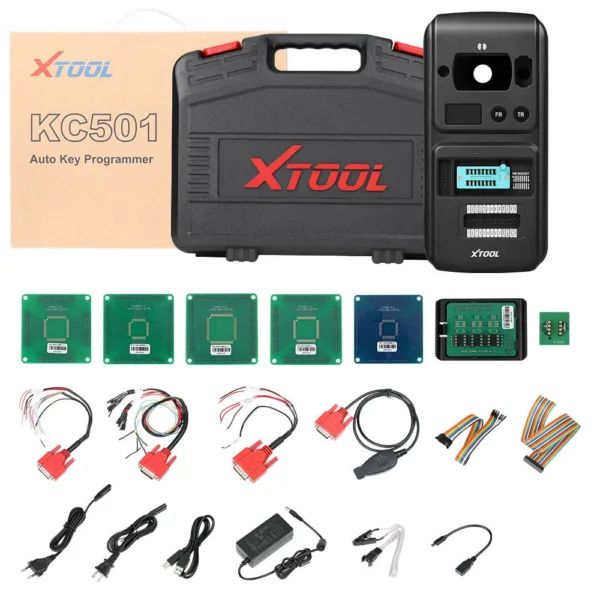

Xtool KC501includes:

1pc xAccessories

1pc xCertificate Of Quality

1pc xPacking List

1pc xUser Manual

1pc xCarton

1pc xTest Connectors

1pc xMCU FQFP176

1pc xMCU FQFP64

1pc xXTA001 Clamp

1pc xIC Clamp

1pc xMCU FQFP112

1pc xMCU FQFP144

1pc xMCU FQFP80

1pc xIC EEPROM Socket

1pc xEEPROM Adaptor (With bracket)

1pc xXTA002 Clamp

1pc xXTA003 Clamp

1pc x26 PIN Cable

1pc x24AWG Cable

1pc xTool Case

1pc xMain Units

1pc xKC501 Key & Chip Key Programmer

1pc xUSB_TYPE-B

1pc xUSB_TYPE-C

1pc xCharger (With Power Supply Cable)

1pc xBenz Infrared cable

XTOOL KS-1 Includes:
1pc x KS-1 Emulator

Show More Show Less
