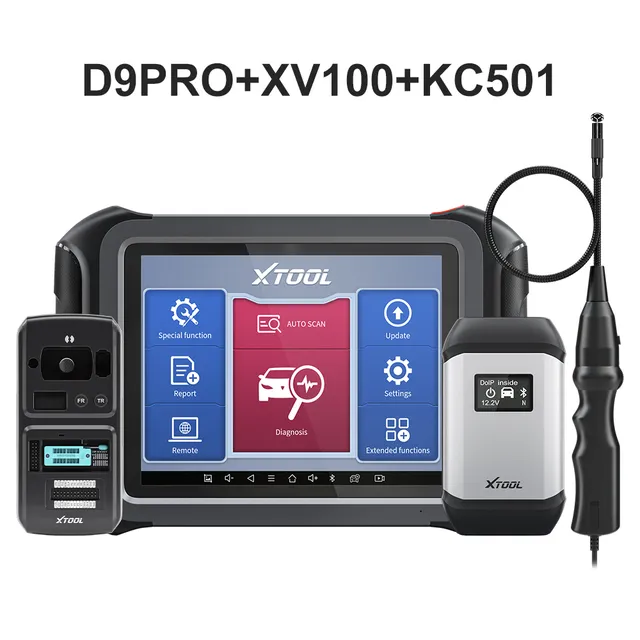

XTOOL D9 PRO Full System Car Diagnostic Tool With KC501 & XV100 Support Doip & CAN FD ECU Coding / Programming Free Update
2023 XTOOL D9 PRO OBD2 Bi-directional Scan For VW/BENZ/BW ECU Online Programmer ECU Coding Active Test Diagnostic Tool42+Services

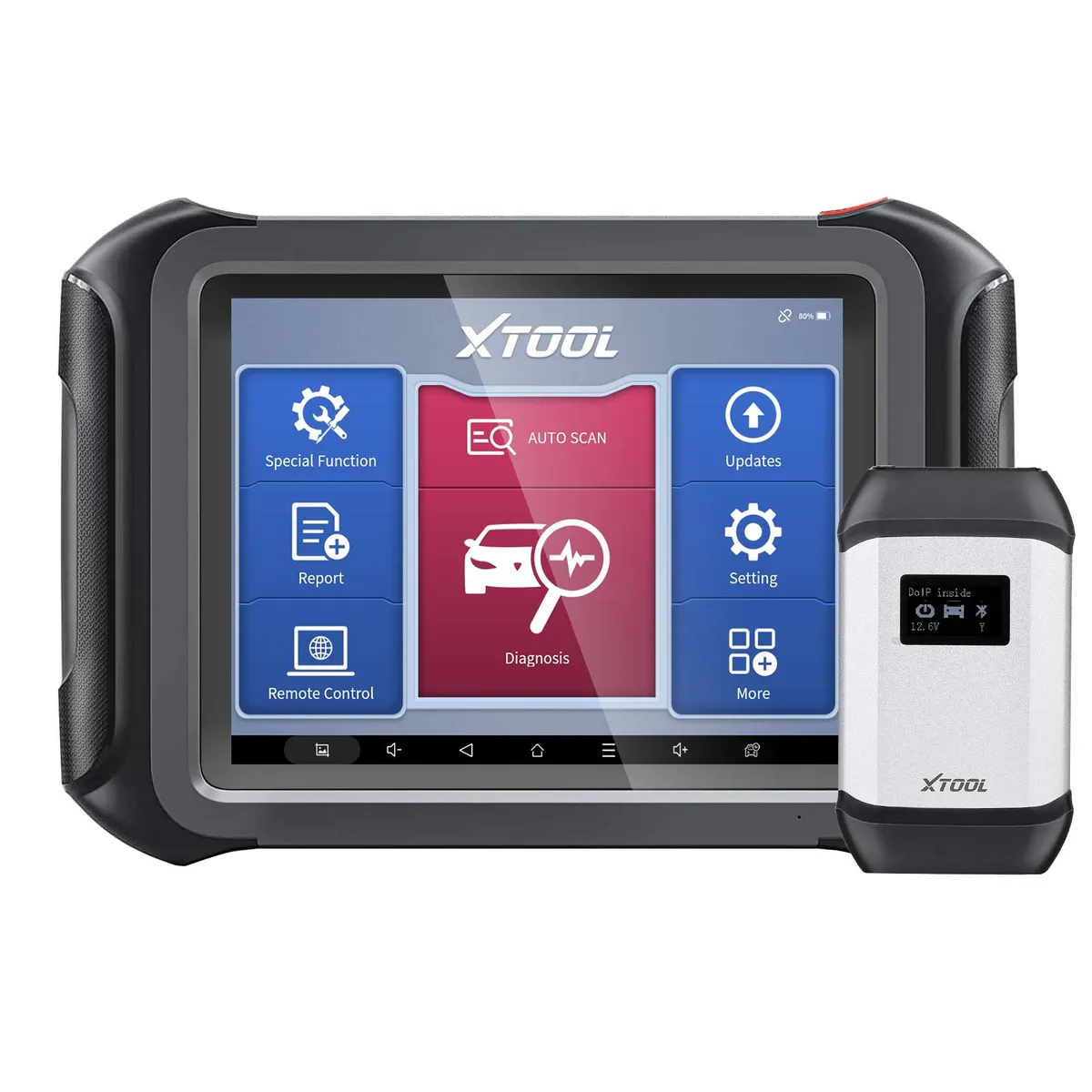

XTOOL D9 Pro is an OE-level professional full diagnostic scanner which provides you with more efficient diagnostic service. With Android 10.0 System, the touchscreen, 2GB RAM + 64GB ROM memory, XTOOL D9 Pro offers 3 years free Update and 5 years warranty.
Product Funcitons:
OE-Level Full System Diagnostics:
XTOOL D9 Pro is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read /clear codes, view the live data from each available system, perform active tests to check the work status of modules, providing you with a dealership- level only diagnosis, getting the accurate and in-depth results across all automotive systems.
Intelligent Topology Mapping Change Everything
Equipped with color coded module status for faster full system diagnostic results.
View the communication structure between modules clearly with all the situation of each system.
One click to display the fault co*de and enter the system executive function directly.
Note:Topology Map compatibility with GM, CHRYSLER, JEEP, DODGE, FORD, TOYOTA, NISSAN, HONDA, BMW, BENZ, HYUNDAI, MAZDA(MORE COMING SOON). DO NOT available for All Vehicle Makes. Please come to us for compatibility check.
New Update: New App version above V4.25.4_6.36 adding Topology Map and optimized battery performance for below Vehicle brands:
For GM(Buick, Pontiac, Chevrolet, Cadillac, Saturn, GMC, Hummer)–>Software package above V11.70;
For Chrysler/Dodge/Jeep–>Software package above V8.7; For VW( Audi/vw/Skoda)–>Software package above V13.30
For Toyota–>Software package above V13.70; For Nissan–>Software package above V12.91; For Honda/Acura–>Software package above V11.60;
For Hyundai/Kia–>Software package above V13.30;
For BMW/Mini–>Software package above V11.95; For Benz–>Software package above V20.61;
For Ford/Lincoln–>Software package above V13.4; For Mazda–>Software package above V12.2;
More coming soon!
42+ Commonly-Used Maintenance/Reset/Relearn Functions
XTOOL D9 Pro has included 42+ Maintenance Services that any repair shop would ever need for daily auto maintenance service jobs including:
Oil Reset:Reset service intervals after oil change and turn off the oil light.
EPB Reset:Reset brake pads after replacement of brake system.
SAS Adjustment:Perform calibration of the steering angle sensor
DPF Reset:Perform DPF regeneration
BMS Reset:Register the new battery to the ECU after replacement.
Throttle Relearn:Enables you to make initial settings to throttle to adjust the amount of air intake.
ABS Bleeding:Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.
Injector Coding:Coding injectors after replacement.
Transmission Match:Reset the adaptive shifting points in your automatic Transmission Control Unit.
Key Programming/IMMO:Disable the lost vehicle keys and program a new replacement key fob.
Enhanced Special functions:Steering Position Sensor Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Zero Point Calibration, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Cylinder Power Balance, Crankshaft Sensors Relearn, Language change, A/F Settings, Stop/Start Reset, etc.
Intelligent Topology Mapping Change Everything
Equipped with color coded module status for faster full system diagnostic results.
View the communication structure between modules clearly with all the situation of each system.
One click to display the fault co*de and enter the system executive function directly.
Note:Topology Map compatibility with GM, CHRYSLER, JEEP, DODGE, FORD, TOYOTA, NISSAN, HONDA, BMW, BENZ, HYUNDAI, MAZDA(MORE COMING SOON). DO NOT available for All Vehicle Makes. Please come to us for compatibility check.
New Update: New App version above V4.25.4_6.36 adding Topology Map and optimized battery performance for below Vehicle brands:
For GM(Buick, Pontiac, Chevrolet, Cadillac, Saturn, GMC, Hummer)–>Software package above V11.70;
For Chrysler/Dodge/Jeep–>Software package above V8.7; For VW( Audi/vw/Skoda)–>Software package above V13.30
For Toyota–>Software package above V13.70; For Nissan–>Software package above V12.91; For Honda/Acura–>Software package above V11.60;
For Hyundai/Kia–>Software package above V13.30;
For BMW/Mini–>Software package above V11.95; For Benz–>Software package above V20.61;
For Ford/Lincoln–>Software package above V13.4; For Mazda–>Software package above V12.2;
More coming soon!
42+ Commonly-Used Maintenance/Reset/Relearn Functions
XTOOL D9 Pro has included 42+ Maintenance Services that any repair shop would ever need for daily auto maintenance service jobs including:
Oil Reset:Reset service intervals after oil change and turn off the oil light.
EPB Reset:Reset brake pads after replacement of brake system.
SAS Adjustment:Perform calibration of the steering angle sensor
DPF Reset:Perform DPF regeneration
BMS Reset:Register the new battery to the ECU after replacement.
Throttle Relearn:Enables you to make initial settings to throttle to adjust the amount of air intake.
ABS Bleeding:Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.
Injector Coding:Coding injectors after replacement.
Transmission Match:Reset the adaptive shifting points in your automatic Transmission Control Unit.
Key Programming/IMMO:Disable the lost vehicle keys and program a new replacement key fob.
Enhanced Special functions:Steering Position Sensor Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Zero Point Calibration, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Cylinder Power Balance, Crankshaft Sensors Relearn, Language change, A/F Settings, Stop/Start Reset, etc.
2023 Advanced Special Functions:
Reset control unit, Odometer Read, Rain/Light Sensor, A/C Relearn, HV Battery, VIN Write, Clutch Adaption, etc.
Reset control unit, Odometer Read, Rain/Light Sensor, A/C Relearn, HV Battery, VIN Write, Clutch Adaption, etc.
Bi-Directional Control/Active Tests+ECU Coding + ECU Programmer:
XTOOL D9 Pro is a bi-directional scan tool with ECU codding ,allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle’s controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That’s helpful for DIY mechanics, speeding up the troubleshooting process when it’s time to make repairs.
D9 Pro supports the Online ECU Programmer for B-enz/B-MW and VW and Offline ECU Programmer for Ford /Mazda,Program new ECUs(PCM, ECM).
D9 Pro supports the Online ECU Programmer for B-enz/B-MW and VW and Offline ECU Programmer for Ford /Mazda,Program new ECUs(PCM, ECM).
ECU Coding:
Because every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. XTOOL D9 Pro is equipped with advanced ECU coding function for addressing the following issues:
After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.
By changing the code with the ECU coding, it’s easy to improve vehicle performance or stimulate high-end functions for the car.
ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.
Powerful Key Programming Function:
Fast Key Programming also is an important part of any mechanic’s working, D9 Pro comes with powerful key programming functions include:
1.Work with EEPROM Adapter (Package NOT Included) to read/write/backup the IMMO data.
2.Read PIN code
3.Add New Keys (Fob/Smart)
4.Remote Learning
5.Key Matching
6.Remote Learn
7.ALL-KEYS-LOST Functions, etc.
NOTE:Key programming does not work on all cars, please check the compatibility before purchase.
Smart AutoVin & Auto Scan+BT Connection+Cable Connection:
XTOOL D9 Pro provides you with more efficient diagnosis work. You just need to plug the VCI into the OBD2 port, within a working range of 33 feet(10 m), you can use the D9 Pro to communicate with the vehicle through BT connection, providing you with higher mobility. Use AutoVin to automatically read the vehicle identification number, or access the OBDII menu to use Auto Scan to perform a comprehensive scan of all available modules to shorten the diagnosis time.
Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems. Quickly get your car’s information, save your time.
Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems. Quickly get your car’s information, save your time.
Support Newest Doip and with CAN FD Functions:
The D9 Pro can works for the Doip protocol and CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm (CRC field is extended to 21 bits)
Comprehensive VehicleCoverage and Multi-Language :
XtoolD9 PRO diagnostic tablet can work on 10,000 vehicles globally to perform all systems diagnostics and emission check,Up to 2023, 2022, including cars, SUVs, minvans, 12v light-duty trucks,including for GM 2020+ vehicles that are CAN FD compliant,for BMW E/F/G Chassis / Jaguar / Land Rover vehicle makes that are DoIP protocol compliant,and 99.9% OBDII/EOBD vehicles for emission check.
Xtool D9 Pro support 12+ kinds of languagesincluding English, Spanish, Germa, Frenc, Portuguese, Italian, Finnish, Arabic, Japanese, Thai, Korean, Polish, Russian, Chinese etc. Come to us with S/N number to change.
Advanced Function: Support Extension Modules(need to buy additionally)
1.Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
2. KC501 (For Benz infrared key programming, for VW 4th, 5th IMMO, for eeprom, for chips programmer)
3. KC100 (For VW 4th and 5th immo )
4. KS01 (For Toyota all keys lost programmer )
5. M822 ( For Toyota 8a/4a all keys lost programmer)
6. M821 (For Mercedes-Benz All Keys Lost)
6. M821 (For Mercedes-Benz All Keys Lost)
More Xtool D9 Pro Features:
Online Repair Resources:
Provide more than 200000+ vehicle models’ service & repair information, handbook, repair case and operation skill
One-Click identify VIN:
Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems.Quickly get your car’s information,save your time.
One-Click Generate Health Report:
Health Report will scan all vehicle modules and give you a status list for each modules condition. Also known as “Global Test” or “Full Scan” .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished.The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.
Maintenance Help:
Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.
Powerful Hardware:
10000 Mah 3.7V Battery with 8MP Camera can works with our XV100 Endoscope, 9.7 inchscreen with 2GB RAM + 128GBROM Memory space, with Bluetooth and WiFi to keep update online

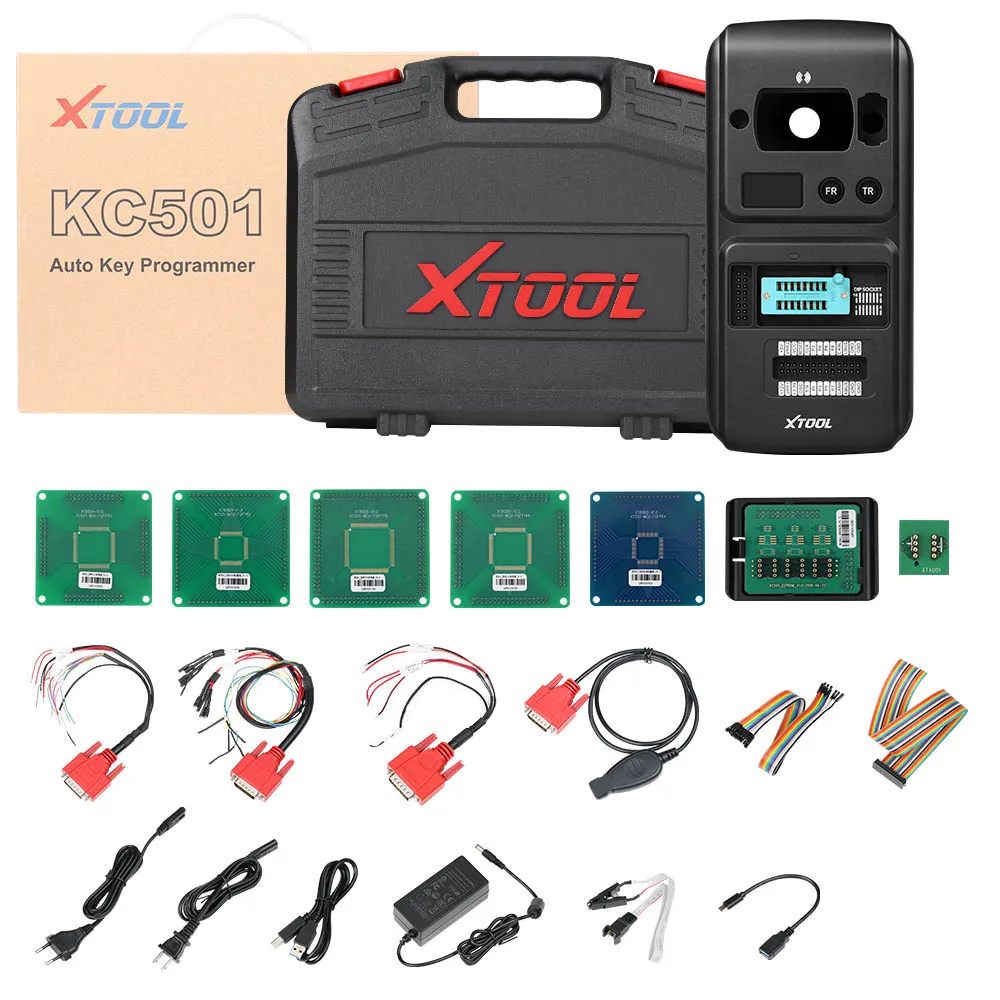

KC501 Key & Chip PROGRAMMER
·PC Supported
·MCU / EEPROM Chip Read / Write
·ECU Read / Write
·MC9S12 Encrypted Chip Read / Write
·Key Reading / Writing
·Mercedes Infrared Key Reading / Writing
·Finding the Control Frequency
·IC Card Reading / Writing
XTOOL XV100 HD inspection videoscope
The videocope is a new type of electronic product. The advantages of this product are: small size, light weight, the front camera housing diameter is 8.5mm, a control box is installed in the middle part (adjust the light and shutter button.
Note:The shutter button can be used only when connecting with the XTOOL tablet), you can adjust the brightness of 8 LED lights, capture images and take photos, and you can record, record the entire process of inspection, to facilitate subsequent observation and analysis.
Xtool D9 Pro Includes:

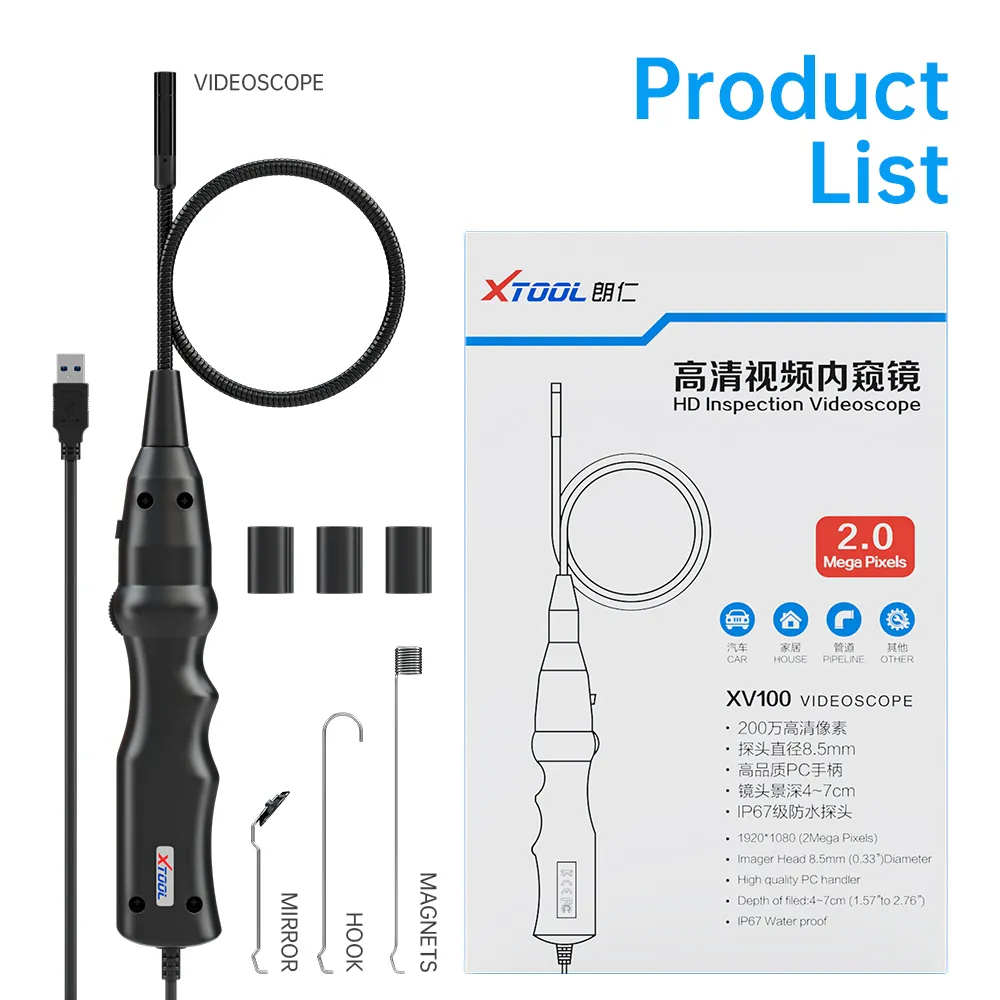

XtoolXV100 Packing List:
1*inspection videoscope
1*User Mannual
1 *Magnet
1*Mirror
1*Hook
