XTOOL InPlus IP508S Diagnostic Scan tool, Automotive 4-System Car Scanner, 9 Services, Free Update
Support 5 System Diagnostic
XTOOL Inplus IP508S supports entering the 5 systems of Engine, Transmission, SRS, EPB and ABS for diagnosis. Help you solve your vehicle’s problems more accurately and quickly.
9 Maintenance Functions
Oil Rest, TPMS Reset, SAS, EPB, BMS Reset, Injector Coding, DPF, ABS Bleeding, Throttle Relearn.
8 In 1 Live Data Graph
Support selecting 8 pieces of data at the same time to form a data flow chart, which is convenient for you to understand the status of each module more intuitively.
Full OBDII Functions
Read/Clear Trouble Codes, Live Data, Read Freeze Frame, Component Test, Read ECU Information, On-Board Monitor Test, O2 Sensor Monitoring Test, I/M Readiness, EVAP System Test.
Auto VIN Scan
Automatically retrieve vehicle identification numbers for quick access to vehicle system diagnostics.
14 Languages Supported
English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Traditional Chinese (pls send us the serial number of the Inplus IP508S if you need to change the language)
Wide Coverage of Vehicles
XTOOL Inplus IP508S support 80+ car brands and 10000+ car models for diagnosis and reset.
Superior Firmware
Configuration: 5″ Touchscreen + 2G+32G Memory + Android 10
5 Years Warranty + One click online update +life time free update +Remote Technical Support
📌 ABS System Diagnosis
Retrieve the ABS code to tell you where the problem is and you can fix it.
📌SRS System Diagnosis
The airbag system consists of a collision sensor, a control module and the airbag itself. The diagnostic equipment can detect each electronic parameter to check its health status.
📌 Engine System Diagnosis
Help detect engine ignition, fuel injection, air-fuel ratio and exhaust emissions in the engine system to improve vehicle performance, save energy and reduce exhaust emissions.
📌 EPB System Diagnosis
If you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation
📌 Transmission System Diagnosis
Read and clear the codes in the transmission system and view real-time data so that the transmission system output is optimally adapted to speed and load. Retrieve error information from automatic transmission (AT). Automatic transmission is a motor vehicle transmission that can automatically change the transmission ratio when the vehicle is moving, so that the driver does not need to shift manually.
9 Reset Function Make Repair Easy
👍 Oil Rest: Reset the Engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle’s driving conditions and climate. The oil life reminder must be reset each time the oil is changed so that the system can calculate when the next oil change is required.
👍 TPMS Reset: Tire Pressure Monitor System (TPMS) Reset allows you to quickly look up the tire sensor IDs from the vehicle ECU, as well as to perform TPMS replacement and reset procedures after tire sensors are replaced.
👍 SAS: SAS reset supports recalibration of the steering angle sensor. After the calibration is successfully completed, the SAS fault memory will be automatically cleared.
👍 EPB: Reset the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration.
👍 BMS Reset: The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
👍 Injector Coding: Write the identification code of the injector into the ECU so that the ECU can recognize and work normally.
👍 DPF: DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
👍 ABS Bleeding: After the gear learning is successful, the MIL will be closed. This function can complete the self-learning of the gearbox and improve the quality of shifting.
👍 Throttle Relearn: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

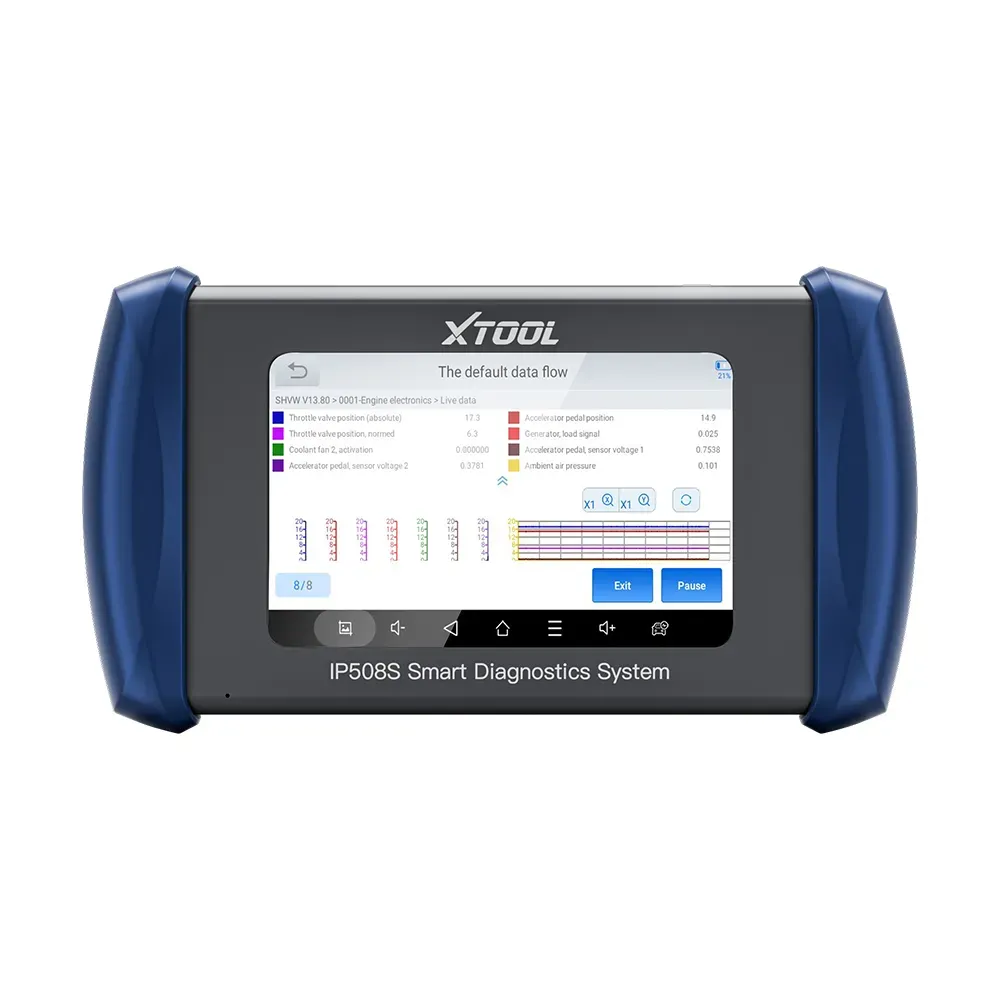

8 in 1 Live Data Graph
Features with Live Data Stream Functionality Help Monitor and Prevent Vehicle Problems Before They Get Serious.
– XTOOL InPlus IP508S features with Real-timedata function, which can be viewed as text or in graph form. This gives you a complete picture of the vehicle’s health and potential issues than what you’d get from a basic OBD2 code reader.
Live data plots for up to Eight Pids as a dynamic graph for more in-depth analysis, Include:
– Read and combine 8 separate data streams
– Graph 8 data streams
Live Data Record & Playback: Provides options to record and playback the live data stream to help you troubleshoot what’s going on with your vehicle.
Live Data Export to CSV File: Allows you to export the live data to csv file to look further into the live data in text.
These are the common parameters that you can monitor in real-time:
Engine Load as a percentage
Coolant Temperature
Engine Speed (RPM)
Fuel Consumption in real-time
Mass Air Flow
Oxygen Sensor and more
Full OBDII Functions
► Read Trouble Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
► Clear Trouble Codes: Turns off Check Engine Light (MIL), clears codes and resets monitors
► Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
► Read Freeze Frame: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
► Read ECU Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
► Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability
► On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
► O2 Sensor Monitoring Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
► I/M Readiness: Shows whether the various emissions-related systems on the vehicle
►EVAP System Test: Allow you to initiate a leak test for the vehicle’s EVAP system.
Free Update + :14 Languages Supported
Online free upgrade, IP508S maintains weekly model upgrades, XTOOL will continue to update for future updated vehicles, IP508S already supports vehicle diagnosis in most areas of the world, if there are unsupported vehicles, please provide VIN and vehicle model, Then keep it updated. We will add in every update
Language Support
English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Traditional Chinese
Support 80+ Car Brands
Inplus IP508S support more than 80 car brands to do diagnostic functions.
It can work for For ABARTH, For ACURA, For ROMEO, For ASTONMARTIN, For AUDI, For BMW, For MINI, For PROTON, For PORSCHE, For PERODUA, For BENZ, For SMART, For TRANSPORTER, For HONDA, For PEUGEOT, For DACIA, For DAIHATSU, For DAEWOO, For VW, For CVVW, For RENAULT, For RENAULTSAM, For HYUNDAI, For HYUNDAICV, For OPEL, For INFINITI, For LANDROVER, For FIAT, For BENTLEY, For LINCOLN, For BUICK, For SEAT, For DODGE, For BUGATTI, For NISSAN, For TOYOTA, For HUMMER, For HOLDEN, For JEEP, For JAGUAR, For CADILLAC, For CHRYSLER, For LAMBORGHINI, For LANCIA, For ROLLS, For LEXUS, For SUZUKI, For MAZDA For MASERATI, For MAYBACH, For AUSFORD, For EURFORD, For USAFORD, For KIA, For PONTIAC, For SAAB, For SCION, For MIT, For SSANGYONG, For SUBARU, For SKODA, For TLISUZU, For GM, For SATURN, For VOLVO, For VAUXHALL, For ISUZU, For CHEVROLET, For CITROEN, For FERRARI, For UAZ, For GAZ, For CHANGCHENG, For YQAUDI, For YQVW, For SHVW, For SQDTZY, For SQMG, For RONGWEI, For QIRUI, For JETOUR, For JIAO, For JILI, For HUACHEN, For JAC, For GMC, For BYD, For LIFAN.
Note:For the compatibility of each function is different, pls send us your car VIN to check the compatibility before place an order.
Report Print and Share
One-Click Updates with Wi-Fi & Lifetime Free Updates: XTOOL continuously updates the software and increases vehicle compatibility, allows you to update the software anytime when connected to Wi-Fi with free lifetime updates with just one click, never pay another penny to continue using it.
Report Sharing: Allows you to share your vehicle’s diagnostic report with your mechanic via email/BT for getting some advices before heading to the repair shop, saving you a trip to the repair shop.
Report Printing: It is useful for repair shop to show customers to explain the problem before and after the vehicle is fixed.
Remote Assistance: When you have problems that cannot be solved, you can exchange data logging or obtain remote assistance with the team of XTOOL elite engineers (Please let us know your concerns before remote assistance).

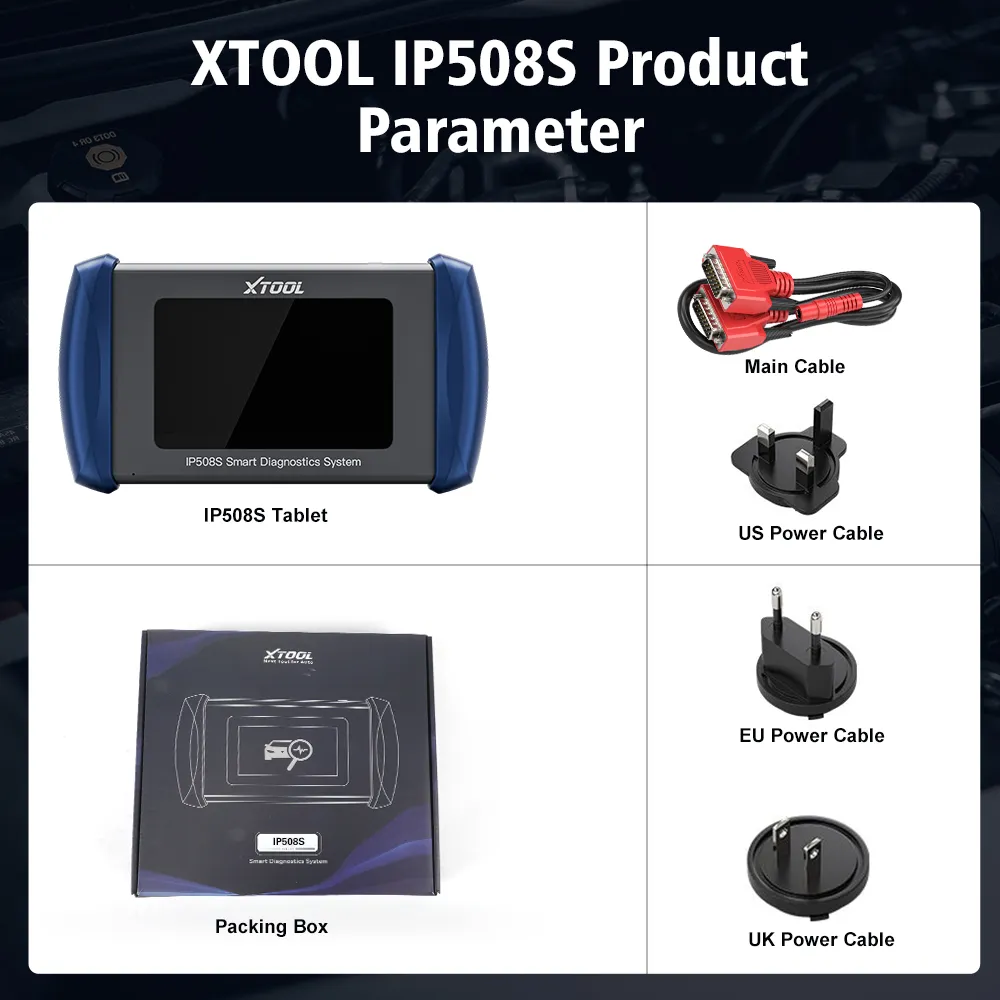

Package Including
Tablet Details
CPU :1.5 GHz Quad-Core
Screen: 5.0 inch touch screen display
32G On-Broad Memory: enough storage space to save massive diagnostic data for convenient historical data tracking.
2GB ROM :smooth operating system
Android:Android 10.0 latest android system
Battery: 3100mAh
FAQ
Q1: Failed to Generate Diagnostic Report
1. Currently only the following diagnostic functions trigger a diagnostic report: read ECU information, read code and clear code, live data, and freeze frame. Other functions such as immobilization and maintenance services will not generate a diagnostic report.
2. After entering the Diagnostic menu, you need to perform one specific function before the system can generate a Diagnostic report.
3. After the Diagnostic test is completed, you need to go back to the previous menu step by step to generate the Diagnosticreport successfully. If the APP is killed directly, the report cannot be triggered.
4. If the report still cannot be generated after troubleshooting according to the above prompts, please try to exit the APP, enter the system settings, and then choose to clear the APP cache, following the below path: Android System
Setting>>Apps>>Diagnosis>>Clear Cache
Q2: How to Print a Diagnostic Report
The XTOOL device is compatible with third-party print drivers. You can download the printer driver you need in the browser that comes with the tablet to install it, and then set your printer in the OS settings. After the configuration is completed, you can print Reports.
Q3: Failed to Extract Files
Since the XTOOL tablet is equipped with an Android system, you have to confirm the system type of receiver.
For Android: supports transferring files via Bluetooth, USB cable, etc.;
For IOS: only supports transferring files through a wired connection (Bluetooth connection is not available).
Q4: How to Make an Appointment for Remote Support
Please contact us or send an email to the technical support centre. (Email address: [email protected]).
Our technical support team will confirm the time of remote support with you.
Q5: How to Generate and Upload Diagnostic Log Files
The tablet will automatically generate and store diagnostic logs. When the device is connected to the Internet, it will automatically upload all the stored diagnostic logs to the backend system.
Q6: How to Switch Languages
1. Contact us and leave a message about the language you need and the S/N of your device. The technician will modify the language configuration for you in the backend system.
2. Settings->Language->Choose language
3. Back to Updates to update all the software again
Q7: Failed To Diagnose Vehicle
1. Contact your dealer to confirm whether the vehicle model is supported by the scan tool.
2. Check whether the vehicle is properly connected (e.g. whether the ignition is ON, and the Diagnostic of some vehiclesneed to turn on the engine), If your tablet is equipped with a VCI (Vehicle Communication Interface) box, please checkthe status of the VCI box indicator.
3. Confirm whether you have entered the correct Diagnostic menu.
4. Confirm whether the AUTO-SCAN function can assist you to enter the correct Diagnostic menu.
5. Check whether the software is the latest version. If not, please update to the latest version and retest.
Q8: Failed To Activate or Register
For ‘Activation Failed’
This error is generally caused by network instability. Please switch to a more stable network and try to activate it again.
For ‘Registration Failed’
Generally, this error is caused by a connection timeout. Please check whether you have blocked the outgoing network traffic to non-US regions like China. We recommend that you unblock and try to register again.
Q9: Failed To Turn on When Charging
In the charging state, you need to first press the power button to light up the screen (showing the charging status). Then press and hold the power button for 4-5 seconds until the boot animation is shown on the screen.
Q10: Failed To Open The Diagnostic APP
The tablet has to connect to the network every 30 days, otherwise, the Diagnostic app will be locked and disabled until the device is connected to the network. After connecting to the network, the APP will be available again. If the device is still unavailable, please contact XTOOL technical support team for help.
