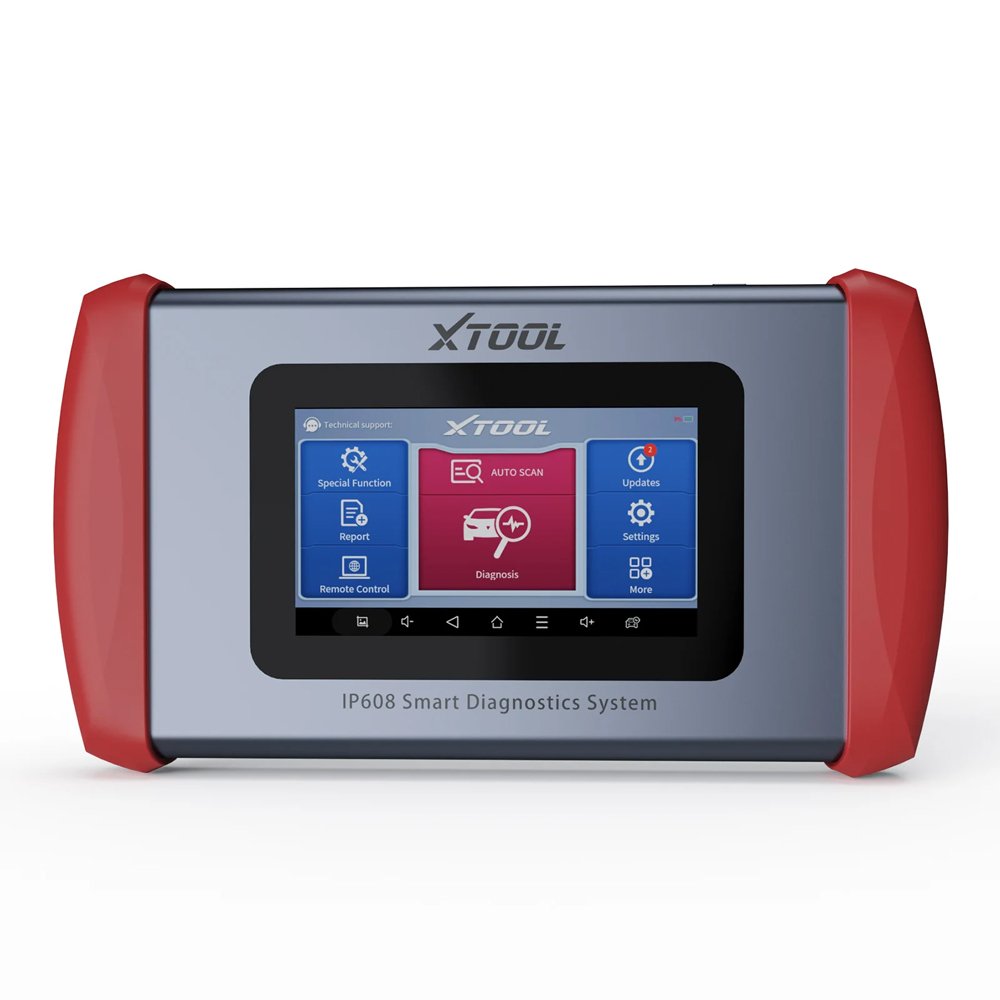

XTOOL Inplus IP608 Car Fault Detector OBD2 Scanner Full System Diagnostic Tool Support CAN FD 30+Services and Lifetime Free Update

XTOOL Inplus IP608 is an automotive smart diagnostic system designed for DIYers, mechanics, electricians, and car maintenance shops. It supports diagnostic for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. Some common special functions, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset are supported. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

XTOOL Inplus IP608 Features:

•All Systems Diagnose: OBD2 Automotive Scanner Quickly profile all available car modules, including ABS, SRS (airbag), engine, transmission, and other important modules equipped with the vehicle.

•Full OBDII Functions: InPlus IP608 will display and clear error codes in all available systems. You can read real-time sensor data to check the health and performance of various components.

•Support CAN FD Protocol: Equipped with latest hardware, IP608 all system scan tool is compatible with GM vehicles 2020+ that uses CAN FD protocol for communication.

•30+ Reset Functions: Like ABS Bleeding, Injector Coding, Oil Reset, EPB Reset, Gearbox Match, Instrument Cluster, Airbag Repair, A/F Settings, TPMS Reset, DPF and etc…

•8 In 1 Live Data Graph: Graphs 8 parameters on screen, Display Real-Time Data Streams as Text or Graphs.

•Auto Vin + Auto Scan: InPlus IP608 Automotive Test Tools with the latest VIN auto scan function, which can identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system.

•15 Kinds of Language: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Turkish and traditional Chinese.please come to us with S/N and we will authorize the second language for you.

•Lifetime Free Update: you will get all supported car makes after the update without charge and no need to pay for one car brand.

•More than 85 brands, 10000 Cars: InPlus IP608 car code reader has wider coverage of more than 85 brands, 10000 cars makes from worldwide cars, suvs, light trucks and 12V diesels equipped with Obd2.

All Systems Diagnostics

XTOOL InPlus IP608 OBD2 scan tool can access and scan all available car modules to perform diagnostics including reading, clear codes, view live data & graphing, view freeze frame, and ECU information.

Read generic codes, manufacturer-specific codes
Read pending codes, permanent codes
Check cylinder misfire
Locate bad O2 sensors
Check transmission oil temperature
Check abs wheel speed sensor data
Check throttle position, O2 senor data, Long/Short Term Fuel Trim, Mass Air Flow, Intake Air Temp, Fuel Rail Pressure, Engine RPM, Idle Speed, Coolant Temp, Transmission Oil Temp, TPS Position, Tire Pressure & Temp, Cylinder Balance Rates,
Turn off Check Engine Light, ABS warning light, Airbag warning light, tpms warning light, suspension light and etc
Four Ways of Navigation: Use the AUTO SCAN to detect your vehicle automatically. Try “Automatic Detection”, Manual INPUT, and “Manual Selection” if AUTO SCAN doesn’t work on your vehicle.

Notice : NOT Bi-directional

30 Most Used Hot Functions

XTOOL InPlus IP608 auto scanner comes with 30 most frequently used service functions to help maintain family cars, that of your friends, vehicles in the neighborhood for part-time mechanic who may want to make a few bucks in the weekend.

Oil Reset: Perform reset for a new countdown of engine oil life system once changed the oil.
EPB Reset: Reset brake pads to maintain the electronic braking system safely and effectively.
SAS Calibration: Erase the fault steering angle sensor memories and make calibration for the Steering Angle Sensor.
D*P*F Regeneration: Clear the blockage via the continuous burning of the particulate matter captured in the D*P*F filter.
BMS Reset: Register the newly replaced car battery into the ECU.
Throttle Relearn: Relearn the electronic throttle body when it’s cleaned, replaced.
ABS Bleed: Bleed the air out of the ABS system to get firm brake pedals and safe driving.
Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.
TPMS Reset: Perform tpms relearn/reset after switching winter/summer tires, tire pressure change. NOTE: TPMS activation/programming is not supported.

Newly Added Functions:
Gearbox Match, VGT Relearn, Control Unit Reset, A/C Relearn, Write VIN, Suspension, Headlight, Seat Match , Tire Upgrade, Airbag Reset, Windows Initialization, Electronic Pump Activation, A/F Reset, Start/Stop Reset, Language Change, Transport Mode, etc.

NOTE: Not all functions are compatible. Please send VIN and required functions to us to check compatibility.

XTOOL has always been trying to develop user-friendly features that can make the products easy to use and make diagnosis more intuitive.

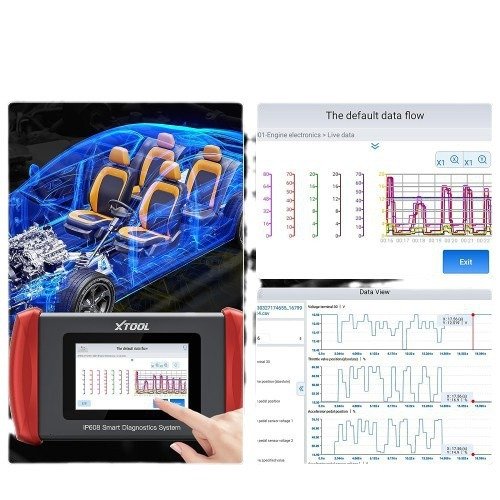

Unique 8-In-1 Graphing, Data Viewing & Data Export as CSV

InPlus IP608 auto diagnostic scanner comes with powerful 8-in-1 live data graphing and unique export live data as CSV file & data view feature, provides car repair diyers, home mechanics, weekend mechanic, retired auto technicians, professional level live data processing, viewing, storage experience that you can previously only found on advanced automotive scan tools.

Full OBD2 Tests

As an obd2 car diagnostic tool, XTOOL IP608 scanner can perform comprehensive obdii tests to check whether the engine is running in desired condition or not.

Read/Clear Codes: Access powertrain module to read and clear fault codes to reset monitors and turn off check engine light (MIL).
Live Data: Check live sensor parameters like engine rpm, throttle position, open/closed loop status, long/short term fuel trim, mass air flow, intake air temp, o2 sensor datas, etc.
Readiness Status: Check various monitors’ status and see if the vehicle is ready for inspection.
Freeze Frame: Help analyze why a fault code is recorded and shorten diagnosis time.
On-Board Monitor Test: Check misfire counters.
Component Test: To perform EVAP leakage test.
O2 Monitor Test: Check o2 sensor data.
Vehicle Information: Check vehicle information like VIN #，model, year,　etc.

CAN FD & Wide Vehicle Coverage

XTOOL InPlus IP608 car diagnostic scanner supports CAN FD protocol vehicles (for GM 2020+) and works on most of the OBDII compliant vehicles on the road.

This auto scan tool works on:

OBDII compliant vehicles for obd2 tests;
Most 12V cars, light duty trucks, SUVs, mini vans, hybrids, on the road to perform all systems diagnosis;
Fits for GM vehicles post 2020 for all systems diagnosis;
NOTE: Service functions are vehicle specific. Please come with VIN # to check compatibility prior to purchase.

NOTE: Can not work with 24V heavy duty trucks or commercial trucks. And not all models of the brands above are compatible. Check compatibility　if you need comfirmation.

Vehicle Coverage:

Product Specifications:

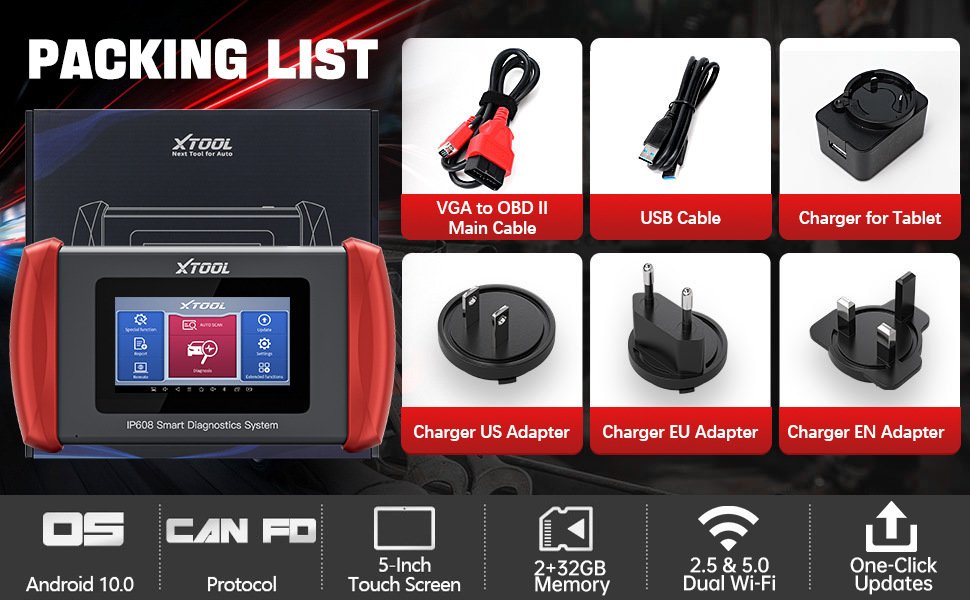

Package Includes:
