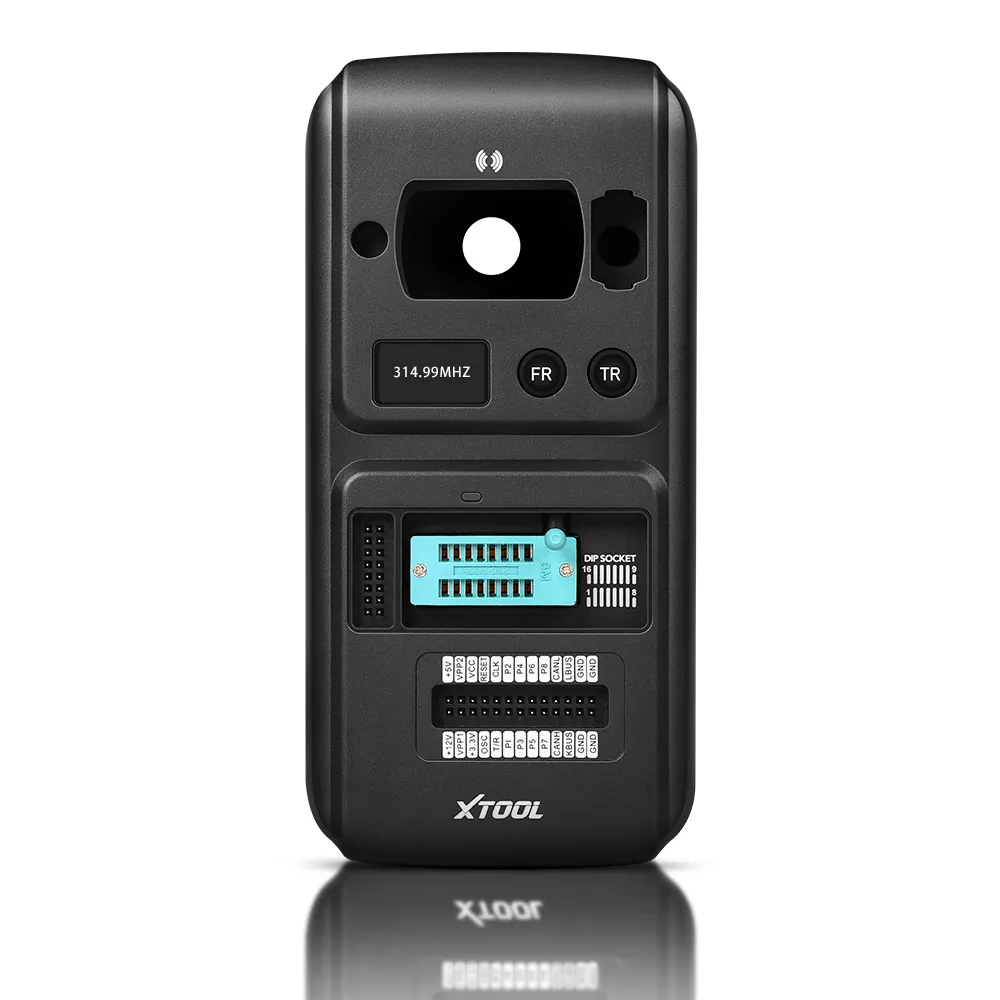

Xtool KC501 Car Key Programmer Work with Xtool X100 PAD3

KC501 can read and write Mercedes Infrared Keys, is a perfect key programmer for Mercedes Car Owner.

	XTOOL KC501	XTOOL KC100
Pic
Release Time	2020	2017
Applicable key programmer	Xtool X100 PAD3(X100 Elite), H6, H6 Pro, i80, Auto pro pad	X100 PAD3, X100 PAD2,EZ500, PS80, PS90, A80 etc
Generate dealer keys	Yes, when working with Xtool X100 PAD3	No
Read and write Mercedes Infrared keys	Yes	No
Detect key ID	Yes	No
Detect key frequency	Yes	No
Connect to PC (stand-alone)	Yes. Download PC software on official site.	No
Volkswagen/Audi/Skoda 4th key programming	Yes	Yes
Volkswagen/Audi/Skoda 5th key programming	Yes	Yes
MQB key programming	Yes	Yes
Volkswagen/Audi/Skoda 4th generation 96-bit online	Yes	Yes
Volkswagen/Audi/Skoda 5th IMMO generation online	Yes	Yes
MQB online key programming	Yes	Yes
BMW CAS1-CAS3++ key programming	Yes	Yes
BMW EWS2 EWS3 EWS4 key programming	Yes	Yes
Land Rover after 2015 year smart key write start key	Yes	Yes
Fiat Viaggio, 500, Palio and other models IMMO key programming	Yes	Yes
Toyota/Lexus all smart keys lost key programming without dismantling, including 94, 98, 88, A8, A9, 39 simulation key generation.	Yes, work with KS-1 Smart Key Emulator	Yes, work with KS-1 Smart Key Emulator

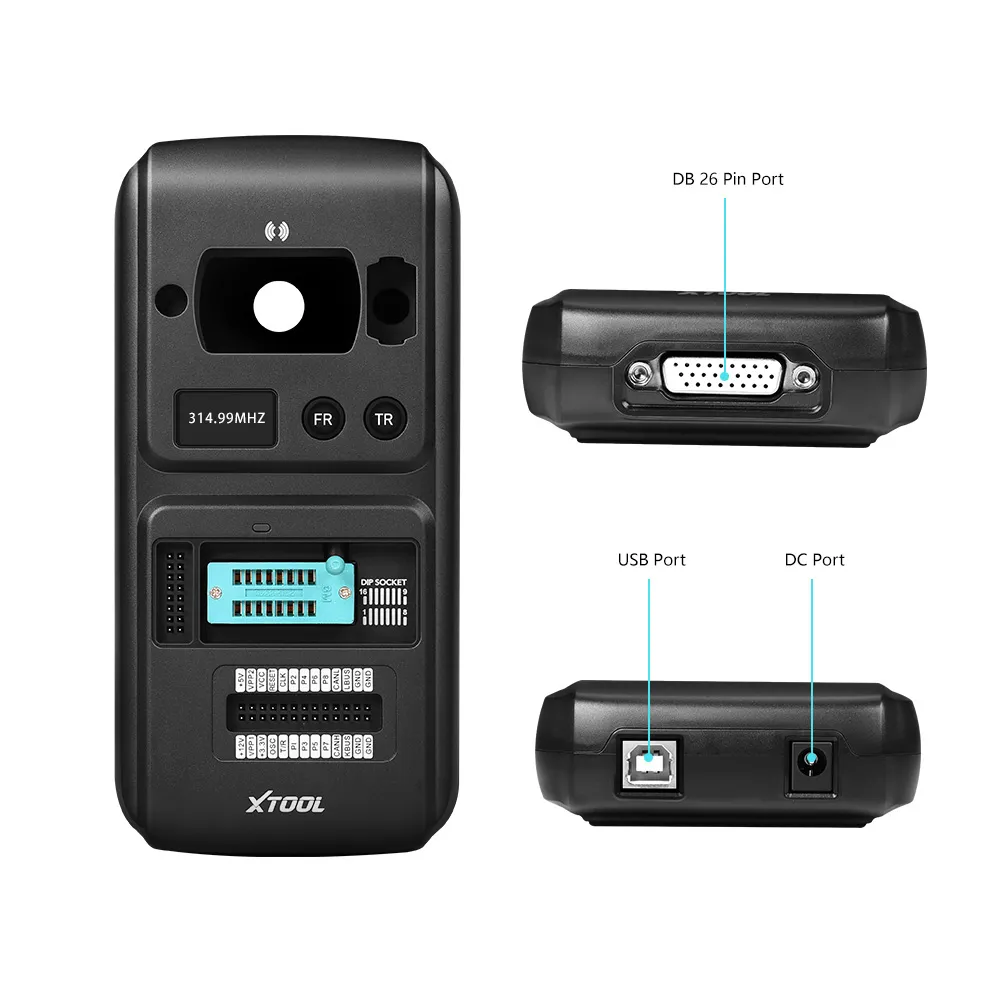

1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)
3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area (It is used to read and write IC card data.)
9. Display Screen (It is used to show remote frequency or transponder ID.)
10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)
11. Transponder ID Button (Press this button to show transponder ID in the display screen.)
12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)
15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)
XTOOL KC501 Latest Update Information:
Add Infrared Key Function List (July 30th, 2020)
Model Years
A Series 2005-2013
B Series 2005-2014
C/CLK Series 2006-2014
CLA Series 2013-2016
CL Series 2006-2013
CLS Series 2006-2013
E Series 2005-2015
G Series 2015
GL/CLG Series 2006-2014
GLC/GLK Series 2008-2015
M/ML Series 2006-2013
R Series 2006-2017
S Series 2006-2017
SLK/SLC Series 2006-2016
