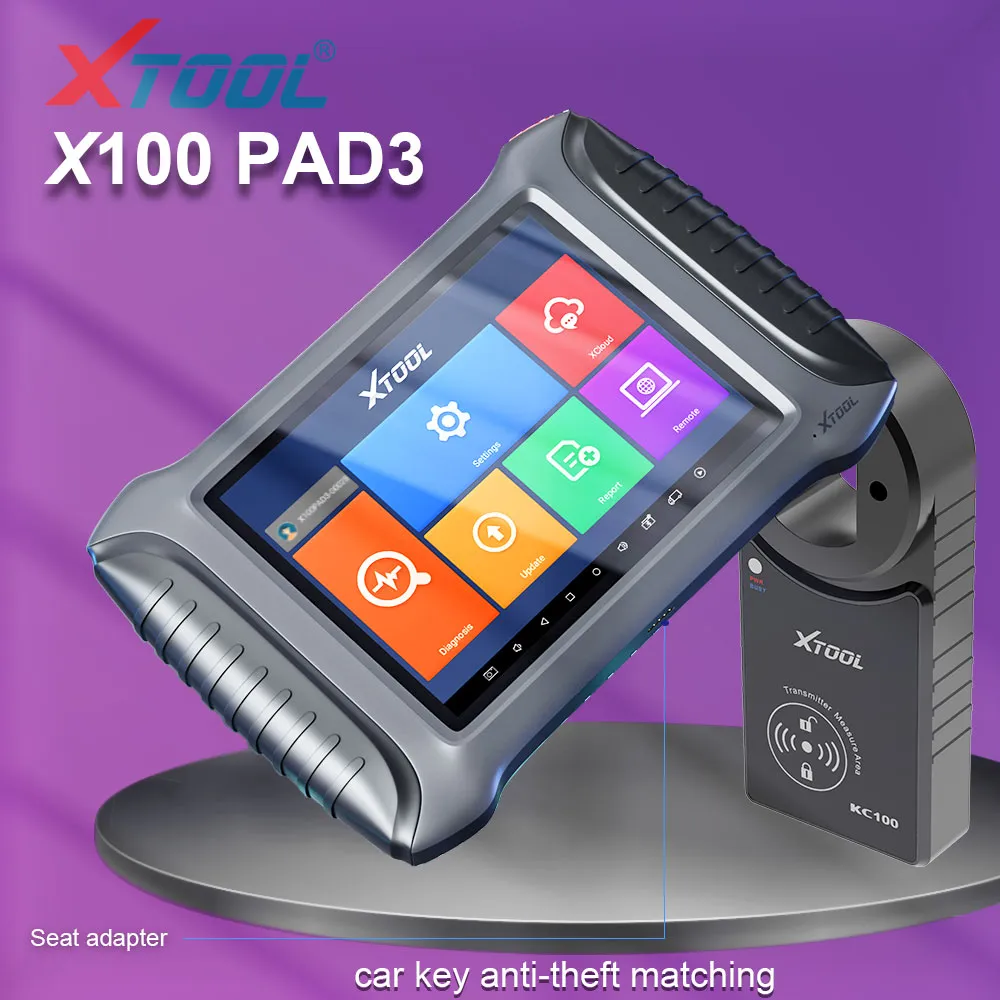

XTOOL X100 PAD3 X100 PADIII Professional Tablet Key Programmer With KC100 Global Version

XTOOL X100 PAD3 X100 PAD Elite Professional Tablet Key Programmer With KC100 Global Version

XTOOL X100 PAD3 which is also called X100 PAD Elite, is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions including Key programming, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis, etc.

Highlights of Xtool X100 PAD3:
1. Support key mismatch after loss
2. Work on VW 4/5th anti theft
3. Support Toyota/Lexus All Lost No Need Disassembly with KS-1 Smart Key Simulator
4. Support key increase matched
5. Multi-Language:English, Spanish, French, Turkish, Indonesian, Thai and Portuguese
6. One-Click Free Update Online for Two Years
7. Support 16 Special Functions
8. Update Version of X100 Pad2 PRO (Xtool X100 PAD3 and PAD2 Pro Comparison Table)

XTOOL X100 PAD3 Functions:

*Key programming (immobilization)
*Odometer Adjustment
*Common OBDII Diagnosis
*Special Service Functions
* PIN Code reading with EEPROM

Immobilization Functions:

XTool X100 PAD3 Key Programming Vehicle Coverage:
Asia: for Toyota,for Lexus, for Honda, forAcura,for Mazda,forNissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: for Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America: for GM,for Cadillac, for Buick, for Chrysler, forFord etc
China: for Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD,for BYD , for JAC, etc.
With KC100
Support for Volkswagen for Audi for Skoda 4th generation, 5th generation, MQB key matching
Support for Volkswagen for Audi for Skoda 4-generation 96-bit online, 5-generation online, MQB online key matching
Support for BMW CAS1-CAS3 + key matching
Support for Land Rover’s smart key write start function after 2015
Support for Fiat, for Fischer, 500, for Palio and other models
Support for Toyota for Lexus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation
With KS-1 Key Smart Card

Support Toyota/Lexus All Key Lost

Odometer Adjustment:
for VW /for AUDI/for SEAT/for SKODA, for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, forFORD, for MAZDA, forNISSAN, for SUZUKI, for KIA, for HYUNDAI, for JAGUAR, for LAND ROVER, for PORSCHE and more…

OBD2 Diagnostic Functions:

XTool X100 Pad3 Vehicle Diagnosis Connection:

a. Turn on X100 PAD3 tablet
b. Connect cables and X100PAD3 in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD3 application to test vehicles. (Shown as
follows)

① X100PAD3 Tablet
② Main cable
③ OBDII-16 Adapter (Select other adapters if needed)
④ Measured vehicle

Special Functions:

Oil Reset Functions Feature:

Innovative one-click oil reset for for VW, for Audi, for BMW, for Mercedes for Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01 / F02 / F03 / F04 / F07 / F10 / F11 / F12 / F13 / F18 / F20 / F30 , etc.
Support for Mercedes for Benz new C Class, E Class models and for Mercedes Benz VITO/for VIANO/for SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.
Support for Porsche Cayenne, for Panamera till 2012
Support for maintenance light reset for Volvo, for Land Rover.

Oil Service Light Reset Coverage:
America: for Buick, for Cadillac,for Chevrolet, for Chrysler, for Chevrolet/forG MC, forFord/for Mercury/for Lincoln, for Oldsmobile, for Pontiac, for Saturn, forGM, for Jeep and more…
European: for VW, for Audi, for Porsche, for BMW, for Mercedes-Benz, for Volvo,for Land Rover, for Peugeot, for Citroen, for SAAB, for Seat, for Skoda and more…
Asia:for Toyota/for Lexus, forNissan/for Infiniti,for Honda, forAcura,for Isuzu, for Chery, forFord Transit, for Roewe, for MG and more…

EPB Electrical Parking Brake Adaptation:
for VW ( R36, CC, Magotan etc.), for Audi ( A4L, A6L, Q5 etc.), for Seat, for Skoda and more…
Tire Pressure Warning Light Reset (Manual Operation):
for Mercedes-Benz, forGM,for VW, for BMW, for Toyota and more…
Timing Belt Light Reset (Manual Operation)

XTOOL X100 Pad3 vs X100 Pad2:

Item	Xtool X100 PAD3	Xtool X100 PAD2 Pro
Brand	Xtool	Xtool
Release year	2020	2016
Hardware	Operating system: Android Processor: quad core processor1.8GHzMemory:2G RAM, 64G ROMDisplay / touch screen:1024•768resolution,8 inch LED Compatible touch screen Camera: rear camera, 8 million pixels,with flash autofocus. Sensor: gravity sensor Audio input / output: microphone, 4 band 3.5 millimeter stereo. Interface:USB3.0, DC charging port, MINI HDMI, DB15 interface.Battery: 10000mAh3.7V lithium polymer battery Input voltage: +9~+36VDC, compatiblewith 12V and 24V voltage system	Wi-Fi: WIFI 2.4Ghz Memory: 2GB RAM, 32GB FlashSensors: Gravity Sensor, Light Sensor Power Consumption: 29.6W CPU: Quad Core,1.6 GHzOperating System: Android 4.4.4 Bluetooth: 100 Meters Display: 8.0 Inch IPS 5-Point Multi-touch Screen with1024×600PResolutionBattery: 4000mAh, 7.4V Dimension: (L*W*H): 240*177*30mm Power Voltage: 12V
UI	Much more clearer (the car brand logo is blue and the background is white)	The car logo is white and the background is black.
Communication	USB 3.0, WIFI 2.4Ghz	USB,WIFI 2.4Ghz
Immobilization	Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc America: GM, Cadillac, Buick, Chrysler, Ford etc China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.	America:Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford Asia:Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi,Nissan, Ssangyong, Subaru, Suzuki, Toyota China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery Europe:Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot,Porsche, Renault, Romeo, Seat, Skoda, Smart, VW
VAG 4th 5th IMMO	yes, when working together with KC100 adapter that comes in the package.	yes, when working together with KC100 adapter that comes in the package.
Toyota Smart Key All Keys Lost	Yes, when working together with theKS-1 emulator(need to buy additionally)	Yes, when working together with theKS-1 emulator(need to buy additionally)
Odometer adjustment	VW / Audi/ Seat/ Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…	VW /Audi/Eat/Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…
Common diagnosis	Yes, canaccess to all system of all car modelsfrom Europe, Asia, America	Yes,can access to all system of all car modelsfrom Europe, Asia, America
Full-functional diagnosis	Yes. I.e VW diagnosis:basic OBDdiagnosis + coding + adaptation	No. i.e VW diagnosis: basic OBD diagnosis, no coding, no adaptation
Special Service	Service/Maintenance Light Steering angle sensor adjustmentWindow initializationThrottle relearn DPF BMS resetSeat matchEPB (Electric Parking brake)CylinderAirbag repair Air suspensionInjector codingEeprom adapter Headlight Tyre pressure resetGearbox Match	EEPROM adapter BMS reset Electric parking brake Steering angle sensor adjustment DPF Service / Maintenance light Air Suspension Headlight Tyre pressure reset Throttle relearn.
Update	X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE	One-click update via WIFI.
Language	Persian, Arabic, Indonesian, Greek	English, Spanish, French, Turkish, Indonesian, Thai, Portuguese
Package	Main Units: Mini B to USB 3.0 Type C Cable X100 PAD3 Cable KC100 EEPROM 2 AdapterCharger For tabletCharger US AdapterCharger EU AdapterTest Connectors: OBDII-16 HONDA-3 MAZADA-17R KIA20 HYUNDAI/KIA-10 DB15 Main CableUSB3.0 Main Cable (1m)Accessories: Certificate of quality Packing List User Manual Tool Case Carton	Main Units: X-100 PAD2 USBTYPE-C and Mini_USB shift cable Charger for Tablet US Power Adapter KC100 EEPROM adapter EU Power AdapterTest Connectors: HYUNDAI/KIA-10 KIA-20 HONDA-3 DB15Male To VGA_Male USBTYPE-C OBD II-16 MAZDA-17RAccessories: Carton Packing List User Manual Certificate of Quality

Xtool X100 PAD3 Display:

Xtool X100 PAD3 Specifications:

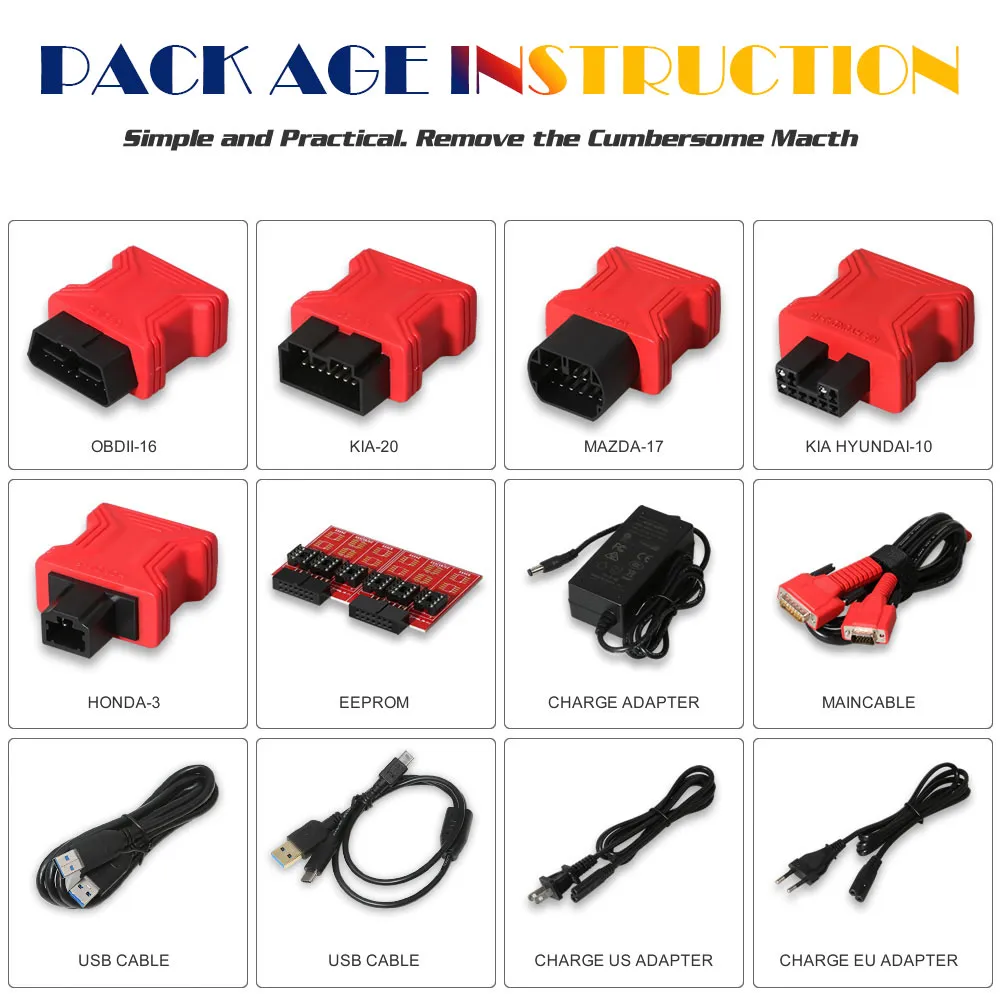

XTOOL X100 Pad 3 Package List:
Main Units:
Mini B to USB 3.0 Type C Cable,X100 PAD3Tablet,KC100,EEPROM 2 Adapter, Charger For tablet, Charger US Adapter, Charger EU Adapter
Test Connectors:
OBDII-16, HONDA-3,MAZADA-17,KIA20,HYUNDAI/KIA-10, DB15 Main Cable, USB3.0 Main Cable (1m)
Accessories:
Certificate of quality,Packling List,User Manual,Tool Case,Carton

Packing List:
