Yanhua ACDP Module22 GM6T/6L Gearbox Clone for GM TCU Transsion Clone with License A400 No Need Soldering

Yanhua ACDP Module 22 for GM 6T/6L Gearbox Clone
Suppported Model:
1. Support GM 6T30/6T35/6T40/6T45/6T50 gearbox clone
2. Support GM 6T70/6T75/6T80 gearbox clone
3. Support GM 6L45/6L50/6L80/6L90 gearbox clone
Features:
1. Using special interface board to replace the wiring, to avoid wrong connection
2. Simple and efficient, plug and play, safe and reliable
Functions:
1. Identify
2. Full Backup Data
3.Full Write Data
4.Read/WriteINT FLASH
5.Read/WriteINT EEPROM
6.Special functions: Modify VIN, Modify programming date, modify final part number, Modify broadcast code B5
APP Operation Interface:

Overall Connection Diagram:

How to Clone GM 6T/6L Gearbox with Yanhua ACDP and Module 22?
Run ACDP mini app, selectGM–Gearbox Clone
Select specific gearbox type.If you don’t know the wiring diagram,Please click “Help” to check.

Note:Please Ensure the backup(old) gearbox model is same as the donor’s,otherwise it may cause risk of death by different hardware structures.
After set up connection, full backup data before operation.Read and save original data and then Write to new gearbox module.

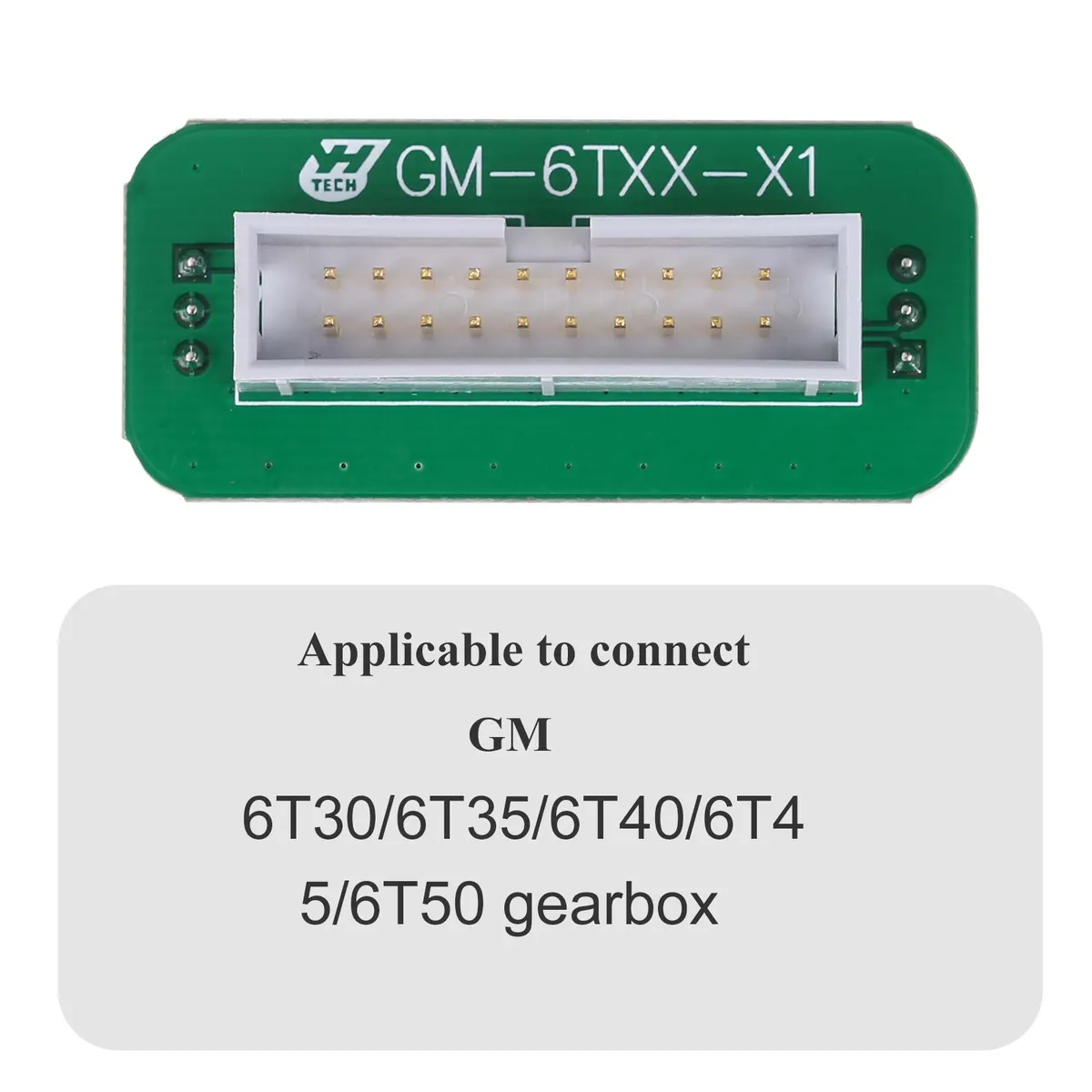

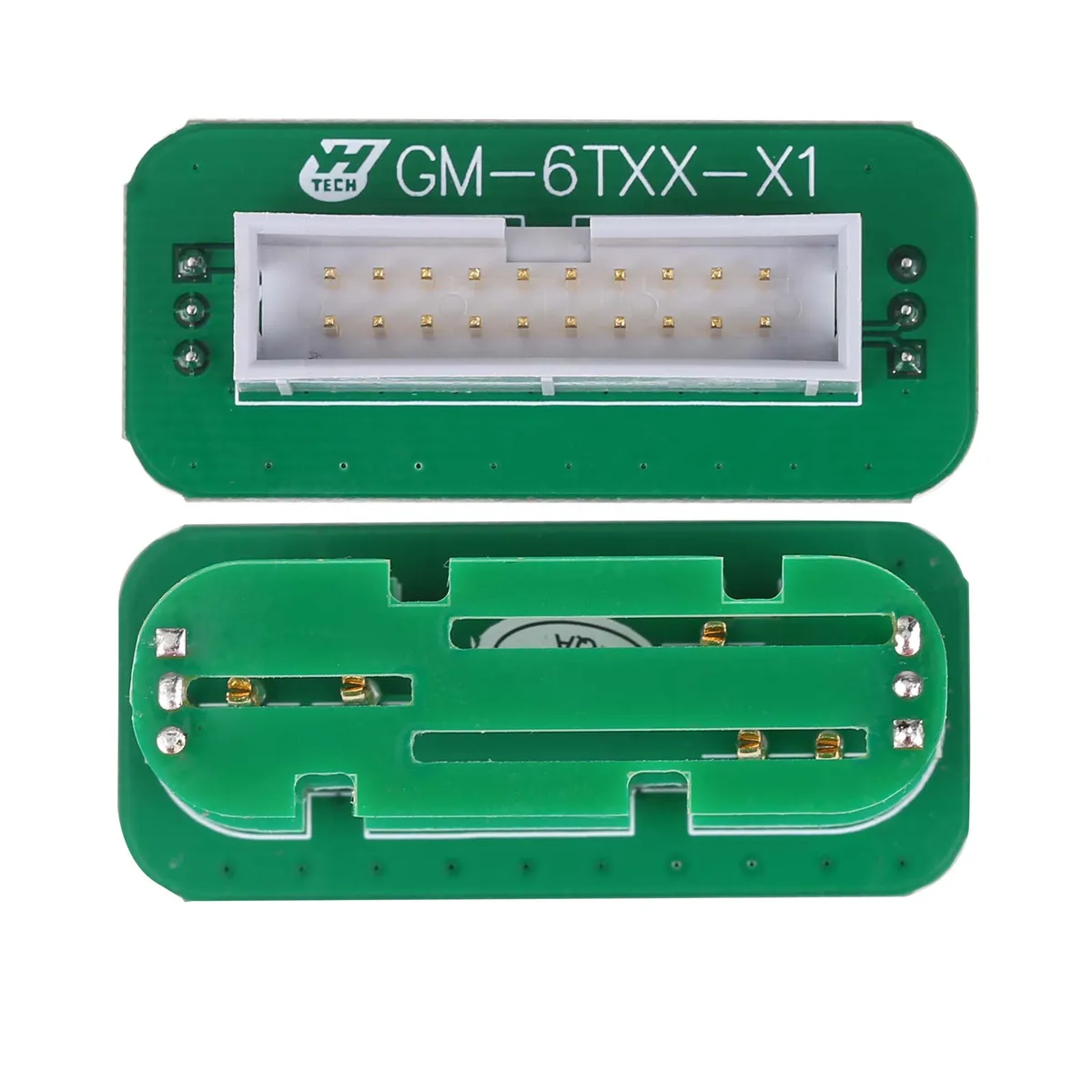

6T30, 6T35, 6T40, 6T45 and 6T50use the GT-6TXX-X1 interface board:

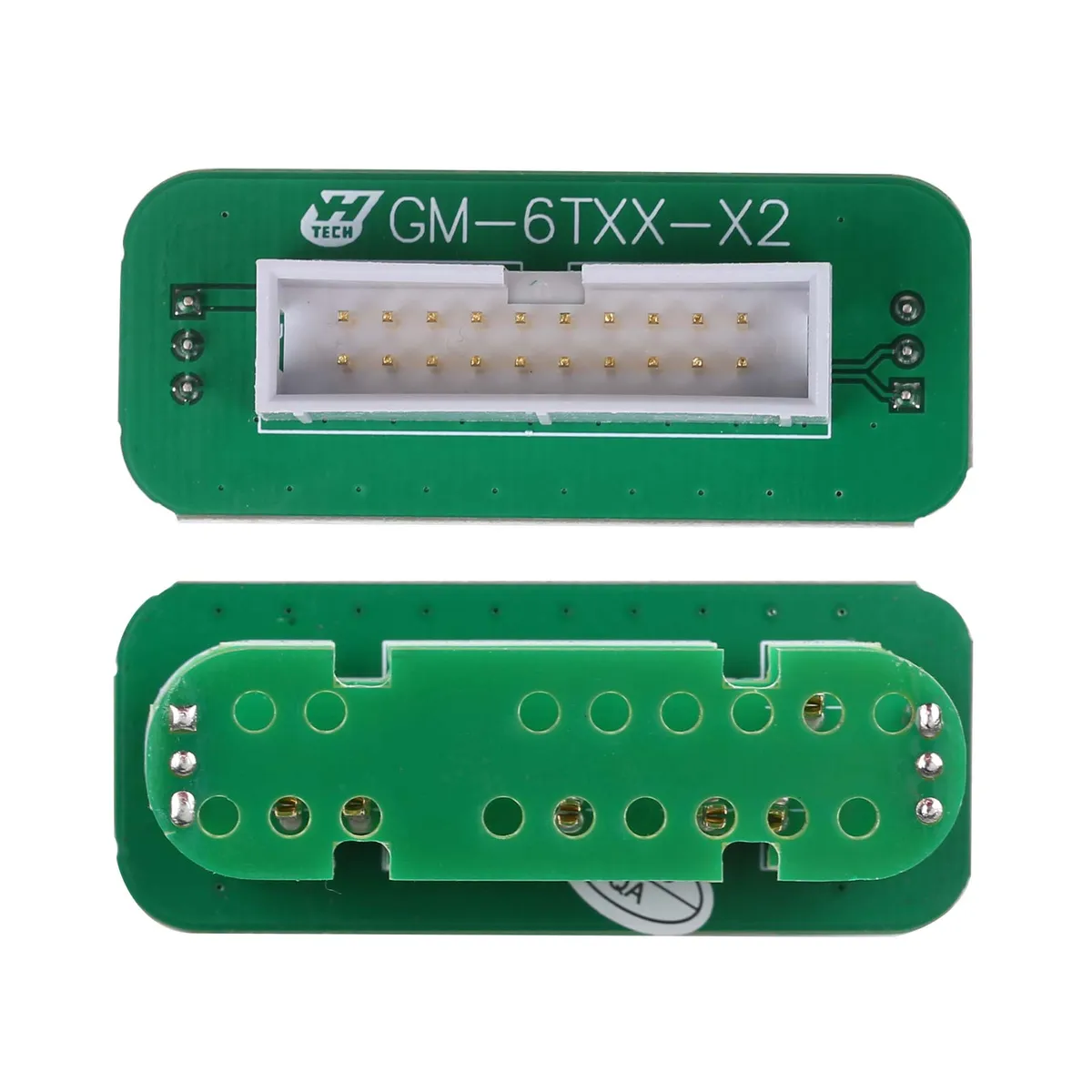

6T70/6T75/6T80Use 6TXX-X2 interface board:

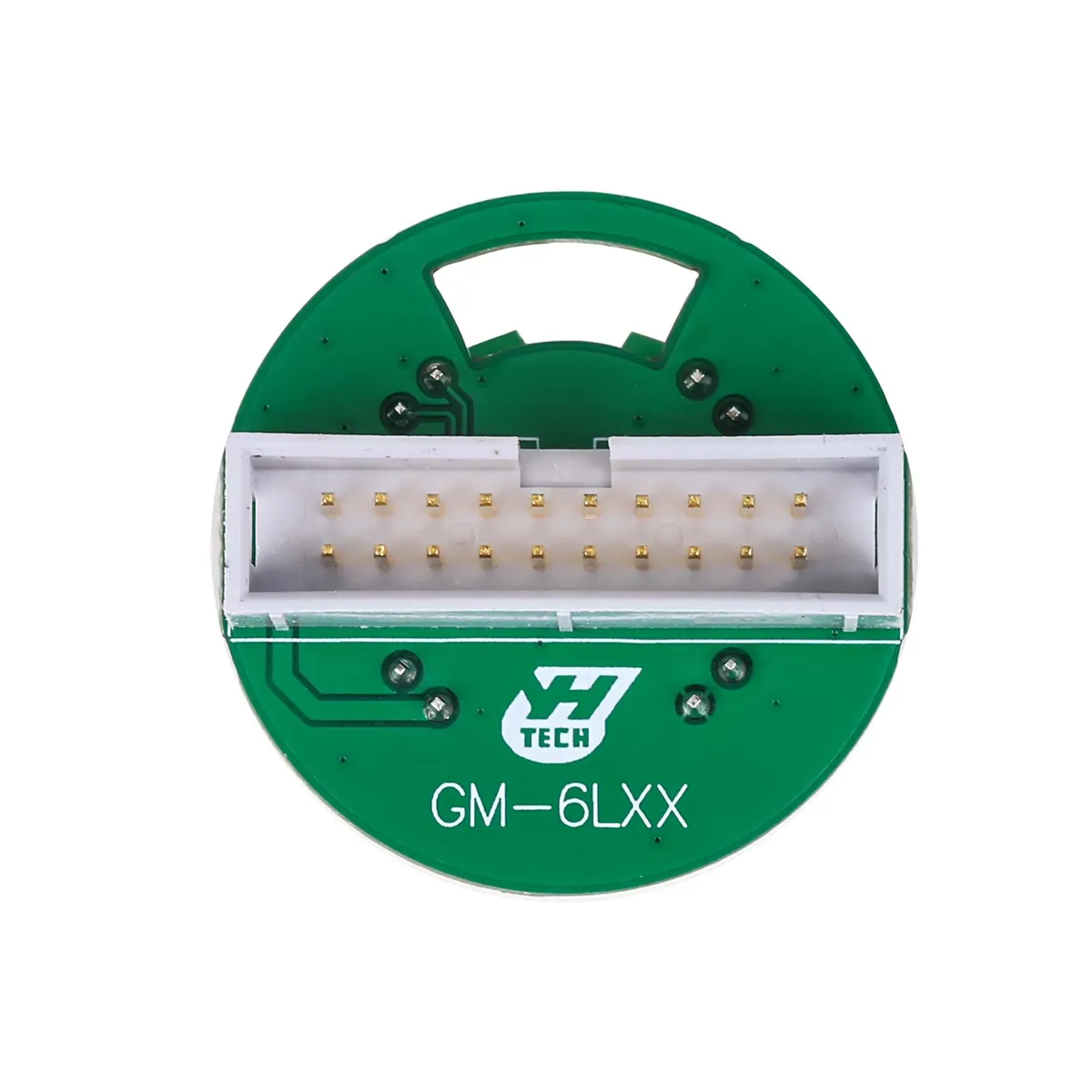

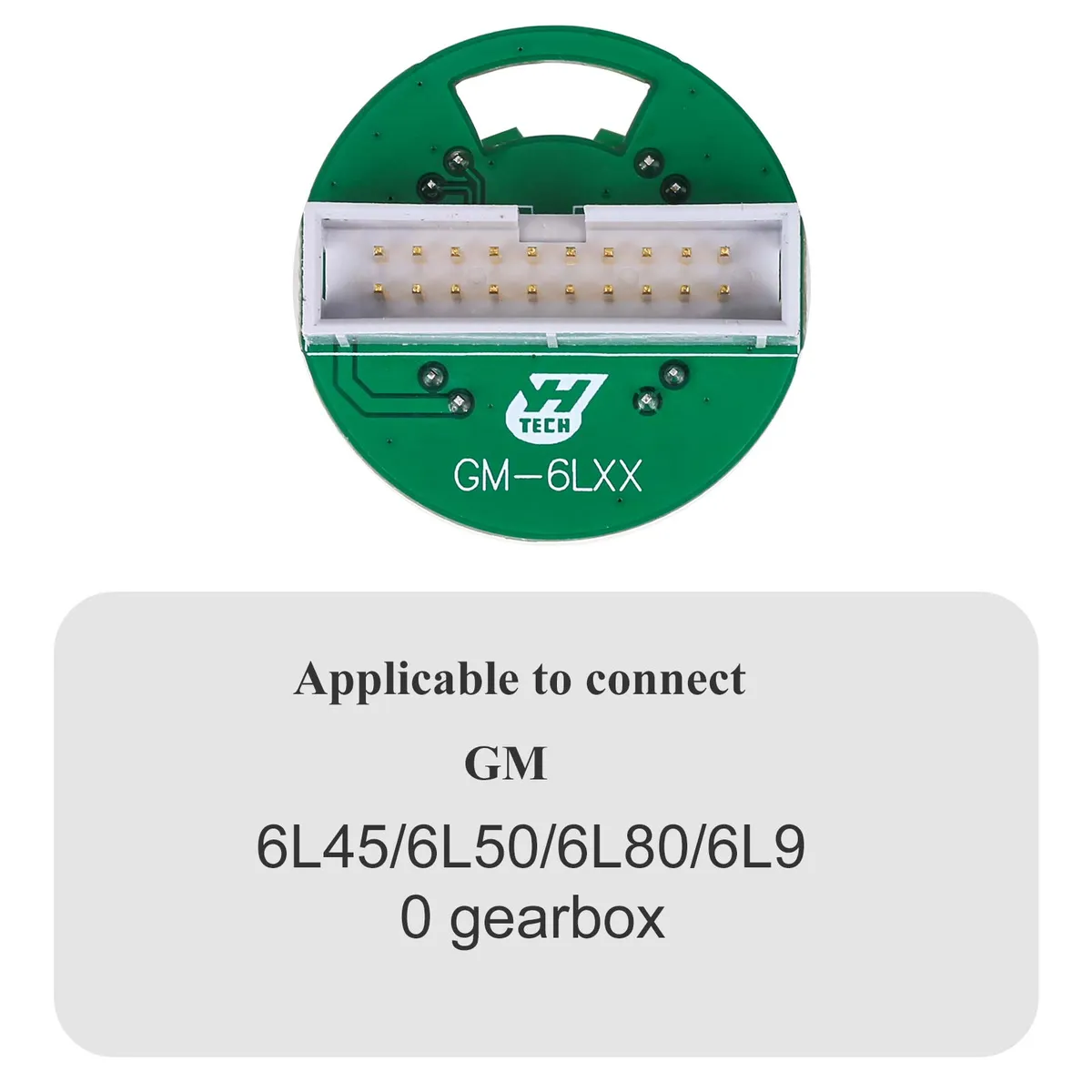

6L45/6L50/6L80/6L90 Use theGM 6LXX interface board:

Yanhua ACDP Module 22 Package List:
