Equals SK247 + SK247-1 + SK247-2 + SK247-3 + SK247-4 + SK247-5 + SK247-6 + SK247-7 + SK247-8 + SK247-9 + SK247-10 + SK247-11 + SK247-12
Support CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+/FEM/BDC Key Programming,newly Add CAS4/CAS4+ OBD Function
Read & Write BMW DME ISN Code by OBD
Read & Write BMW 35080, 35160DO WT
Read & Write Fujitsu CPU MB91F
MQB/MMC Instrument
Refresh BMW Keys
BMW FRM Programming
Land Rover Key Programming
Porsche BCM Key Programming Support Add Key & All Key Lost from 2010-2018
Clear EGS ISN on both 6HP & 8HP
Volvo Key Programming
No Need Soldering
All functions included, no need to pay more!
Yanhua Mini ACDP Programming Master Full Configuration
Yanhua Mini ACDP Key Programming Master full configuration includes eeprom function, CAS1-CAS4/FEM/BDC key programming, odometer reset, DME ISN reading& writing, eeprom 35080/35160DO WT reading/writing, Fujitsu CPU MB91F functions,MQB/MMC Instrument, Refresh BMW Keys, BMW FRM Programming and Land Rover Key Programming,Porsche BCM key programming, Clear EGS ISN on both 6HP & 8HP and Volvo Key Programming.
Yanhua Mini ACDP Highlights:
Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering
Yanhua Mini ACDP IMMO/Mileage Programming
No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin
Operating System:
IOS: iPhone/iPad/MAC
IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G
Android: Xiaomi, OPPO,Samsung etc Qualcomm chipset mobile phones (DOESN’T support Huawei)
Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G
PC Version:
PC Software Free Download
Yanhua Mini ACDP IOS App Installation Instruction
Yanhua Mini ACDP Android App Installation Instruction
Yanhua Mini ACDP IOS Version Import Data to PC Instruction
Yanhua Mini ACDP Android Version Import Data to PC Instruction
ICP: Memory and MCU programming In Circuits
MCU programming in Circuits
Yanhua Mini ACDP Functions
1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit(ICP)and on board(OBP)programming and partsof Freescale/ NEC MCU in circuit programming(ICP).
2. BMW module programming:
(1) Support cas1-cas4+and FEM/BDC IMMO keyprogramming, mileage reset, program recovery.
(2)BMW engine ECU data reading and ISN code reading
3. VW module programming. MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance isunder development.
5. BENZ. BMW Audi and various models are upgradedsuccessively
Module1 BMW CAS1-CAS3+Key Programming via OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost
Module1 BMW CAS4/CAS4+
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding
Module2 BMW FEM/BDC
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding
With this authorization, you can change VIN in FEM/BDC
Module3 Read and Write ISN Code
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….
Module4 BMW 35080, 35160DO WT Read & Write
Read and write BMW M35080, 35160DO WT etc EEPROM, erase 080DOWQ, 080DOWT, 160DOWQ, 160DOWT, M35128 models.
Module5 Fujitsu CPU MB91FXX Read & Write
Supports Honda FIT, Vezel, Fifth generation Hyundai Sonata, Kia K3/K5 etc Fujitsu CPU MB91F series read & write function.
Module6 MQB/MMC InstrumentModule
Support parts of VDO mileage adjustment of VW MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
Module7 Refresh BMW KeysModule
Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.
Module8 BMW FRM FRM Footwell Module
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.
Module 9 Land Rover Key Programming Support KVM from 2014-2018 Add Key & All Key Lost
This is Module9 Land Rover for Yanhua Mini ACDP, authorizations with adapters.Support KVM from 2014-2018, work on both add key and all key lost.
Module10 Porche Key Programming from 2010-2018 Add Key & All Key Lost
Module11 Clear EGS ISN Support both 6HP & 8HP
For connecting BMW 6HP/8HP gearbox
EGS State
Clear ISN
Reset Adaptation
Backup Coding
Recover Coding
Module12 Volvo Key Programming
Support Volvo List:
S60 (2010-2018)
S80 (2009-2016)
XC60 (2009-2018)
V60 (2011-2017)
V70 (2009-2016)
XC70 (2010-2016)

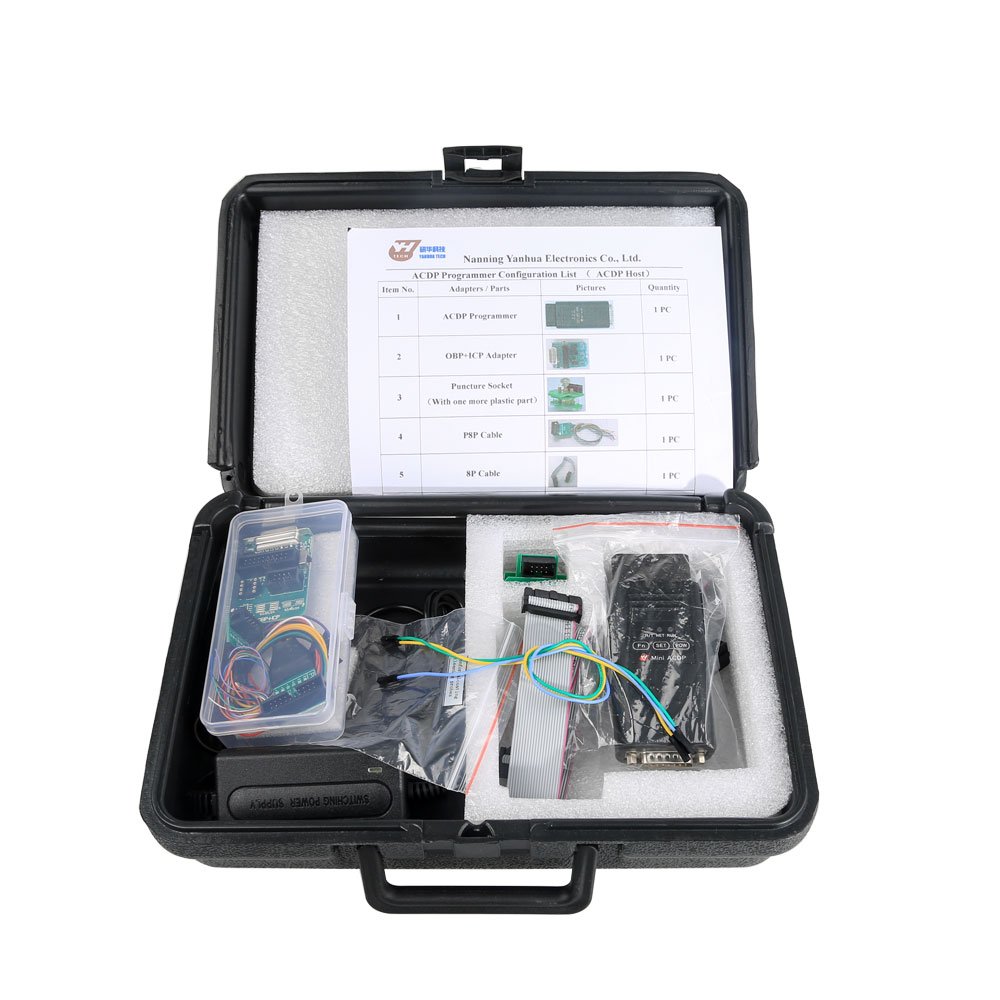

Yanhua Mini ACDP Master Basic Configuration Package List:

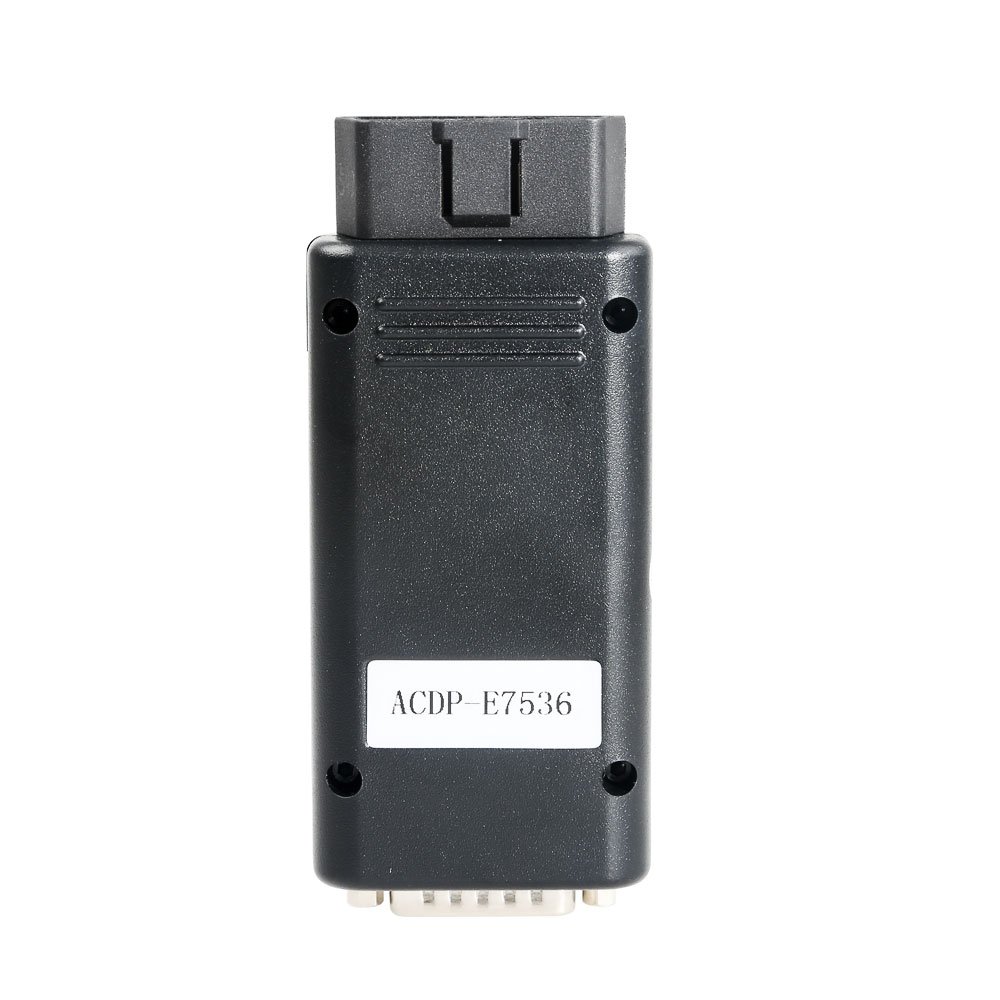

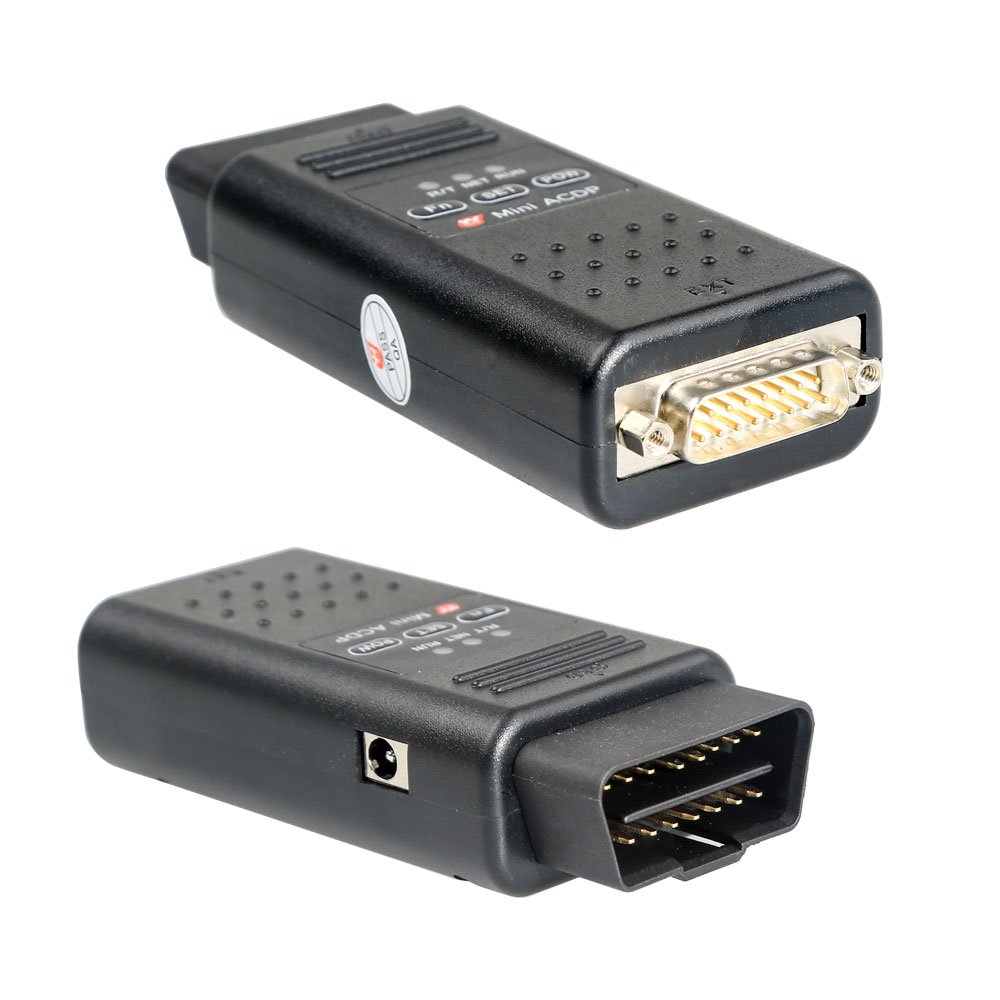

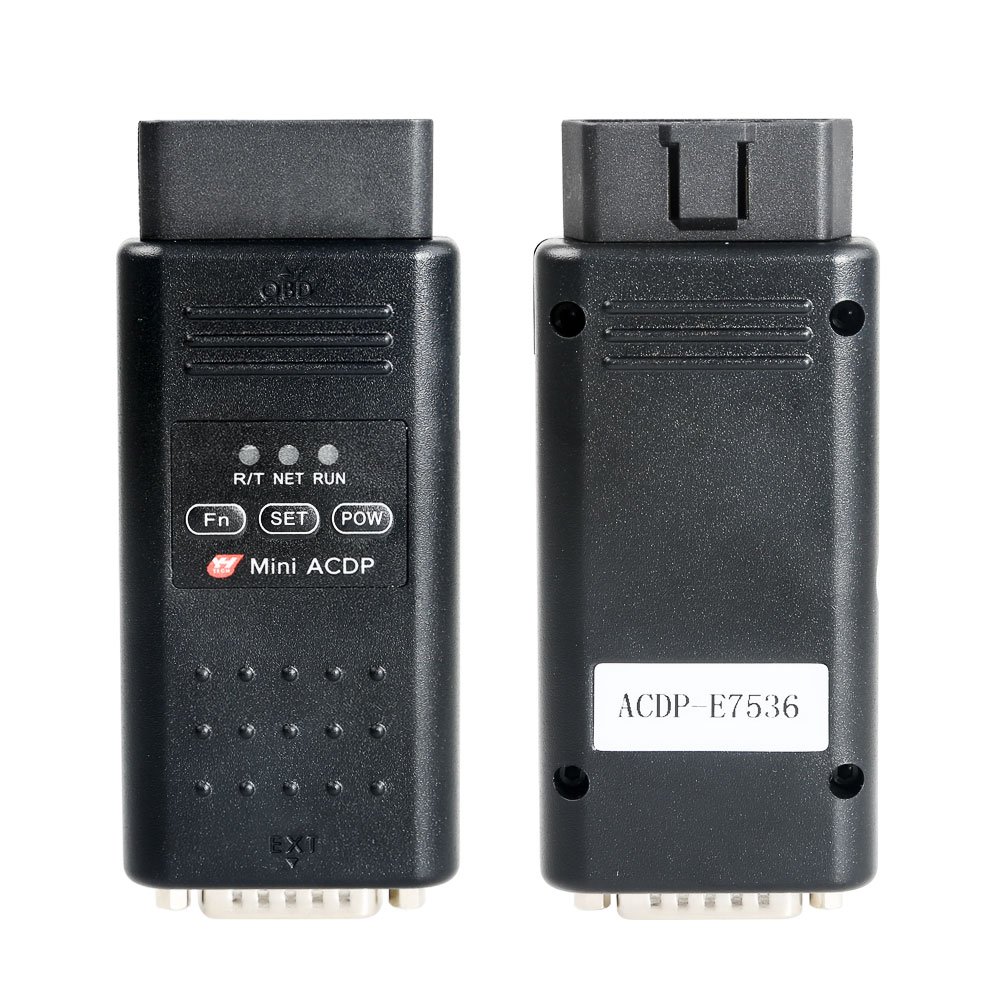

1pc xACDP Programmer Master
1pc xOBP+ICP adapter
1pc xPuncture socket
1pc xP8P ribbon cable
1pc x8P cable
1pc x20P cable
1pc x12V power adapter
3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)
1pc xBAV-KEY Adapter

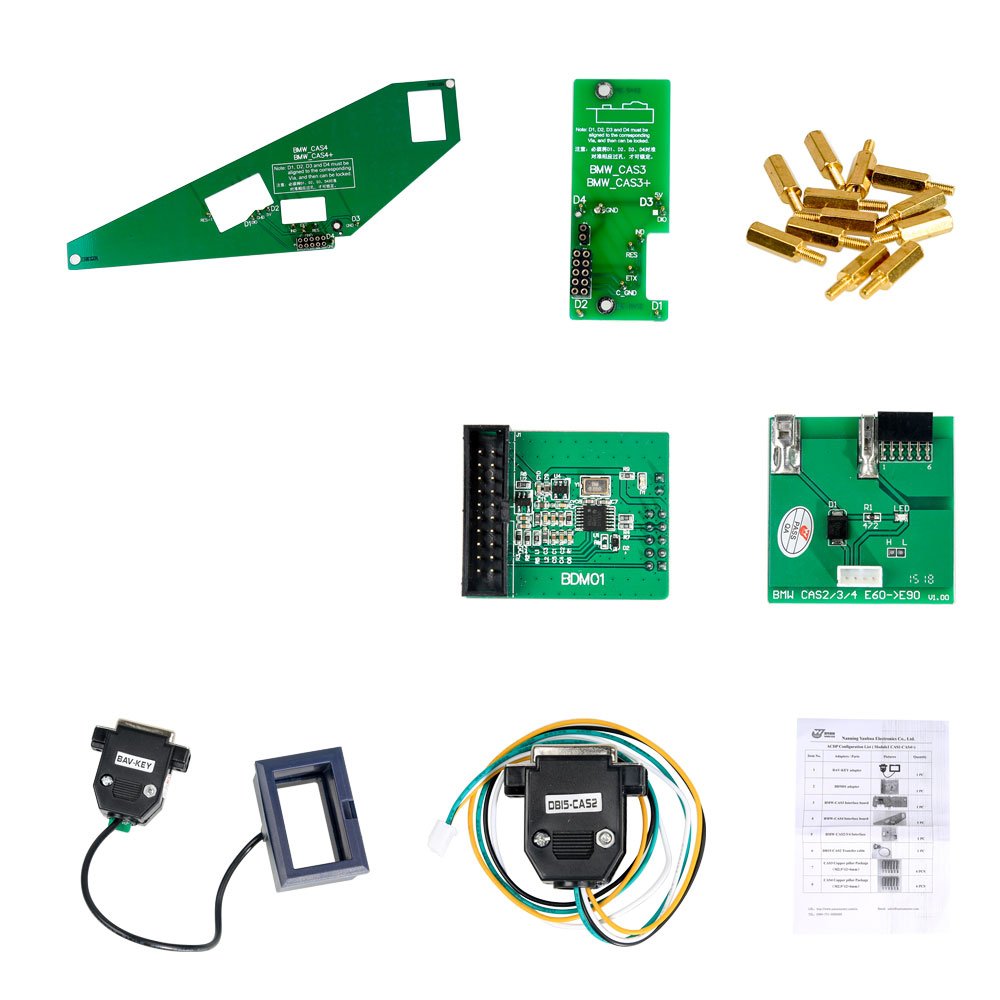

Adaper List (Module1 SK247-1)
1pc xBDM01 adapter
1pc xBMW-CAS3 interface board
1pc xBMW-CAS4 interface board
1pc xBMW CAS2/3/4 interface
1pc xCAS3 firmware package
1pc xCAS4 firmware package
Adapter List(Module2 SK247-2)
1pc xFEM bridge
1pc xBDC bridge
1pc xDesktop OBD transfer board
1pc xBMW FEM/BDC test platform
1pc xSingle-pin double-head cable
1pc xFEM bridge firmware package
1pc xBDC bridge firmware package

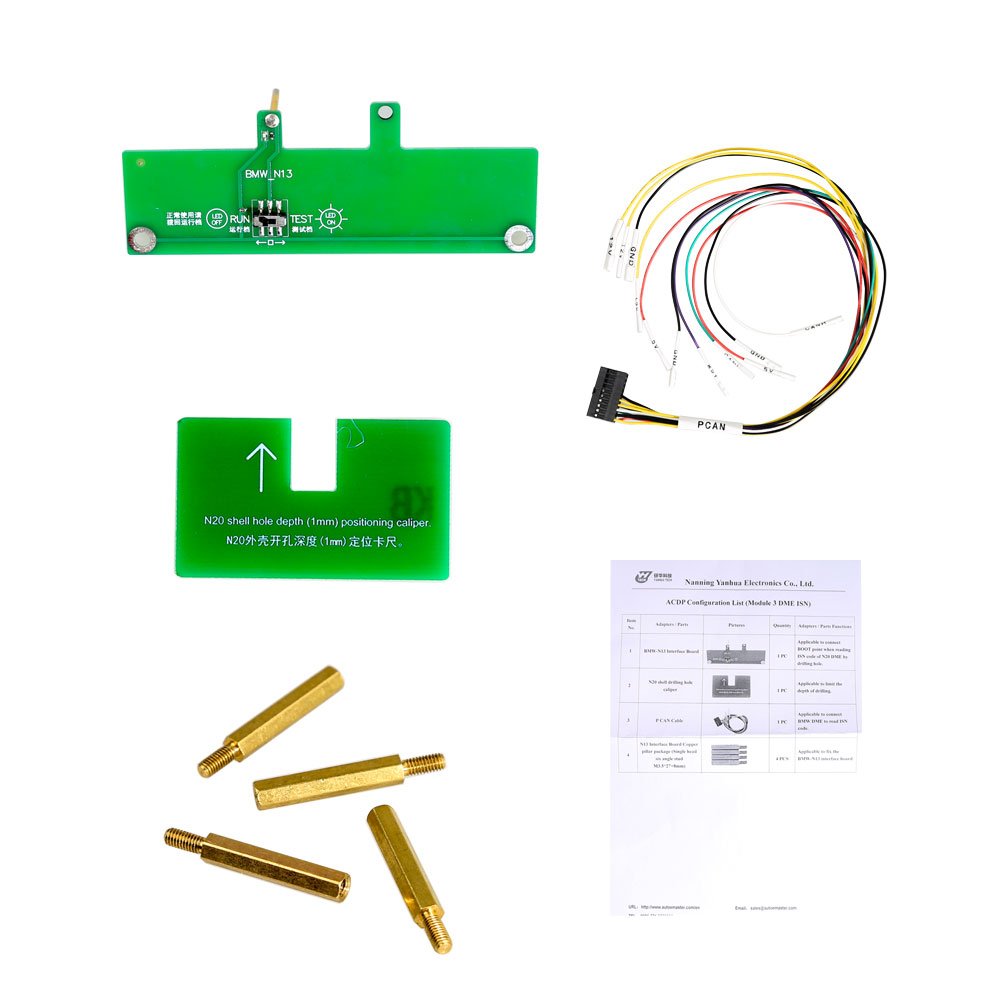

Adapter List(Module3 SK247-3)
1pc xBMW-N13 port board
1pc xN20 caliperfor opening the hole of shell
1pc xN13 firmware package of interface board
1pc x P-Can Cable
Adapter List(Module4 SK247-4)

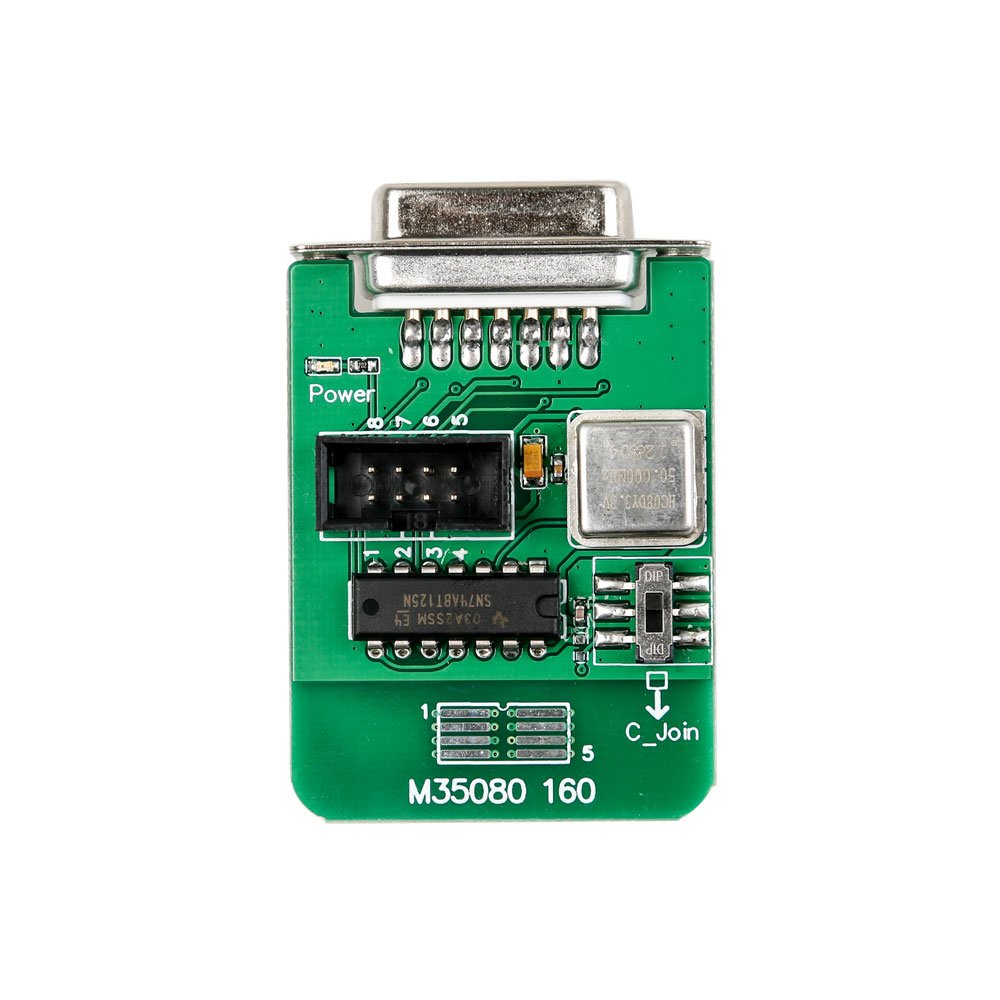

1pc x Yanhua Mini ACDP Programming Master BMW 35080 & 35160DO Adapter

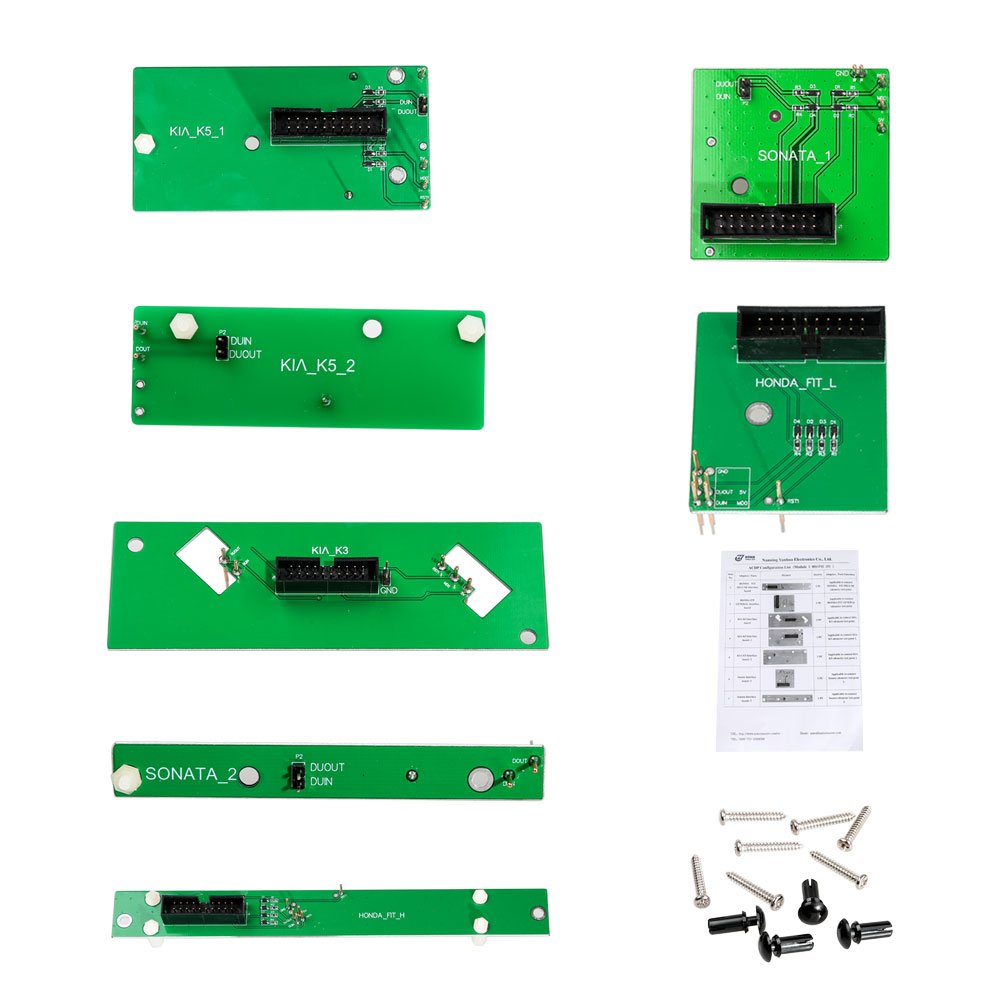

Adapter List (Module5 SK247-5)
1pc x HONDA FIT DELUXE Interface board
1pc x HONDA FIT GENERAL Interface board
1pc x KIA K3 Interface board
1pc x KIA K5 Interface board -1
1pc x KIA K5 Interface board -2
1pc x Sonata Interface board -1
1pc x Sonata Interface board -2
4pcs xKIA K3 Interface board Nylon rivets package (R5105)
7pcs xMB91FXX CPUGeneral screw package (M3x20mm)
Adapter List (Module 6 SK247-6)

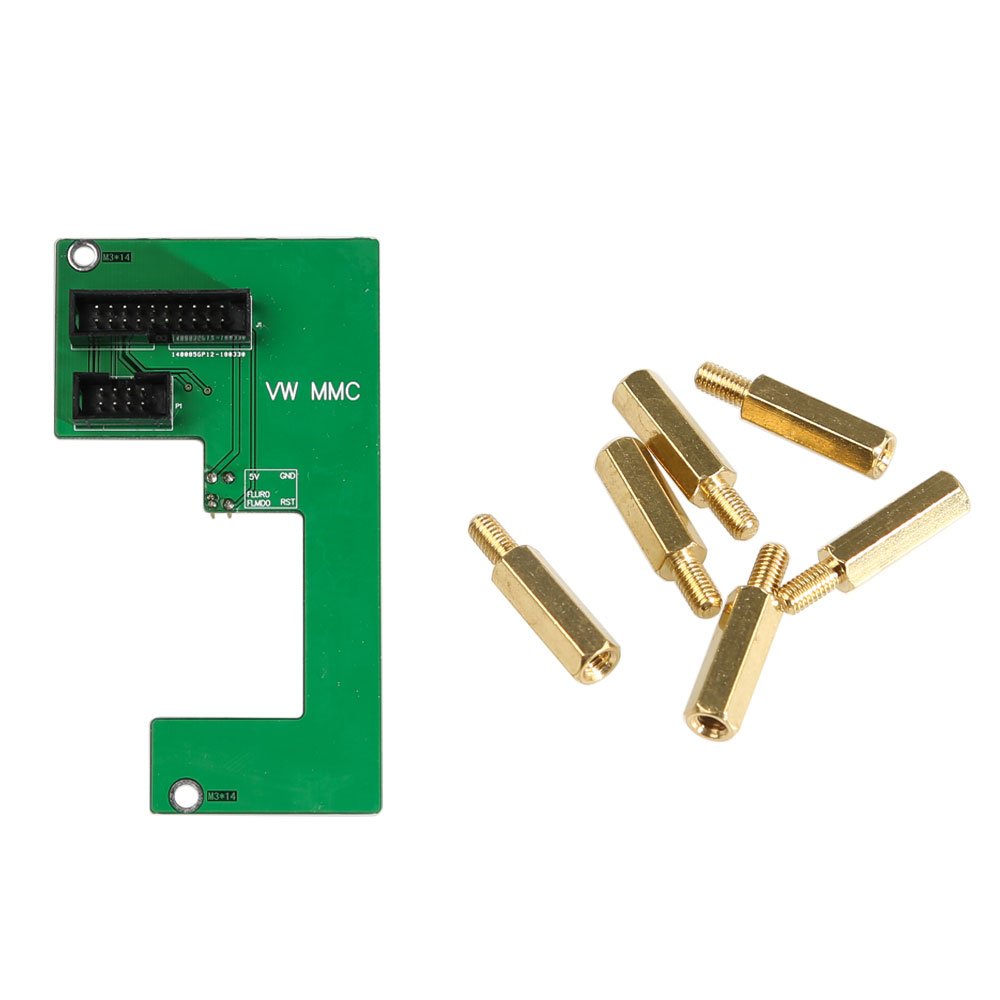

1pc xVW Passat MMC instrument interface board
6pcs xMQB/MMCCopper pillar package (Single head six angle stud M3*14+6mm)
1pc x PCF-Key Adapter

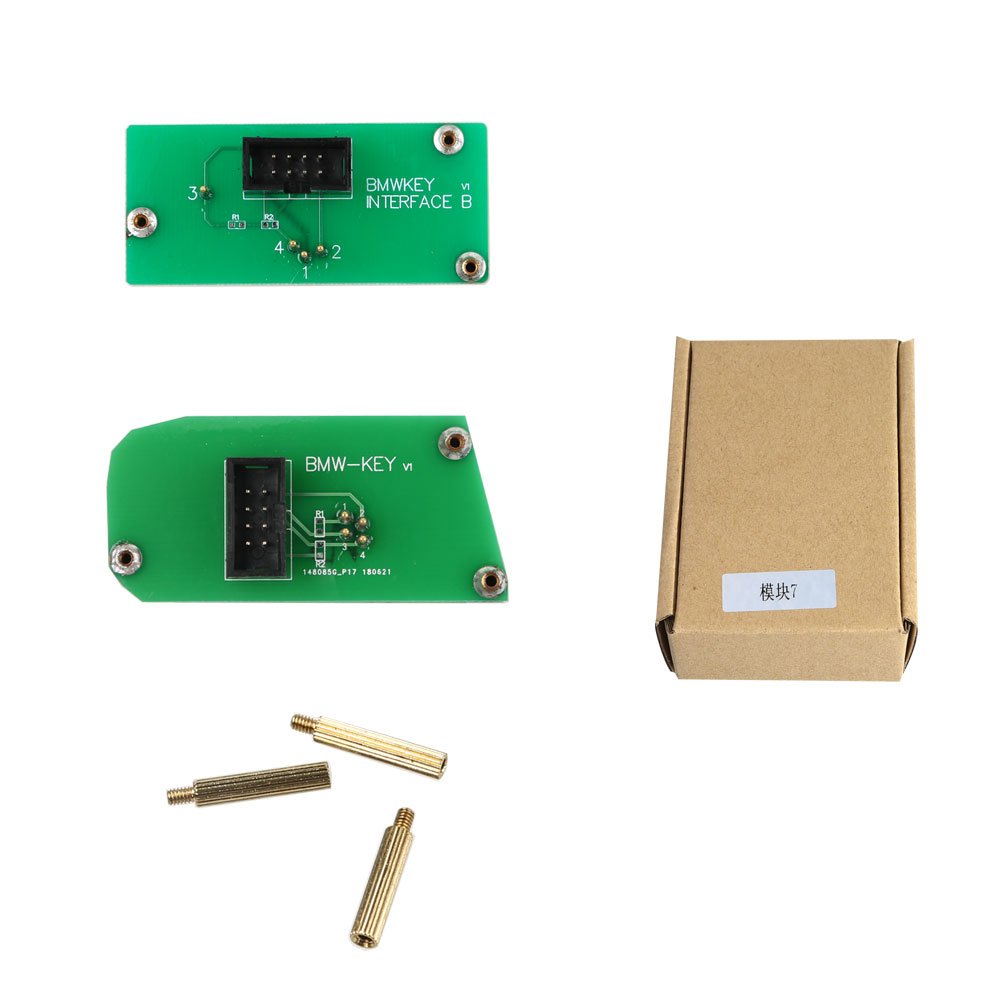

Adapter List (Module 7 SK247-7)
1pc xBMW F chassis(HUFXXXX)Key interface board
1pc xBMW F chassis(5WKXXXX)Key interface board
1pc x BMW Key simulator
6pcs x BMW Key Refresh Module Copper Pillar Package (M2*14+3)

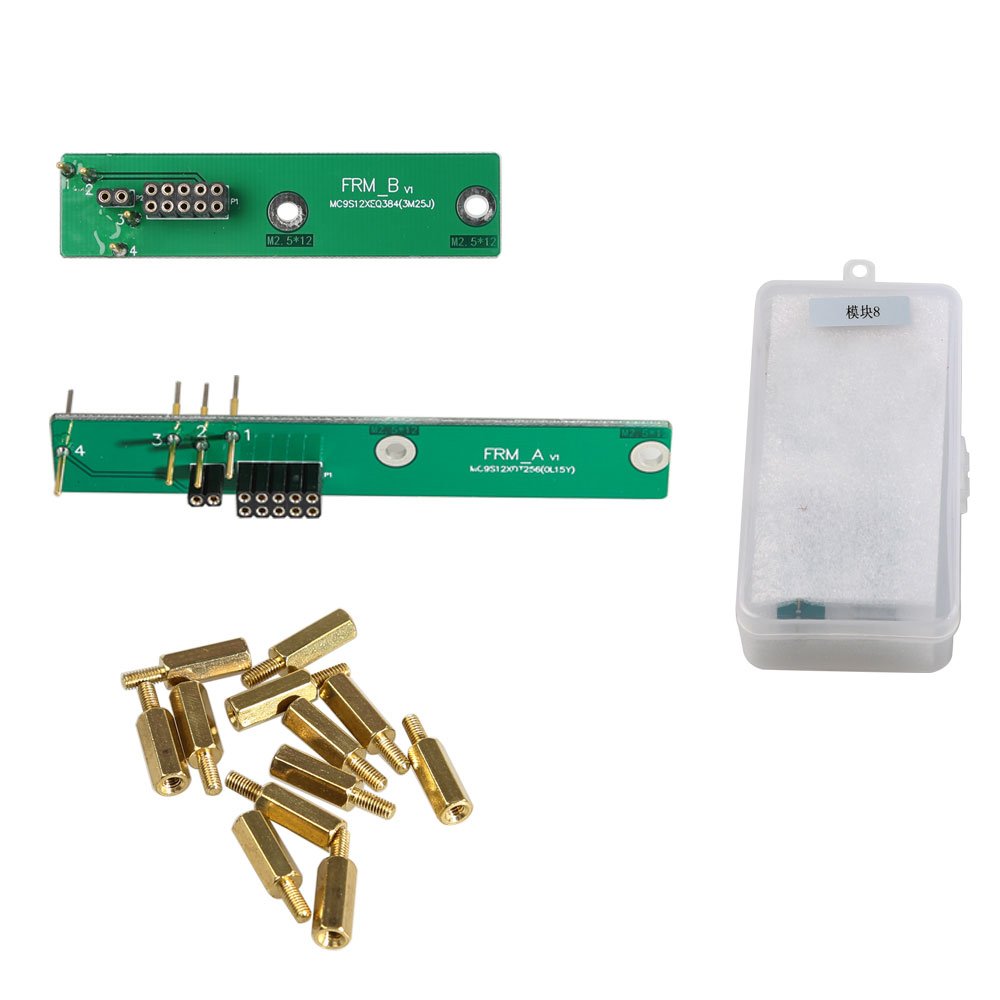

Adapter List (Module8 SK247-8)
1pc xBMW FRM module (FRM Footwell module), 0L15Y chipInterface board
1pc xBMW FRM module (FRM Footwell module), 3M25J chipInterface board
12pcs xBMW FRM module (FRM Footwell module), Copper pillar package (Single head six angle stud
M2.5*12+6mm)
Adapter List (Module9 Land Rover SK247-9)
1pc xOBP+ ICP Adapter
1pc xBDM Adapter
3pcs xKVM Module
Adapter List (Module10 Porsche Key Programming SK247-10)
1pc xPorsche BCMModule Interface board
1pc x Porsche Key refresh Interface board
2pcs x Porsche BCMModule Copper Pillar Package(M4*12+6mm)
1pc x (M4*6+6)
PC

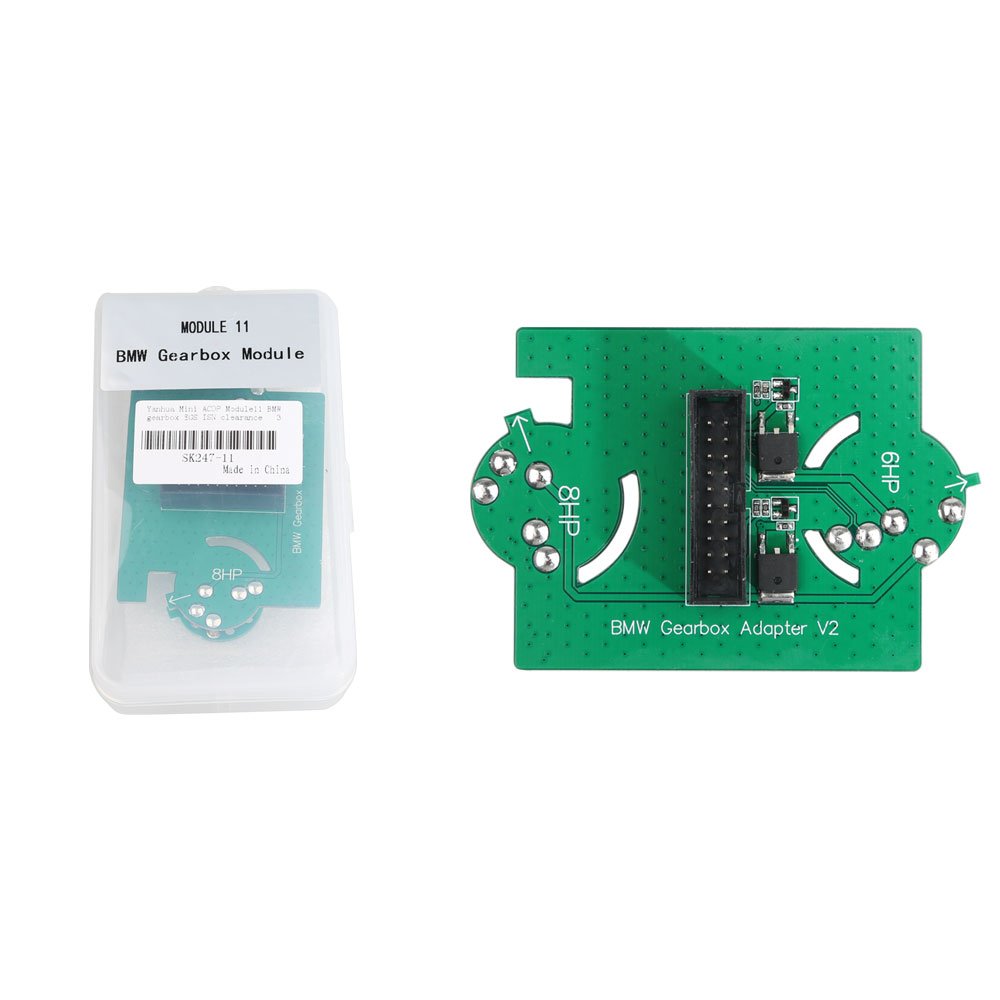

Adapter List (Module11 Clear EGS ISN Support both 6HP & 8HP)
1pc x BMW gearbox module interface board
Adapter List (Module12 Volvo Key Programming)
1pc xVOLVO Module Interface Board
